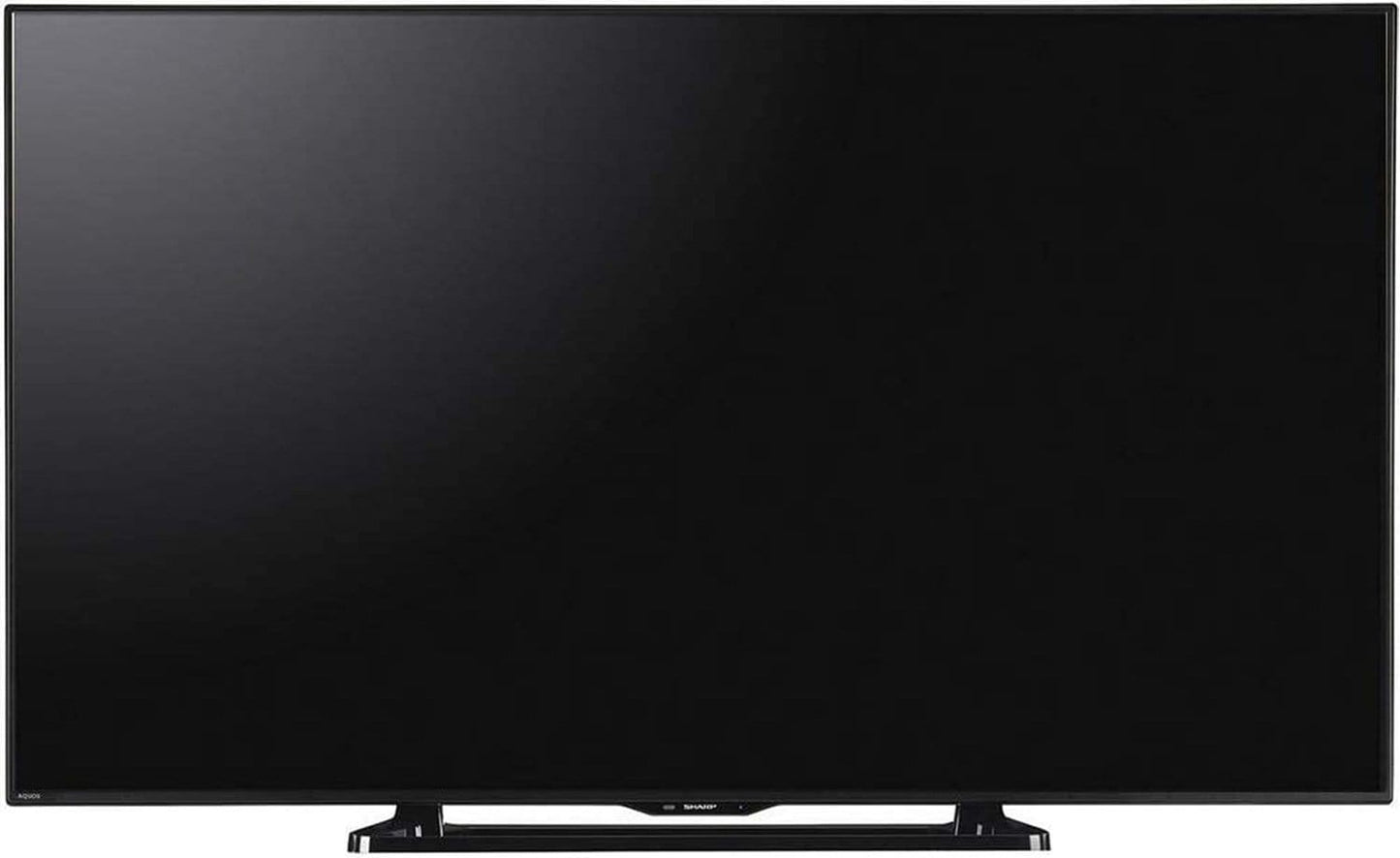

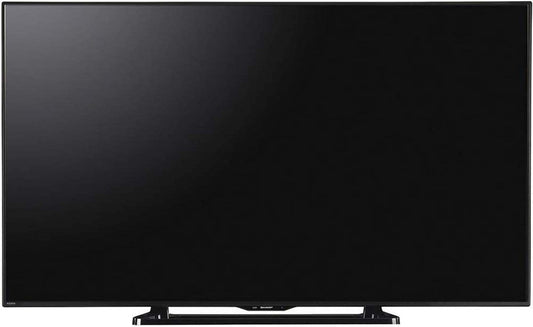

Sharp PN-LE601 60-Inch LED TV
The 60" class (60 3/32" diagonal) Sharp commercial LCD TV combines full-HD image quality and a stylishly thin profile with a built-in digital tuner for the ultimate display experience. The PN-LE601 has cutting-edge picture technology that delivers amazing detail and consistent color. This value priced commercial LCD TV is perfect for sports bars, retail stores and other businesses that need to grab the attention of consumers for a new level of engagement.
Specifications:
- LCD panel:
- Size: 60" Class (60 3/32" Diagonal)
- Resolution: 2,073,600 pixels (1,920 x 1,080)
- TV Function:
- Receiving Channel
- VHF/UHF: VHF 2-13ch, UHF 14-69ch
- CATV: 1-135ch (non-scrambled channel only)
- Digital Terrestrial Broadcast (8VSB): 2-69ch
- Digital cable*1 (64/256 QAM): 1-135ch (non-scrambled channel only)
- Audio multiplex: BTSC System
- Audio out: 10W x 2
- Terminals:
- Back panel vertical side:
- HDMI IN 3: HDMI in with HDCP, MHL
- USB: Photo/Music/Video mode, Software update, USB keyboard/mouse, Wallpaper Picture
- RS-232C: 9-pin D-sub male connector.
- Back panel surface side:
- HDMI IN 1: HDMI in with HDCP, ARC
- HDMI IN 2: HDMI in with HDCP, Audio in (Ø 3.5 mm stereo jack)
- COMPONENT/VIDEO IN COMPONENT: in, AV in
- VIDEO IN 1: AV in
- PC IN: ANALOG RGB (PC) in (15-pin mini D-sub female connector), Audio in (Ø 3.5 mm stereo jack)
- ANT/CABLE: 75 Ω Unbalance, F Type x 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)
- AUDIO IN: Audio in (Ø 3.5 mm stereo jack)
- AUDIO OUT: Audio out (RCA)
- DIGITAL AUDIO OUT: Optical Digital audio out x 1 (PCM/Dolby Digital/DTS)
- ETHERNET: Network connector
- OSD language: English/French/Spanish
- Power Requirement: AC 120 V, 60 Hz
- On Mode Power: 72 W
- Power Consumption: 150 W (0.5 W Standby with AC 120 V)
- Weight:
- TV + stand: 56.2 lbs./25.5 kg
- TV only: 52.9 lbs./24.0 kg
- Dimensions W x H x D inch (mm):
- TV + stand: 53 23/64(1355) x 32 31/64(825) x 13 3/4(349)
- TV only: 53 23/64(1355) x 31 3/16(792) x 3 25/64(86)
- Size: 60" Class (60 3/32" Diagonal)
- Resolution: 2,073,600 pixels (1,920 x 1,080)
- Receiving Channel
- VHF/UHF: VHF 2-13ch, UHF 14-69ch
- CATV: 1-135ch (non-scrambled channel only)
- Digital Terrestrial Broadcast (8VSB): 2-69ch
- Digital cable*1 (64/256 QAM): 1-135ch (non-scrambled channel only)
- Audio multiplex: BTSC System
- Back panel vertical side:
- HDMI IN 3: HDMI in with HDCP, MHL
- USB: Photo/Music/Video mode, Software update, USB keyboard/mouse, Wallpaper Picture
- RS-232C: 9-pin D-sub male connector.
- Back panel surface side:
- HDMI IN 1: HDMI in with HDCP, ARC
- HDMI IN 2: HDMI in with HDCP, Audio in (Ø 3.5 mm stereo jack)
- COMPONENT/VIDEO IN COMPONENT: in, AV in
- VIDEO IN 1: AV in
- PC IN: ANALOG RGB (PC) in (15-pin mini D-sub female connector), Audio in (Ø 3.5 mm stereo jack)
- ANT/CABLE: 75 Ω Unbalance, F Type x 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)
- AUDIO IN: Audio in (Ø 3.5 mm stereo jack)
- AUDIO OUT: Audio out (RCA)
- DIGITAL AUDIO OUT: Optical Digital audio out x 1 (PCM/Dolby Digital/DTS)
- ETHERNET: Network connector
- TV + stand: 56.2 lbs./25.5 kg
- TV only: 52.9 lbs./24.0 kg
- TV + stand: 53 23/64(1355) x 32 31/64(825) x 13 3/4(349)
- TV only: 53 23/64(1355) x 31 3/16(792) x 3 25/64(86)
