SGM SGMQ7 RGBW LED Fixture 4-Pack with BDQ7 Barn Doors 4-Pack and Road Case

SGM SGMQ7 RGBW LED Fixture 4-Pack with BDQ7 Barn Doors 4-Pack and Road Case

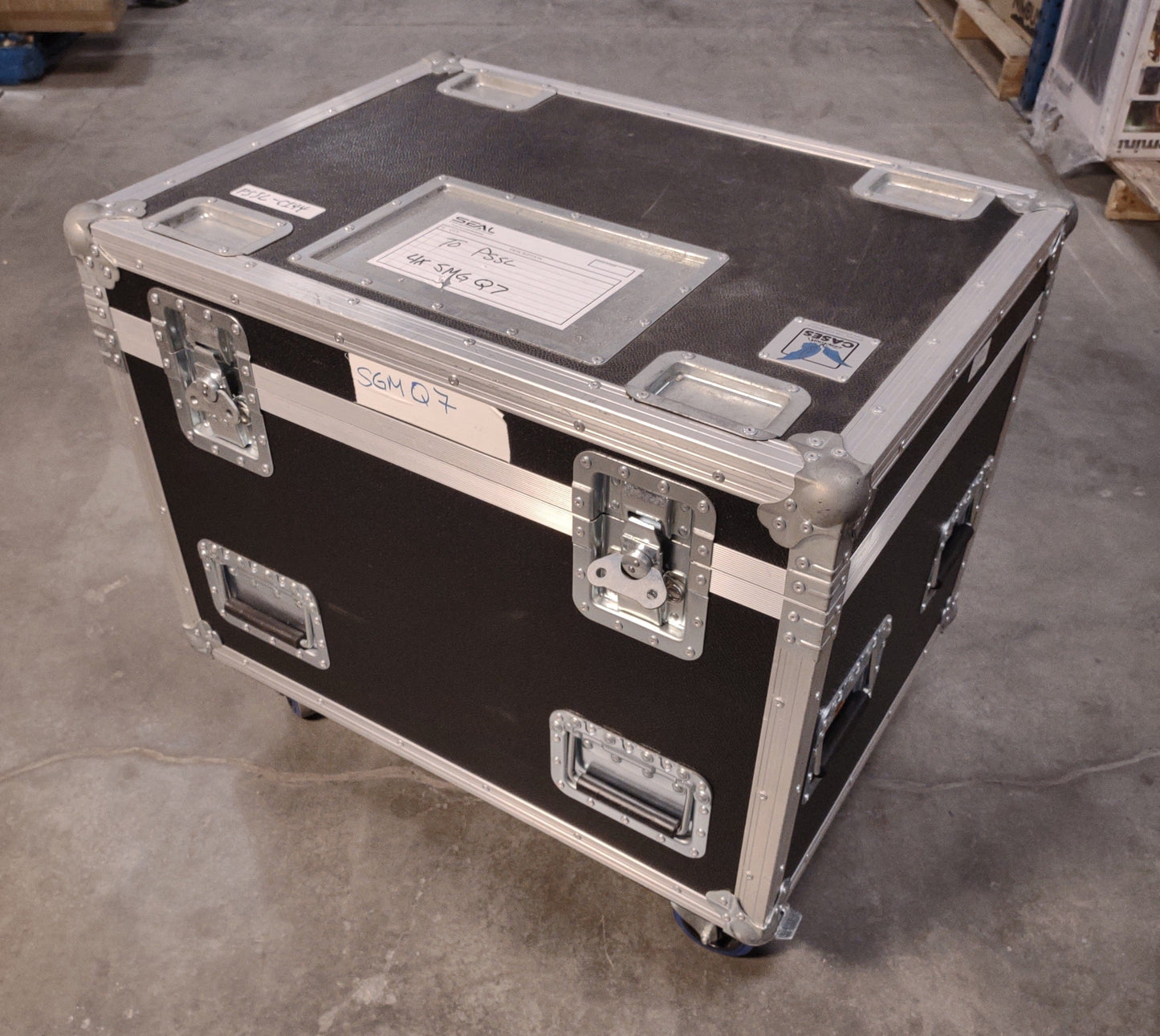

This package contains 4 units of the SGM SGMQ7 RGBW LED Fixture and 4 units of the SGM BDQ7 Barn Doors in a sturdy road case.

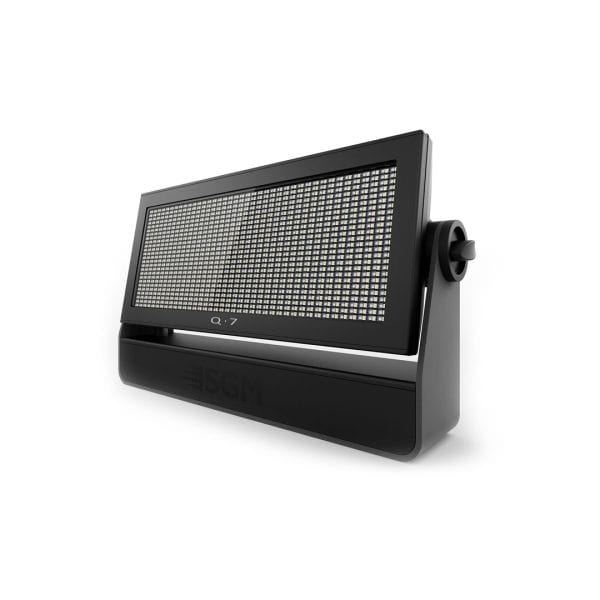

Specs for each SGM SGMQ7 RGBW LED Fixture unit:

The Q-7 has defined a new level of power, accuracy, and flexibility in the lighting world, well-known as the most versatile strobe light in the industry. Not only is it a stunningly bright audience blinder, it is also a low-profile flood light and an accurate wide-angle wash luminaire. Its excellent performance in any conditions is the primary reason why some of the top lighting designers choose the Q-7 as their main light for touring, events, theatrical productions, architectural installs, or corporate shows. Due to its revolutionary product features, the Q-7 won the prestigious PIPA Award for Best Lighting Product of the Year 2015.

SGM Lighting Q-7 Features

• A flood light, weighing only 8.1 kg/17.9 lbs.
• Multi-environmental luminaire due to its IP65/IP66-rating that enable operation in all kinds of environmental settings and in temperatures from -40 °C to 50 °C.
• 2000 high-power RGBW (Q-7) / 1000 high-power cool white LEDs (Q-7W), with an expected lifetime of 50,000 hours*.
• Low power consumption.
• Diming and color mixing (Q-7/Q-7 POI only).
• Adjustable color temperature correction (CTC) from 2000K to 10000 (Q-7/Q-7 POI only). The Q-7W/Q-7W POI has a fixed 5700K color temperature.
• Programmable standalone programs.
• Fully RDM implemented, compliant with the USITT DMX512 standard.
• Powerful high-speed strobe.
• Continouus output and LED Frequency control.
• Optional accessories, such as barndoors, color frames, anti-glare shields, etc.
• Built-in wireless DMX (standard only).
• Corrosion classified C5-M (marine) for coastal and offshore areas with high salinity (POI only).

SGM Lighting Q-7 Specifications

• Optical Data
• LED expected lifetime: 50,000 hours
• Lens: 110° fixed
• Lightsource: 2,000 x RGBW SMD LEDs (5,700K)
• Photometric
• Beam angle(s): 110° (with 110° lens)
• Color temperature range: 2000K - 10000K
• CRI typical: 84
• Efficacy: 53 lm/W
• Light output all LEDs on: 25163 lm
• Light output blue: 1256 lm
• Light output green: 6948 lm
• Light output red: 3193 lm
• Lux @ 10m: 95 lux
• Lux @ 3m: 1051 lux
• Lux @ 5m: 378 lux
• Maximum Field Angle: 146°
• Physical
• Color options: Black - RAL 9004, Custom color - Any RAL, White - RAL 9010
• Corrosion class: C5-M (ISO 12944)
• IP class: IP65
• Lens Material: Tempered glass front
• Material: Aluminium
• Net dimensions: 497 x 268 x 122 mm
• Net dimensions inches: 19.6 x 10.6 x 4.8 inches
• Net weight: 8.1 kg (17.9 lbs)
• Features
• Dimming: Electronic
• Strobe: Ultra-high-speed strobe effects
• Tilt: 0 - 190°
• Electrical
• AC Power, nominal: 208 - 240V 50/60Hz
• Electrical Protection: Overload protection
• Max Inrush Current 230VAC: 75 A
• Max power consumption: 465 W
• Power factor: 99 PF (230 V)
• Standby power consumption: 8 W
• Typical power consumption: 450 W
• Programming and Control
• 16-bit control: Dimmer, Red, Green, Blue
• Cabled DMX: 5 pin XLR input/output
• DMX channels: 3, 4, 6, 8, 9 or 10
• DMX modes: 7
• Protocol: USITT DMX512A
• Wireless DMX (LumenRadio): RDM ANSI E1.20
• Setting and addressing: OLED graphical display / 4 buttons, RDM ANSI E1.20, RFID, Standalone mode
• Standalone mode: Quick Color, Standalone mode programmable via RFID, Up to 24 programmable scenes
• Wireless DMX: Lumen Radio with RDM
• Connections
• DMX data in/out: IP65 XLR 5-pin cable 0.5m
• Power: Power cable 1 meter with bare ends
• Installation
• Mounting point: 2 x 2 quarter-turn locking points for one or two Omega brackets
• Orientation: Any
• Rigging possibilities: Floor stand (included) or hanging (Omega clamps included)
• Safety features: Bottom mount for safety wire, Minimum distance to combutible materials: 0.3 meter (11 in).
• Thermal
• Cooling: Active, Forced Air, Temperature-regulated
• Humidity (max.): 98 %
• Temperature range, Operating: -40°C to 50°C
• Temperature range, Start-up: -20°C to 50°C
• Temperature range, Storage: -40°C to 80°C
• Thermal Protection: Automatic overtemperature protection
• Conforms To
• CE - 2014/30/EU: EMC Directive: EN 55103-1, EN 55103-2, EN 55015, EN 61547
• EN 61000-3-2, EN 61000-3-3
• CE - 2014/35/EU: Low Voltage Directive: EN 60598-1, EN 60598-2-17
• EN 62471, EN 60529
• RoHS2 Directive: 2011/65/EU
• UL: UL Std. 1573
• Certified To
• CSA: CSA-E598-2-17-98, Ed: 1, CSA E60598-1, Ed: 3

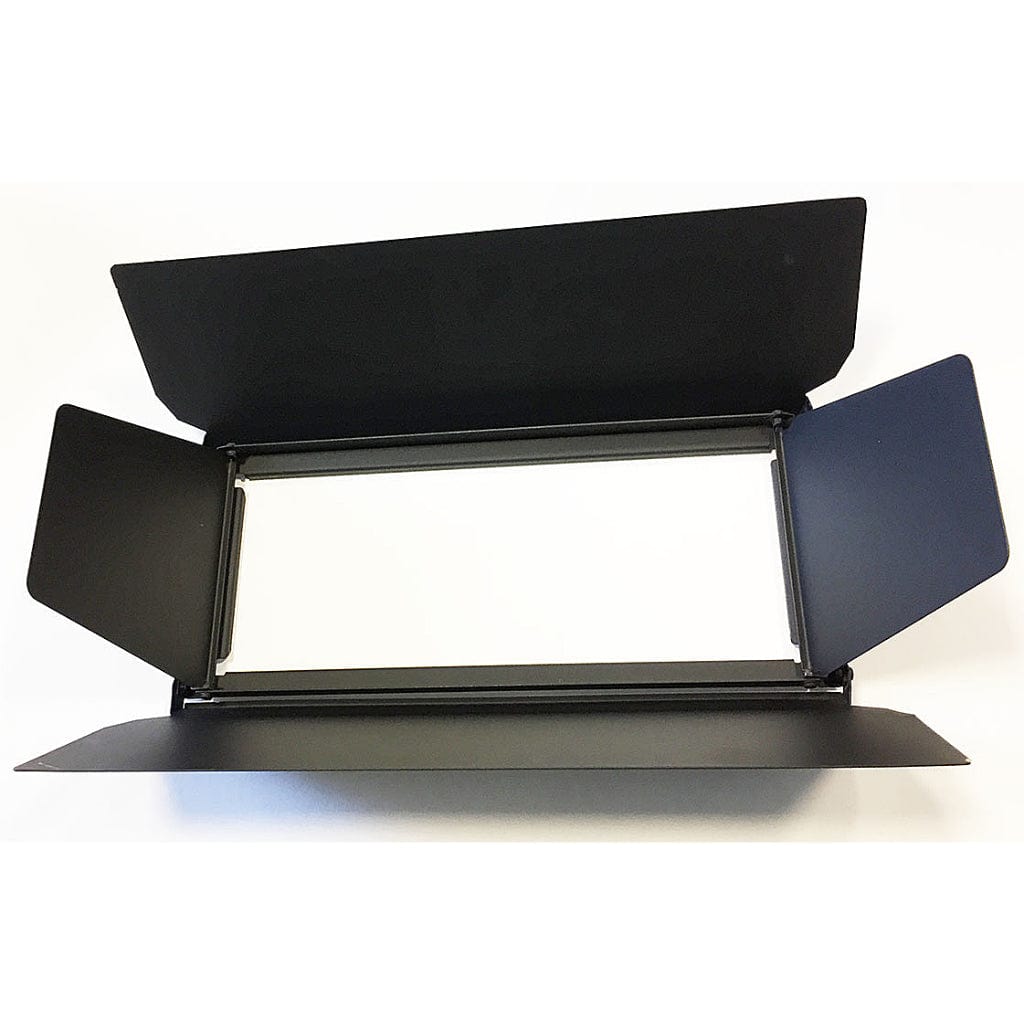

Specs for each SGM BDQ7 Barn Doors unit:

• Click-on 4-way barndoors with 4 adjustable flaps
• Easy and fast mounting: No tools required
• These barndoors can be combined with the filter accessories for P-6
• Suitable for theatres, concerts, amusement parks, TV/broadcasting and much more
