Sennheiser XSW Digital Portable Lavalier Set
XS Wireless Digital Portable Lavalier Set. One-touch ease-of-use wireless audio set with XSW-D 3.5mm (1/8") transmitter, XSW-D 3.5mm (1/8") receiver, ME2-II clip-on lavalier mic, 3.5mm (1/8") coiled cable, cold shoe mount, belt clip and USB-A to USB-C charging cable
One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. Equipped with an ME2-II lavalier microphone, this elegant solution makes capturing dialogue on a DSLR easier than ever before while maintaining a reliable connection.
What's in the box:
- XSW-D 3.5mm (1/8") transmitter
- XSW-D 3.5mm (1/8") receiver
- ME2-II clip-on lavalier mic
- 3.5mm (1/8") coiled cable
- Cold shoe mount
- Belt clip

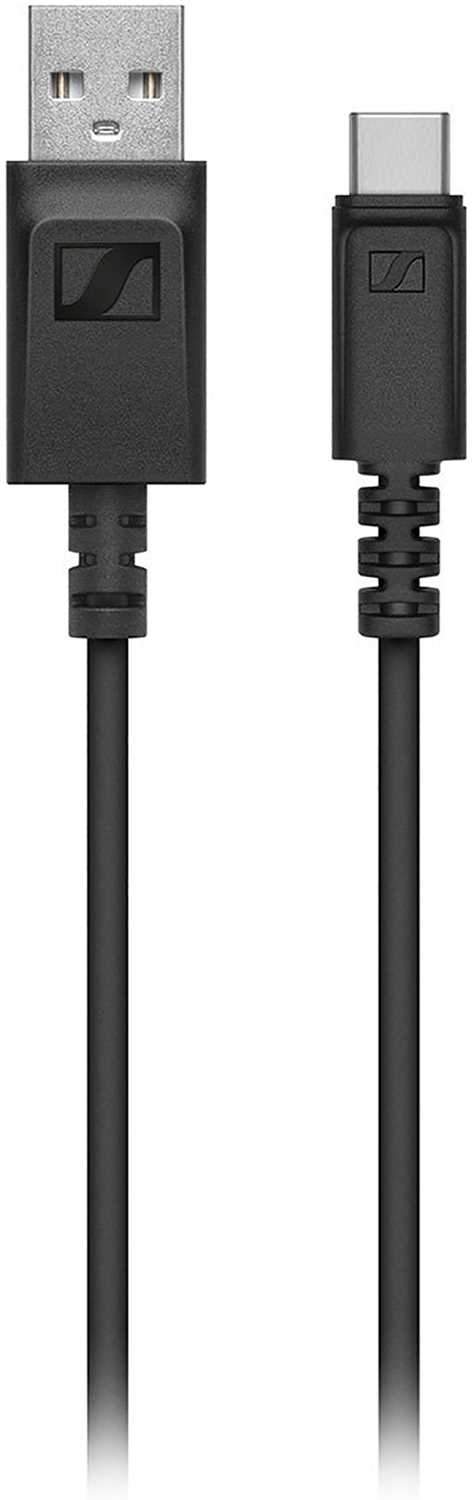

- USB-A to USB-C charging cable
Features:
- One touch ease-of-use
- 2.4 GHz digital transmission for worldwide operation
- 75m range (250ft) in optimal conditions
- Up to 5 hours battery life on a single charge
- Switch between multiple transmitters linked to one receiver
- Configure any combination of transmitters and receivers
- Mute from either transmitter or receiver
Specifications:
- Dimensions:
- XSW-D XLR Female TX: approx. 102 x 24 x 28 mm
- XSW-D Mini Jack TX: approx. 86 x 24 x 28 mm
- XSW-D Instrument TX: approx. 122 x 24 x 28 mm
- XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
- XSW-D Mini Jack RX: approx. 86 x 24 x 28 mm
- XSW-D Instrument RX: approx. 122 x 24 x 28 mm
- XSW-D Pedalboard RX: approx. 130 x 82 x 51 mm
- THD, total harmonic distortion: < 0.1 %
- Charging time: typ. 3 h
- Audio output: max. 12 dBu
- Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)
- Signal-to-noise ratio: ? 106 dB
- Operating time: up to 5 h
- Modulation: GFSK with TDMA
- Battery Specification: Li-Ion
- Capacity: 850 mAh
- Codecs: aptX® Live
- Frequency range: 2,400 - 2,483.5MHz
- Max. Input voltage: typ. 5.0 V
- Transmission power: max. 10 mW
- Voltage: 3.7 V
- Operating relative humidity : 95 % (non-condensing)
- Latency: < 4 ms
- Temperature Range: 0 °C - 60 °C (32 °F - 140 °F)
- Audio frequency response:
- 3.5 mm Jack/XLR: 80 - 18,000 Hz
- 6.3 mm Jack: 10 - 18,000 Hz
- Dimensions:
- XSW-D XLR Female TX: approx. 102 x 24 x 28 mm
- XSW-D Mini Jack TX: approx. 86 x 24 x 28 mm
- XSW-D Instrument TX: approx. 122 x 24 x 28 mm
- XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
- XSW-D Mini Jack RX: approx. 86 x 24 x 28 mm
- XSW-D Instrument RX: approx. 122 x 24 x 28 mm
- XSW-D Pedalboard RX: approx. 130 x 82 x 51 mm
- THD, total harmonic distortion: < 0.1 %
- Charging time: typ. 3 h
- Audio output: max. 12 dBu
- Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)
- Signal-to-noise ratio: ? 106 dB
- Operating time: up to 5 h
- Modulation: GFSK with TDMA
- Battery Specification: Li-Ion
- Capacity: 850 mAh
- Codecs: aptX® Live
- Frequency range: 2,400 - 2,483.5MHz
- Max. Input voltage: typ. 5.0 V
- Transmission power: max. 10 mW
- Voltage: 3.7 V
- Operating relative humidity : 95 % (non-condensing)
- Latency: < 4 ms
- Temperature Range: 0 °C - 60 °C (32 °F - 140 °F)
- Audio frequency response:
- 3.5 mm Jack/XLR: 80 - 18,000 Hz
- 6.3 mm Jack: 10 - 18,000 Hz
