Sennheiser XSW 1-825 Wireless Handheld Mic with e825
Raise your voice. Go for XS Wireless 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS Wireless 1 Vocal set is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) to get started and to perform under pressure. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.
Features: - Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e825)
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote
- channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
- Includes: (1) receiver EM-XSW 1, (1) handheld transmitter SKM 825-XSW, (1) microphone clamp MZQ 1, (1) power supply NT 12-5 CW, (2) AA batteries
Specifications:System (XSW 1-825, XSW 1-835) - Modulation: wideband FM
- Frequency ranges:
- A: 548-572 MHz, GB: 606-630 MHz
- B: 614-638 MHz, C: 766-790 MHz
- D: 794-806 MHz,
- E: 821-832 MHz, 863-865 MHz
- K: 925-937.5 MHz
- Switching bandwidth: up to 24 MHz
- Frequencies: 8 frequency banks, each with up to 10 factory-preset channels
- Signal-to-noise ratio: ? 103 dBA
- THD: ? 0.9%
- Temperature range operation: 0°C to +40°C; storage: –20°C to +70°C
- Transmitter synchronization: 2.4 GHz, low power OQPSK (only active during synchronization)

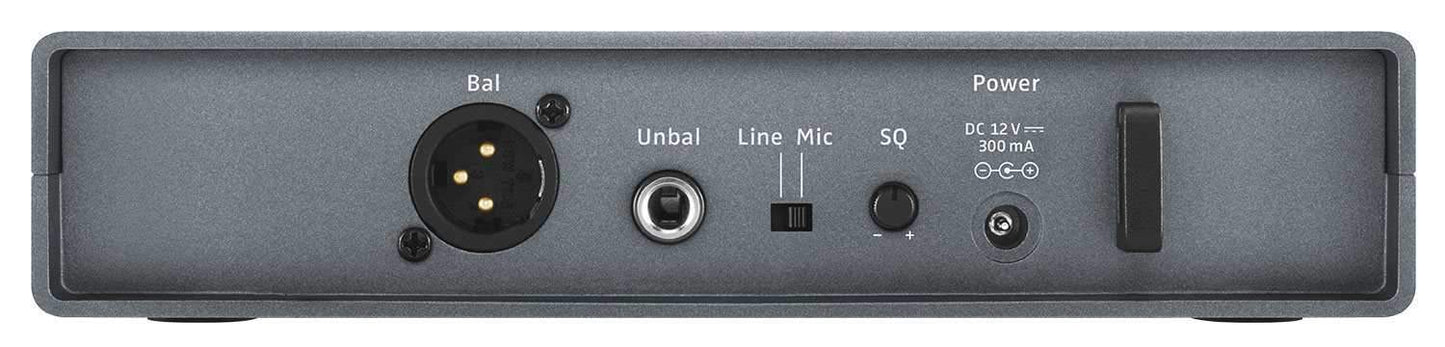

Receiver (EM-XSW 1) - Receiver principle: double superheterodyne
- Diversity principle: antenna switching diversity via internal antennas
- Sensitivity (at peak deviation): < 3 ?V at 52 dB(A)rms S/N
- AF frequency response: 50 to 16,000 Hz (–3 dB)
- Max. AF output voltage (at peak deviation, 1 kHz AF): 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Audio adjustment range: 45 dB, adjustable in 5-dB steps
- Power supply: 12V DC nom. / 300 mA
- Squelch: adjustable from 3 dB?V to 28 dB?V (combined with pilot tone)
- Line/mic level: 20 dB, switchable
- Housing material: rugged ABS housing
- Dimensions: approximately 200 mm x 42 mm x 127 mm (WxHxD)
- Weight: approximately 340g
Microphone (SKM 825-XSW 1) - RF output power: 10 mW
- AF frequency response: 80-14,000 Hz
- Power supply: 2 AA size batteries, 1.5V
- Operating time: approximately 10 hrs
- Microphone type: dynamic
- Pick-up pattern: cardioid
- Input sensitivity (capsule): 1.5 mV / Pa
- Adjustment range of transmitter sensitivity: 0 to -30 dB, adjustable in 10 dB steps
- Housing material: rugged ABS housing
- Dimensions: approximately 260 mm x 50 mm
- Weight: approximately 245g
