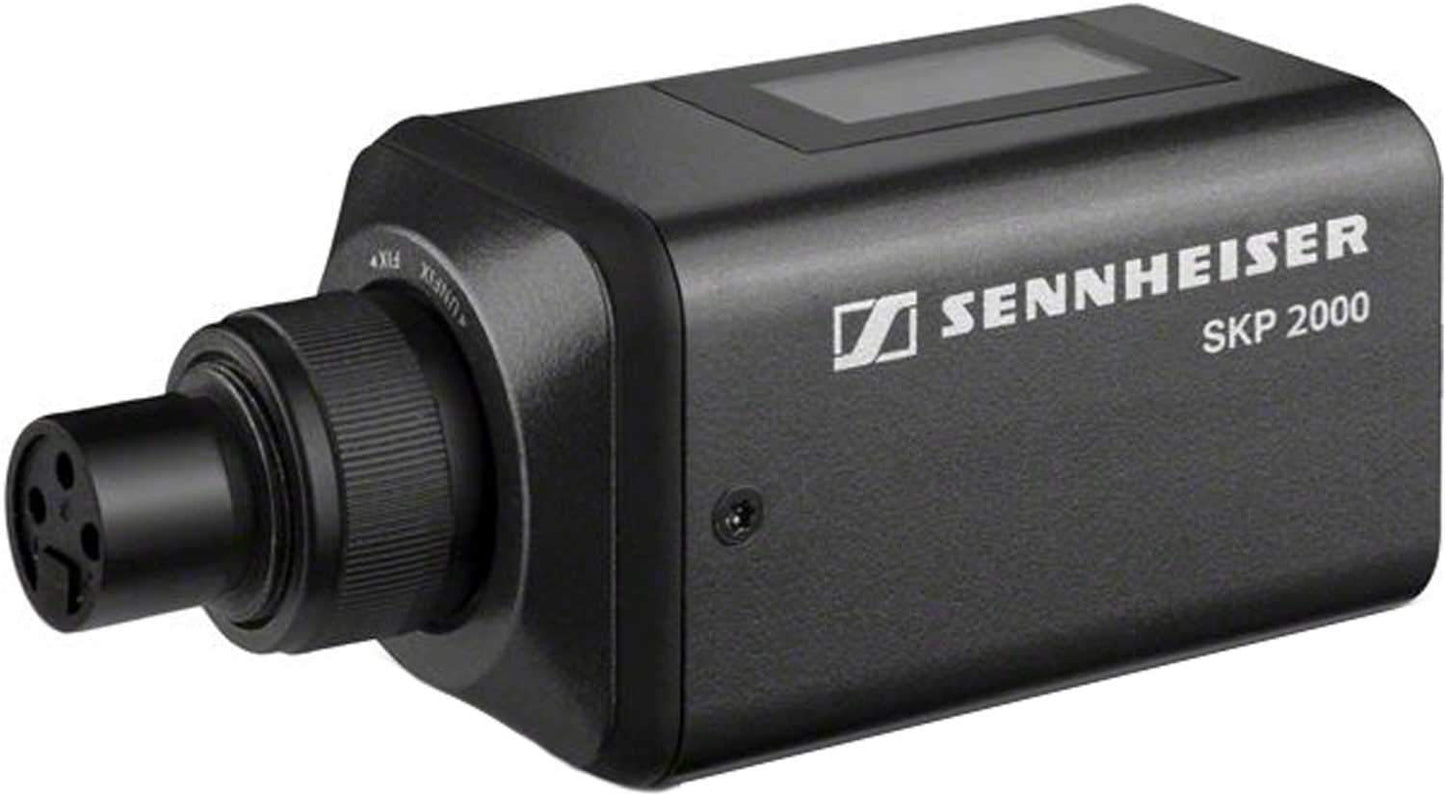

Sennheiser SKP 2000XP-GW Plug Transmitter with 48V GW
Plug-on transmitter that turns XLR-equipped microphones into wireless ones. Compatible with all 2000 series receivers. Up to 6 x 64 user-programmable channels. Easy synchronization with receiver via infrared interface.
Practically any wired microphone can be a player in Sennheiser's 2000 ensemble. This plug-on transmitter makes it possible. Five frequency ranges with up to 75 MHz switching bandwidth also provide optimum flexibility for all components in the 2000 series. The transmitter settings on SKP 2000 can also be synchronized quickly and easily using infrared technology. Equipped with triple switchable transmission power and phantom powering, SKP 2000 is incredibly versatile.
What's in the box?
- 1 SKP 2000XP-GW plug-on transmitter
- 1 POP 1 protective pouch
- 2 AA 1.5 V batteries
- 1 instruction manual
- 1 supplementary frequency sheet
- 1 supplementary RF power sheet
Features:
- Rugged metal housing
-
- Up to 75 MHz switching bandwidth
-
- 20 fixed frequency bands with up to 64 compatible presets
-
- 6 banks each with up to 64 tunable channels
-
- Frequency setting in 25 kHz steps
-
- Pilot tone squelch for interference-free operation
-
- 48 V switchable phantom powering
-
- Backlit display on transmitter (keystroke activation)
-
- Auto-lock feature to prevent buttons from accidently being pressed
-
- Audio and RF Mute feature for muting the transmitter
-
- Can be synchronized with the receiver using infrared interface
-
- Wide range of accessories for virtually any use
-
- Transmitters can be configured from the receiver menu
-
Specifications:
- Frequency range: 558 / 626 MHz
- Dimensions: 105 x 43 x 43 mm
- Compander: HDX
- Audio-XLR connector: XLR-3 weiblich
- Frequency response: 80 - 18000 Hz
- Weight: 380 g
- Signal-to-noise ratio: ? 120 dBA (@ 1 mV peak deviation)
- RF frequency range: 516...865 MHz
- RF output power: 10, 30, 50 mW (US : 100 mW)
- Peak deviation: ± 48 kHz
- Nominal deviation: ±24 kHz
- In compliance with: CE, FCC, IC
- Operating time: > 8 h (P48: 5h)
- Modulation: FM
- Carrier frequencies: max. 3000
- Input voltage range: mic 1,2 V max
- Battery Specification: 2 x 1,5 V (AA)
