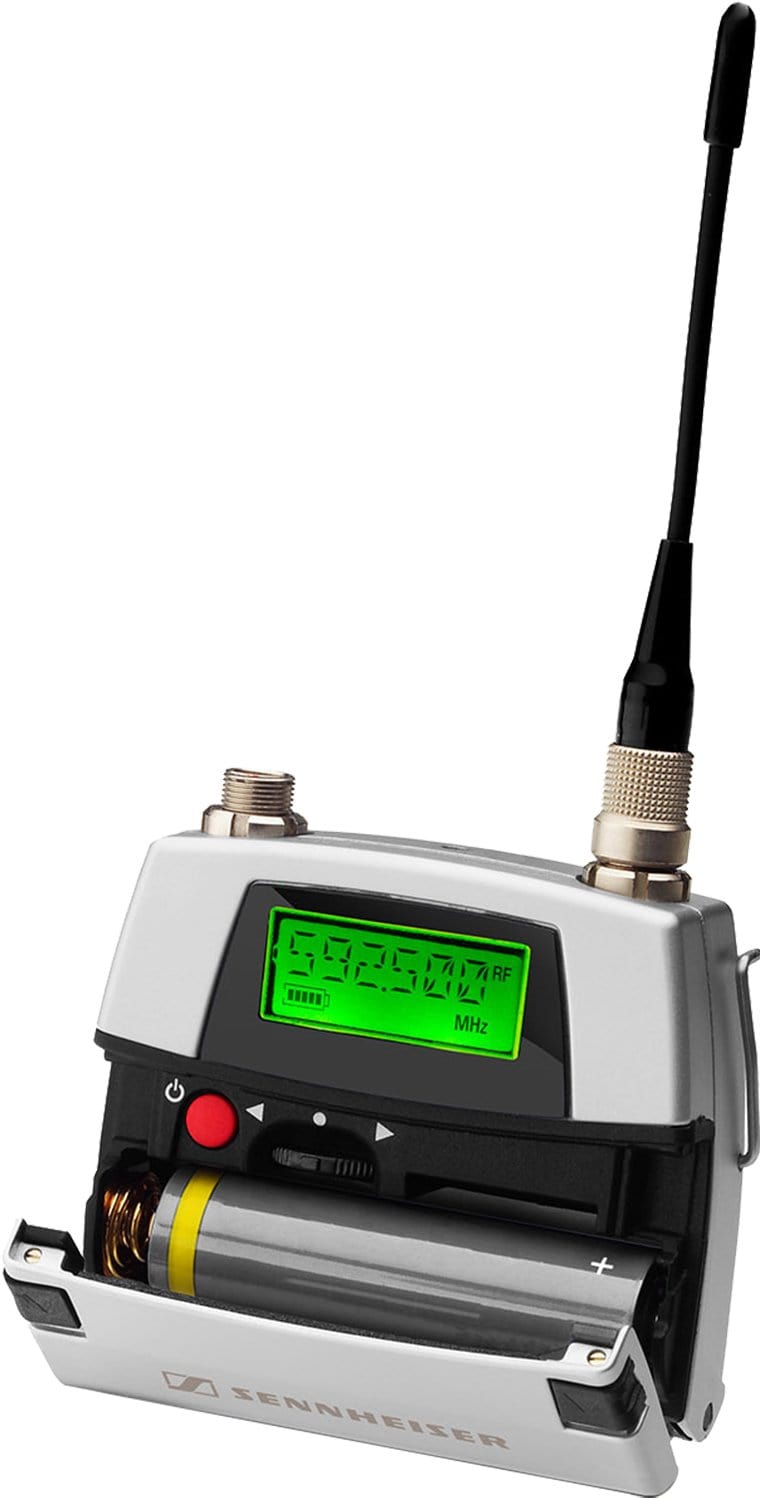

Sennheiser SK 5212 IIL Beltpack Transmitter
SK 5212-II bodypack transmitter combines reliability and diversity in very small housing. Its compact design makes transmitter inconspicuous and comfortable to wear. New extended switching bandwidth of up to 184MHz provides extra flexibility. Transmission power can be adjusted to improve transmission duration while meeting regional regulations. Also low intermodulation mode (LoI) increases interference immunity, especially during multi-channel operation. An input sensitivity range of 30 to +40dB makes transmitter suitable for use in quiet interview situations as well as with very powerful singing voices in musicals. Its menu-driven user interface with backlit LCD is remarkably simple and intuitive. With its extensive power spectrum, low power consumption of the SK 5212-II particularly impressive one alkaline manganese battery (mignon/AA) lasts for at least 5.5 hours of operation. SK 5212-II is available in L, N and P frequency variants.
Features:
- Up to 184 MHz switching bandwidth
- Switchable output power
- Very compact and rugged housing
- Audio sensitivity adjustable in steps of 1 dB from -30 to +40 dB
- 1 AA battery for at least 51/2 hrs od operating time
- Frequencies adjustable in steps of 5 kHz
- Jog dial for increased ease of use
- Switchable low-cut
Specifications:
- Frequency response:
- 606 - 790 MHz
- 776 - 866 MHz
- 614 - 697,9 MHz
- 614 - 798 MHz
- 470 - 638 MHz
- Dimensions: 53 x 60 x 17 mm
- Frequency response (Microphone): 60 - 20000 Hz
- Compander: HiDyn plus
- THD, total harmonic distortion: < 0,3 %
- Storage temperature: -25 °C à +70 °C
- Operating temperature: -10 °C à +55 °C
- RF frequency range: 470 - 866 MHz
- Number of channels:
- Frequency bank "FIX" with up to 59 factory-preset frequencies
- Frequency bank "VAR" with 20 freely selectable frequencies (frequencies tunable in steps of 5 kHz)
- Peak deviation: +/- 56 kHz
- Nominal deviation: +/- 40 kHz
- Operating time: PWR.LO: approx. 11h, PWR.HI: approx. 5,5h, PWR.LoI: approx. 5,5 h
- Power supply: 1 AA battery
- Current consumption: PWR.LO: approx. 150 mA, PWR.HI: approx. 220mA, PWR.LoI: approx. 220 mA
- Input voltage range: 7,75 mV, sensitivity
- Dynamic range: typ. 110 dB (A)eff
- High pass filter: flat, 120 Hz switchable
