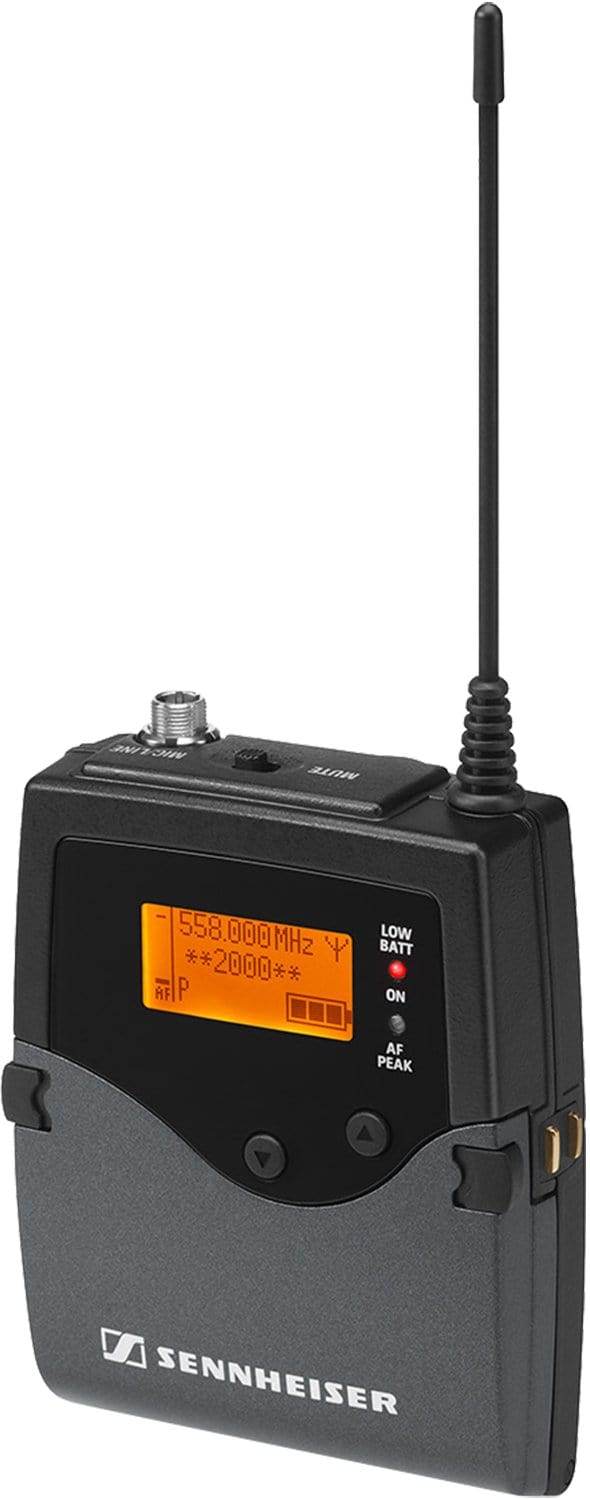

Sennheiser SK 2000 AW Belt Transmitter 516-558MHz
May only be purchased as part of a complete wireless system
This lightweight yet extremely rugged bodypack transmitter is a delight for both the musician and the audience. With an AF frequency response of 25 to 20,000 Hz, it transmits even the sound of a bass guitar with rich fundamentals. Four RF output powers provide longer transmission ranges or more channels per frequency range.
Features:
- Sturdy all-metal housing
- Up to 75 MHz switching bandwidth
- 20 fixed frequency banks with up to 64 compatible presets
- 6 banks each with up to 64 tunable channels
- Frequency setting in 25 kHz steps
- Pilot tone squelch for interference-free operation
- External charging contacts for recharging battery BA 2015 in the transmitter
- Backlit display on transmitter (keystroke activation)
- Auto-lock feature to prevent buttons from being pressed accidently
- Audio and RF MUTE feature for muting the transmitter
- Wide range of accessories for virtually any use
- Enhanced audio frequency response in the bass range for optimum transmission from bass guitars
- Input sensitivity above 60 dB can be set in 3 dB steps
- Transmitters can be configured from the receiver menu
- Can be synchronized with the receiver using infrared interface
- Wide range of accessories for virtually any use
Specifications:
- Frequency range:
- 516 ... 558 MHz / US
- 558 ... 608 MHz / US
- 925 ... 937.5 MHz / Korea
- 516 ... 558 MHz
- 626 ... 698 MHz
- 718 ... 790 MHz
- 790 ... 865 MHz
- 558 ... 626 MHz
- 606 ... 678 MHz / UK
- Dimensions: 82 x 64 x 24 mm
- Compander: HDX
- Audio-XLR connector: Sennheiser (3-pin) Socket
- Presets: max. 64
- Weight: 160 g
- Signal-to-noise ratio: > 120 dB(A) (@ 1 mV, peak deviation)
- RF frequency range: 516 ... 866 MHz
- RF output power: 10, 30, 50 mW (US: 100 mW)
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- In compliance with: CE , FCC, IC
- Operating time: typ. 8 h
- Modulation: FM
- Power supply: 2 x 1,5 V (AA)
- Carrier frequencies: max. 3000
- Input impedance:
- mic.: 40 kΩ
- Input impedance:
- line:1 MΩ
- Max. Input voltage: 3 V (mic + line)
- Frequency range:
- 516 ... 558 MHz / US
- 558 ... 608 MHz / US
- 925 ... 937.5 MHz / Korea
- 516 ... 558 MHz
- 626 ... 698 MHz
- 718 ... 790 MHz
- 790 ... 865 MHz
- 558 ... 626 MHz
- 606 ... 678 MHz / UK
- Dimensions: 82 x 64 x 24 mm
- Compander: HDX
- Audio-XLR connector: Sennheiser (3-pin) Socket
- Presets: max. 64
- Weight: 160 g
- Signal-to-noise ratio: > 120 dB(A) (@ 1 mV, peak deviation)
- RF frequency range: 516 ... 866 MHz
- RF output power: 10, 30, 50 mW (US: 100 mW)
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- In compliance with: CE , FCC, IC
- Operating time: typ. 8 h
- Modulation: FM
- Power supply: 2 x 1,5 V (AA)
- Carrier frequencies: max. 3000
- Input impedance:
- mic.: 40 kΩ
- Input impedance:
- line:1 MΩ
- Max. Input voltage: 3 V (mic + line)
