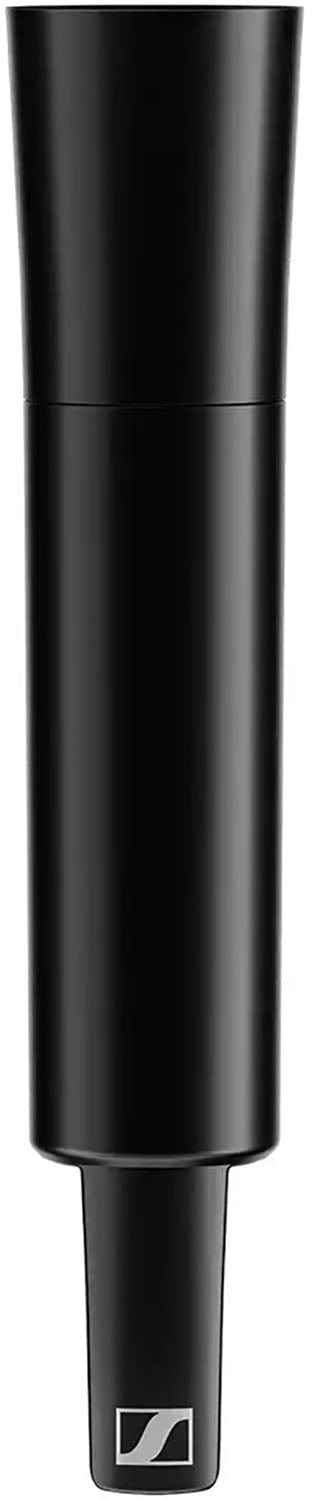

Sennheiser EW-DX SKM (R1-9) Handheld Transmitter without Switch

Sennheiser EW-DX SKM (R1-9) Handheld Transmitter without Switch

Digital wireless handheld transmitter without a switch compatible with Evolution Wireless Digital systems. It features a rugged metal housing with a standard capsule interface for a wide range of Sennheiser and Neumann microphone modules. The transmitter offers up to 12 hours of runtime, a persistent E-Ink display, and charging contacts for in-device charging.

Sennheiser EW-DX simplifies professional workflows by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live productions benefit from a network-ready system designed to integrate seamlessly. The system quickly assesses the environment and uses equidistant channel spacing to deploy frequencies, while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow for remote system monitoring. In-device charging, 12-hour battery operation, and switching bandwidth up to 88 MHz are just a few of the many features that make EW-DX the right tool for the job.

Features:

• 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• 10mW fixed RF power for up to 100 m/328 ft of range
• Charging contacts for in-device charging with CHG 70N charger (sold separately)
• Persistent E-Ink display for "always on" information - parameters visible on screen even when batteries are removed
• Up to 12 hours of operation time with rechargeable lithium-ion battery BA 70 (sold separately)
• Function buttons - control all the transmitter settings directly from the handheld including button lock function
• Digital audio trim
• Test tone generator
• Switchable LED configuration (On/Off)
• Switchable low cut (Off, 30, 60, 80, 100, 120 Hz)
• Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)
• Sennheiser Standard Capsule Interface - compatible with a wide range of Sennheiser and Neumann capsules (sold separately)
• Metal housing
• Worldwide usage (specific frequencies subject to local RF regulations)
• Note: All components of the Evolution Wireless Digital Family are designed to interoperate. Please be aware of restrictions of features linked to the respective series, such as switching bandwidth and use of Link Density mode.

Specifications:

• System:
  • Audio Link Frequency Ranges: 520 - 607.8 MHz
  • Bluetooth® Low Energy (BLE) Frequency Range: 2402 - 2480 MHz
  • Audio Frequency Response: 20 Hz - 20 kHz (-3 dB)
  • Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
  • Dynamic Range: 134 dB
  • System Latency: 1.9 ms
  • Operating Temperature: -10 °C - +55 °C (14 °F - 131 °F)
  • Relative Humidity: 5 - 95 % (non-condensing)
• EW-DX SKM (Handheld Transmitter):
  • Input Voltage: 2.0 - 4.35 V
  • Input Current: < 300 mA
  • Power Supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
  • Occupied Bandwidth: 200 kHz
  • Transmit Power (Radiated):
    • Audio Link: 10 mW ERP (Range Y1-3: 12 mW ERP)
    • LD Mode: 10 mW ERP
    • BLE: Max. 10 mW EIRP
  • Dimensions:
    • With MMD 835 Microphone Module: 50 x 268 mm (1.97" x 10.55")
    • Without Microphone Module: 40 x 200 mm (1.57" x 7.87")
  • Weight:
    • With MMD 835 Microphone Module: Approx. 304 g (0.67 lbs)
    • Without Microphone Module: Approx. 195 g (0.43 lbs)
