Sennheiser ew 572 G3 Wireless Instrument Mic A1

Sennheiser ew 572 G3 Wireless Instrument Mic A1

Instrument set with cable emulator and silent configuration modus: EM 500 G3 true diversity receiver, SK 500 G3 bodypack transmitter, CI 1 instrument cable. Remote-controllable via "Wireless Systems Manager".

You have worked hard to achieve your signature tone, Sennheiser ew 572 G3 lets you keep that tone while clearing the stage of cables. Guitarists and bass guitarists will enjoy the features of this system even before they play a single note. In addition to automatic wireless setup via the enhanced sync function, the components can programmed without transmitting RF (silent configuration mode). The set also is equipped with soundcheck mode, which allows the signal strength and the RF and audio levels to be checked continuously on the large front panel display. An enhanced AF frequency response that starts at 25 Hz will satisfy even the most discriminating 5-string bass players. An integrated 5-band equalizer, guitar tuner, and a guitar cable virtual length emulator complete this feature-rich set.

• 1 EM 500 G3 rack-mount receiver
• 1 SK 500 G3 bodypack transmitter

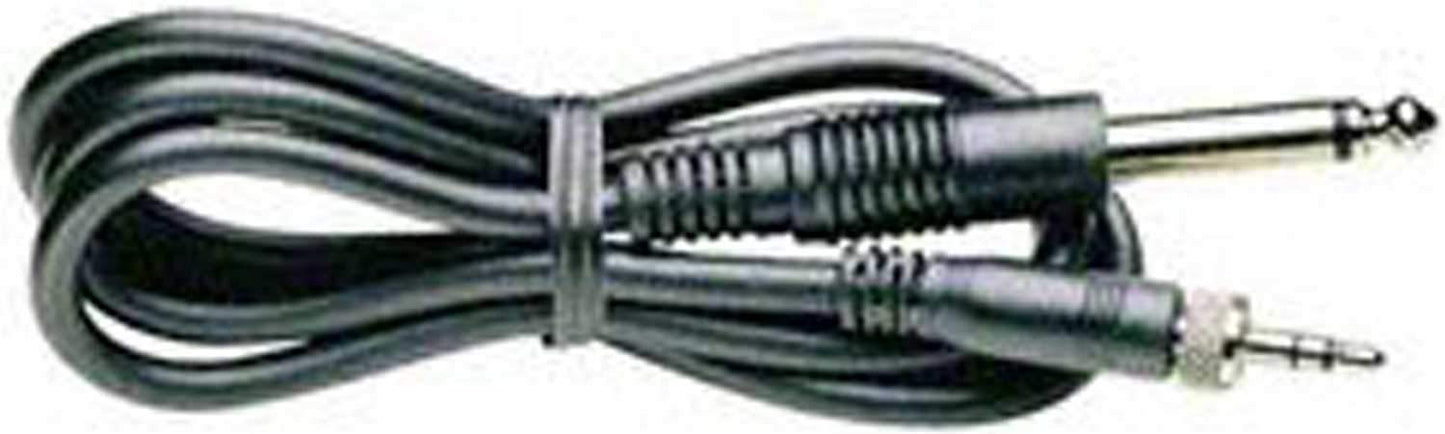

• 1 CI 1 instrument cable
• 1 GA 3 rack mount
• 1 NT 2 power supply unit
• 2 antennas
• 2 AA size batteries
• Operating instructions

Features:

• Sturdy metal housing (transmitter and receiver)
• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
• Enhanced frequency bank system with up to 32 compatible frequencies
• Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
• High-quality true diversity reception
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Automatic frequency scan feature searches for available frequencies
• Enhanced AF frequency range
• Increased range for audio sensitivity
• Wireless synchronization of transmitter parameter from receiver
• User-friendly menu operation with more control options
• Illuminated graphic display, receiver also shows transmitter settings
• Auto-Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• Transmitter feature battery indicatation in 4 steps, also shown on receiver display
• Programmable Mute function
• Integrated Equalizer, Soundcheck mode and guitar tuner
• Contacts for recharging BA 2015 accupack directly in the transmitter
• Wide range of accessories adapts the system to any requirement

Specifications:

• Frequency range: 470 - 516 MHz
• Dimensions: Transmitter: 82 x 64 x 24 mm
• Frequency response (Microphone): 25 - 18000 Hz
• Compander: HDX
• Presets: 32
• THD, total harmonic distortion: < 0,9 %
• Weight: Receiver: 980 g
• Signal-to-noise ratio: > 115 dB(A)
• RF frequency range: 516...865 MHz
• RF output power: 10/30 mW
• Transmission/receiving frequencies: 1680
• Switching bandwidth: 42 MHz
• Peak deviation: +/- 48 kHz
• In compliance with: ETS 300422, ETS 300445, CE, FCC
• Operating time: Transmitter: > 8 h
• Antenna connector: 2 BNC, 50 ?
• Input voltage range: max. 3,0 V eff line
• Audio output level (balanced) XLR : +18 dBu max
• Audio output level (unbalanced) Jack : +12 dBu max
