Sennheiser ew 500 BOOM G4 Evolution Wireless Portable Plug-on Mic AW Plus

Sennheiser ew 500 BOOM G4 Portable Plug-on Mic AW+

Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording

The professional‘s choice for broadcast quality sound. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use. The phantom power-equipped SKP 500 plug-on transmitter adapts any wired shotgun or handheld microphone for a wide range of wireless applications, from field interviews to off-camera boom work.

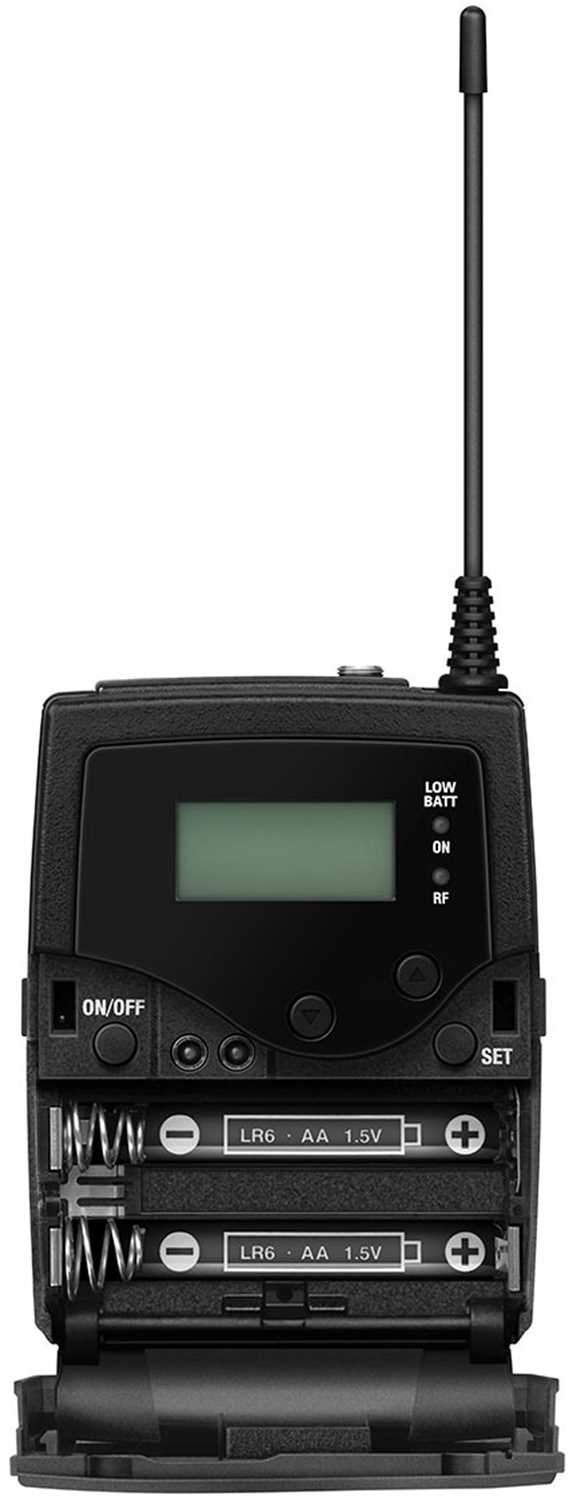

• EK 500 G4 camera receiver
• SKP 500 G4 pro plug-on transmitter
• 4 AA batteries
• CL 1 3.5 mm jack cable
• CL 500 XLR to 3.5 mm jack adapter cable
• CA 2 camera adapter
• quick guide
• safety guide
• manufacturer declaration sheet

Features:

• Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
• Professional sound and excellent construction quality
• Easy to use and fast setup time
• Easy and flexible wireless synchronisation between transmitter and receiver via infrared
• Up to 88 MHz bandwidth, up to 32 channels
• Range: up to 100 meters / 330 feet
• Increased RF output power (10/30/50 mW)
• Up to 8 hours of operation time
• With 48 V phantom powering

Specifications:

• Frequency range: 470 - 558 MHz
• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: ? 0.9 %
• Weight: (incl. batteries) approx. 130 g
• Audio output: 3.5 mm jack socket: +17 dBu (mono, balanced)
• Signal-to-noise ratio: Line: ? 110 dBA Phones: approx. 90 dBA
• Switching bandwidth: up to 88 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 140 mA with receiver switched off: ? 25 µA
• Adjacent channel rejection: Typically ? 65 dB
• Powering: 3 V battery / 2.4 V rechargeable battery
• Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
• RF sensitivity: < 1.6 ?V for 52 dBA eff S/N
• Squelch: low: 5 dBµV middle: 15 dBµV high: 25 dB?V
• Temperature Range: -10 °C to +55 °C
• Receiver Principle: Adaptive diversity
• Blocking: ? 70 dB

SKP 500 G4

• Dimensions: Approx. 105 x 43 x 43 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: ? 0.9 %
• Weight: (incl. batteries) approx. 195 g
• Signal-to-noise ratio: ? 120 dBA
• RF output power: switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW
• Switching bandwidth: up to 88 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 210 mA with transmitter switched off: ? 25 µA
• Input impedance: 68 k?, unbalanced
• Max. Input voltage: 6 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
• AF frequency response: 80 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: ? ±15 ppm
