Sennheiser ew 322 G3 Wireless Lavalier Mic G

Sennheiser ew 322 G3 Wireless Lavalier Mic G

Feedback-rejecting, powerful sounding presentation set: ME 4 miniature cardioid clip-on microphone, robust SK 300 G3 bodypack transmitter, EM 300 G3 true diversity receiver for highest reception quality.

Small but mighty: the clip-on microphone in this professional set is nearly invisible. The included cardioid pattern microphone has both great resistance to feedback and clear voice reproduction. The true diversity receiver means you get the highest degree of signal reliability at all times. Sync up the bodypack with the receiver with a single touch of a button. Especially convenient: you can connect an external mute button (option) to the additional 2.5 mm jack socket on the bodypack transmitter.

• 1 EM 300 G3 rack-mount receiver
• 1 SK 300 G3 bodypack transmitter
• 1 ME 4 clip-on microphone (cardioid)

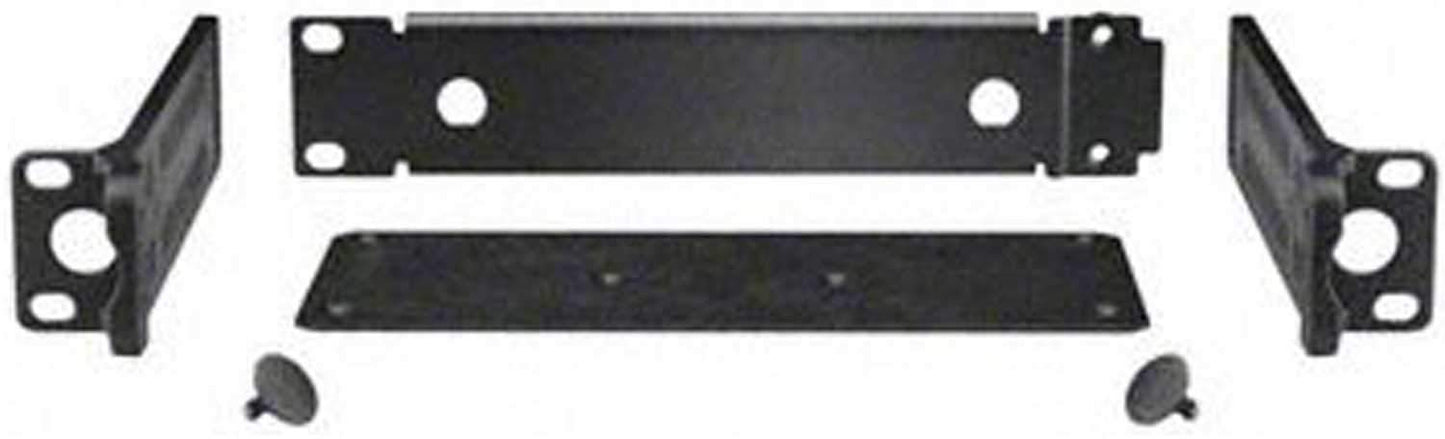

• 1 GA 3 rack mount
• 1 NT 2 power supply unit
• 2 antennas
• 2 AA batteries
• Operating instructions

Features:

• Nearly invisible, feedback-rejecting cardioid clip-on microphone
• Highest reception quality thanks to true diversity technology
• Scan function identifies available frequencies
• Sturdy metal housing (transmitter and receiver)
• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
• Enhanced frequency bank system with up to 24 compatible frequencies
• Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
• High-quality true diversity reception
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Enhanced AF frequency range
• Increased range for audio sensitivity
• Wireless synchronization of transmitter parameter from receiver
• Illuminated graphic display, receiver also shows transmitter settings
• Auto-Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• Transmitter feature battery indicatation in 4 steps, also shown on receiver display
• Programmable Mute function
• Integrated Equalizer and Soundcheck mode
• Contacts for recharging BA 2015 accupack directly in the transmitter
• Wide range of accessories adapts the system to any requirement

Specifications:

• Frequency range: 566 - 608 MHz
• Frequency response (Microphone): 80 - 18000 Hz
• Compander: HDX
• Audio-XLR connector: 6,3 mm
• Presets: 24
• Microphone: electret
• Sound pressure level (SPL): 120 dB(SPL) max.
• THD, total harmonic distortion: < 0,9 %
• AF sensitivity: 40 mV/Pa
• Signal-to-noise ratio: > 115 dB(A)
• RF frequency range: 516...865 MHz
• RF output power: 10/30 mW
• Transmission/receiving frequencies: 1680
• Switching bandwidth: 42 MHz
• Peak deviation: +/- 48 kHz
• In compliance with ETS 300422, ETS 300445, CE, FCC
• Antenna connector: 2 BNC, 50 ?
• Input voltage range: 1,8 V line
• Audio output level: unbalanced: Jack : +12 dBu max
• Audio output level: balanced: XLR : +18 dBu max

Transmitter

• Dimensions: 82 x 64 x 24 mm
• Weight: ~ 160 g
• Operating time: > 8 h

Receivers

• Dimensions: 212 x 202 x 43 mm
• Weight: 980 g
