Sennheiser D1 Wireless Instrument System with CL1
evolution wireless D1 Instrument-Set with CL1 cable for live stage use.
evolution wireless D1 is a digital sound transmission system that makes no compromises when it comes down to reliability, sound quality or user-friendliness. ew D1 is the number one for every gig and live event when you need to simply rely on pure brilliance. It can run up to 15 output lines in parallel and independently adjust the sensitivity of every transmission.
Features:- Lightweight bodypack transmitter, robust guitar cable included
- Up to 15 compatible channels (under optimal conditions) in license-free 2.4 GHz band
- Automatic frequency management
- Prevents interference: Intelligent channel back-up allows co-existence with Wi-Fi and Bluetooth
- Audio effects: equalizer, de-esser, automatic gain control
- iOS and Android app for remote control and monitoring of the system
- Sturdy metal housing
System
- Frequency response: 20 to 20.000 Hz
- Dynamic range: >135 dB (A)
- THD, total harmonic distortion: typ. <0,1 %
- Audio sampling: 24 bit/48 kHz
- Signal-to-noise ratio: = 105 dB (A)
- RF frequency range: 2,400 to 2,483.5 MHz
- Modulation: GFSK with back channel
- Transmission method: TDMA, time diversity, frequency diversity, fast switching antenna diversity
- Latency: 3.9 ms
- Codecs: APT-X Live
- Operating temperature: - 10 °C to +55 °C
- Storage temperature: - 20 °C to +70 °C (The temperature range is influenced by the battery characteristics)
- Latency: multi-frequency targets
- RF sensitivity:
- RF output power: back channel 10 mwith100 mW (country-specific)
- Audio output: Mic/line level switch –24 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu
- Low-cut filter: –3 dB at 120 Hz
- Equalizer: 7-band graphic equalizer
- Automatic gain control (AGC): compression/expansion with automatic make-up gain function
- Deviation display: OLED
- Connection: XLR/1/4" (6.3 mm) jack
- Antenna Connector: 2 x Rev-SMA
- Network socket: RJ45
- Network protocol: Media Control Protocol, TCP/IP IPv4 (DHCP, Manual)/IPv6
- Power supply: 12 V DC hollow jack
- Current consumption: 350 mA
- Weight: approx. 824 g
- RF output power: adaptive, up to 100 mW (country-specific)
- Microphone: Frequency response: 50 to 20,000 Hz, Max. input level: 2.2 V RMS
- Line: Frequency response: 20 to 20,000 Hz, Max. input level: 3.3 V RMS
- Input impedance: 1 M Ohm
- Input sensitivity: automatic sensitivity adjustment
- Battery Specification: 2 x AA size battery (1,5V), Operating time: typ. 6 h
- Connection: 3.5 mm jack socket, lockable
- Weight: approx. 85 g (without batteries)
- EM-D1 rackmount receiver
- SK-D1 bodypack transmitter
- CL 1 jack cable
- NT-12 power supply

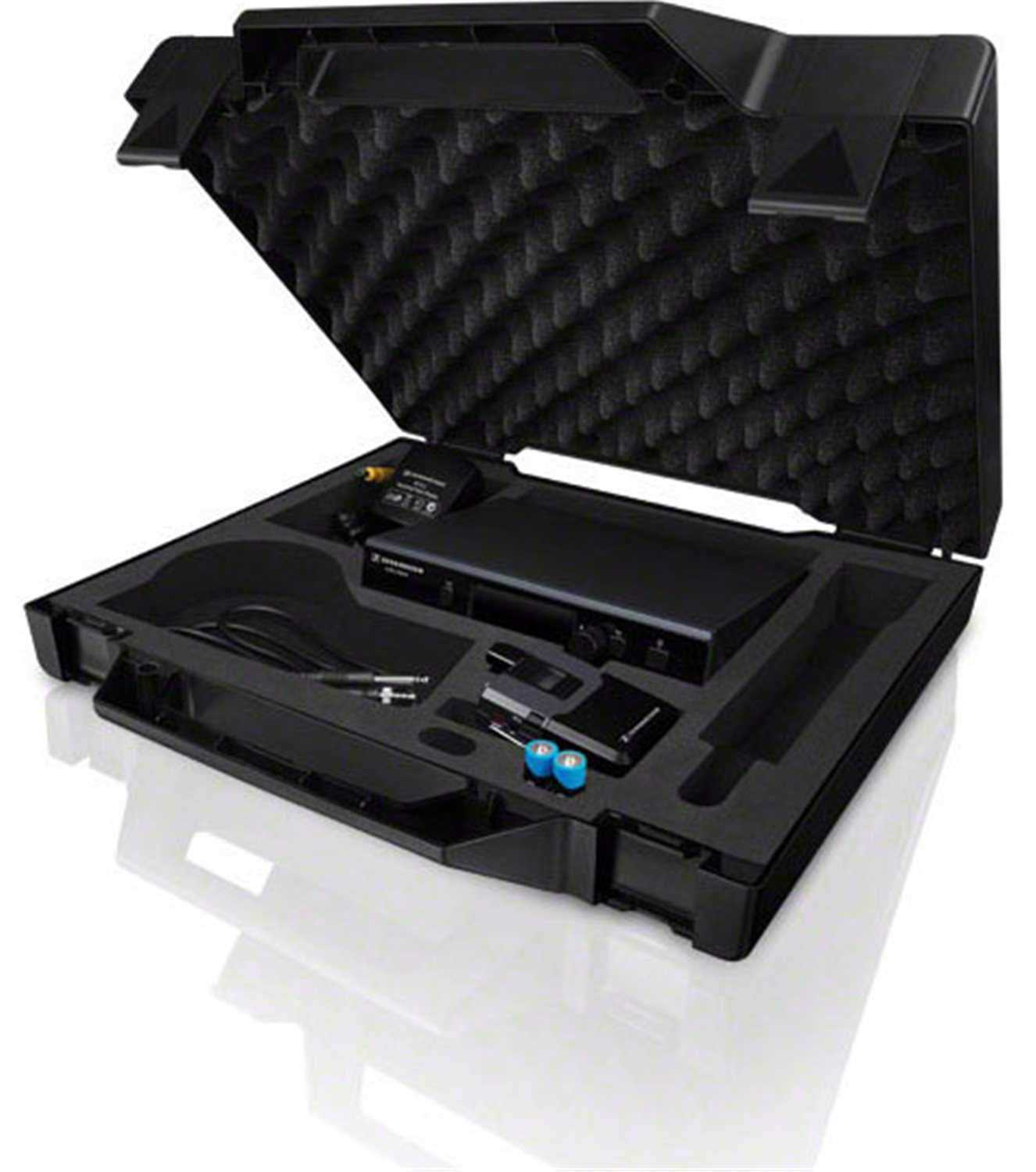

- Transport Case
- User Manual
