Ross SRG4500 Master Reference and Signal Generator
The SRG-4500 is a reliable, fully featured reference generator. It is the ideal choice for supplying the reference timing and test signals needed in today’s complex broadcast facilities. The PTP option brings drop-down configuration support for ST 2110 and AES67 profiles to build your IP or Hybrid SDI network. Put Ross’ reputation for reliability in charge of your network.
Features:
- IEEE1588 compliant with built-in ST2059-2 and AES67 profiles
- PTP Grandmaster with GPS or reference input sync
- PTP Follower with complete reference output generation
- 4 independent pairs of Black-Burst / Tri-level Sync Reference output
- 4 independent pairs of 3G/ HD/ SD SDI Black and Test Pattern Outputs (with embedded audio) including idents and motion
- 2 independent pairs of UHD Quad link SDI Black and Test Pattern Outputs, supporting 2SI and Square-Division multiplexing (optional)
- AES digital audio outputs
- Composite analog video Test and Black outputs
- DARS (Digital Audio Reference) outputs
- LTC Outputs
- Word Clock outputs
- sNTP Time Synchronization (optional)
- GPS Time Synchronization (optional)
- IP Based Control and Monitoring via DashBoard
- One year warranty

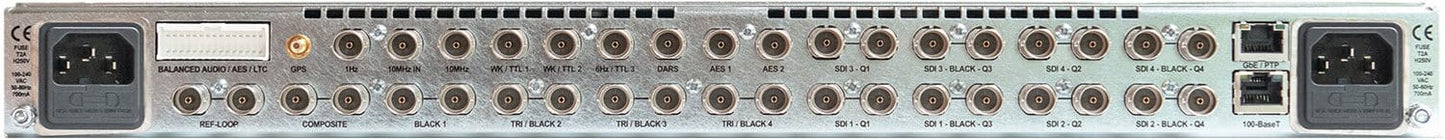

Specifications:
- Inputs (BNC):
- 75 Ω looping reference
- 10 MHz terminating reference
- Outputs (BNC):
.
- 2 Analog Color Black
- 2 Analog Composite test
- 6 Color Black/Tri-Level (3 independent pairs)
- 8 3G/ HD/ SD SDI Color Black with embedded silence (4 independent pairs)
- 8 3G/ HD/ SD SDI Test Patterns with embedded tone (4 independent pairs)
- 1 10 MHz reference output
- Precision Time Protocol Grandmaster and Follower: 1 Gigabit Ethernet RJ45
- Balanced Audio/AES/LTC Outputs: 30 pin high density connector with included breakout panel.
- Unbalanced AES Audio:
- 2 AES
- 1 DARS
- Word Clock (BNC): 1 Word Clock output
- Timecode Outputs:
- 4 LTC generators
- Up to 8 balanced LTC outputs
- VITC
- ATC
- Supported Video Standards:
- 480i/59.94 (NTSC-M, NTSC-J)
- 576i/50 (PAL, PAL-B)
- 720p/23.98/24/25/29.97/30/50/59.94/60
- 1080i/47.95/48/50/59.94/60
- 1080pSF/23.98/24/25/29.97/30
- 1080p/23.98/24/25/29.97/30/47.95/48/50/59.94/60
- 2160p-2SI/23.98/24/25/29.97/30/47.95/48/50/59.94/60
- 2160p-Quadrant/23.98/24/25/29.97/30/47.95/48/50/59.94/60
- Inputs (BNC):
- 75 Ω looping reference
- 10 MHz terminating reference
- Outputs (BNC):
- .
- 2 Analog Color Black
- 2 Analog Composite test
- 6 Color Black/Tri-Level (3 independent pairs)
- 8 3G/ HD/ SD SDI Color Black with embedded silence (4 independent pairs)
- 8 3G/ HD/ SD SDI Test Patterns with embedded tone (4 independent pairs)
- 1 10 MHz reference output
- Precision Time Protocol Grandmaster and Follower: 1 Gigabit Ethernet RJ45
- Balanced Audio/AES/LTC Outputs: 30 pin high density connector with included breakout panel.
- Unbalanced AES Audio:
- 2 AES
- 1 DARS
- Word Clock (BNC): 1 Word Clock output
- Timecode Outputs:
- 4 LTC generators
- Up to 8 balanced LTC outputs
- VITC
- ATC
- Supported Video Standards:
- 480i/59.94 (NTSC-M, NTSC-J)
- 576i/50 (PAL, PAL-B)
- 720p/23.98/24/25/29.97/30/50/59.94/60
- 1080i/47.95/48/50/59.94/60
- 1080pSF/23.98/24/25/29.97/30
- 1080p/23.98/24/25/29.97/30/47.95/48/50/59.94/60
- 2160p-2SI/23.98/24/25/29.97/30/47.95/48/50/59.94/60
- 2160p-Quadrant/23.98/24/25/29.97/30/47.95/48/50/59.94/60
