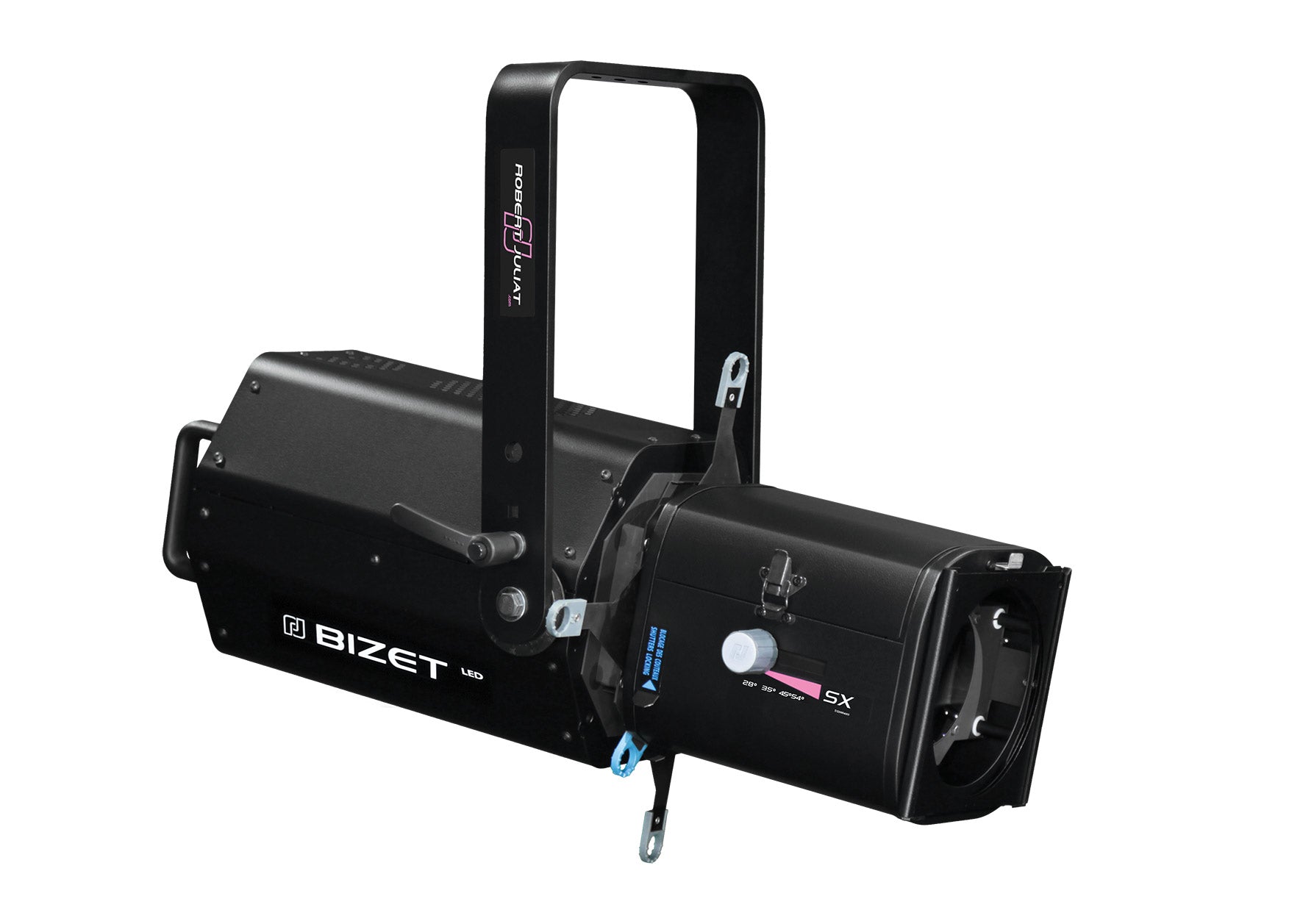

Robert Juliat RJFPR673SX01 Bizet 500W LED Variable White Profile 28/54°

Robert Juliat RJFPR673SX01 Bizet 500W LED Variable White Profile 28/54°

The Bizet 670SX profile spot is a mighty replacement for the 2000W Halogen profile series, while offering remote adjustment of the colour temperature up to 6300K (with an output exceeding a 2500W profile spot with colour correction). It features a 500W tunable white LED source which is used at full power whatever the colour temperature chosen, guarantying high quality whites (CRI of 96-98 and TM30 Rf of 94-96). The lamp house new design makes it compatible with Robert Juliat 600SX, 713SX and 714SX Series profile lens tubes. It is ideal for all long-throw front of house applications in medium to large venues.

Features

• Colour Temperature (CCT): adjustable whites from 3000 to 6300 Kelvin. Extended mode available (CCT not calibrated)
• Multi-function double gate: simultaneous use of gobos and iris. Sharp focus of both gobo and shutter
• Shutter gate: up to 8 shutters. Remove shutters for easy maintenance or tuck fully inside gate for secure transport
• User-friendly shutter-lock system: secures shutters’ setting in any circumstances (locking efficient up to 4 shutters)
• Universal gobo holder: "A" size glass and metal gobo
• Lens tube lock feature: secures rotating lens tube against unwanted movement
• 90° rotating lens tube / gate / front accessories holder: rotation of the projected image is always possible – no need to move the yoke
• Internal glass filter holder: long term use of durable coloured, dichroic or textured glass
• Adjustable response time: choice of fast or slow dimming for tungsten-like simulation - adjustment by DMX protocol
• Ethernet-DMX node: data IN through RJ45 connector; data OUT through DMX for daisy chaining
• Universal data control: compatible with DMX, RDM, Art-Net, sACN protocols
• Remote setup: all parameters can be adjusted by RDM protocol or by web interface
• PWM adjustment: choice of different PWM dimming frequencies - continuous mode available
• Advanced Ethernet node functionalities: compatible with RDM, LLRP, Zeroconf protocols
• Local setup: DMX address and mode, dimming curve and response time through 4-button display with automatic light switch-off
• Dimming parameters: choice of square or linear dimming curves
• DMX: 8 or 16 bit dimming, CCT, response time and strobe function
• 1 DMX parameter mode: cCT adjustment through local display and dimming control by DMX
• Easy focus reference: graduated scale on side of the unit; fast and easy refocusing
• Tilt reference on hanging yoke: index for rapid re-positioning

Optical

• Calibrated tunable white source: to ensure consistency between fixtures
• Long life: outstanding operational lifetime expectation, no need to replace lamps, low maintenance
• Powerful tunable white: maximum LED power guaranteed whatever the colour temperature is
• Coated SX optical system: double condenser optics for exceptional optical quality - Anti-Reflective coating to ensure optimal light transmission
• Variable zoom optics: sharp focus at every beam angle. Independent control of image size and focus. Focus handles on both sides
• Coated zoom lenses: all zoom lenses are anti-reflection coated (AR) to ensure a maximum transmission of light.
• Electronic dimmer: dimming without clipping or cut-out at low intensity levels; high quality smoothing
• No colour shift: colour temperature remains the same when dimming

Construction

• Made in France: fully manufactured in Robert Juliat premises retaining complete control over all aspects of quality
• Lamp house compatible with 611SX, 613SX, 614SX, 713SX and 714SX lens tubes: lamp house only available for upgrade of existing tungsten fixtures
• PSU: built-in electronic flicker-free power supply for easy, plug-and-play installation
• Power connectors: compatible with powerCON® TRUE1 IN and OUT connectors for daisy chaining
• Silent-running cooling fans: ideal for TV studios and opera houses
• Electronic thermal management system: ensures maximum performance of the system without any risk of overheating
• 3 cooling modes available: includes a silent mode for perfect integration in concert halls
• Bodywork: strong sheet metal construction for durability
• Captive knobs and handles: additional security when working at height or in transit
• Spare parts and accessories: interchangeable across the tungsten, discharge or LED ranges, reducing running costs
• Easy access to all parts: easy cleaning and maintenance
