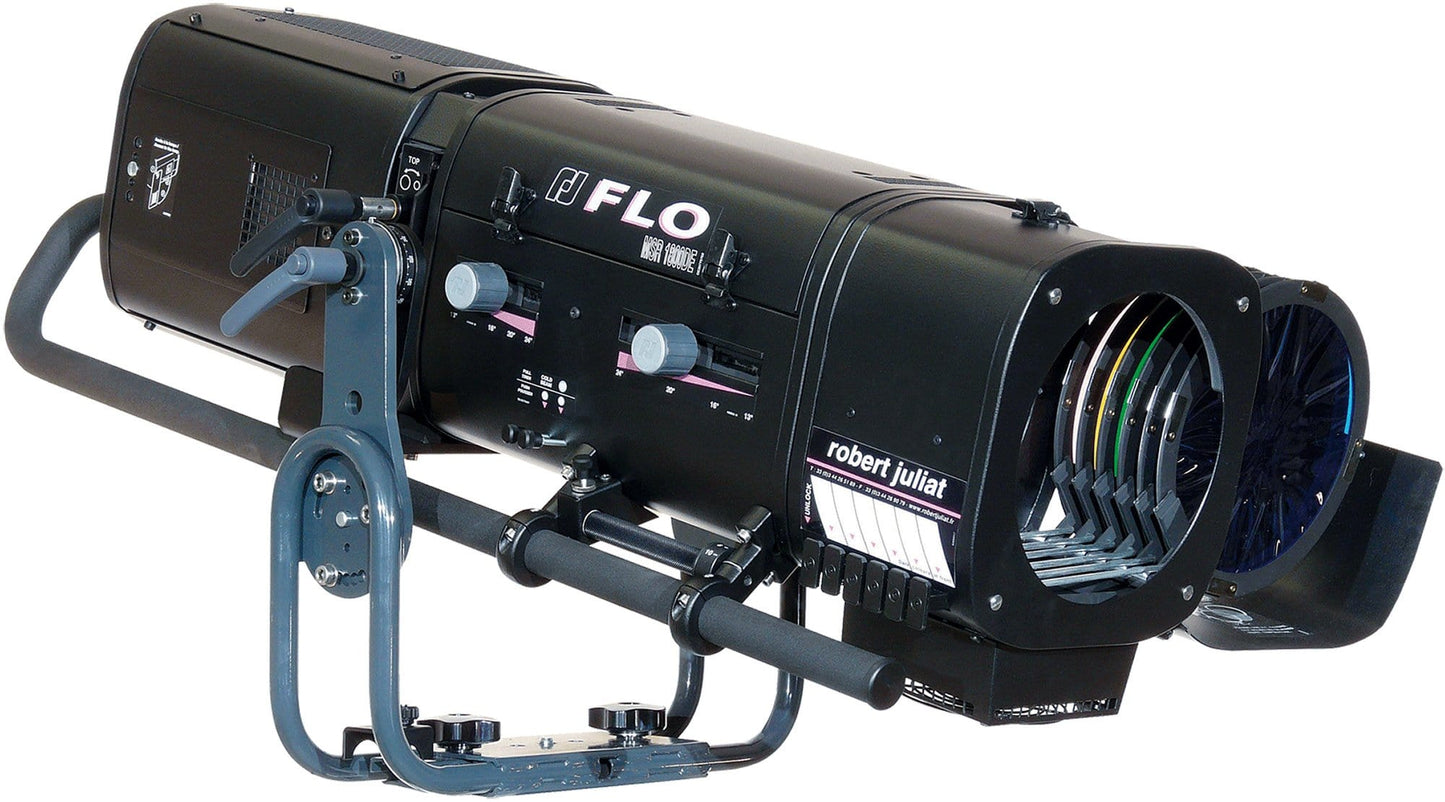

Robert Juliat Flo Medium Throw Arc Followspot
With a lamp specially designed for Robert Juliat, Flo is the first 1800W followspots on the market. Each gives a light output to rival mid-throw 2500W followspots with similar beam angles, but in a unit as compact as a 1200W. With a combination of compact dimensions, high output, hot restrike lamp and DMXcontrol in one product, they are perfect for rental companies. It has also made them the new benchmark followspot for large theatres, TV studios, fashion shows, concerts and touring.
Features:
- Fully closing iris cassette: removable for fast, easy replacement; protective backplate for extended lifespan
- Universal adjustable gobo holder: "A" size glass and metal gobos
- Ergonomic dimmer control: one-handed dim, pan and tilt. Dimmer control can be adjusted to suit the operator’s preference
- Smooth dimmer shutter: retains flat beam and colour temperature when dimming
- Frost filter: on flip lever for quick soft-edge beam effect
- Horizontal chopper (optional): for masking control in TV studios and wide stages
- Internal glass filter holder: long term use of durable coloured, dichroic or textured glass
- Individually removable colour frame: gels replaced easily while colour cassette remains in place
- Colour changer: 6-way, 'push/pull' colour changer system for simultaneous use of multiple filters
- Easy focus reference: graduated scale on side of the unit; fast and easy refocusing
- Adjustable yoke (optional): for optimum overhead positioning
- Fine balance: precision positioning and smooth operation even with the smallest movements
- Stand: perfectly weighted for maximum stability with smooth rotation for optimum performance. Easy set up; triple safety system for extra security
Specifications:
- Source
- Lamp type: Discharge
- Power: 1800 W
- Socket: SFc 15.5-6
- Hot re-strike: yes
- Optics
- Characteristics
- Type: Zoom
- Beam range: 13° to 24°
- Focal length: 169 - 316 mm
- Gel filter
- Standard size: 210 mm (8.3 in)
- Shape: Circle
- Gobo
- Size: A
- Material: Metal Glass
- Photometrics
- Optics @ 13°:
- Beam intensity: 800 000 cd
- Optics @ 24°:
- Beam intensity: 300 000 cd
- Dimensions and weight
- Unit:
- Weight: 32 kg (70.4 lbs)
- Height:
- H= 505 mm (19.9 in)
- H1= 250 mm (9.8 in)
- H3= 460 mm (18.1 in)
- Length:
- L= 970 mm (38.2 in)
- L1= 480 mm (18.9 in)
- L2= 490 mm (19.3 in)
- Width:
- W= 410 mm (16.1 in)
- W1= 350 mm (13.8 in))
- W2= 570 mm (22.4 in)
- Yoke:
- Y= 325 mm (12.8 in)
- Tilt:
- TU= 45°
- TD= 40°
- Option:
- TO= TBD°
- PSU:
- Width: W= 185 mm (7.3 in)
- Height: H= 200 mm (7.9 in)
- Length: L= 590 mm (23.2 in)
- Weight: 13.2 Kg (29 lbs)
- Shipping
- Weight: 81 kg (178.2 lbs)
- .58 m3 (20.48 ft3)
- Construction
- Housing: Steel sheet - Aluminium
- Colour: Black
- Cooling: Low noise fan
- Maximum ambient temperature (Ta): 40°C (104°F)
- Maximum case temperature (Tc): 230°C (446°F)
- Total heat dissipation: 6 963 BTU/h
- Ingress Protection (IP) rating: IP20
- Acoustics
- PSU housing: Steel sheet - Aluminium
- PSU colour: Black
- PSU cooling: Fans
- PSU maximum ambient temperature (Ta): 40°C (104°F)
- PSU maximum case temperature (Tc): 50°C (122°F)
- Electrical compatibility
- 220/230 V - 50 Hz
- 245 V - 50 Hz
- 220/230 V - 60 Hz
- 208 V - 60 Hz
- Power input
- Type: removable power cord with Neutrik PowerCon® (ref. NAC3FCA) connector (included)
- Cable: H07RNF 3G1.5
- Length: 3 m (9.8 ft)
- Power connector: CEE 7/7 (2P+E NF/Schuko)
- Power Supply Unit
- PSU: Separate - Electronic PSU - Flicker free with PFC
- Lighting unit / PSU cable: Cable attached to unit - length: 3 m (9,8 ft)Type: 18G1,5 JZ 602-RC (CE-UL/CSA) with 16x16A+E Harting Han® connector
- Maximum distance between lighting unit and PSU: 25 m (82 ft)
- Control: Local
- Protection: Mains: 16A 2P2D - C curve breaker / Electronic: 2A 5x20 T fuse
