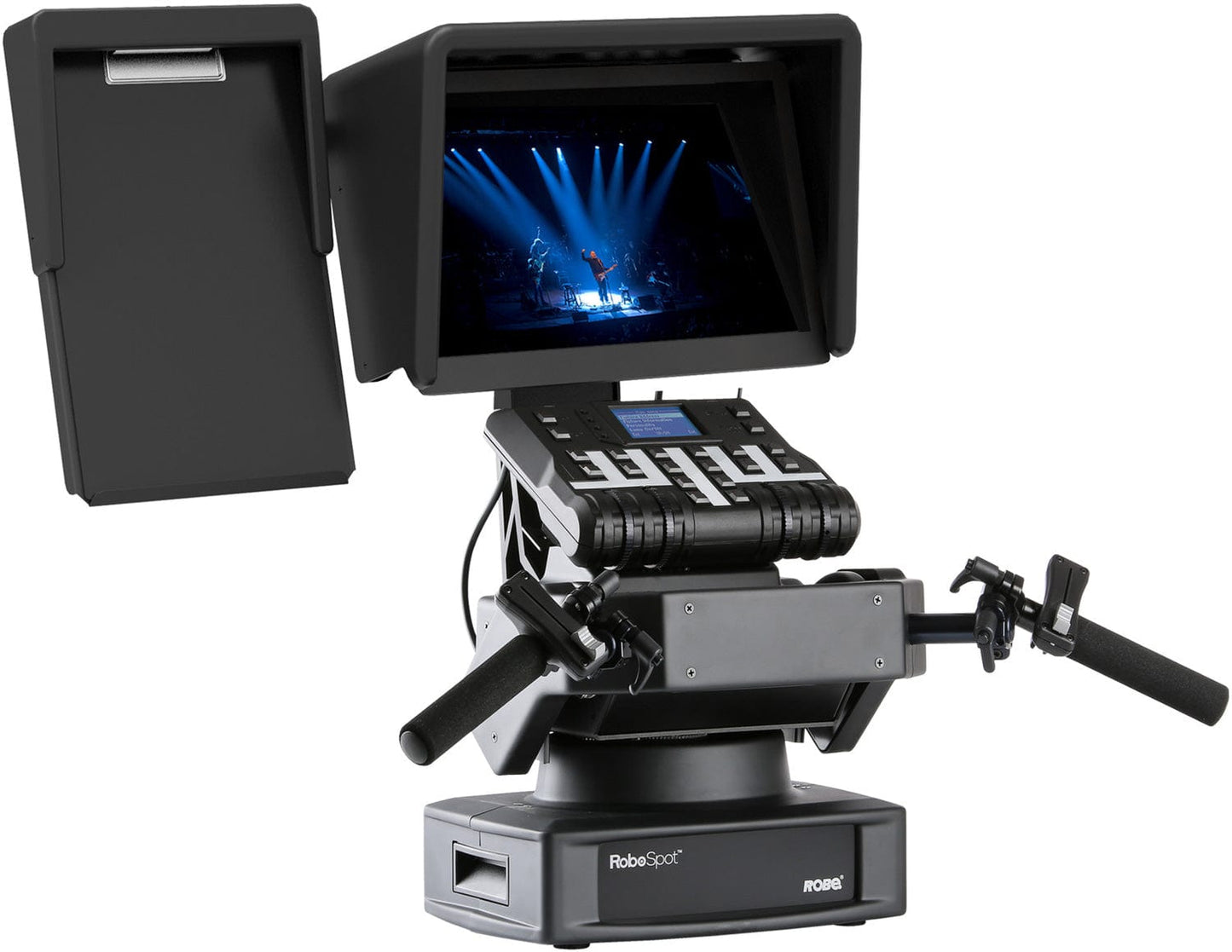

Robe RSTSSCRNKIT 15.6inch Touch Screen for Robospot

Introducing the revolutionary RoboSpot follow spot system, a device that allows follow spot operators to remotely control up to 12 fixtures simultaneously without the safety concerns and impracticality of placing personnel at the top venues such as stadiums, indoor arenas, concert halls, theatres, TV and film sets. Stunning visual displays are now possible with as many as 12 perfectly synchronized fixtures following a performer across the stage.

Features:

• 15.6" monitor
• QVGA Robe touch screen with battery backup
• 4 control jog-wheels
• 10 preset buttons with a direct access of the pre-programmed features
• Activation button
• Pan & Tilt freeze buttons
• 2 faders mounted on the handles with direct control of the key features 0-100% (for example dimmer and iris), assignable to any BMFL properties (focus, zoom, frost, etc)
• Manual movement control with position indication on the screen
• User setting of controllable attributes
• Saving and uploading of custom settings
• Compatible with the Robe BMFL™ FollowSpot / FollowSpot LT, BMFL™ Spot, BMFL™ Blade, BMFL™ WashBeam, BMFL™ WashBeam EV, ESPRITE™, ESPRITE™ FS, FORTE™, FORTE™ FS, T1 Profile™, T1 Profile FS™, T2 Profile™, T2 Profile FS™, DL7S Profile™, DL4S Profile™, iSpiider®, iPointe65®, MegaPointe®, Pointe®, SPOTE™, CUETE™, ProMotion™, Viva CMY™, SilverScan™, Tarrantula™, Spiider®, LEDBeam 150™ a LEDBeam 350™, when the RoboSpot MotionCamera is connected to the RoboSpot BaseStation
• One RoboSpot can control up to 12 fixtures

Specifications:

• Control and programming:
  • Display: QVGA Robe touch screen with battery backup
  • Movement control: manual
• Thermal specification:
  • Maximum ambient temperature: 40°C (104°F)
  • Minimum operating temperature: 0°C (32°F)
• Electrical specification and connections:
  • Power supply: Electronic auto-ranging
  • Input voltage range: 100-240 V, 50/60 Hz
  • Power consumption: 15 W
  • Power in connector: Neutrik powerCON TRUE1
  • DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
  • Ethernet port in/out: RJ45
• Video inputs:
  • Ethernet port in: RJ45
• Approvals:
  • CE Compliant
  • cETLus Compliant
• Mechanical specification
  • Height: 606 mm (23.8")
  • Width: 693 mm (27.3")
  • Depth: 472 mm (18.6")
  • Weight: 16.5 kg (36.4 lbs)
• Rigging
  • Mounting positions: on tripod (supplied with the product)
