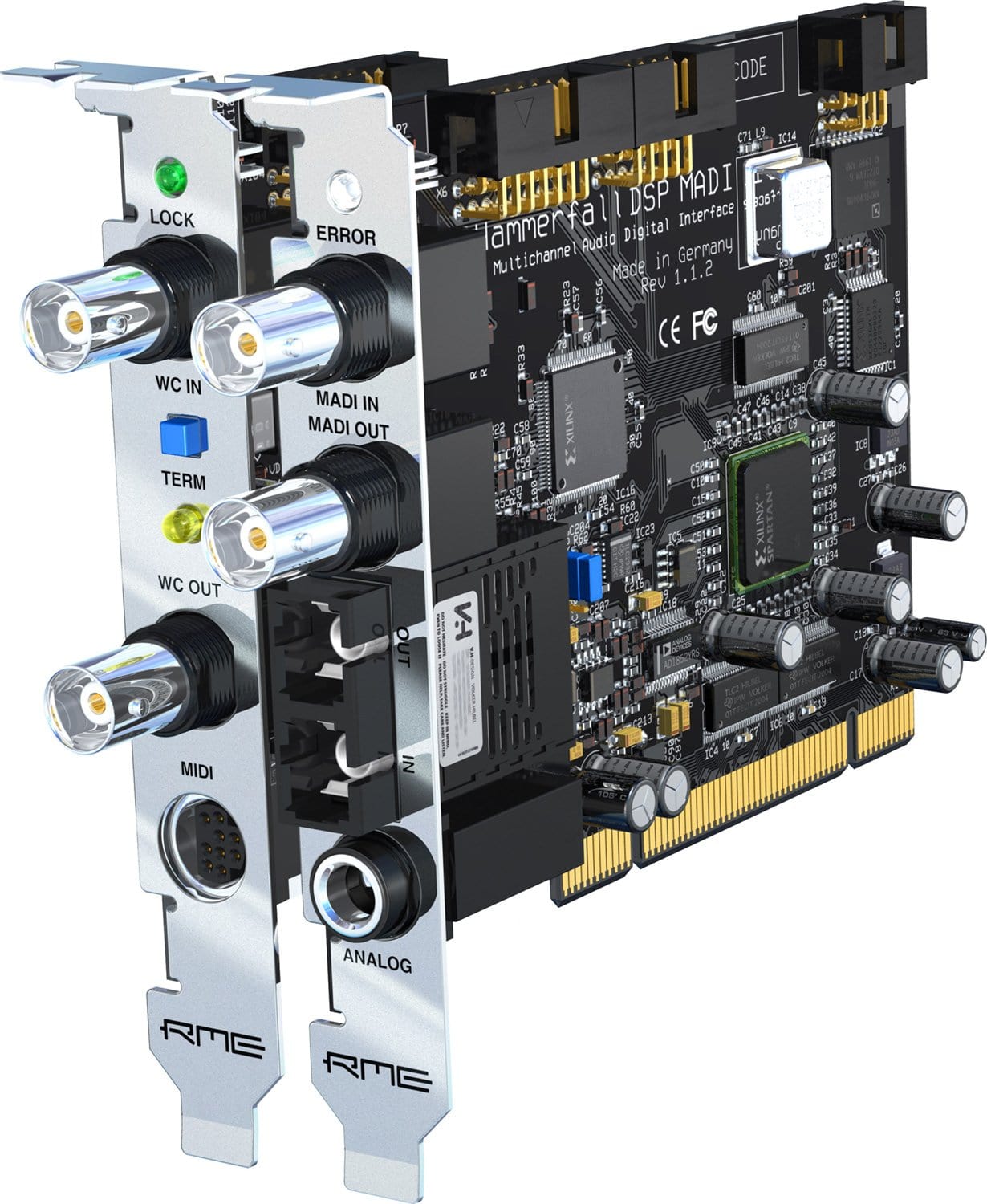

RME HDSPMADI PCI MADI 64-Channel Audio Interface

RME HDSPMADI PCI MADI 64-Channel Audio Interface

The HDSP MADI from RME is an inexpensive PCI Card card that features a MADI interface. The audio system is capable of transferring digital audio data directly into a computer, from any device equipped with a MADI interface. Installation is simple, even for the inexperienced user, thanks to the latest "plug and play" technology.

Features:

• 128-channel MADI Input/Output PCI(x) card
• Eight buffer size available (1.5, 3, 6, 12, 23, 46, 93, and 186 mS)
• Enhanced Zero Latency Monitoring provides real-time monitoring in all clock modes and even at different sample rates
• Slave and master clock modes with automatic and intelligent master/slave clock control
• MADI coaxial, MADI optical, word clock and internal sync sources
• TotalMix real-time software mixer for latency-free submixes and perfect ASIO Direct Monitoring
• SyncAlign guarantees sample aligned and never swapping channels
• SyncCheck tests and reports the synchronization status of input signals
• Jitter sensitivity - PLL operates even at 100nS jitter without problems
• Varipitch by input signal or word clock
• All settings changeable in real-time
• Includes DIGICheck, a software tool for measuring, analysis and testing of various functions of the data stream
• Dual MIDI I/Os provide thirty-two channels of high-speed MIDI

Specifications:

• Converters: 24-bit
• Sample Rates:
  • Internal: 44.1, 48, 88.2 and 96kHz, variable
  • Lock range - 25kHz to 54kHz (MADI)
  • Lock range - 28kHz to 105kHz (WC)
• Analog In: No
• Analog Outputs: 1 x 1/4" TRS phone Monitor Output
• Digital Input Connectors:
  • 1 x BNC coaxial, 75Ω
  • 1 x MADI Optical via FDDI duplex SC connector
• Digital Output Connectors:
  • 1 x BNC coaxial, 75Ω
  • 1 x MADI Optical via FDDI duplex SC connector
• MIDI In/Out: 2 x MIDI I/O (32-channels)
• Sync In/Out: 2 x BNC Wordclock
• Headphone Output: 1 x 1/4" TRS phone
• THD + N: <-98dB, <0.0015% (monitor out)
• Dynamic Range: Not specified by manufacturer
• Frequency Response: 1Hz to 43.5kHz, -0.5dB @96kHz (monitor out)
• Minimum System Requirements:
  • Mac:
    • OS X 10.2.8 or higher
    • Free PCI rev. 2.1 Busmaster slot
  • PC:
    • Windows 2000 SP4/XP
    • Free PCI rev. 2.1 Busmaster slot
• Specialties: Quick Boot technology for immediate loading of hardware settings
• Packaging Info:
  • Package Weight: 1.12 lbs.
  • Box Dimensions (LxWxH): 12 x 7 x 4"
