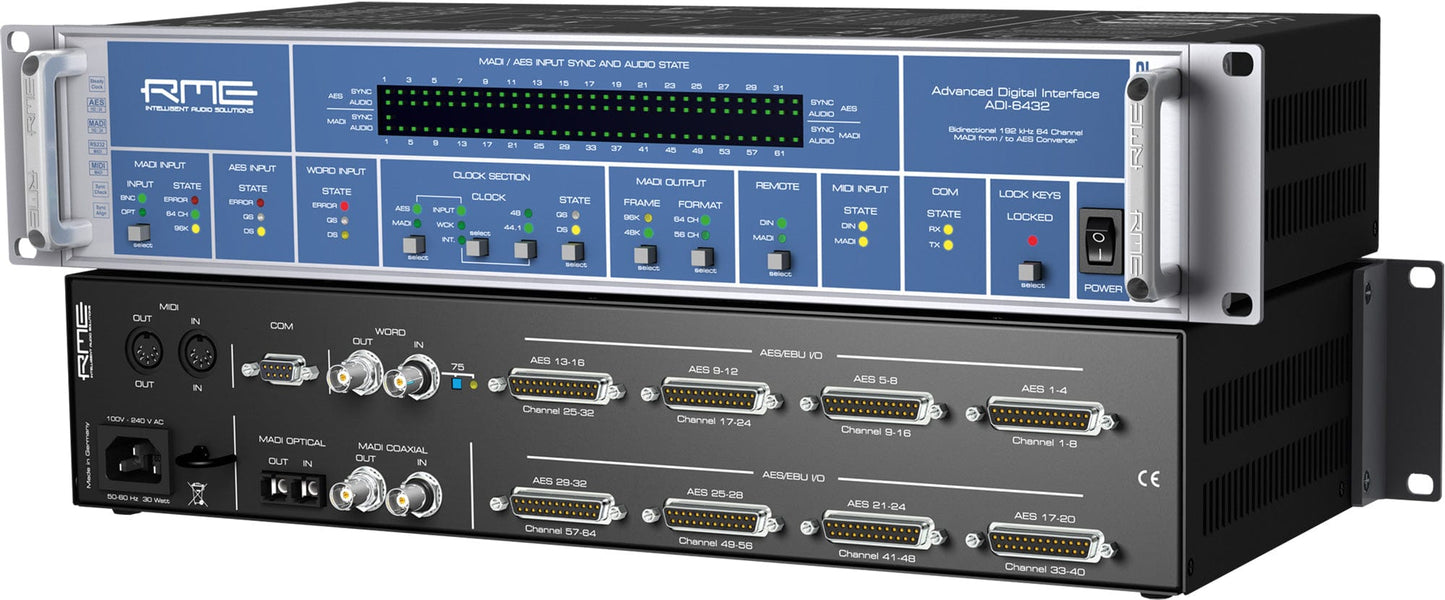

The ADI-6432 converts all 64 channels of a single MADI stream to 32 AES/EBU ports and vice versa. Thus it supports all 64 channels of the MADI format at up to 48 kHz, 32 channels at up to 96 kHz and 16 channels at up to 192 kHz. Connected to the HDSP(e) MADI interface, the ADI-6432 turns into a powerful external 32-port AES/EBU interface. Two units will build a perfect digital multicore solution without any computer needed.

Features:

• Support for up to 192 kHz with MADI and AES
• Unique status displays for MADI and AES
• SteadyClock for maximum jitter reduction and clock regeneration
• Completely remote controllable via MIDI
• Transfer of MIDI data via MADI
• Transfer of RS232 data via MADI

Specifications:

• Input MADI: 1 x BNC, 1 x optical
• Input AES/EBU: 32 x, 4 x per D-sub connector, transformer balanced, highly sensitive input stage (< 0.3 Vpp), SPDIF compatible
• Output AES/EBU: 32 x, 4 x per D-sub connector, transformer balanced, 4 Vpp
• Input word clock: BNC, Signal Adaptation Circuit (functional from 1.2 Vpp)
• Output word clock: BNC, low impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
• MIDI input and output: via two 5-pin DIN jacks
• COM port: RS232 via 9-pin D-sub, 9600/19200/115200 Baud
• Sync sources: MADI, AES, word clock, internal
• Varipitch: by input signal or word clock
• Sample frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (sync/word clock)
• Sample rate range: MADI: 32 - 192 kHz, word clock: 27 kHz - 200 kHz, AES: 28 kHz - 200 kHz
• Jitter: Internal Clock < 1 ns, Word Clock In < 2 ns, AES/EBU In < 2 ns
• Jitter suppression: >30 dB (2.4 kHz)
• Jitter sensitivity: all PLLs operate error-free even at 100 ns
• Power supply: Internal switching mode PS, 100V - 240V AC, 20 Watt
• Dimensions: (WxHxD) 483 x 88 x 200 mm
