The RF Explorer® Pro Audio Edition is an all-new portable RF spectrum analyzer designed specifically for use with wireless microphones and in-ear monitor systems.

Available exclusively through RF Venue dealers and distributors, the RF Explorer Pro Audio Edition is the perfect addition to any audio pro's toolkit. With a 50 ohm BNC input connector designed to interface directly with wireless audio systems and accessories such as remote antennas, antenna distribution systems, or RF over fiber modules, the Pro Audio Edition spectrum analyzer is the ideal tool to troubleshoot, optimize, and commission your next wireless system.

Compatible with RF Venue's Vantage Mac OSX software as well as multiple PC applications, the Pro Audio Edition comes packed with a range of new features.

The RF Explorer Pro Audio Edition’s easy-to use interface takes the complexity out of RF spectrum analysis for audio, empowering audio engineers and wireless audio system managers to better monitor, manage, and configure their systems in today's ever-changing RF spectrum landscape.

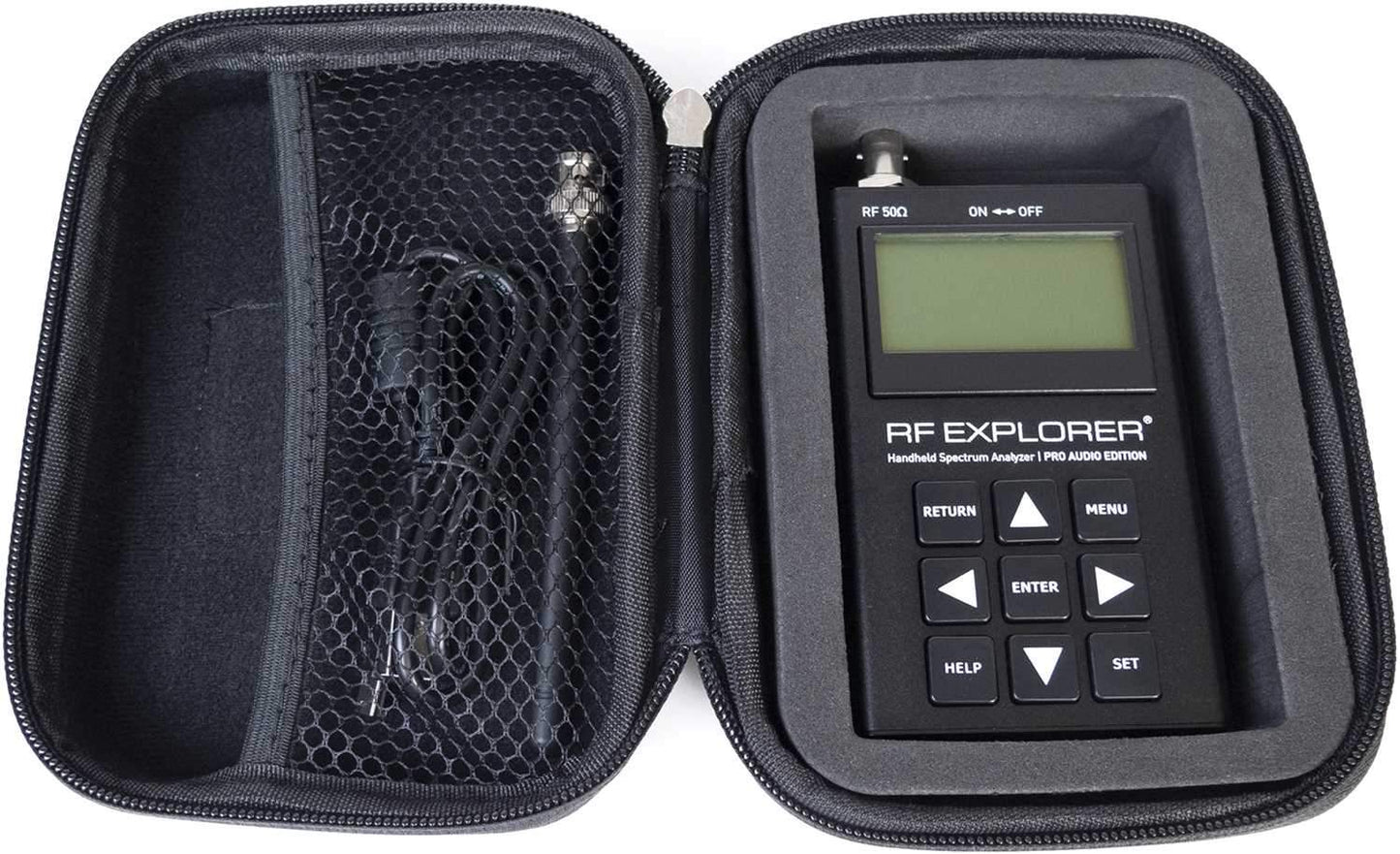

Carrying case, UHF band articulating whip antenna, and shielded USB cable included

Features:

• 15-2700 MHz Wideband scanning range
• Configurable Low Noise Amplifier
• Save / Load Presets for fast setup and recall
• Configurable Input Attenuator
• One-Click WiFi Analyzer mode displays 2.4 GHz channels
• 16 hour lithium-ion rechargeable battery
• -120 dB Sensitivity and auto-configurable resolution bandwidth (RBW)

Specifications:

Electrical

• Operating frequency: 15-2700 MHz
• Impedance: 50?
• Max input power:
  • +10dBm direct
  • mode, -20dBm LNA mode
  • +30dBm (1Watt) using internal attenuator
• Modes:
  • Peak Max
  • Hold
  • Normal
  • Overwrite
  • Average
• Display: LCD
• Battery:
  • USB rechargeable
  • 1000 mAh
  • 3.7 V Lithium-ion
• Dynamic range: -115 dBm–0 dBm
• Average noise floor (DANL): -115 dBm
• Supplied antenna: UHF bandarticulating whip antenna

Physical

• Dimensions (without antenna): 70(W) X 130(H) X 25(D) mm
• RF input connector: C female
• Weight: 25 kg
• PC cable: USB type A male >type B male
• Includes: USB cable, carryingcase, UHF whip antenna
