Description
Passive 2-Way Dual 10" Speaker (IP55)

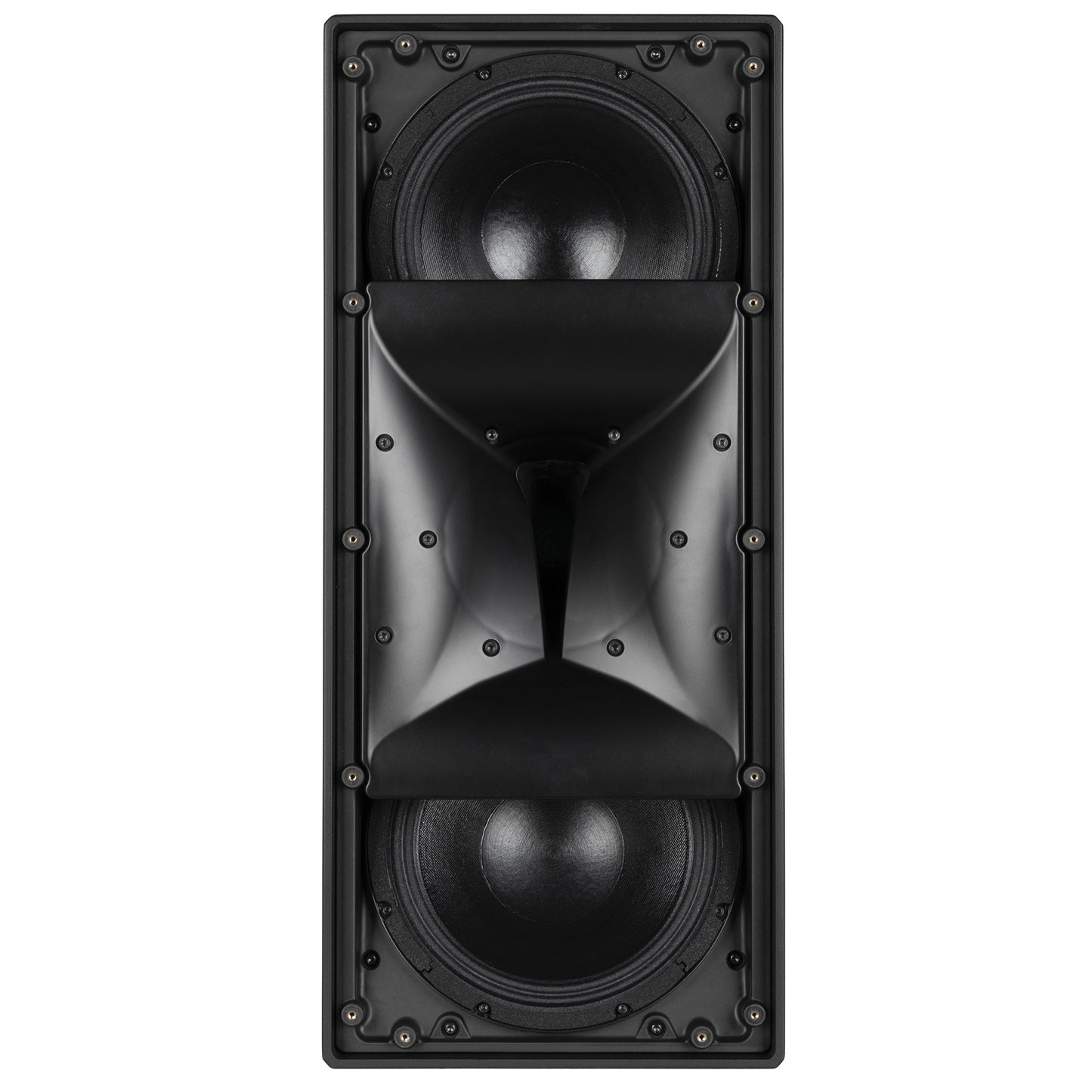

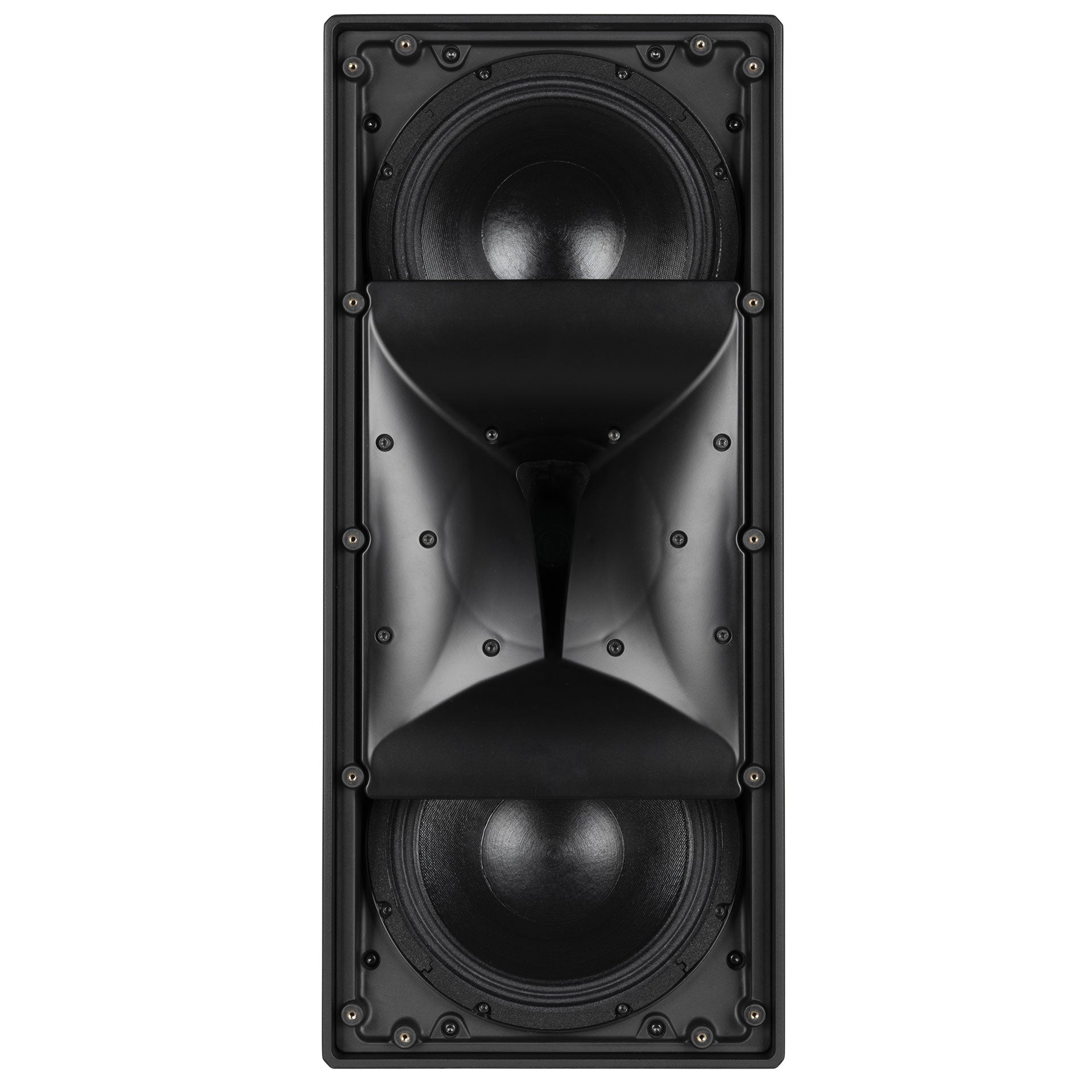

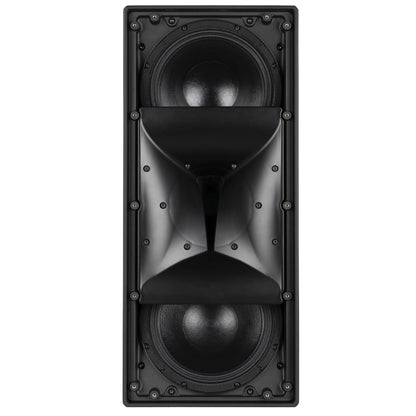

X 40 is a two-way speaker designed for fixed indoor and outdoor installations requiring high audio quality and extreme durability. Thanks to the two 10’ woofers and the 4’’ titanium-dome compression driver on a TRW asymmetric waveguide, it offers a powerful and clear sound with uniform 110° x 60° coverage. The cabinet is made of high-density polyurethane, while the aluminum grille guarantees protection from dust and rain, thanks to a waterproof fabric layer. Vertical mounting bracket included; ceiling-mount bracket available as an accessory. EN 54-24:2008 technical data available in the user manual.
FEATURES
- 1200 W RMS power handling
- 142 dB max SPL
- 50 ÷ 20000 Hz frequency range
- 110° x 60° asymmetric horn
- 2 x 10" neo woofer, 3.0'' v.c.
- 4.0" v.c. Titanium Neo compression driver
- Polyurethane cabinet / aluminum grille
- IP55 protection grade

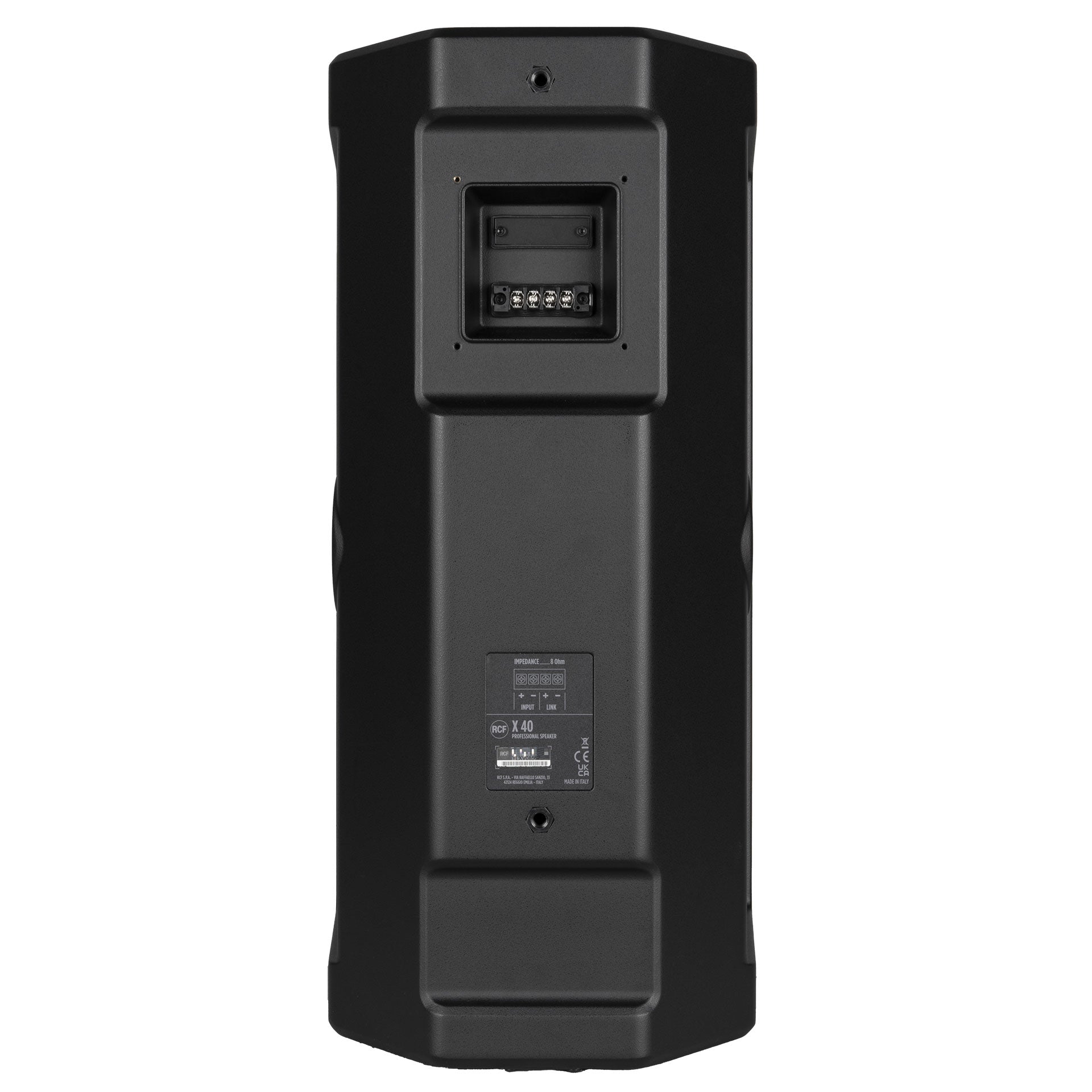

- 4 pole barrier strip terminals

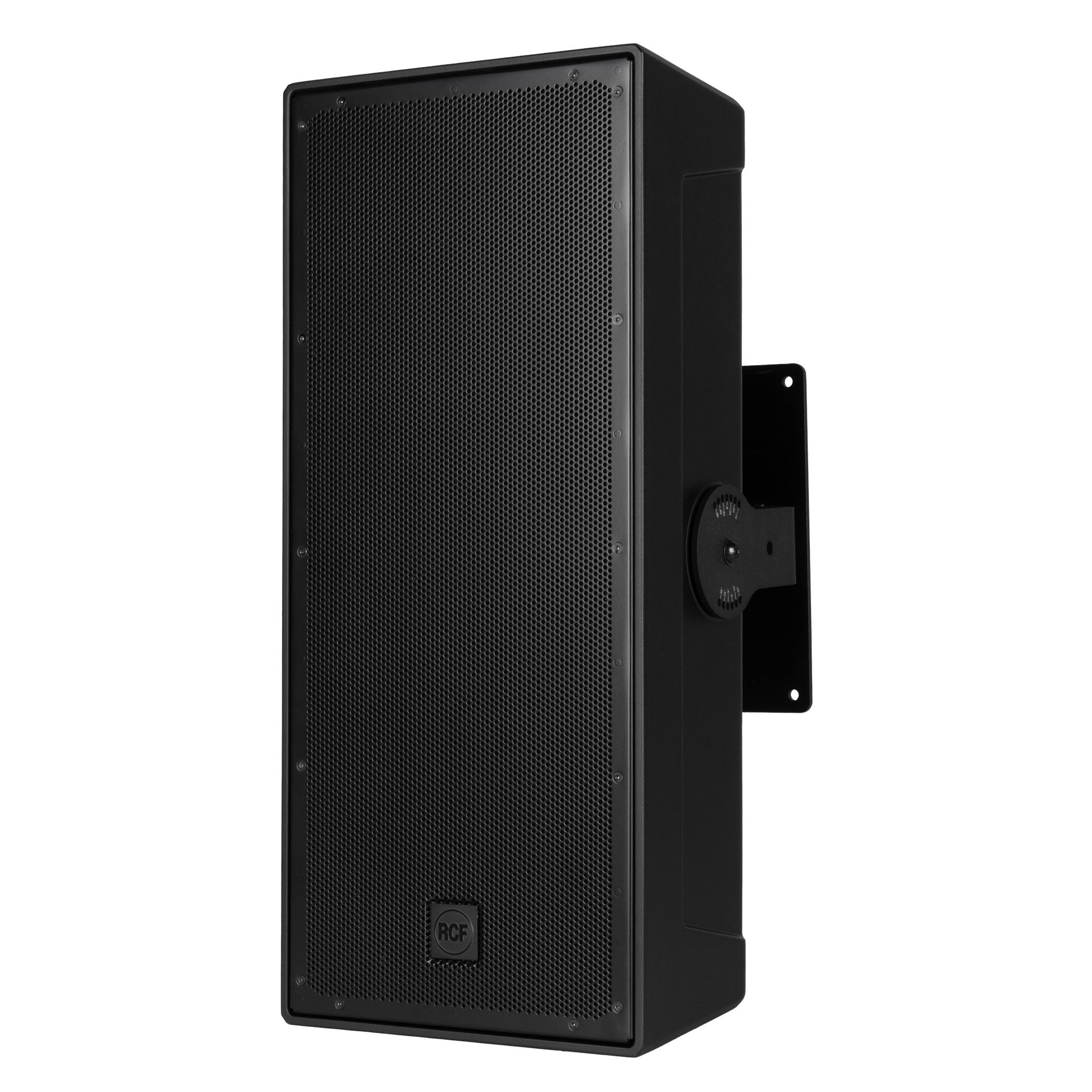

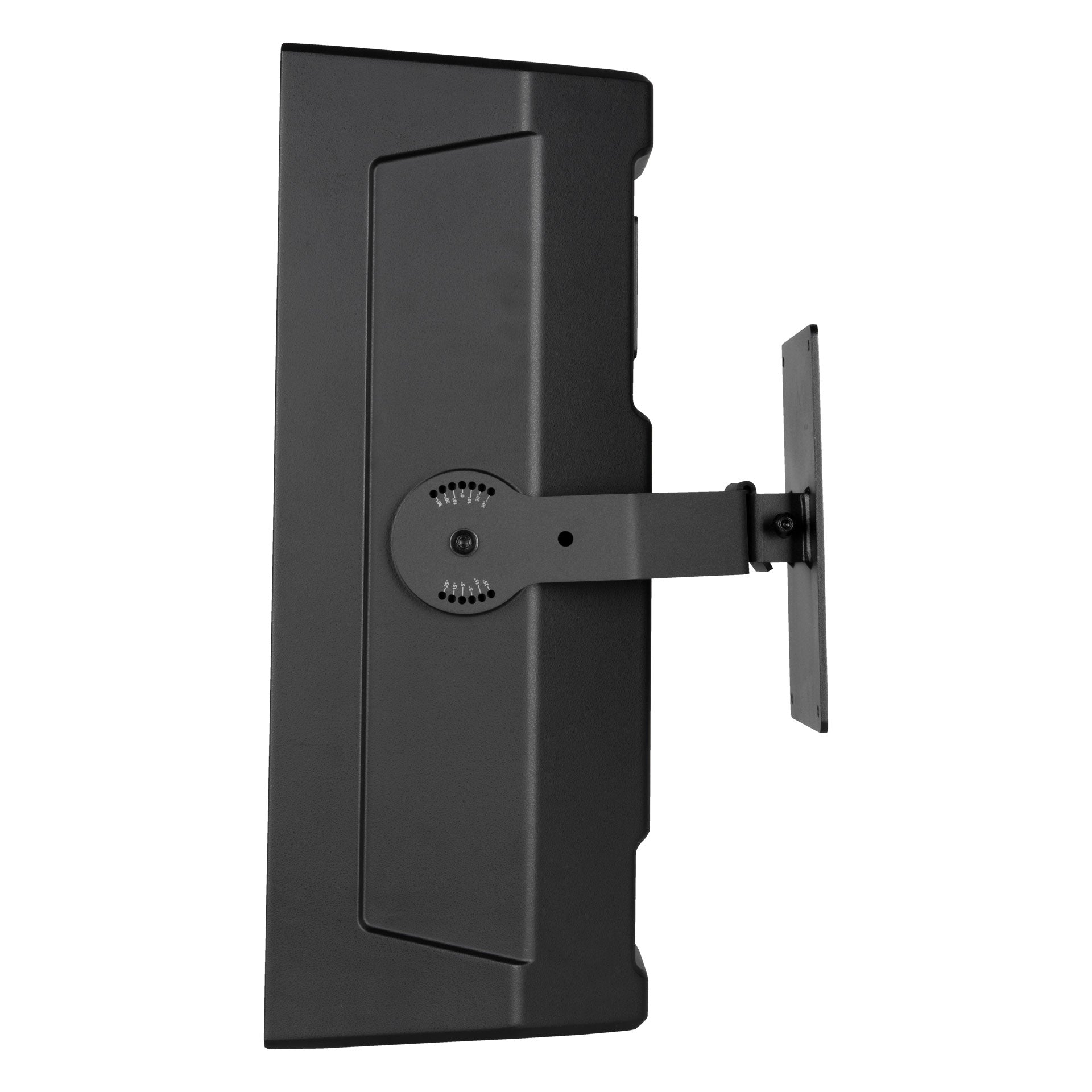

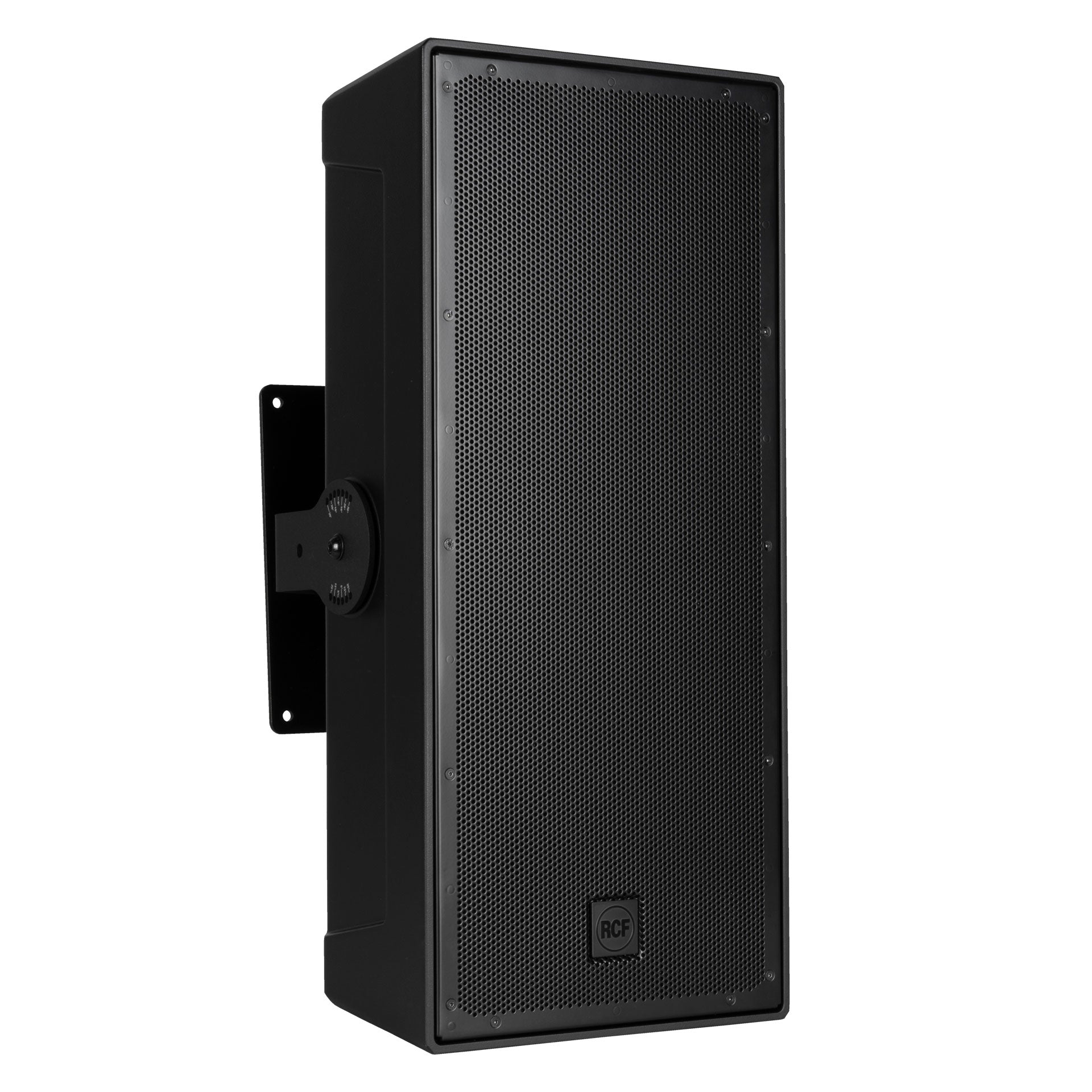

- Wall mount vertical bracket included
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response (-10dB): 50 Hz - 20000 Hz
-
Max SPL @ 1m: 142 dB
-
Horizontal coverage angle: 110°
-
Vertical coverage angle: 60°
POWER SECTION
-
Amplification: Full Range
-
Nominal Impedance: 8 ohm
-
Power Handling: 1200 W RMS
-
Peak Power Handling: 4800 W PEAK
-
Protections: Dynamic active mosfet
-
Crossover Frequencies: 750 Hz
TRANSDUCERS
-
Compression Driver: 1 x 1.4'' neo, 4.0'' v.c
-
Woofer: 2 x 10'' neo, 3.0'' v.c
INPUT/OUTPUT SECTION
-
Input connectors: Screw Terminals
-
Output connectors: Screw Terminals
STANDARD COMPLIANCE
-
IP protection grade: IP 55
-
Safety agency: CE compliant
-
EN54-24 certified: Yes
-
CPR number: 0068-CPR-254/2026
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Structural Polyurethane
-

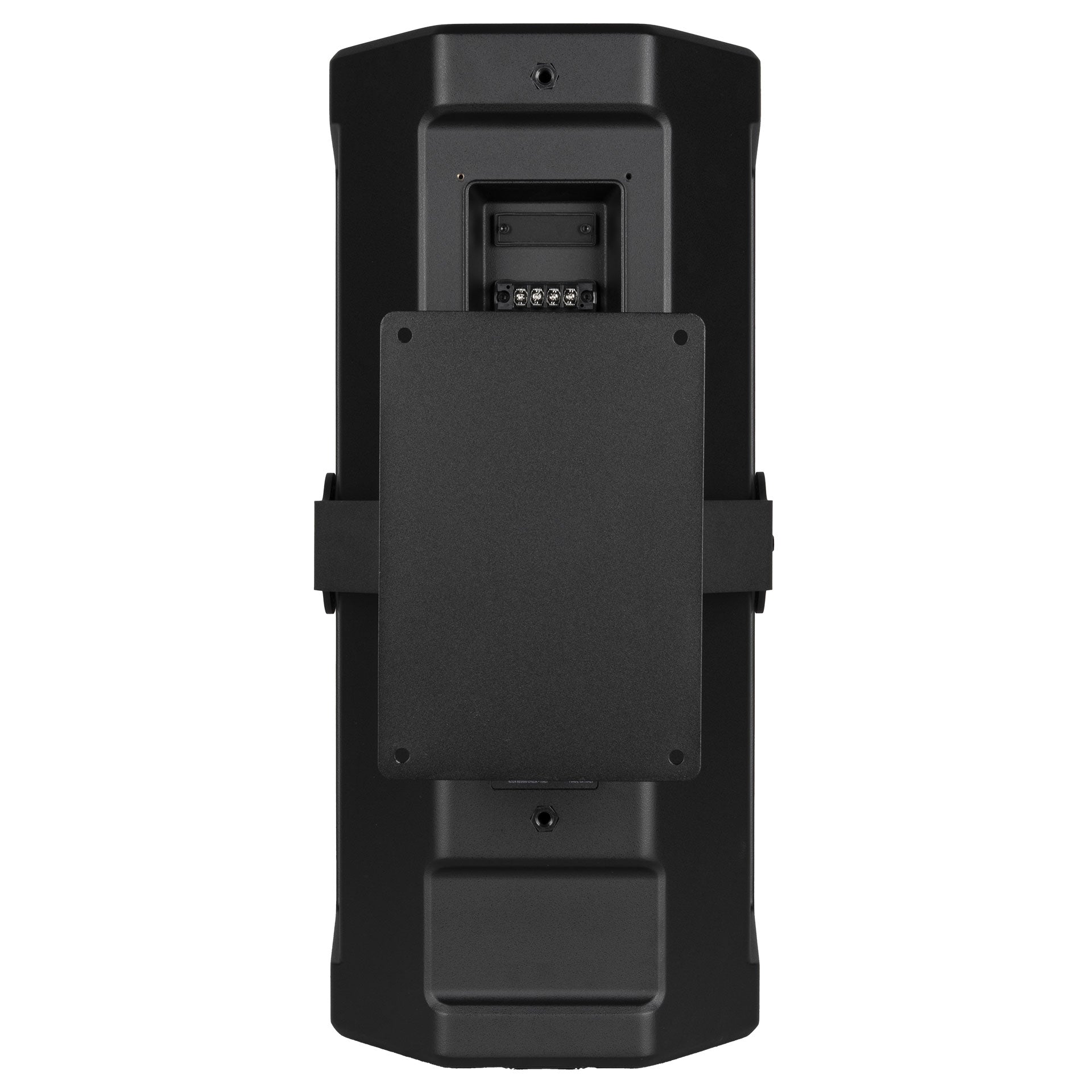

Hardware: Wall mount vertical bracket included 2 x M10 (top) - 2 x M10 (back)
-

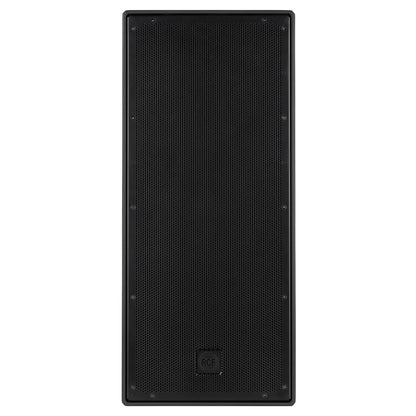

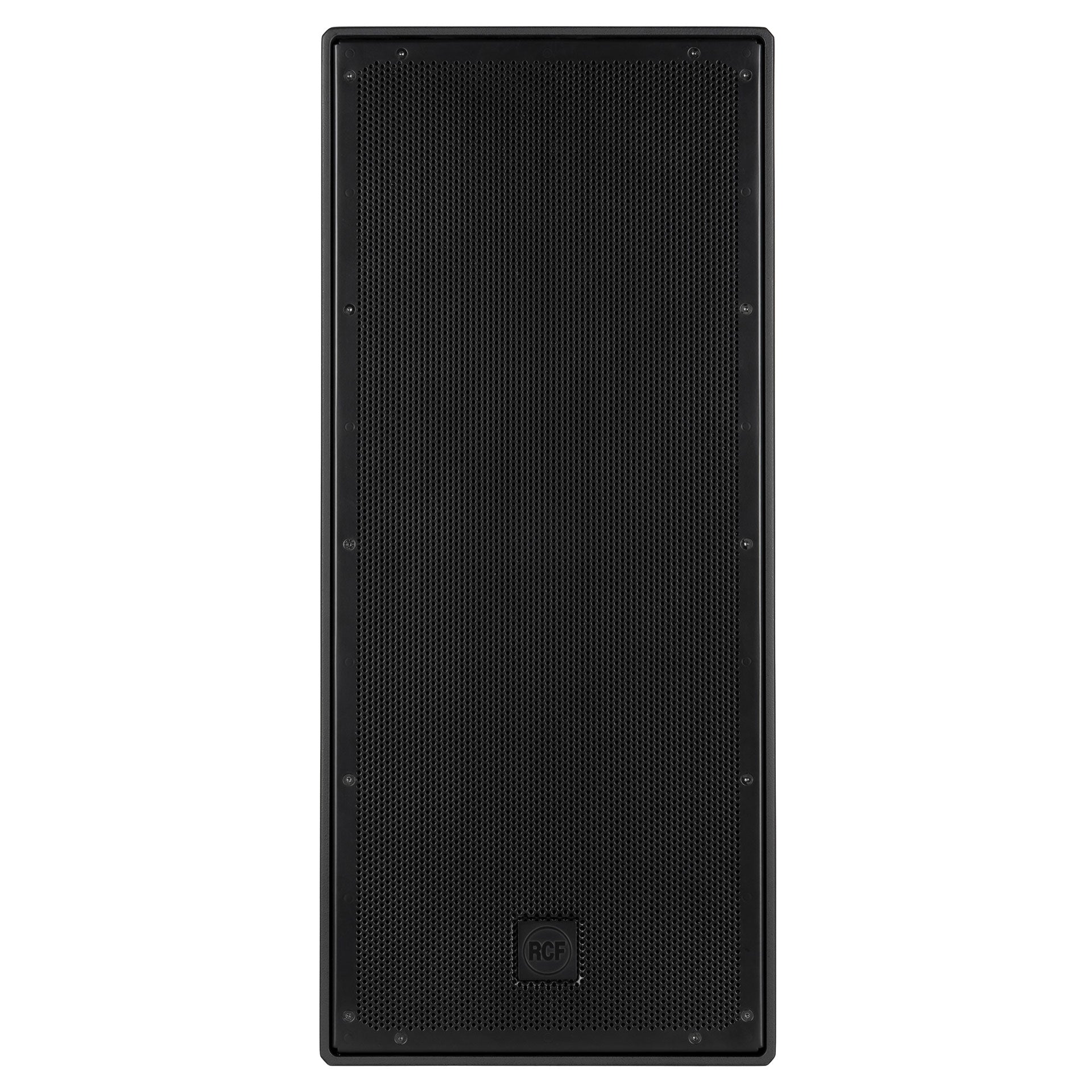

Grille: Aluminum with water-repellent protection
-
Color: Black - RAL 9005, White - RAL 9003
SIZE / WEIGHT
-
Height: 710 mm / 27.95 inches
-
Width: 311 mm / 12.24 inches
-
Depth: 270 mm / 10.63 inches
-
Weight: 25 kg / 55.12 lbs
SHIPPING INFORMATION
-
Package Height: 310 mm / 12.2 inches
-
Package Width: 841 mm / 33.11 inches
-
Package Depth: 338 mm / 13.31 inches
-
Package Weight: 28.2 kg / 62.17 lbs
