Description

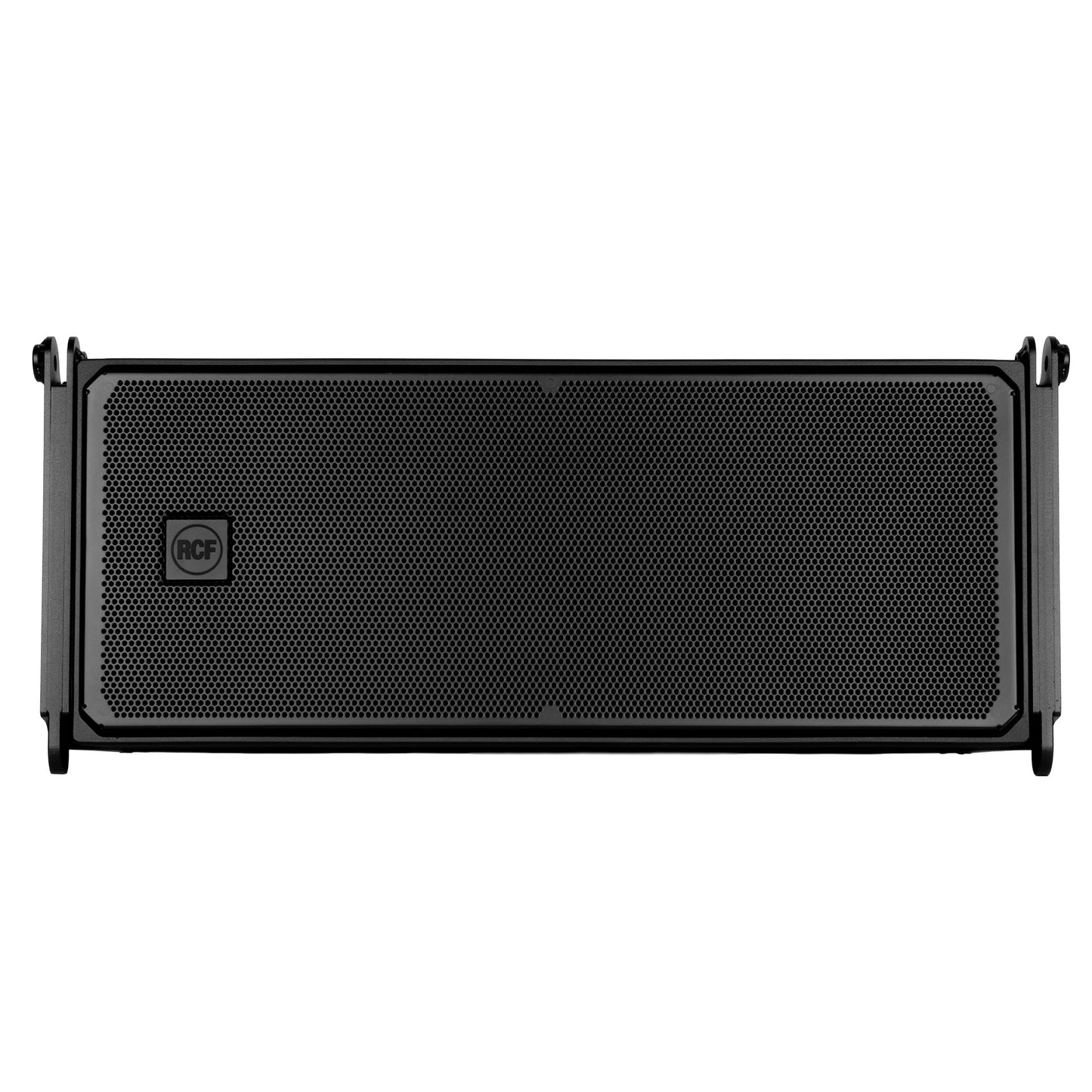

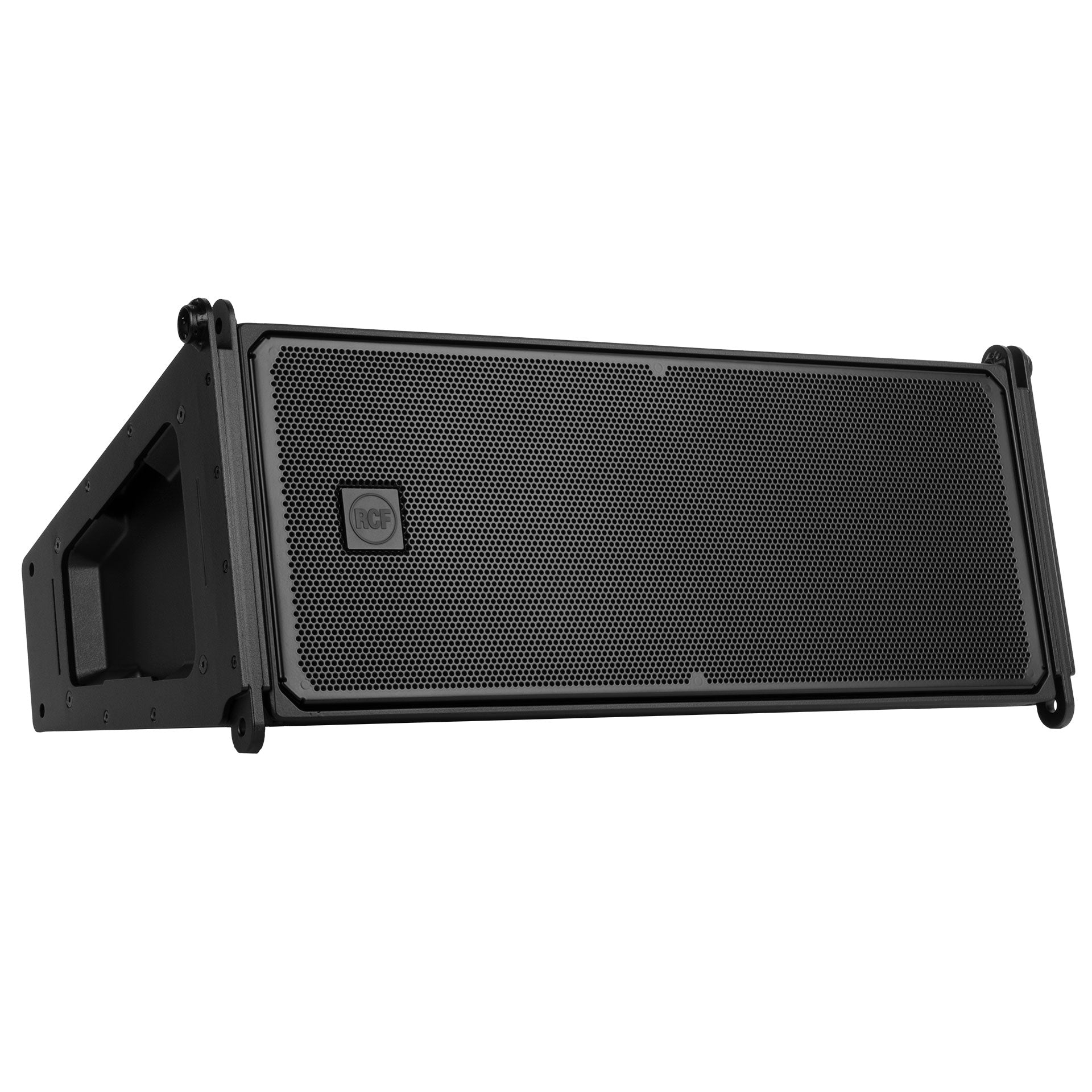

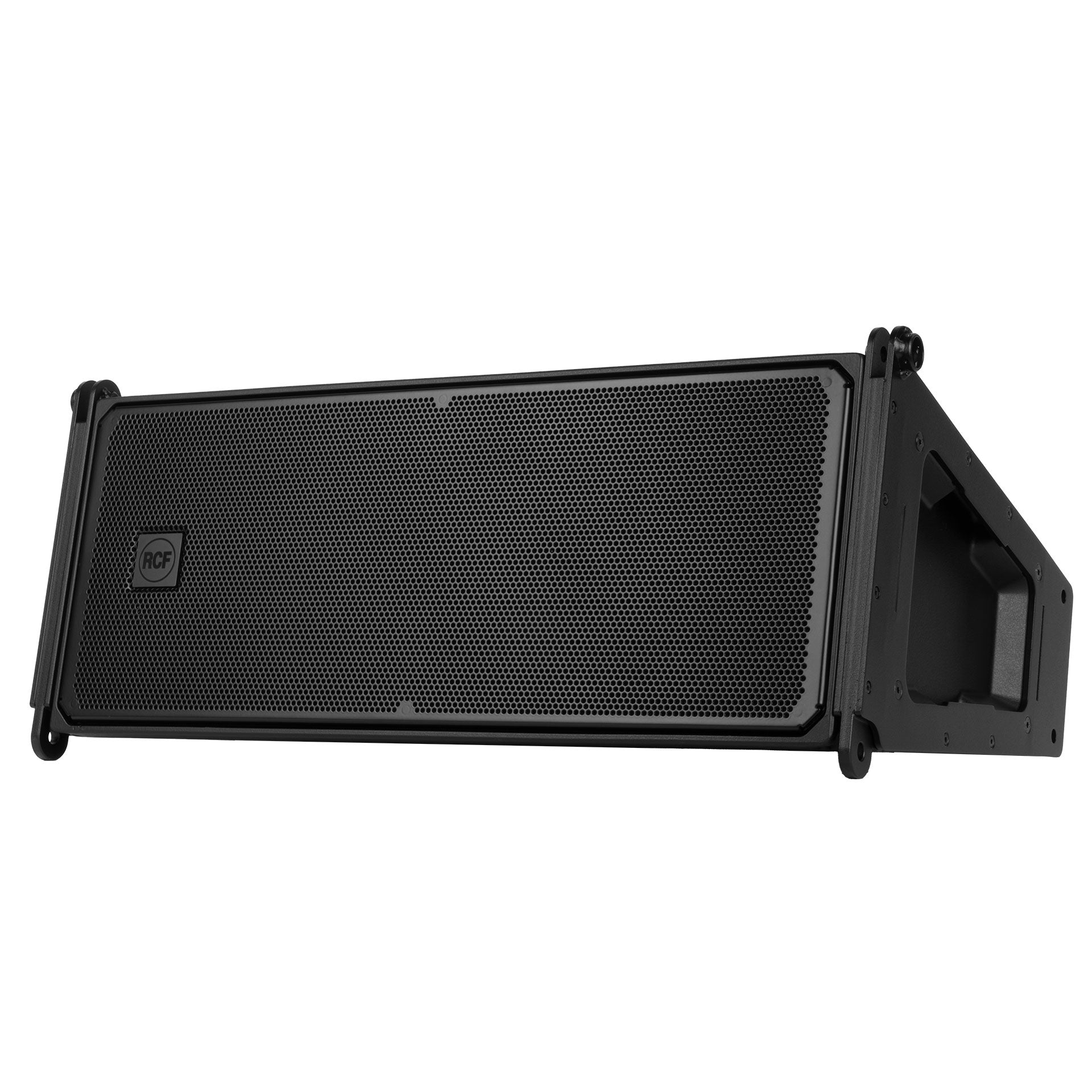

Passive 1600W 2-Way Dual 8" Array Module (IP55)

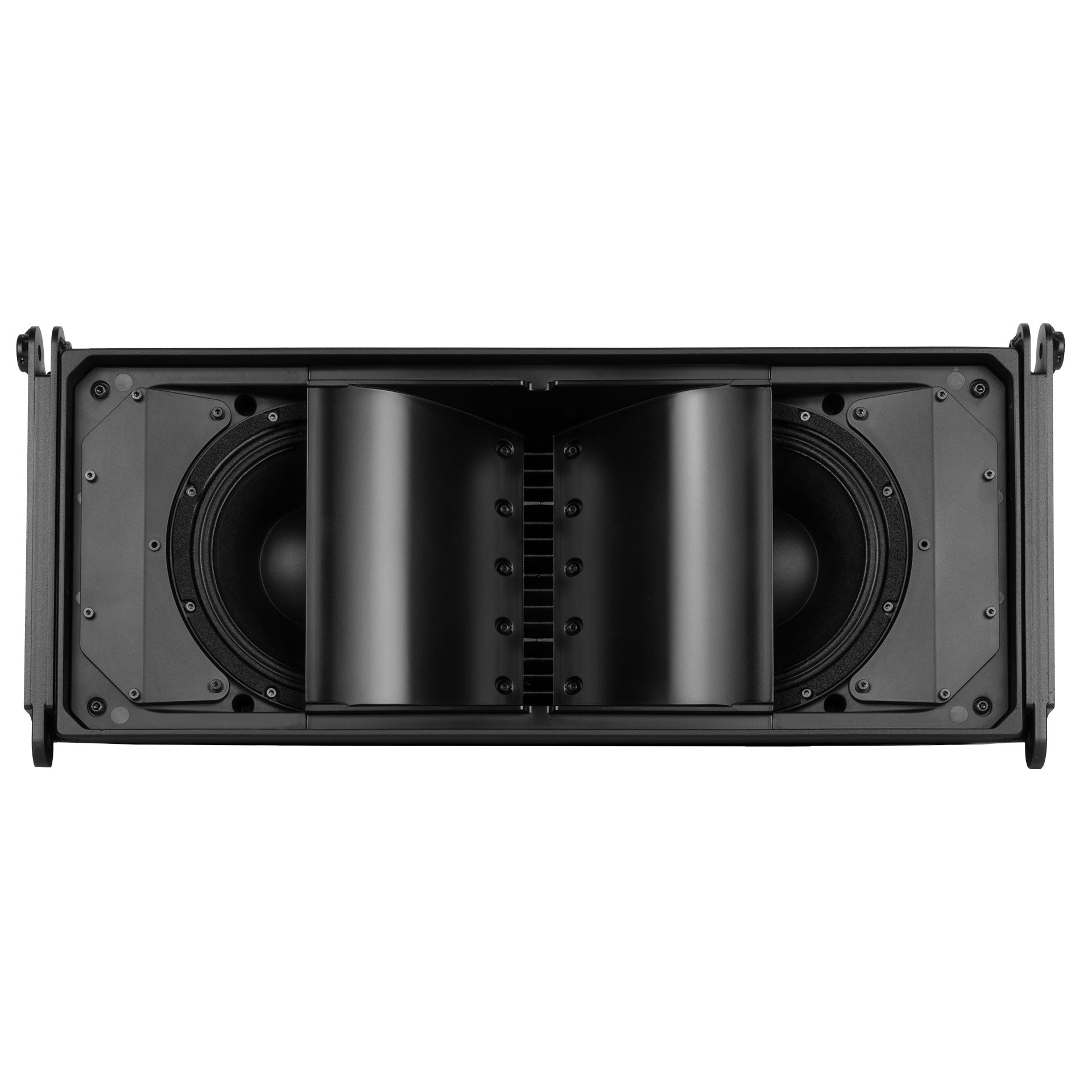

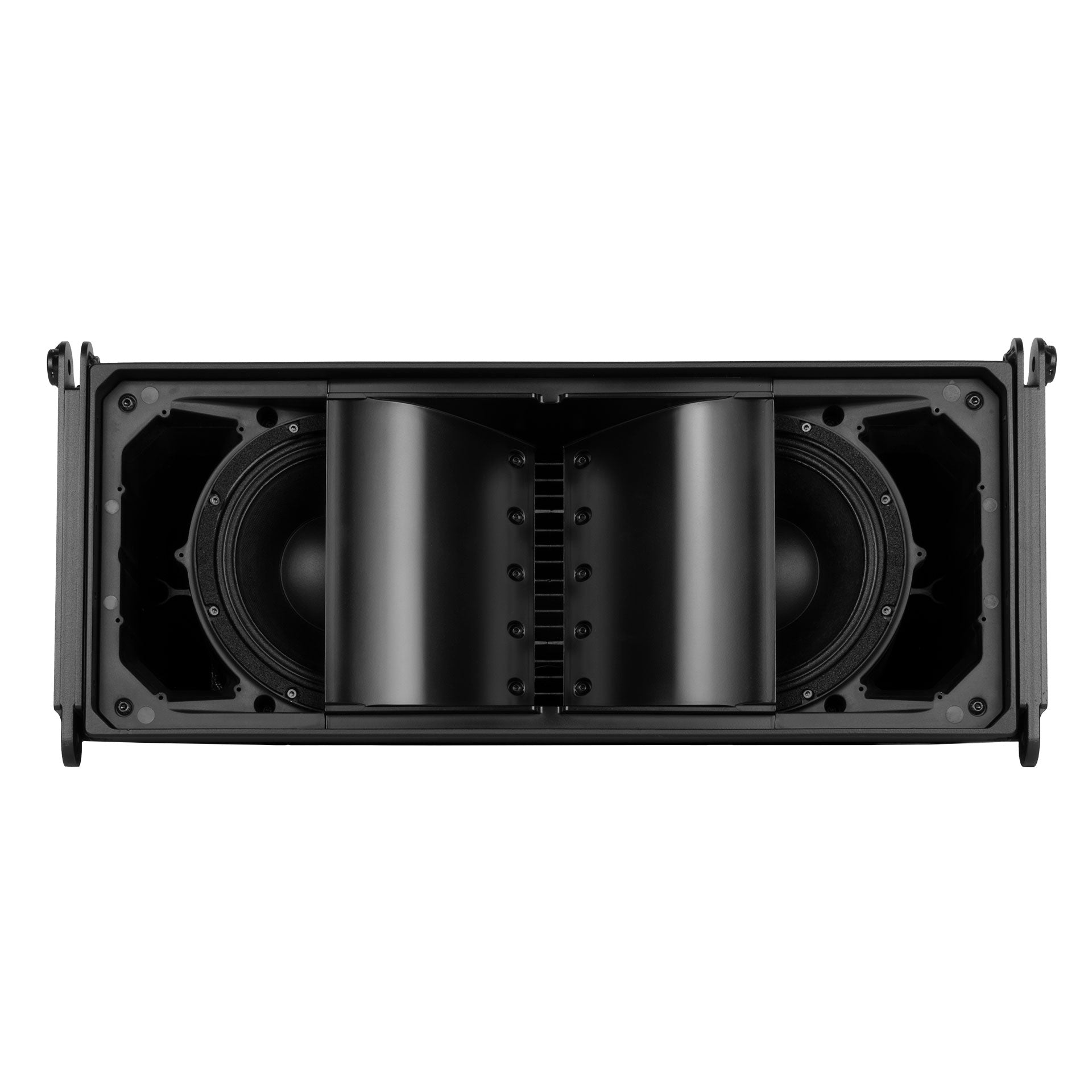

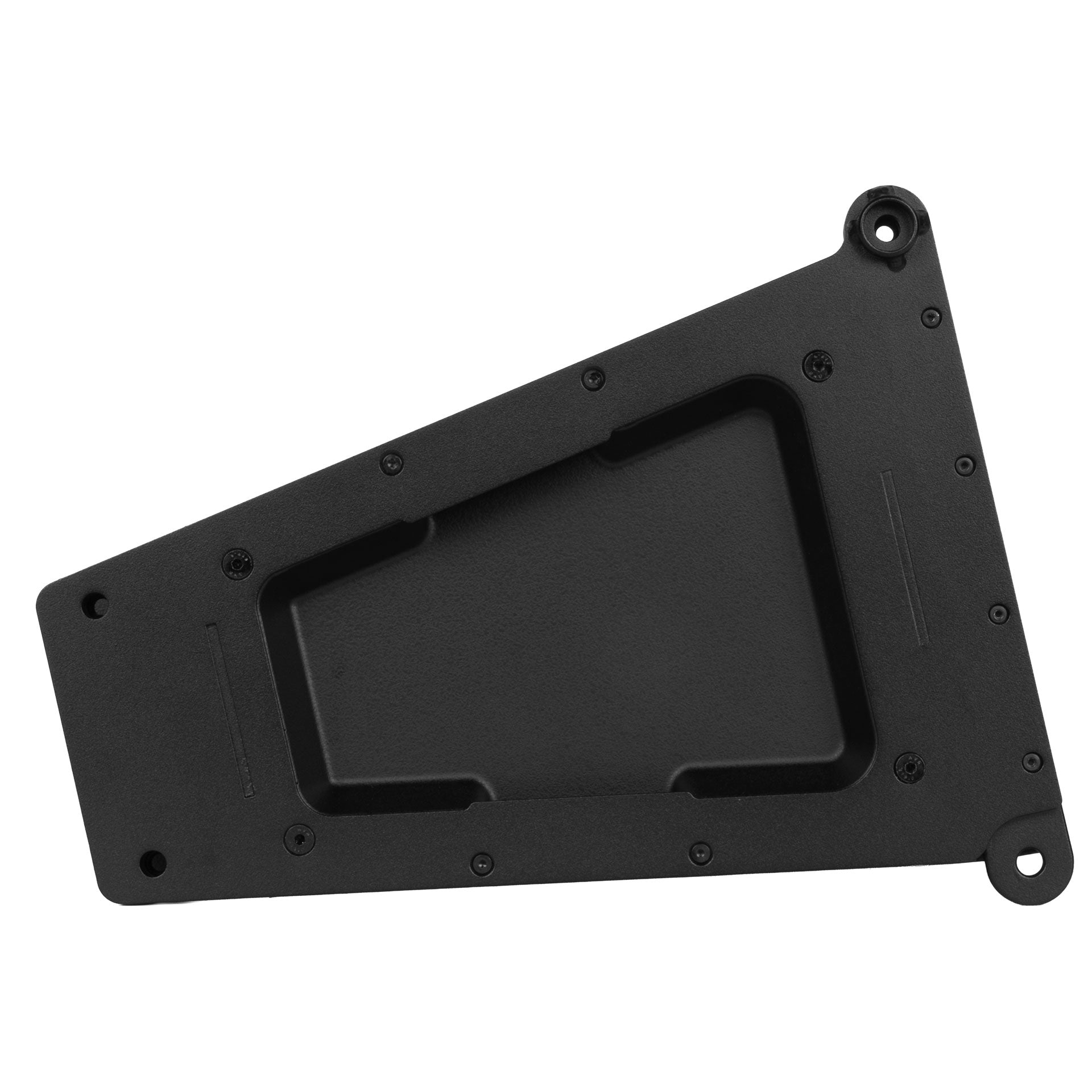

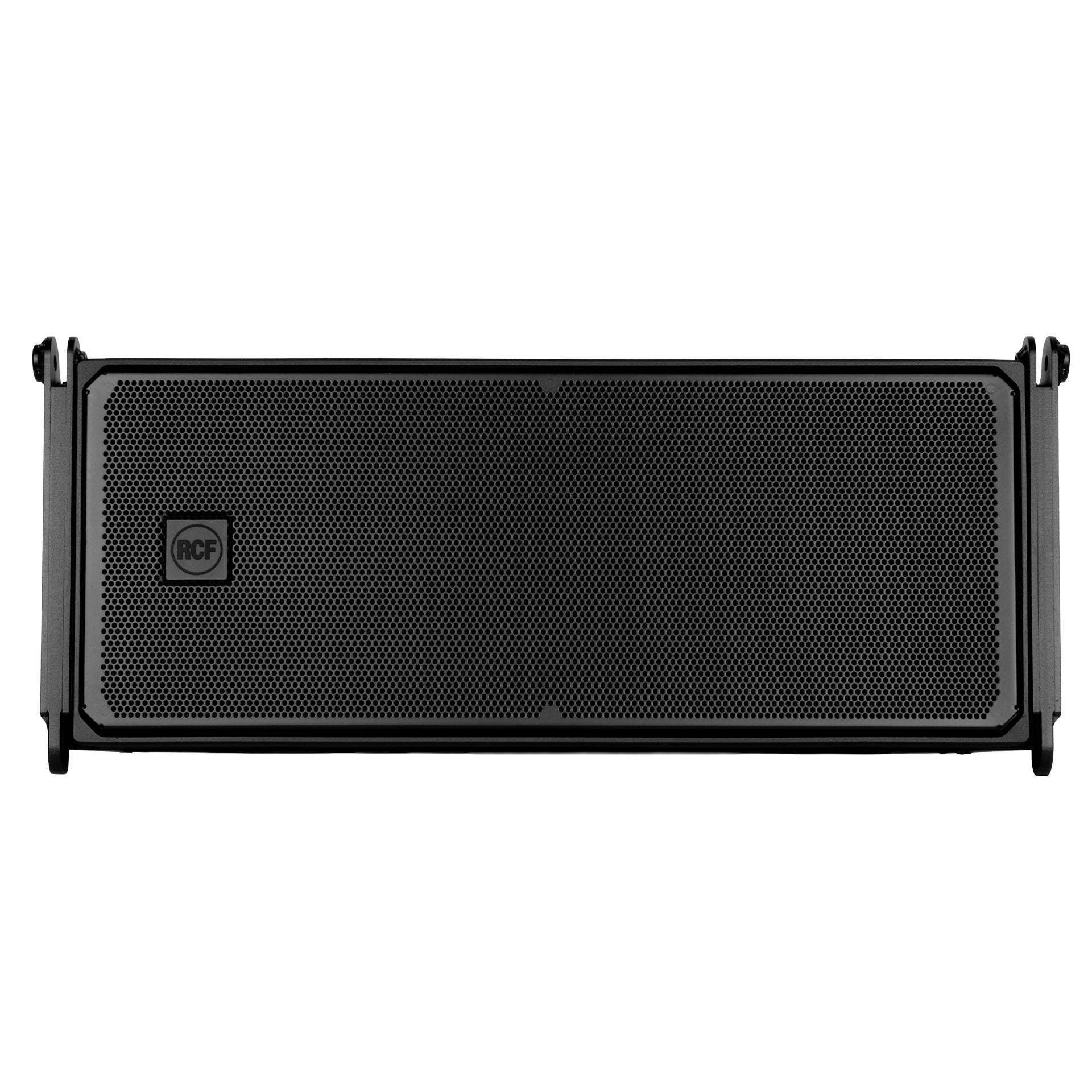

X 28L is a line array module designed for fixed indoor and outdoor installations requiring high audio quality and extreme durability. Thanks to the two 8'' woofers and the 3'' titanium-dome compression driver, it delivers powerful, clear sound with a constant 110° x 20° directivity. The cabinet is made of high-density polyurethane, while the aluminum grille guarantees protection from dust and rain, thanks to a waterproof fabric layer. X 28L is equipped with array mechanics that allow angle adjustment between modules from 0° to 20° with 2° steps. Up to 16 modules can be connected to the same fly bar. EN 54-24:2008 technical data available in the user manual.
FEATURES
- 800 W RMS power handling
- 140 dB max SPL
- 50 - 20000 Hz frequency range
- 110° x 20° constant directivity coverage angle
- 2 x 8" neo woofer, 2.5'' v.c.
- 3.0" v.c. Titanium Neo compression driver
- Polyurethane cabinet / aluminum grille
- IP55 protection grade

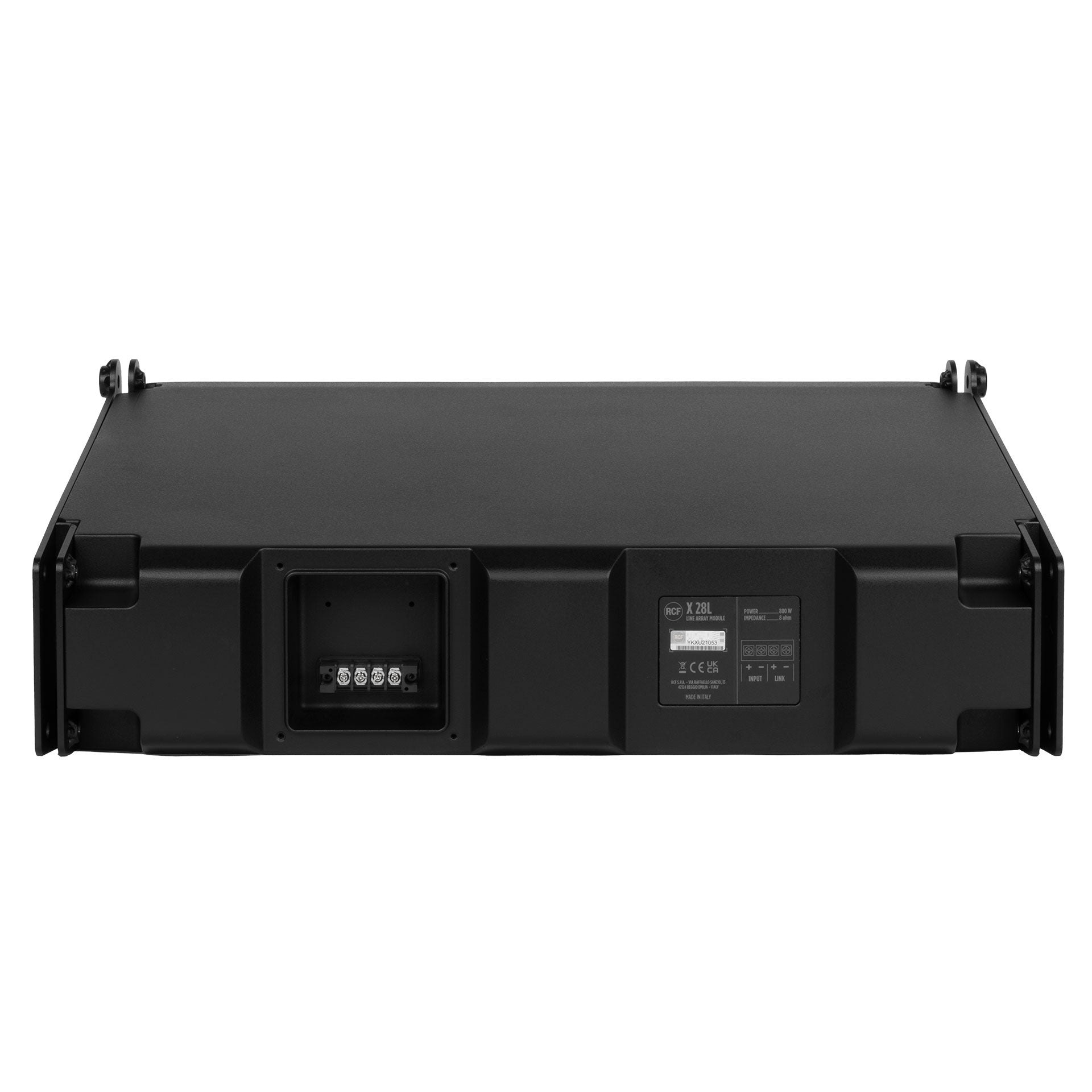

- 4 pole barrier strip terminals
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response (-10dB): 50 Hz - 20000 Hz
-
Max SPL @ 1m: 140 dB
-
Horizontal coverage angle: 110°
-
Vertical coverage angle: 20°
POWER SECTION
-
Amplification: Full Range
-
Nominal Impedance: 8 ohm
-
Power Handling: 800 W RMS
-
Peak Power Handling: 3200 W PEAK
-
Protections: Dynamic active mosfet
-
Crossover Frequencies: 750 Hz
TRANSDUCERS
-
Compression Driver: 1 x 1.4'' neo, 3.0'' v.c
-
Woofer: 2 x 8'' neo, 2.5'' v.c
INPUT/OUTPUT SECTION
-

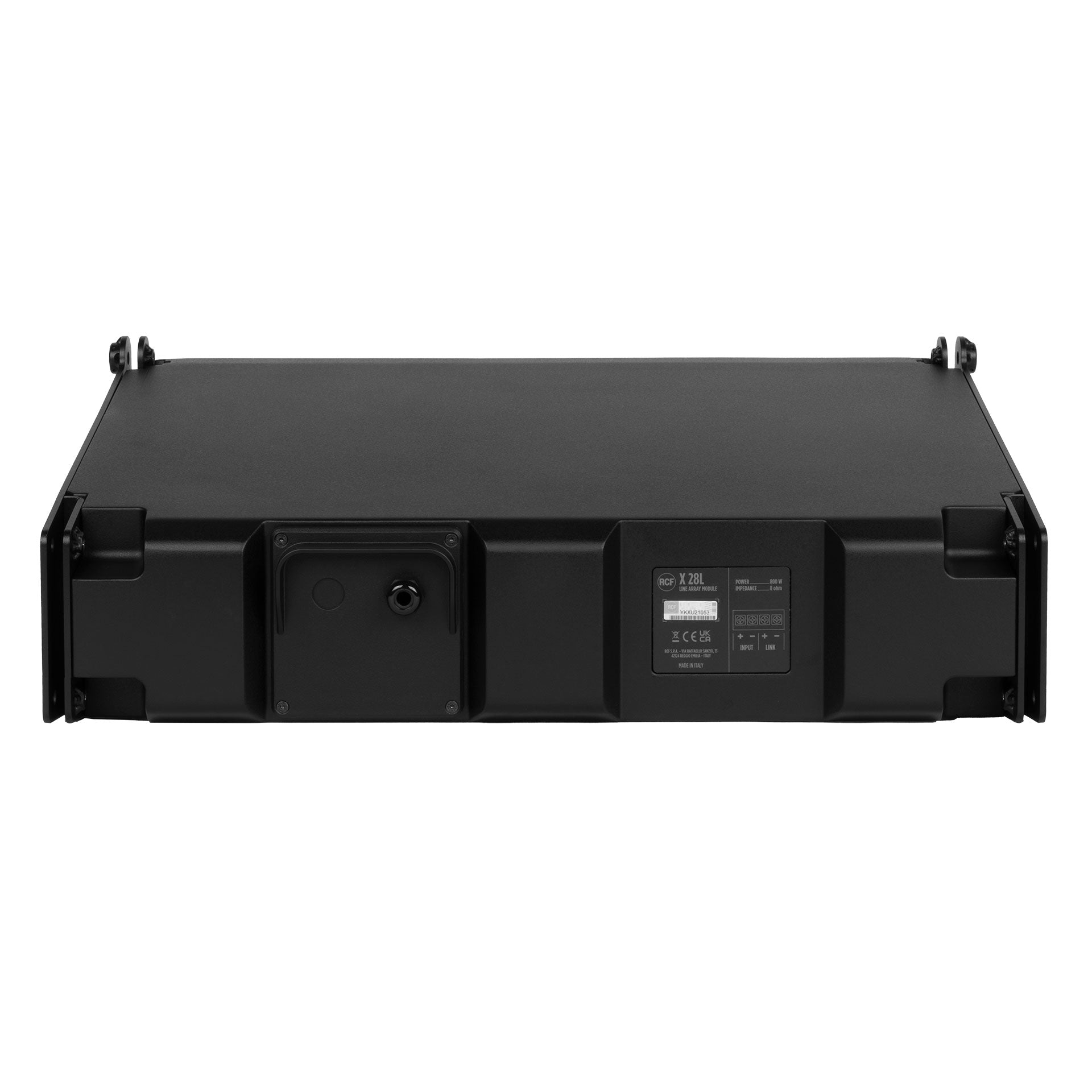

Input connectors: Screw Terminals
-
Output connectors: Screw Terminals
STANDARD COMPLIANCE
-
IP protection grade: IP 55
-
Safety agency: CE compliant
-
EN54-24 certified: Yes
-
CPR number: 0068-CPR-254/2026
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Structural Polyurethane
-

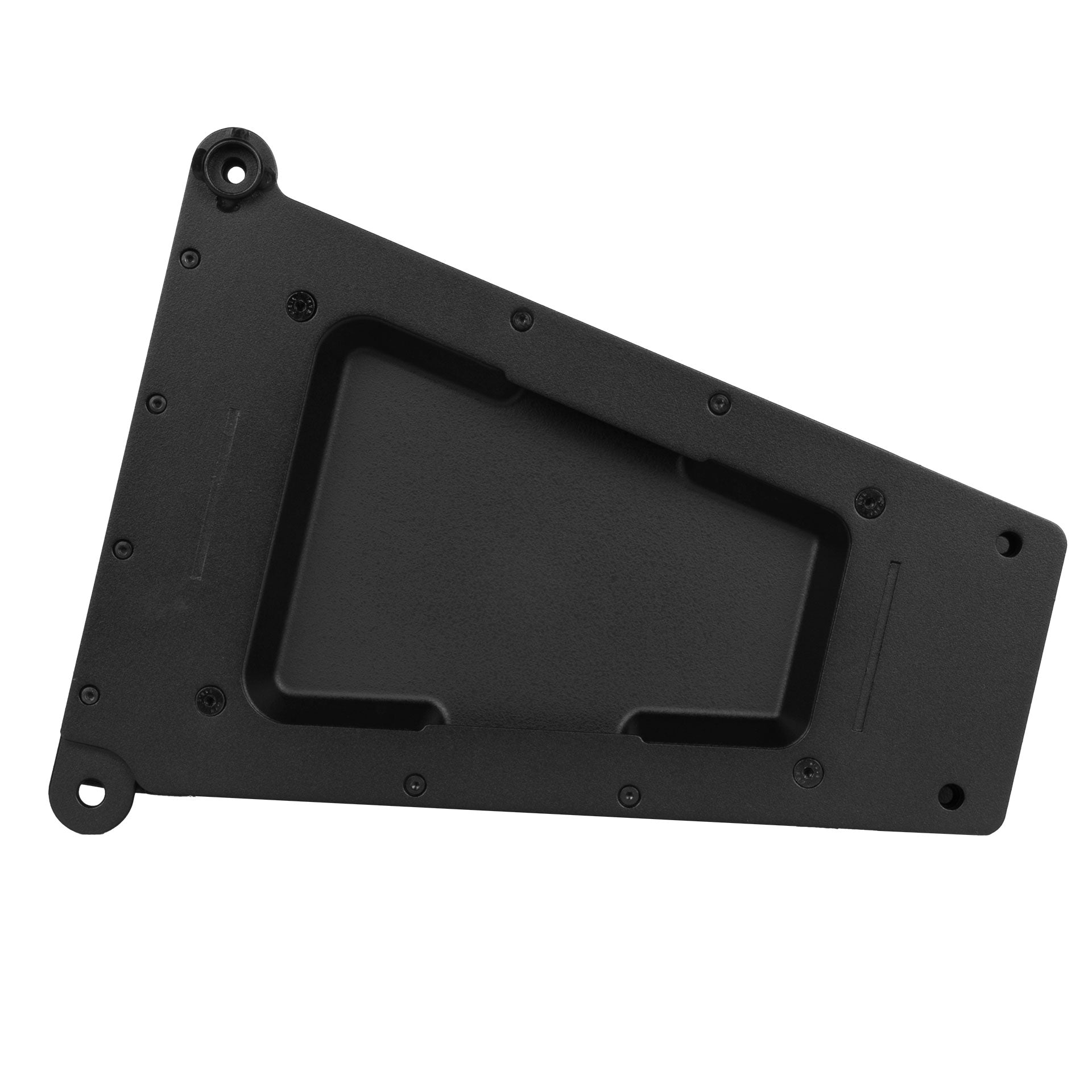

Hardware: Array fittings
-
Grille: Aluminum with water-repellent protection
-
Color: Black - RAL 9005, White - RAL 9003
SIZE / WEIGHT
-
Height: 290 mm / 11.42 inches
-
Width: 658 mm / 25.91 inches
-
Depth: 378 mm / 14.88 inches
-
Weight: 24 kg / 52.91 lbs
SHIPPING INFORMATION
-
Package Height: 390 mm / 15.35 inches
-
Package Width: 685 mm / 26.97 inches
-
Package Depth: 305 mm / 12.01 inches
-
Package Weight: 28.2 kg / 62.17 lbs
