Description

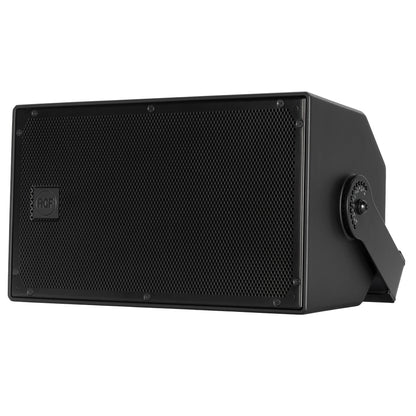

Passive 800W 2-Way 8" Speaker (IP55)
X 08 is a two-way professional speaker designed for a wide range of fixed indoor and outdoor installations requiring high audio quality and extreme durability. Thanks to the 8"woofer and the 1.75" voice coil PKX compression driver, it delivers powerful, clear sound with constant 100° x 100° coverage. The cabinet is made of high-density polyurethane, while the aluminum grille guarantees protection from dust and rain, thanks to a waterproof fabric layer. A bracket for horizontal installation is included; a dedicated accessory is available for vertical installation. EN 54-24:2008 technical data available in the user manual.
FEATURES
- 400 W RMS power handling
- 128 dB max SPL
- 70 - 20000 Hz frequency range
- 100° x 100° constant directivity coverage angle
- 8" neo woofer, 2.5'' v.c.
- 1.75" v.c. PKX/Neo compression driver
- Polyurethane cabinet / aluminum grille
- IP55 protection grade

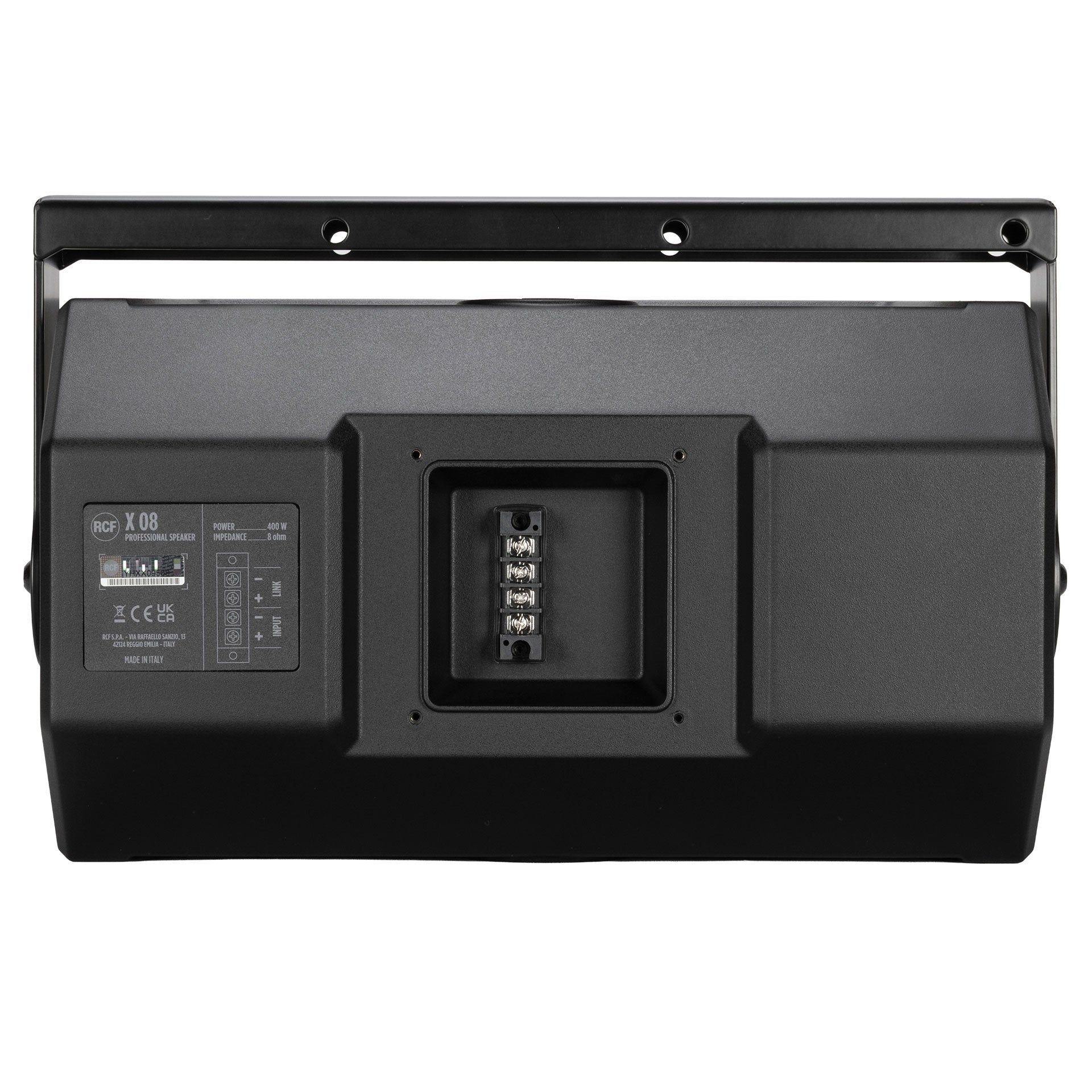

- 4 pole barrier strip terminals

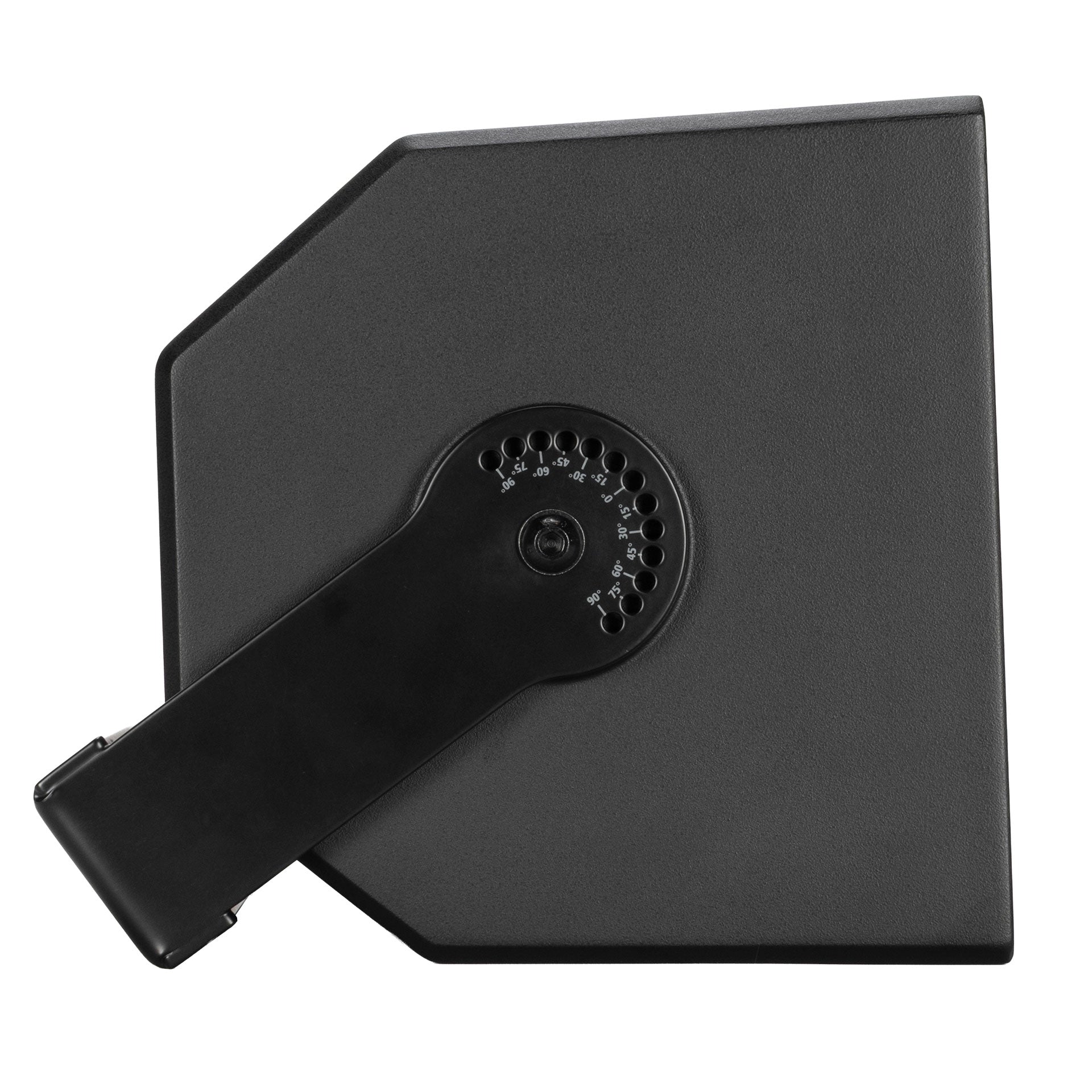

- Horizontal bracket included
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response (-10dB): 70 Hz - 20000 Hz
-
Max SPL @ 1m: 128 dB
-
Horizontal coverage angle: 100°
-
Vertical coverage angle: 100°
POWER SECTION
-
Amplification: Full Range
-
Nominal Impedance: 8 ohm
-
Power Handling: 400 W RMS
-
Peak Power Handling: 1600 W PEAK
-
Protections: Dynamic Active Mosfet
-
Crossover Frequencies: 2000 Hz

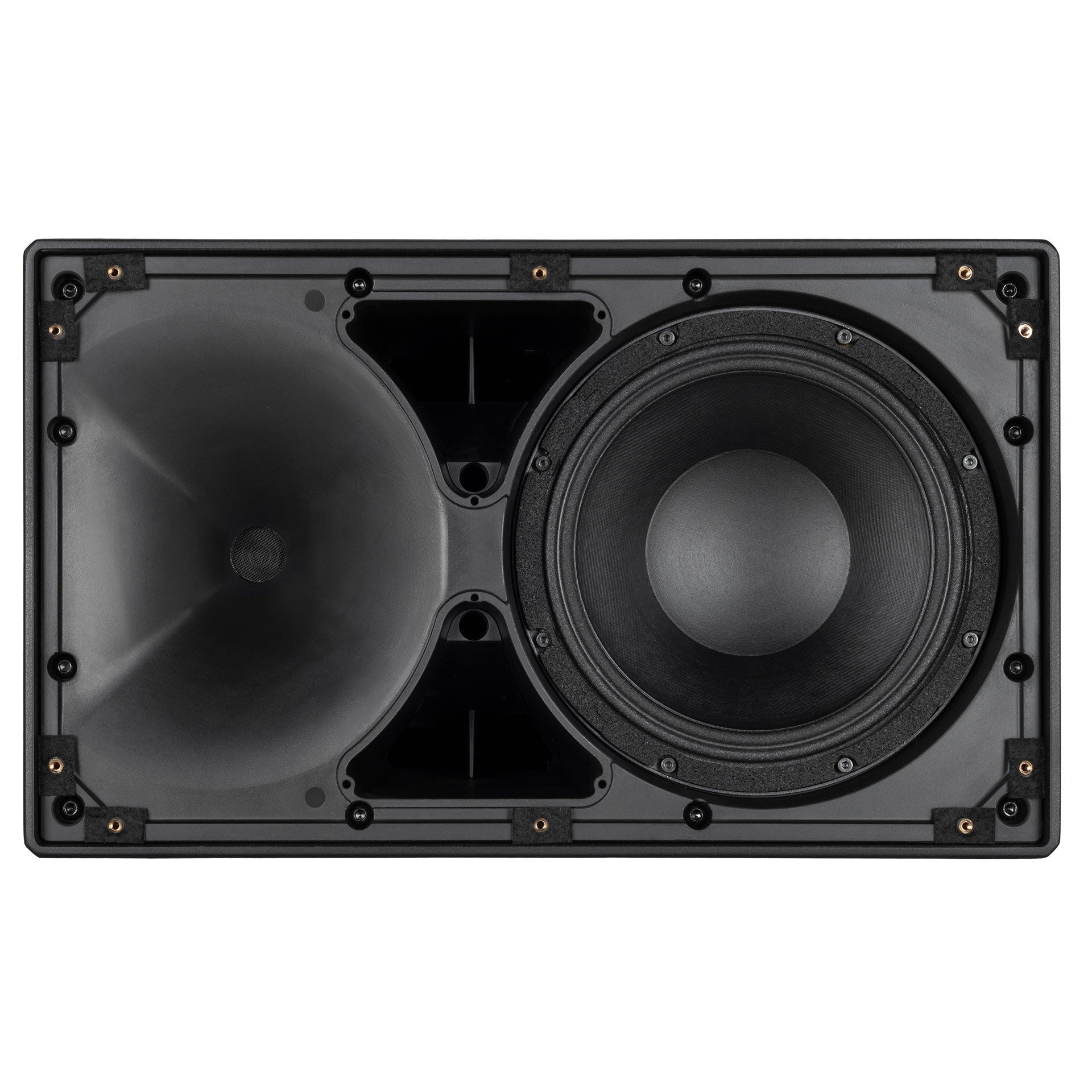

TRANSDUCERS
-
Compression Driver: 1 x 1.0'' neo, 1.75'' v.c
-
Woofer: 1 x 8'' neo, 2.5'' v.c
INPUT/OUTPUT SECTION
-
Input connectors: Screw Terminals
-
Output connectors: Screw Terminals
STANDARD COMPLIANCE
-
IP protection grade: IP 55
-
Safety agency: CE compliant
-
EN54-24 certified: Yes
-
CPR number: 0068-CPR-254/2026
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Structural Polyurethane
-
Hardware: Horizontal bracket included 2 x M10 (top-bottom) 2 x M10 (sides)
-
Grille: Aluminum with water-repellent protection
-
Color: Black - RAL 9005, White - RAL 9003
SIZE / WEIGHT
-
Height: 260 mm / 10.24 inches
-
Width: 436 mm / 17.17 inches
-
Depth: 251 mm / 9.88 inches
-
Weight: 9.95 kg / 21.94 lbs
SHIPPING INFORMATION
-
Package Height: 310 mm / 12.2 inches
-
Package Width: 500 mm / 19.69 inches
-
Package Depth: 290 mm / 11.42 inches
-
Package Weight: 13.5 kg / 29.76 lbs
