RCF WMR-60T - B Passive 320W 6.5" 2-Way Wall Mount Monitor Speaker w/ Transformer - 8 ?, 70/100V

RCF WMR-60T - B Passive 320W 6.5" 2-Way Wall Mount Monitor Speaker w/ Transformer - 8 ?, 70/100V

Write a review

SKU: WMR-60T - B

$559.00
$559.00
Sale Sold out
Shipping calculated at checkout.

Available options

View full details

Description

Passive 320W 6.5" 2-Way Wall Mount Monitor Speaker w/ Transformer - 8 ?, 70/100V

WMR 60T is a multi-purpose two-way wall-mounted speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and accurate details, WMR 60T pairs any building's aesthetic.The high-quality transducers guarantee a precise music reproduction of the entire frequency band and provide impressive sound pressure levels for such a compact enclosure. The installation is easy thanks to the dedicated connection board inside the (included) wall mount support, which allows the installer to set the desired tilt first, fix the speaker, and finally connect it without the need for any tooling.

Features

  • 80W RMS power handling
  • 114 dB max SPL
  • 70 ÷ 20000 Hz frequency range
  • 140° x 100° constant directivity coverage angle
  • 6.5" high power woofer
  • 1" neodymium dome tweeter
  • Self-extinguishing plastic cabinet and aluminum front grille

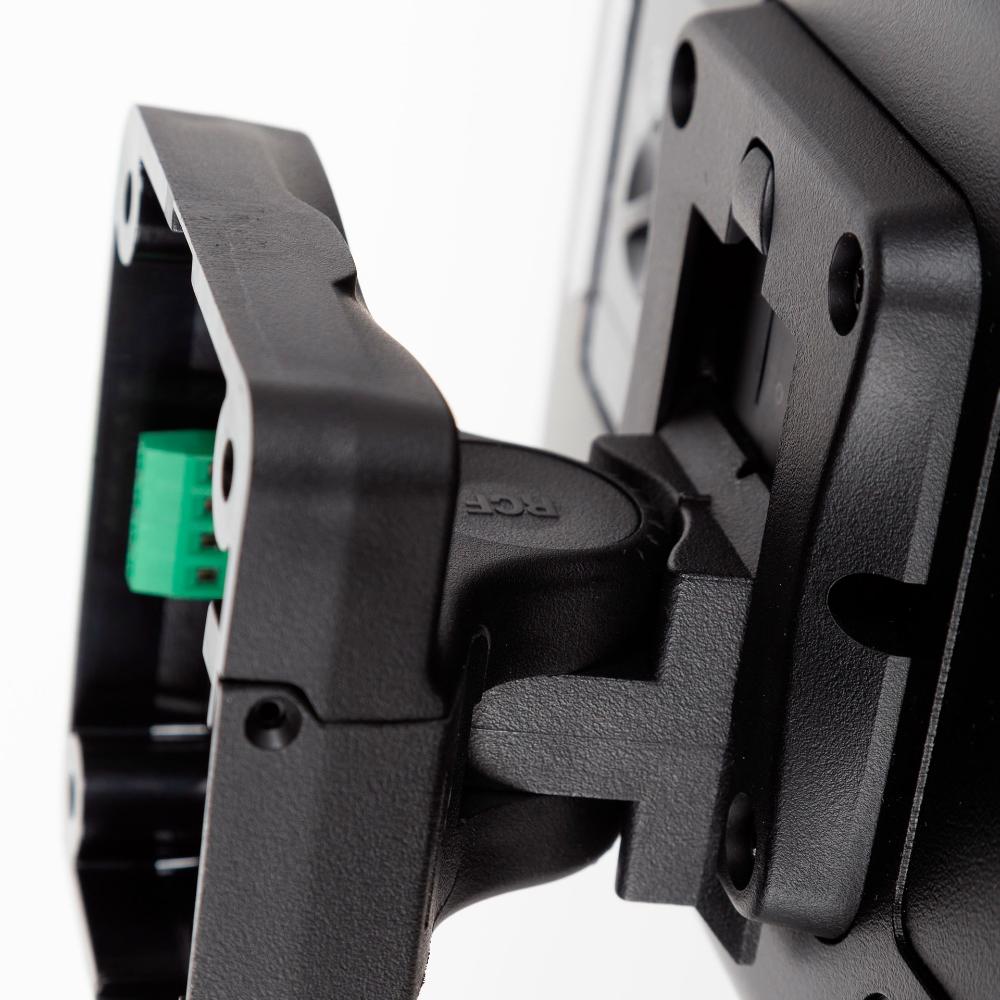

  • Connection board integrated into the wall support
  • 4 pole EUROBLOCK connector (audio input and parallel link output)
  • IP55 protection grade

    • Specifications

    Acoustical specifications
    Frequency Response (-10dB) 70 Hz - 20000 Hz
    Max SPL @ 1m 114 dB
    Horizontal coverage angle 140°
    Vertical coverage angle 100°
    System Sensitivity 89 dB
    Power section
    Amplification Full Range
    Nominal Impedance 8 ohm
    Power Handling 80 W RMS
    Peak Power Handling 320 W PEAK
    Protections Bulb lamp
    Crossover Frequencies 2500
    Recommended Amplifiers XPS SERIES, KPS SERIES, DMA SERIES

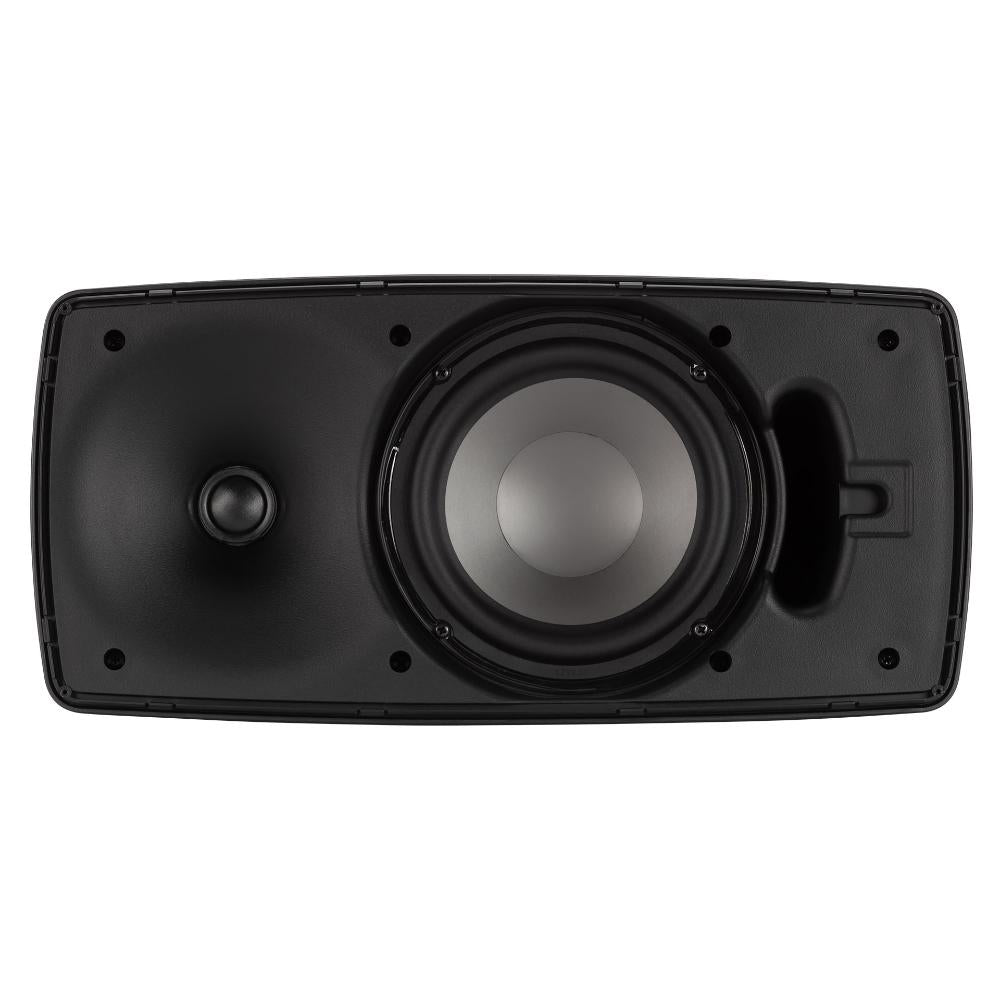

    Transducers
    Dome Tweeter 1 x 1.0'' neo, 1.0'' v.c
    Woofer 1 x 6.5'', 1.2'' v.c
    Input/Output section
    Input connectors Euroblock
    Output connectors Euroblock

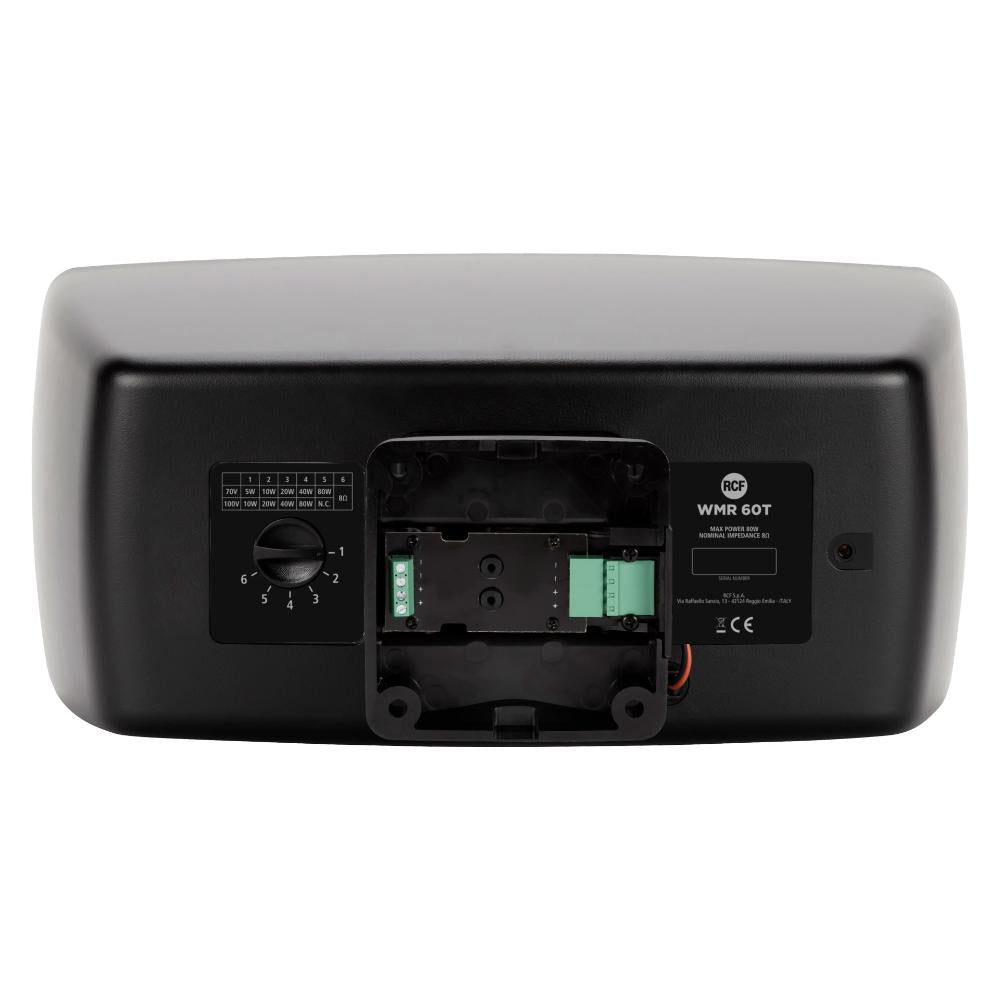

    Constant Voltage Transformer 70/100 V
    Power selection 1 80 W - 125 ohm
    Power selection 2 40 W - 250 ohm
    Power selection 3 20 W - 500 ohm
    Power selection 4 10 W - 1000 ohm
    Power selection 5 5 W - 2000 ohm
    Standard compliance
    IP protection grade IP 55
    Safety agency CE compliant, UL 1480A
    Physical specifications
    Cabinet/Case Material ABS
    Hardware Wall mount bracket
    Grille Steel
    Color Black - RAL 9005, White - RAL 9003
    Size / Weight
    Height 403 mm / 15.87 inches
    Width 193 mm / 7.6 inches
    Depth 293 mm / 11.54 inches
    Weight 6 kg / 13.23 lbs
    Shipping information
    Package Height 298 mm / 11.73 inches
    Package Width 468 mm / 18.43 inches
    Package Depth 338 mm / 13.31 inches
    Package Weight 7.5 kg / 16.53 lbs
