Description

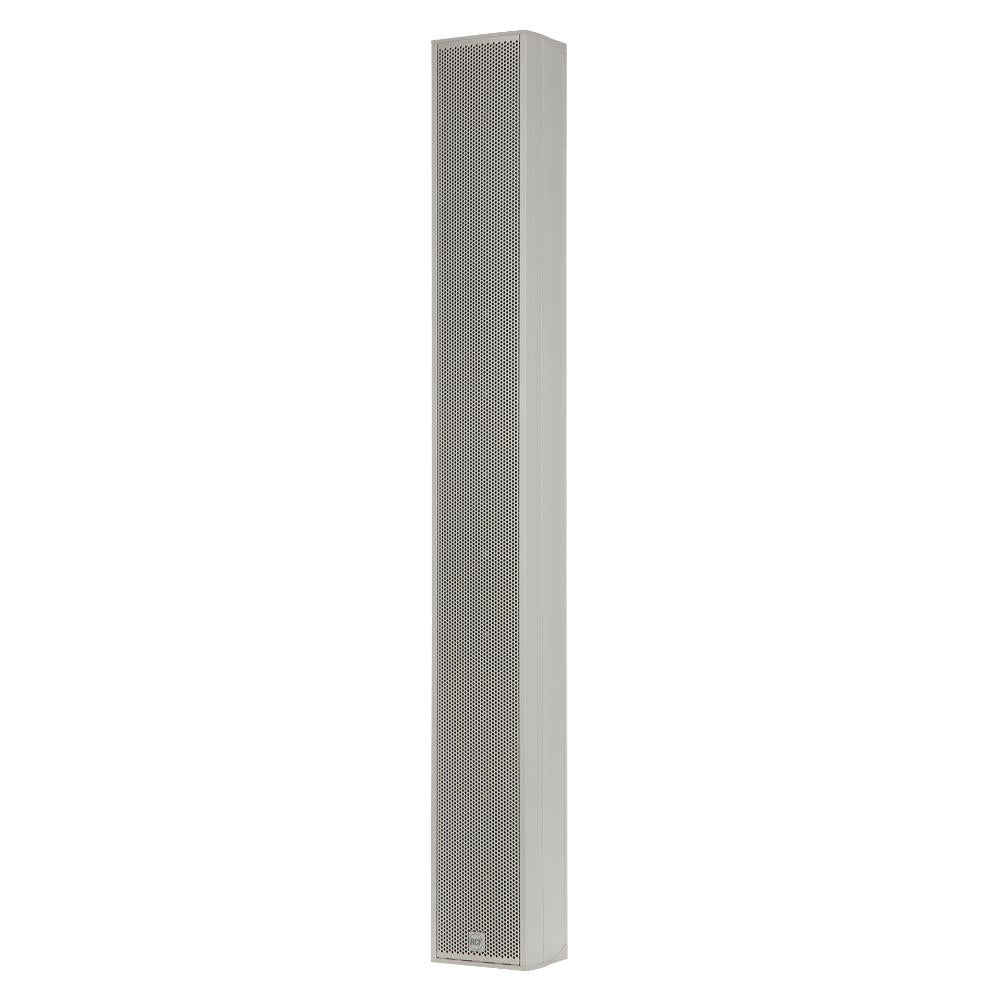

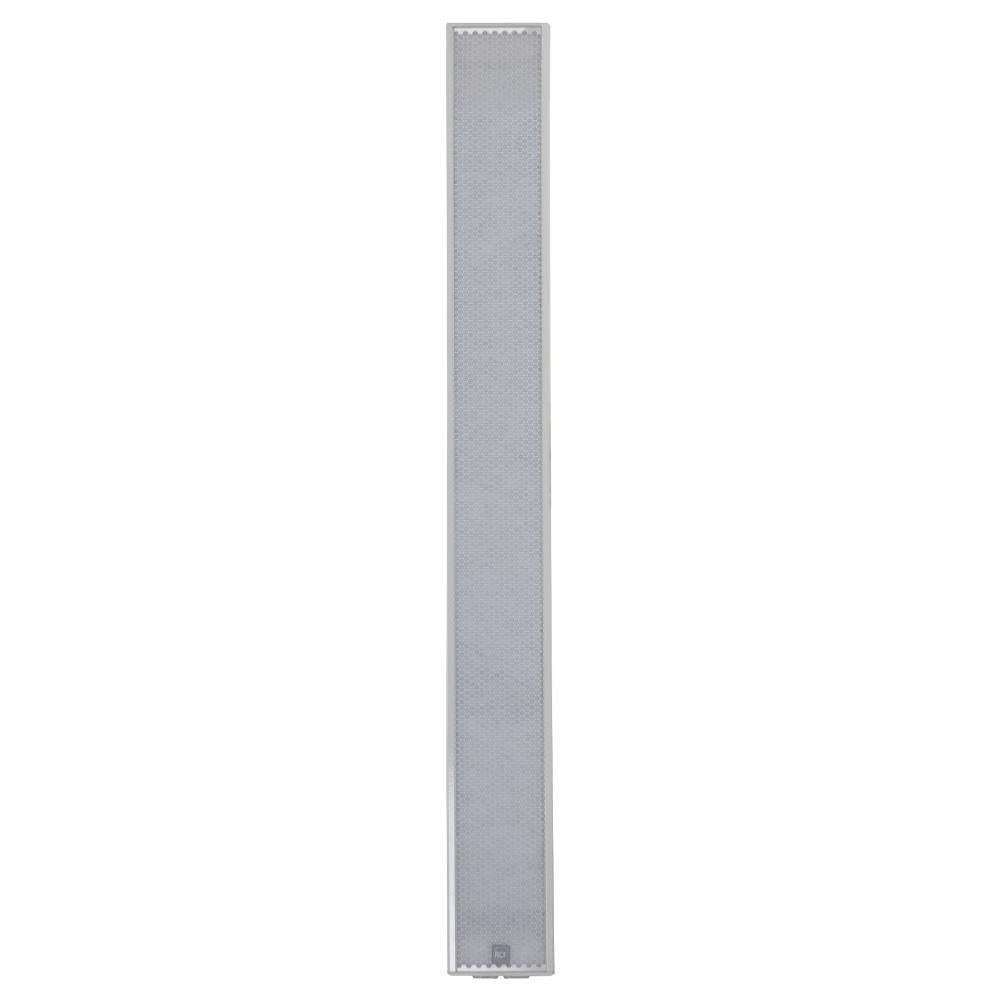

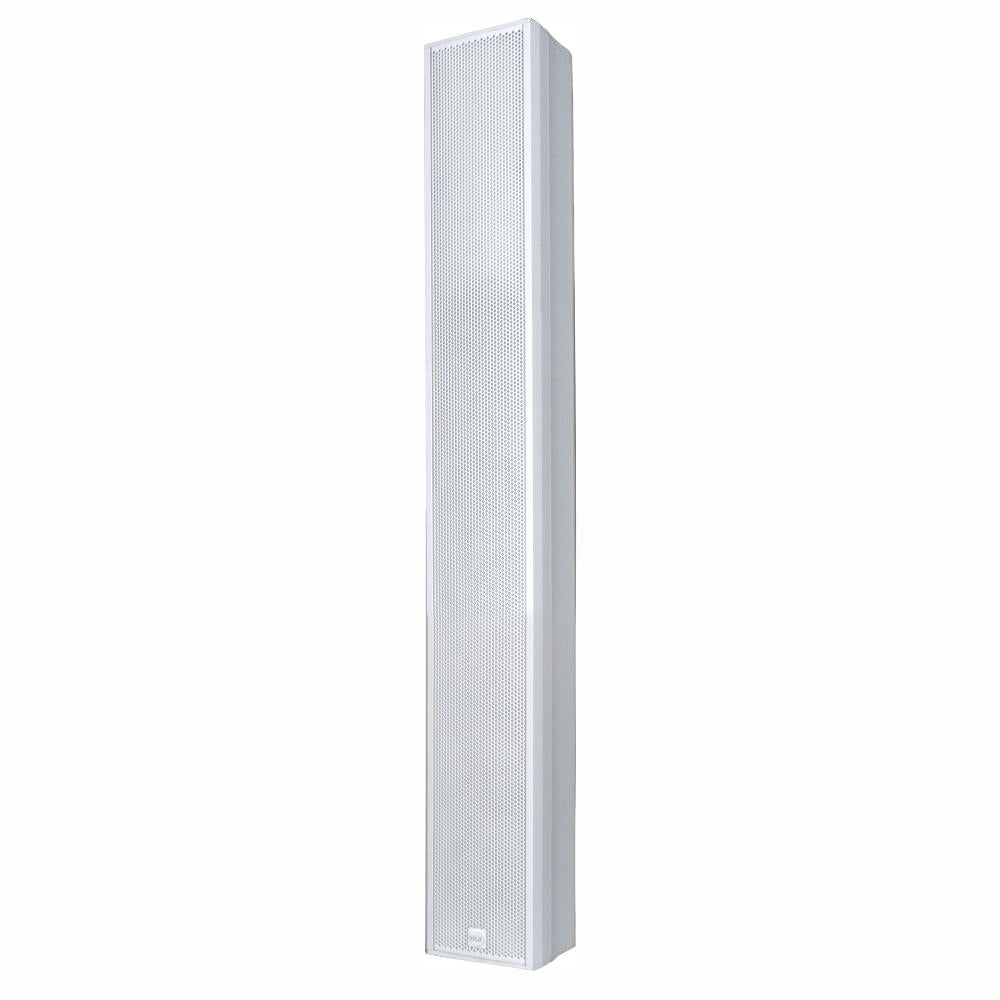

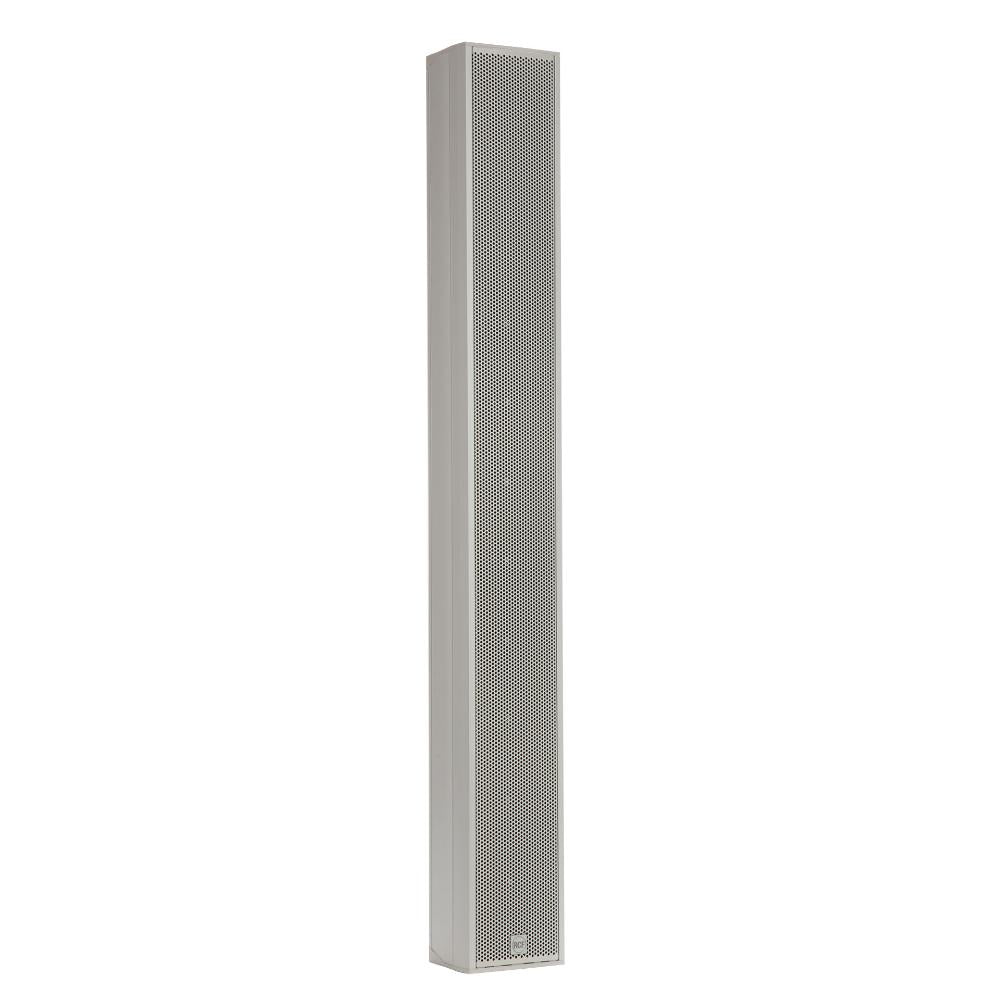

Active 1300W Digitally Steerable Column Speaker - (8) 3.5" Woofers
The VSA 850 II is a multi-amplified vertical steerable array that represents one of the latest RCF applications in terms of digital audio technology. Thanks to powerful DSPs it processes the audio signal sent to each speaker for controlling its vertical acoustic dispersion to address the audio signal exactly to the listening area, avoiding to send the acoustic energy to ceilings and empty floors, thus not introducing bad reflections that would affect speech intelligibility, mainly in critical environments with high reverberation time. Full RDNet compatibility.
Features
- 8 x Class D, 50 W amplifiers
- 93 dB Max SPL (@ 30 m)
- 8 x 3.5" full range neo speakers
- 48 kHz 32 bit signal processing
- Horizontal dispersion 130°
- Vertical Coverage Beam from 10° to 30°
- Vertical Steering from 0° to –40°
- Standard installation accessories included
- Extruded aluminium body
- Indicators and control for EN 60849 monitoring facility
Specifications
ACOUSTICAL
-
Frequency Response: 130 Hz - 18000 Hz
-
Max SPL @ 30m: 93 dB
-
Horizontal coverage angle: 130°
-
Vertical coverage angle: 30°
TRANSDUCERS
-

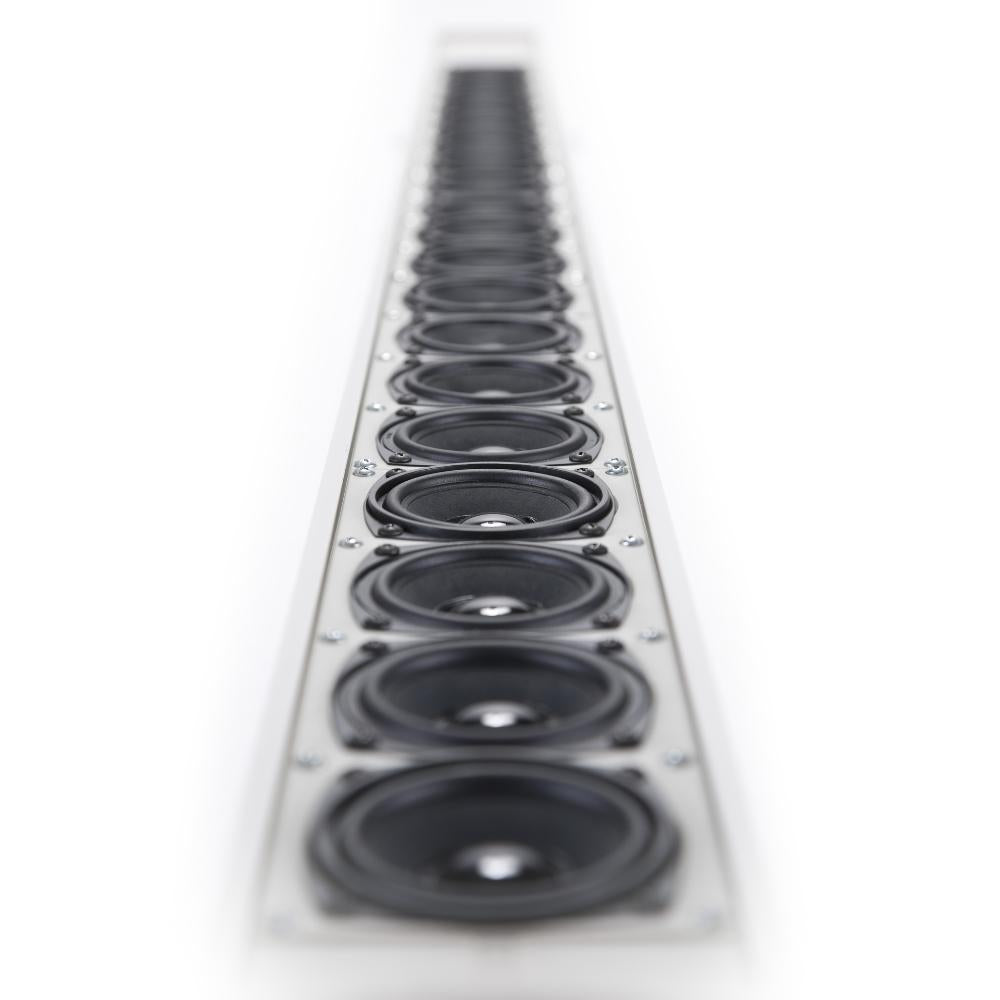

Fullrange: 8 x 3.5'' neo, 1.0'' v.c

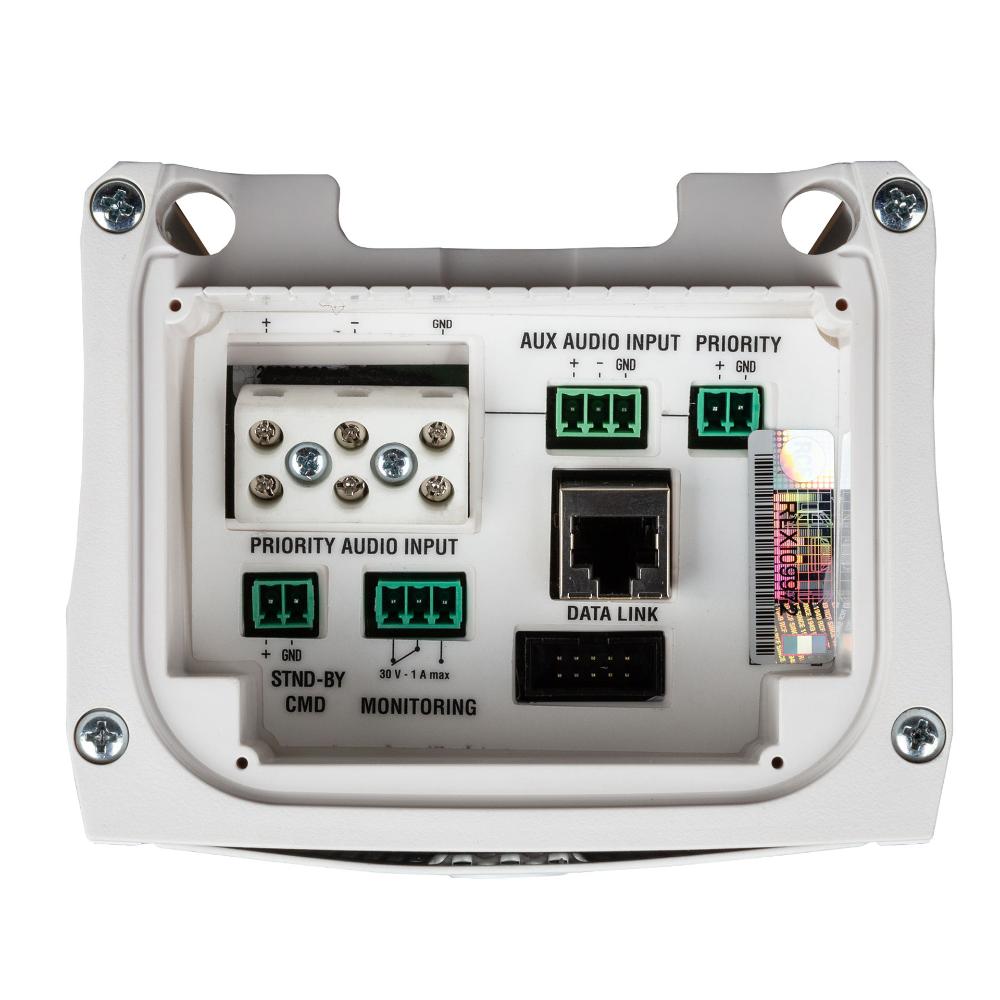

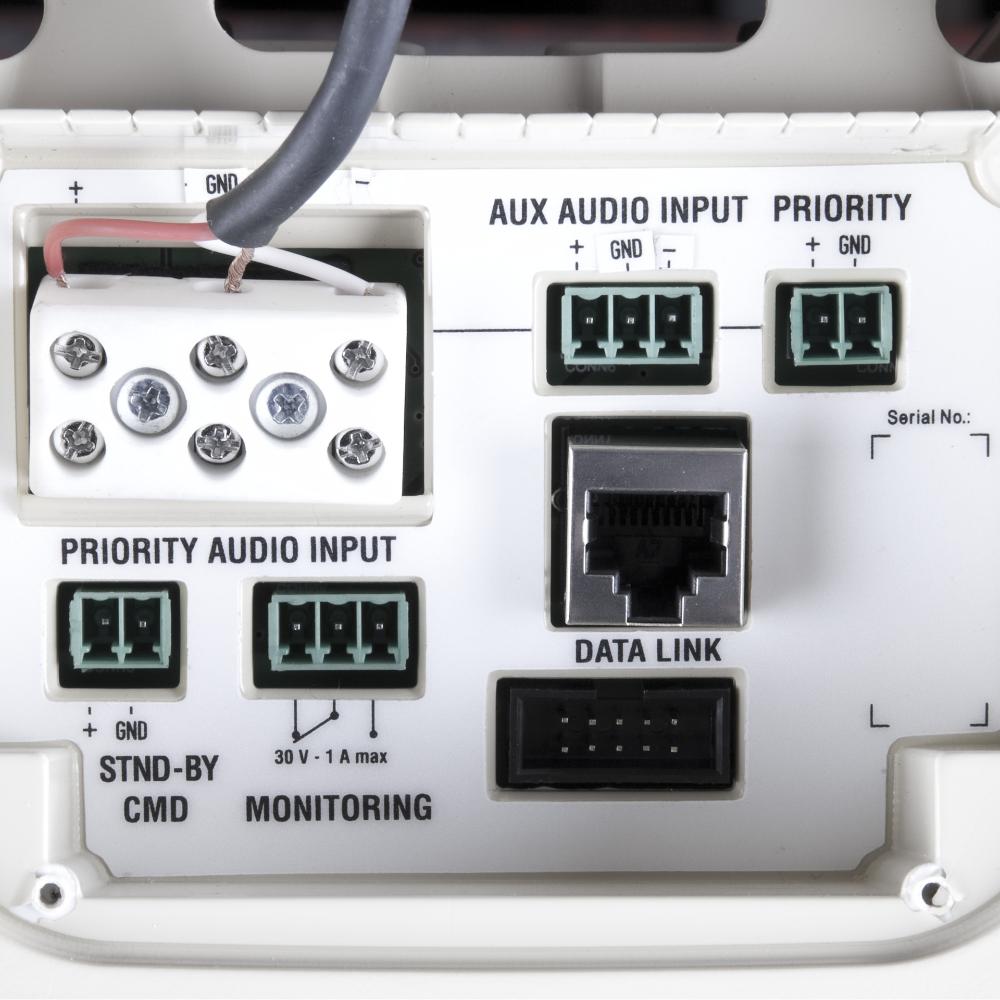

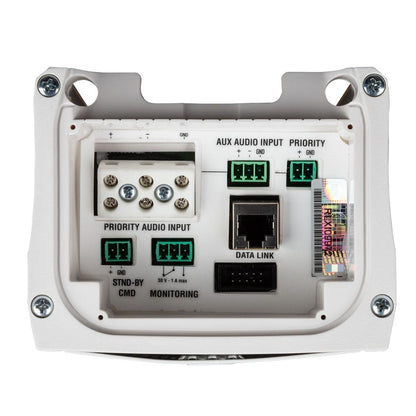

INPUT/OUTPUT SECTION
-
Input signal: bal/unbal
-
Input connectors: Ceramic screw terminals
-
Input sensitivity: 0 dBu
PROCESSOR SECTION
-
Protections: Thermal, short circuit
-
Limiter: Soft Limiter
-
RDNet: Onboard

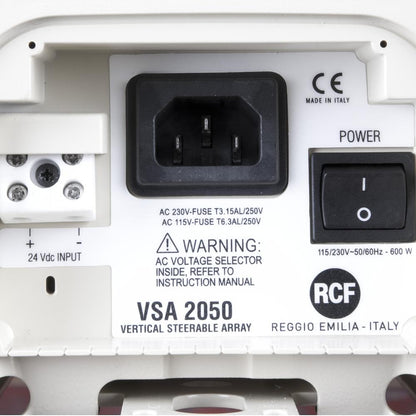

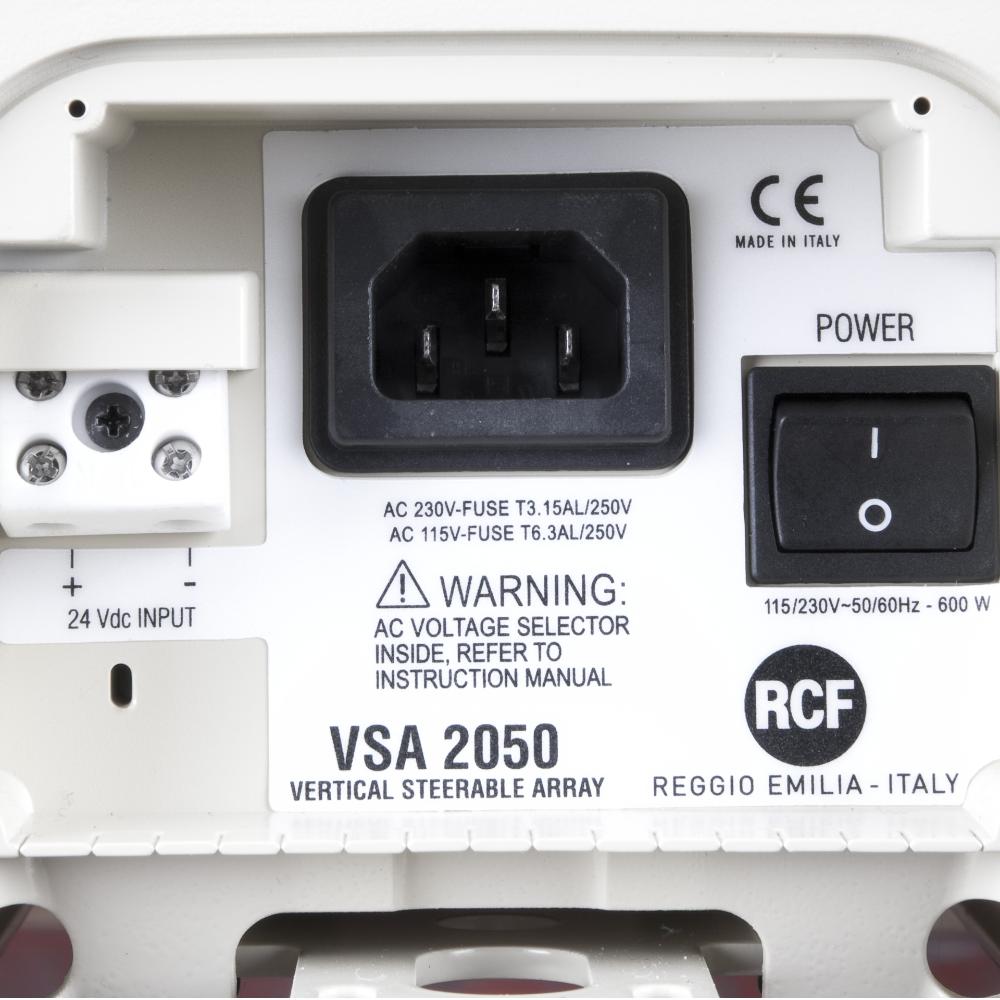

POWER SECTION
-
Total Power: 1300 W Peak, 650 W RMS
-
Cooling: Convection
-
Connections: VDE
STANDARD COMPLIANCE
-
Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Aluminum
-

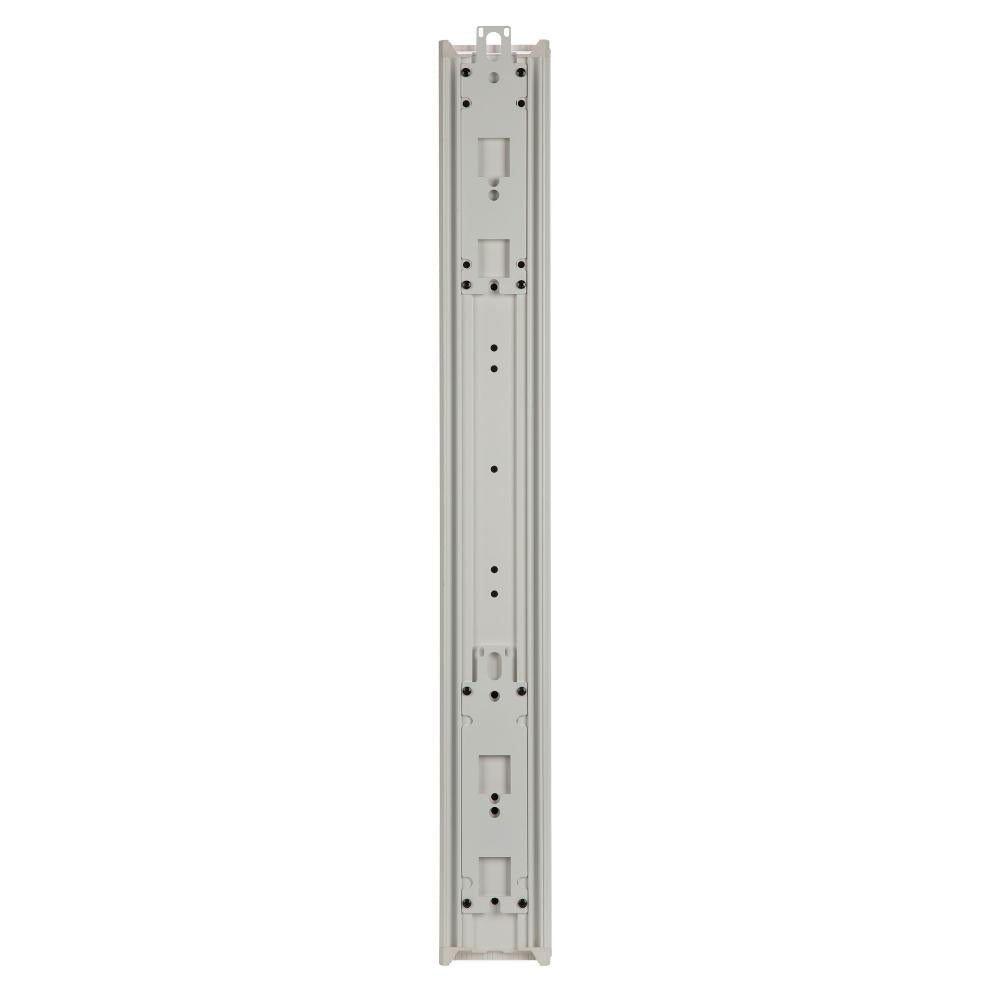

Hardware: 2 x wall mounting flange
-
Color: White - RAL 9003, Black - RAL 9005, Custom color
SIZE / WEIGHT
-
Height: 980 mm / 38.58 inches
-
Width: 125 mm / 4.92 inches
-
Depth: 97 mm / 3.82 inches
-
Weight: 11.2 kg / 24.69 lbs
SHIPPING INFORMATION
-
Package Height: 169 mm / 6.65 inches
-
Package Width: 1184 mm / 46.61 inches
-
Package Depth: 189 mm / 7.44 inches
-
Package Weight: 13.2 kg / 29.1 lbs
