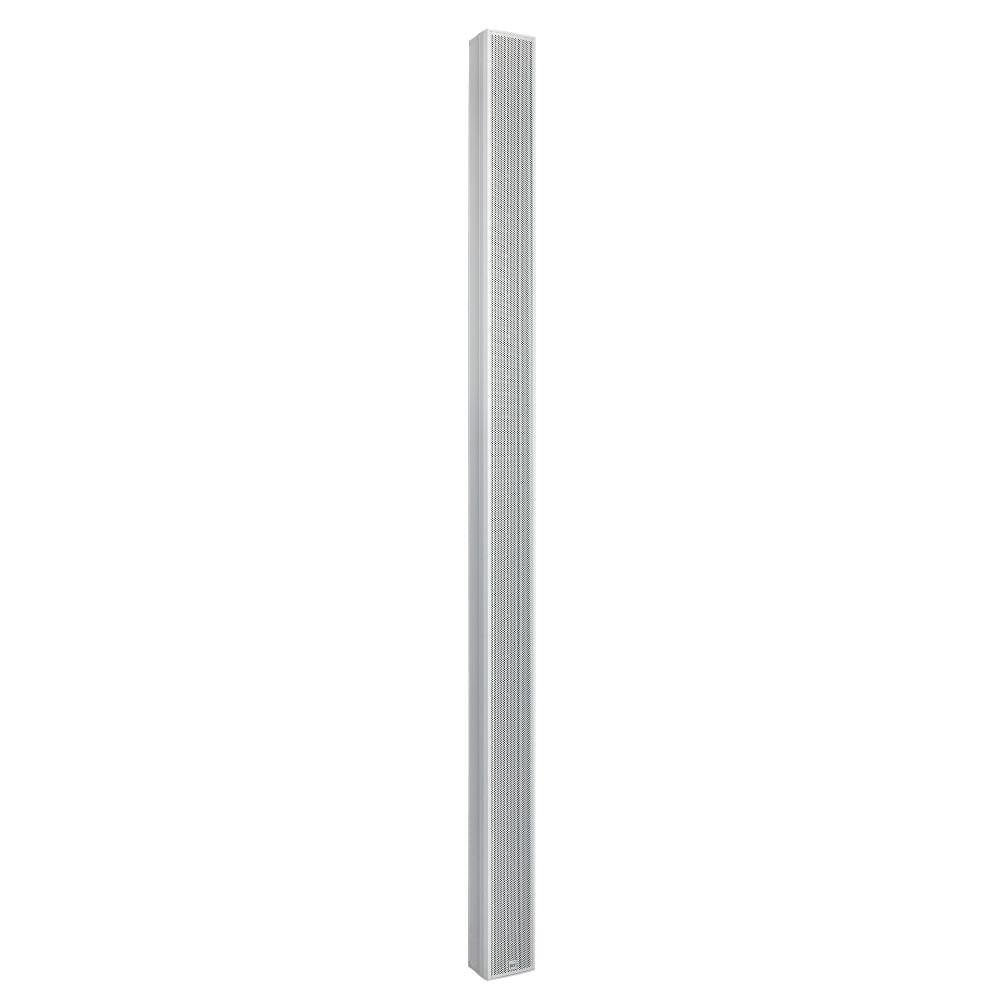

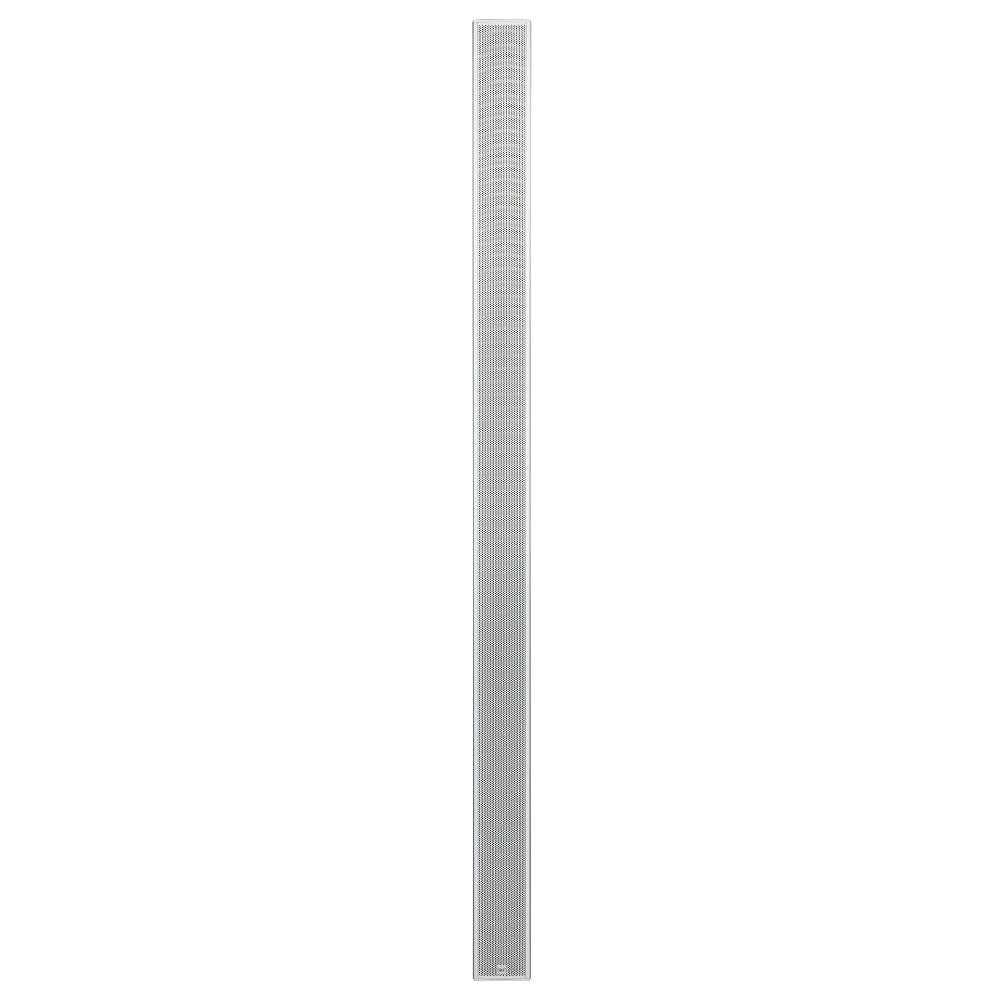

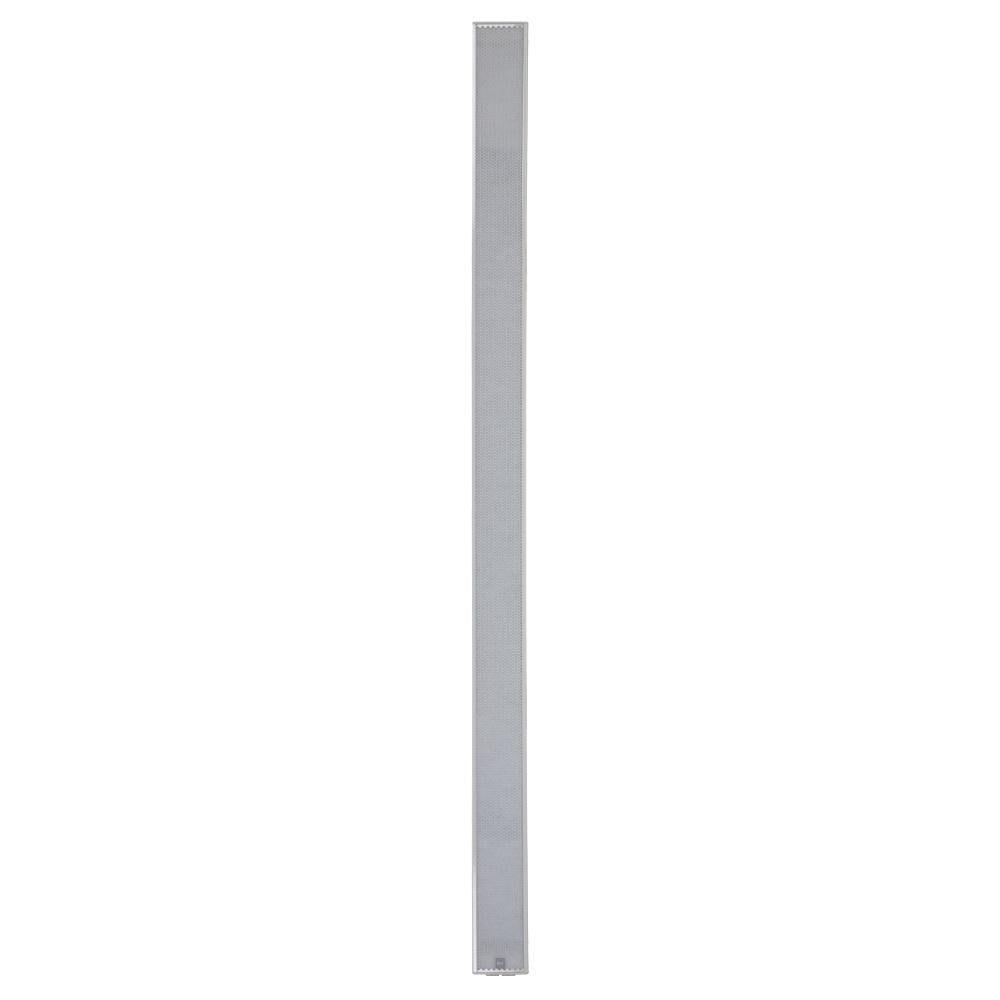

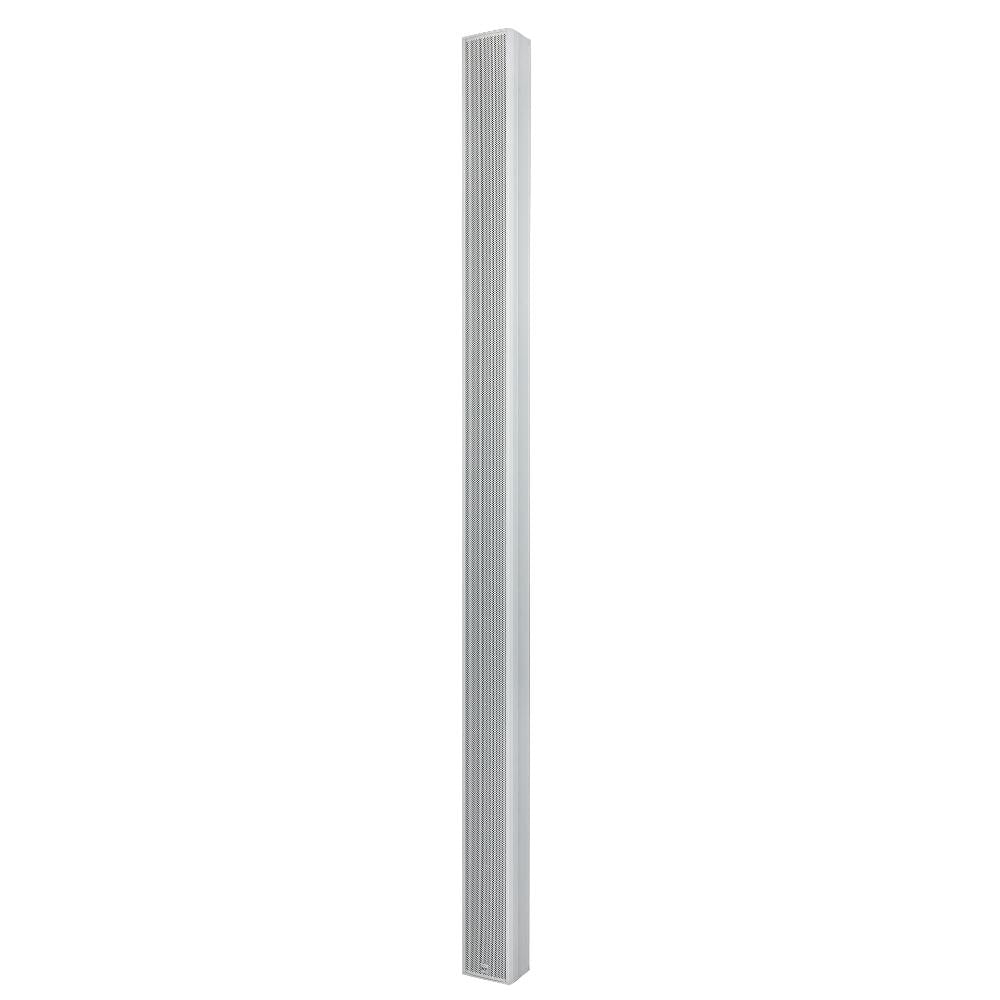

RCF VSA-2050-W MK2 Active 1300W Digitally Steerable Column Speaker - (20) 3.5" Woofers

RCF VSA-2050-W MK2 Active 1300W Digitally Steerable Column Speaker - (20) 3.5" Woofers

Write a review

SKU: VSA-2050-W MK2

$10,799.00
$10,799.00
Sale Sold out
Shipping calculated at checkout.

Available options

View full details

Description

Active 1300W Digitally Steerable Column Speaker - (20) 3.5" Woofers

The VSA 2050 II is a multi-amplified vertical steerable array that represents one of the latest RCF applications in terms of digital audio technology. Thanks to powerful DSPs it processes the audio signal sent to each speaker for controlling its vertical acoustic dispersion to address the audio signal exactly to the listening area, avoiding to send the acoustic energy to ceilings and empty floors, thus not introducing bad reflections that would affect speech intelligibility, mainly in critical environments with high reverberation time. Full RDNet compatibility.

Features

  • 20 x Class D, 50 W amplifiers
  • 96 dB Max SPL (@ 30 m)

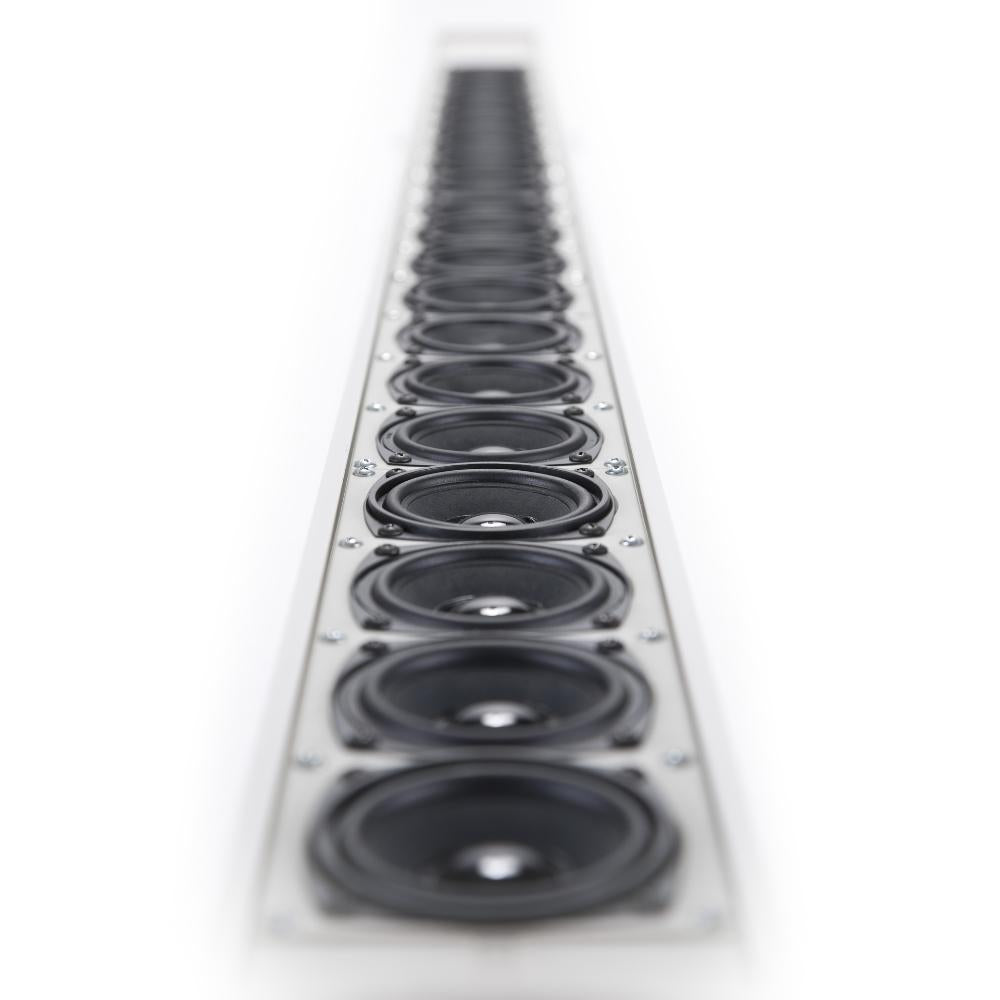

  • 20 x 3.5" full range neo speakers
  • 48 kHz 32 bit processing
  • Horizontal dispersion 130°
  • Vertical Coverage Beam from 10° to 30°
  • Vertical Steering from 0° to –40°
  • Standard installation accessories included
  • Extruded aluminium body
  • Indicators and control for EN 60849 monitoring facility

    • Specifications

    Acoustical specifications
    Frequency Response 100 Hz - 18000 Hz
    Max SPL @ 30m 96 dB
    Horizontal coverage angle 130°
    Vertical coverage angle 30°
    Transducers
    Fullrange 20 x 3.5'' neo, 1.0'' v.c

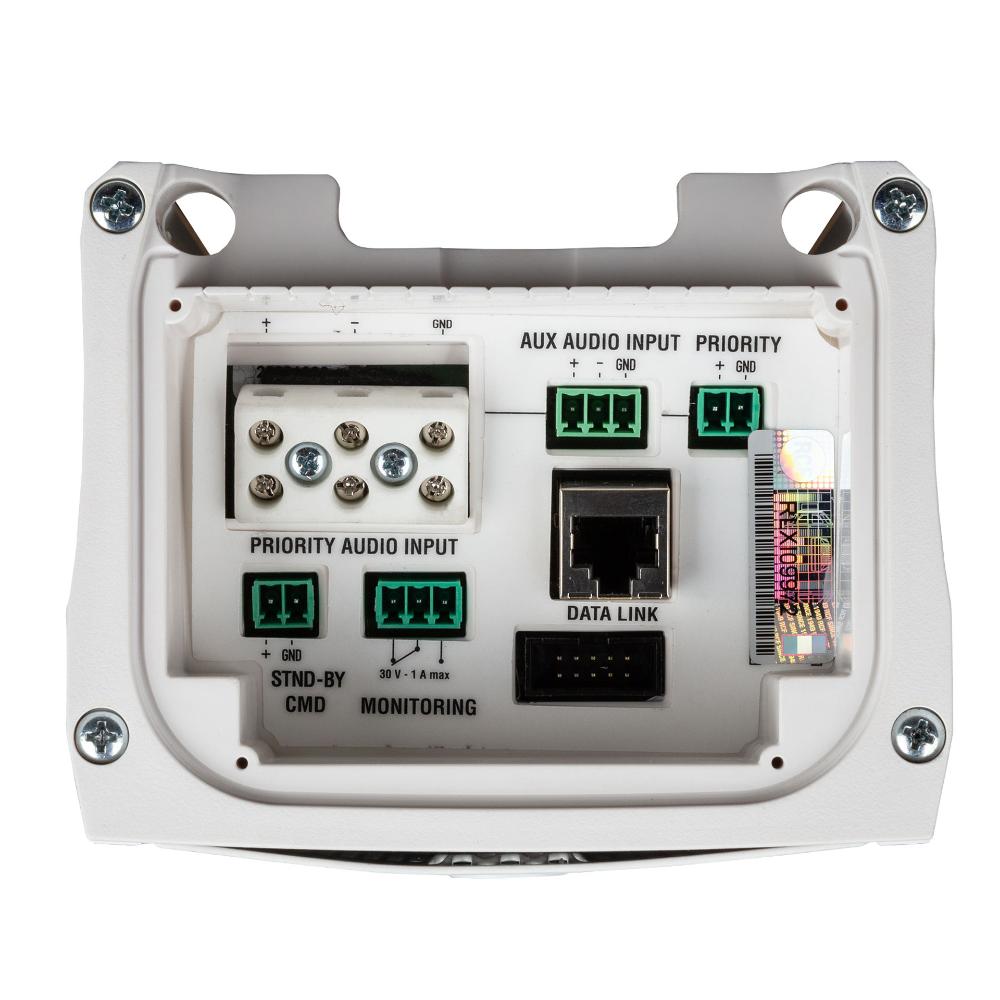

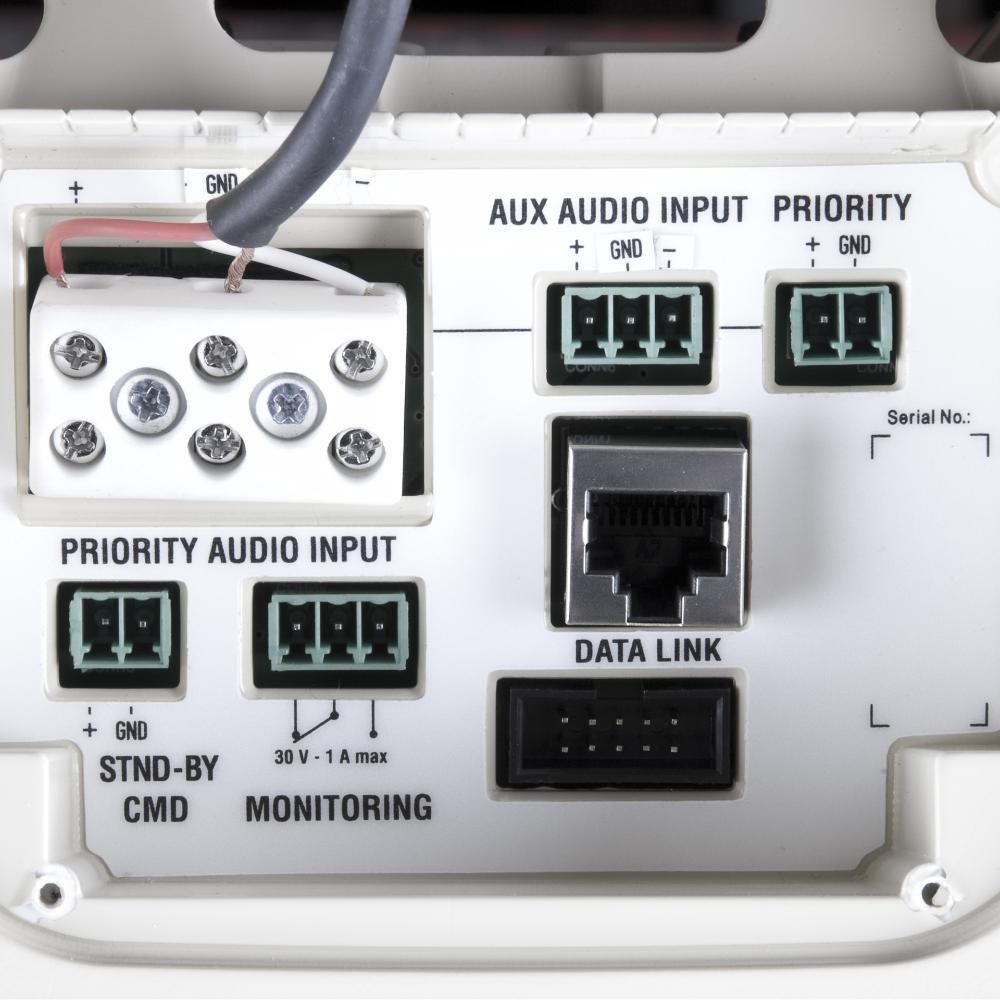

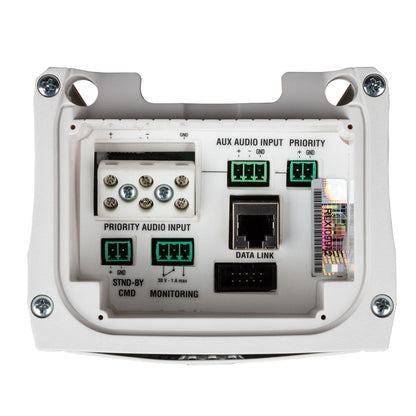

    Input/Output section
    Input signal bal/unbal
    Input connectors Ceramic screw terminals
    Input sensitivity 0 dBu
    Processor section
    Protections Thermal, short circuit
    Limiter Soft Limiter
    RDNet Onboard

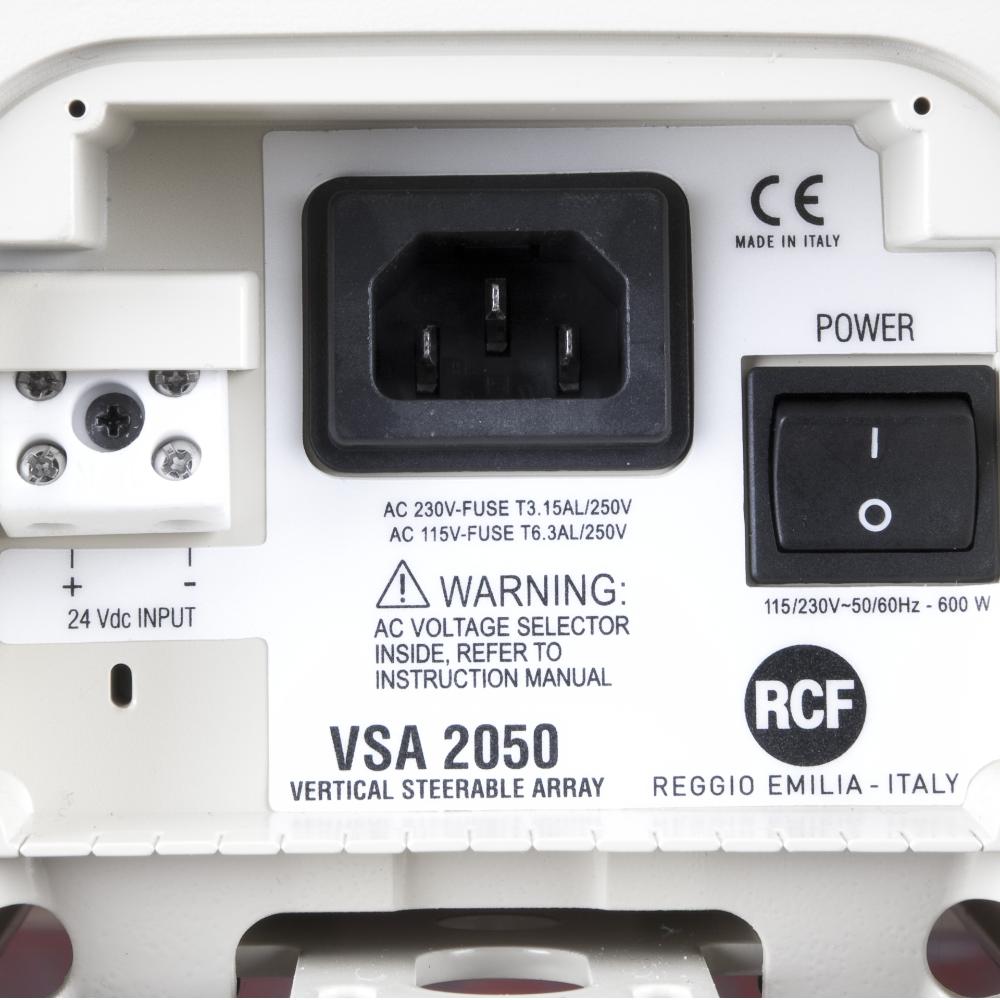

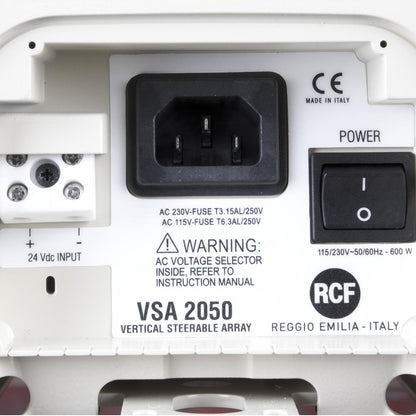

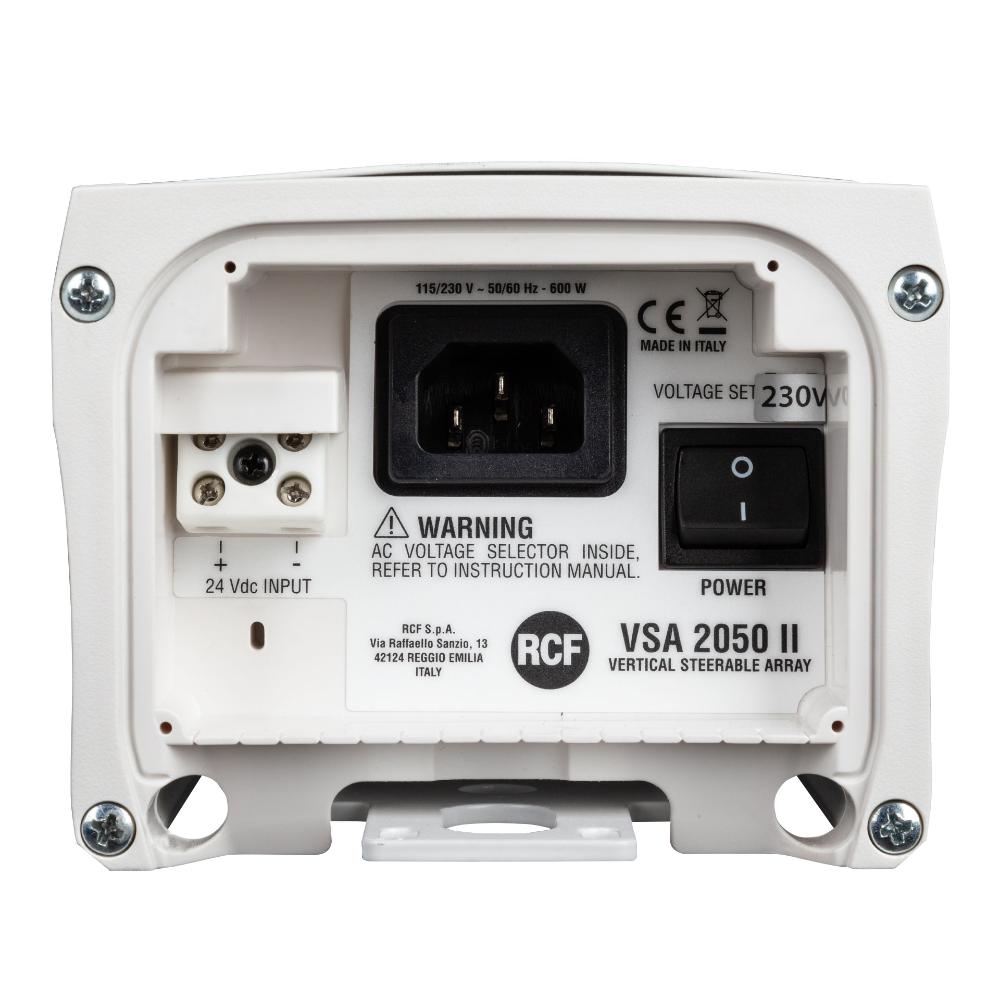

    Power section
    Total Power 1300 W Peak, 650 W RMS
    Cooling Convection
    Connections VDE
    Standard compliance
    Safety agency CE compliant
    Physical specifications
    Cabinet/Case Material Aluminum

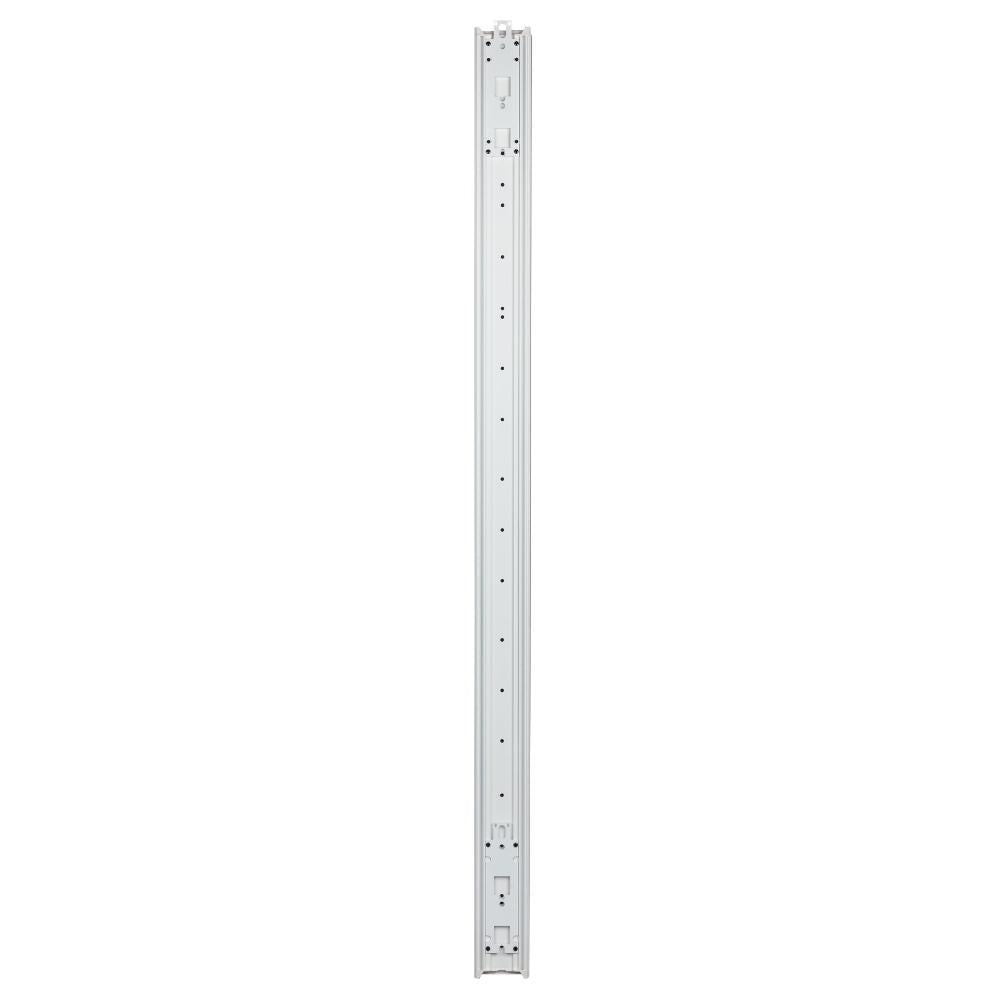

    Hardware 2 x wall mounting flange
    Color White - RAL 9003, Black - RAL 9005, Custom color
    Size / Weight
    Height 2070 mm / 81.5 inches
    Width 125 mm / 4.92 inches
    Depth 97 mm / 3.82 inches
    Weight 20 kg / 44.09 lbs
    Shipping information
    Package Height 180 mm / 7.09 inches
    Package Width 2264 mm / 89.13 inches
    Package Depth 200 mm / 7.87 inches
    Package Weight 31.5 kg / 69.45 lbs
