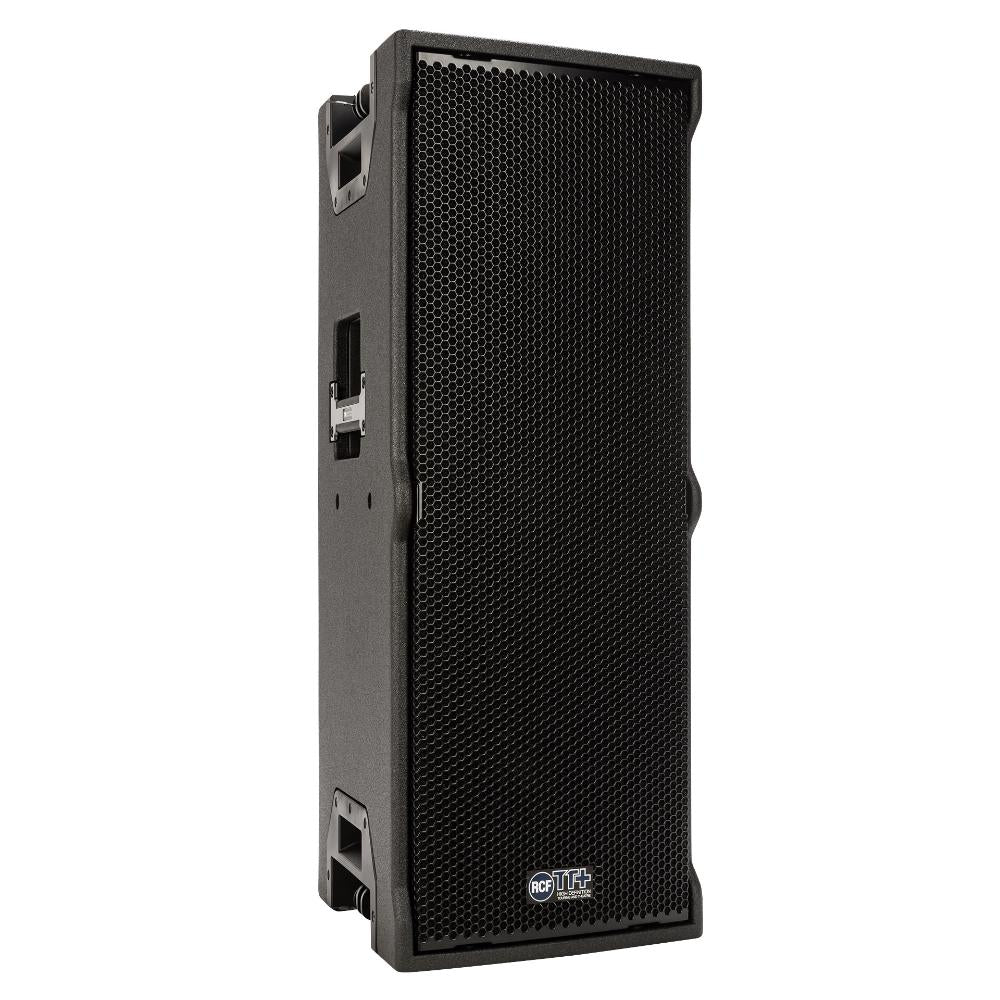

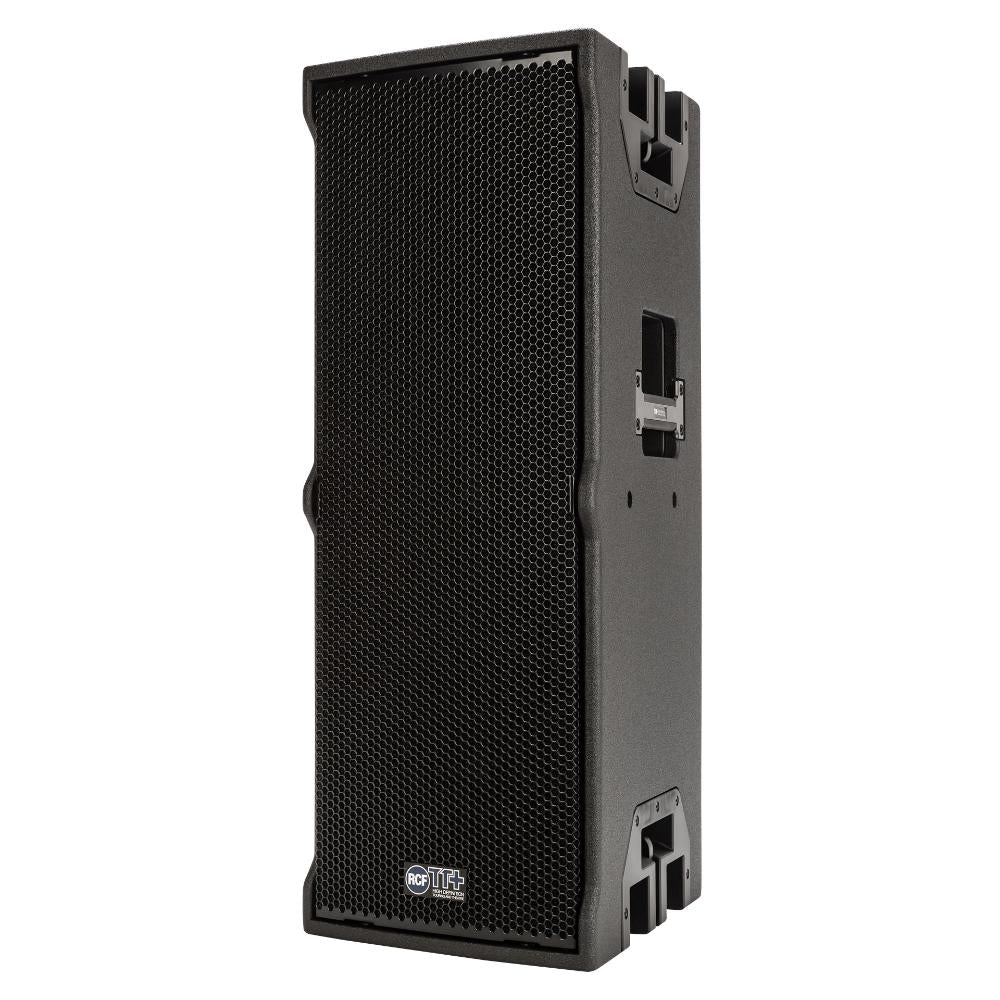

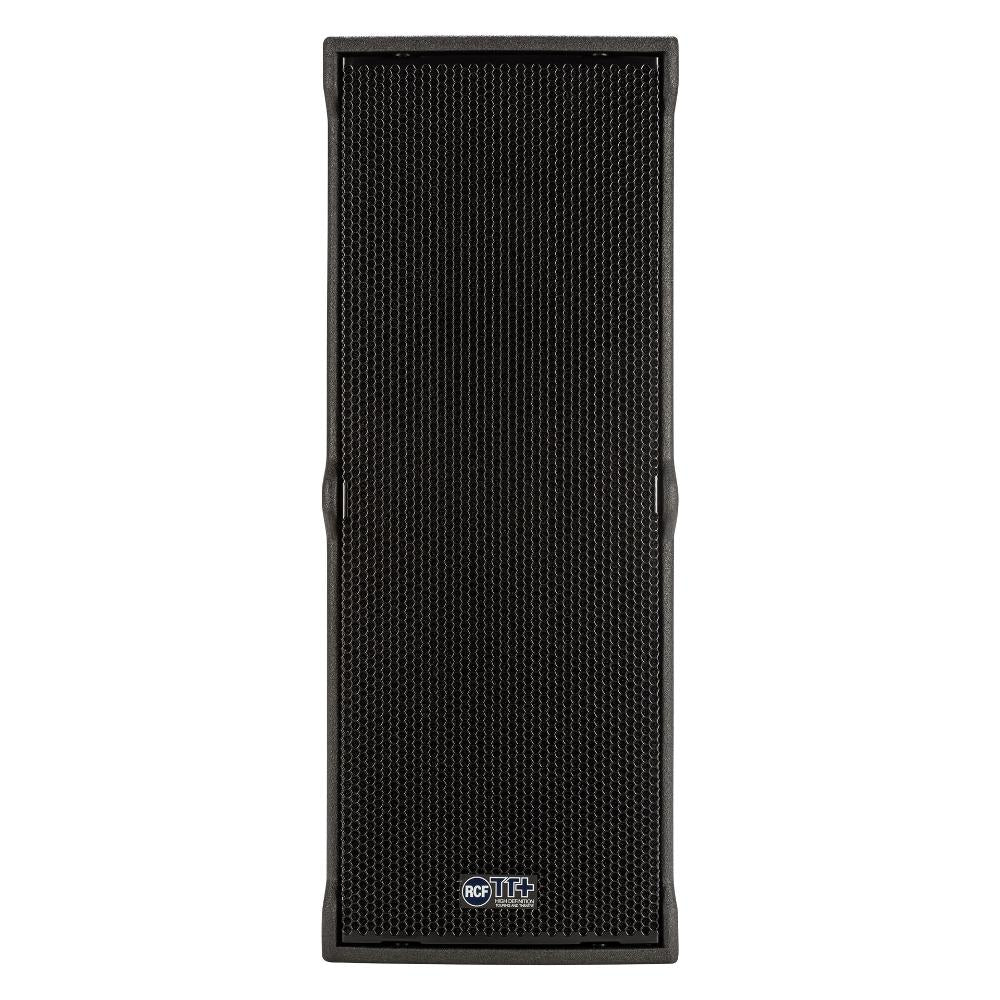

RCF TTW4-A Active 3200W Dual 10" 2-Way Wide Directivity Speaker (RDNET Ready) (100° X 50° Coverage)

RCF TTW4-A Active 3200W Dual 10" 2-Way Wide Directivity Speaker (RDNET Ready) (100° X 50° Coverage)

Write a review

SKU: TTW4-A

$7,999.00
$7,999.00
Sale Sold out
Shipping calculated at checkout.

Available options

View full details

Description

Active 3200W Dual 10" 2-Way Wide Directivity Speaker (RDNET Ready) (100° X 50° Coverage)

The TTW 4-A point source speaker module delivers top-quality sound for highly demanding events indoors or outdoors on small to medium-sized areas. Its design provides the audio engineer with the best tonal balance and intelligibility while maintaining an unobtrusive and adaptable footprint. It is especially suitable for stacked and flown systems when a wide dispersion is required. With all the advantages of TT+ technology, such as coherent directivity, power, and precision, it’s designed for professional applications.

Features

  • 134 dB max SPL
  • 100° x 50° coverage
  • LF 2 x 10’’ neodymium woofer, 3.0” voice coil
  • HF 1.5” Nd comp. driver 4.0” voice coil
  • 2 x Class-D amplifiers, 1600 Watt RMS total power
  • 45 – 20.000 Hz frequency range
  • RDNet on board
  • FiRPHASE 0° linear phase

    • Specifications

    Acoustical specifications
    Frequency Response 45 Hz - 20000 Hz
    Max SPL @ 1m 134 dB
    Horizontal coverage angle 100°
    Vertical coverage angle 50°

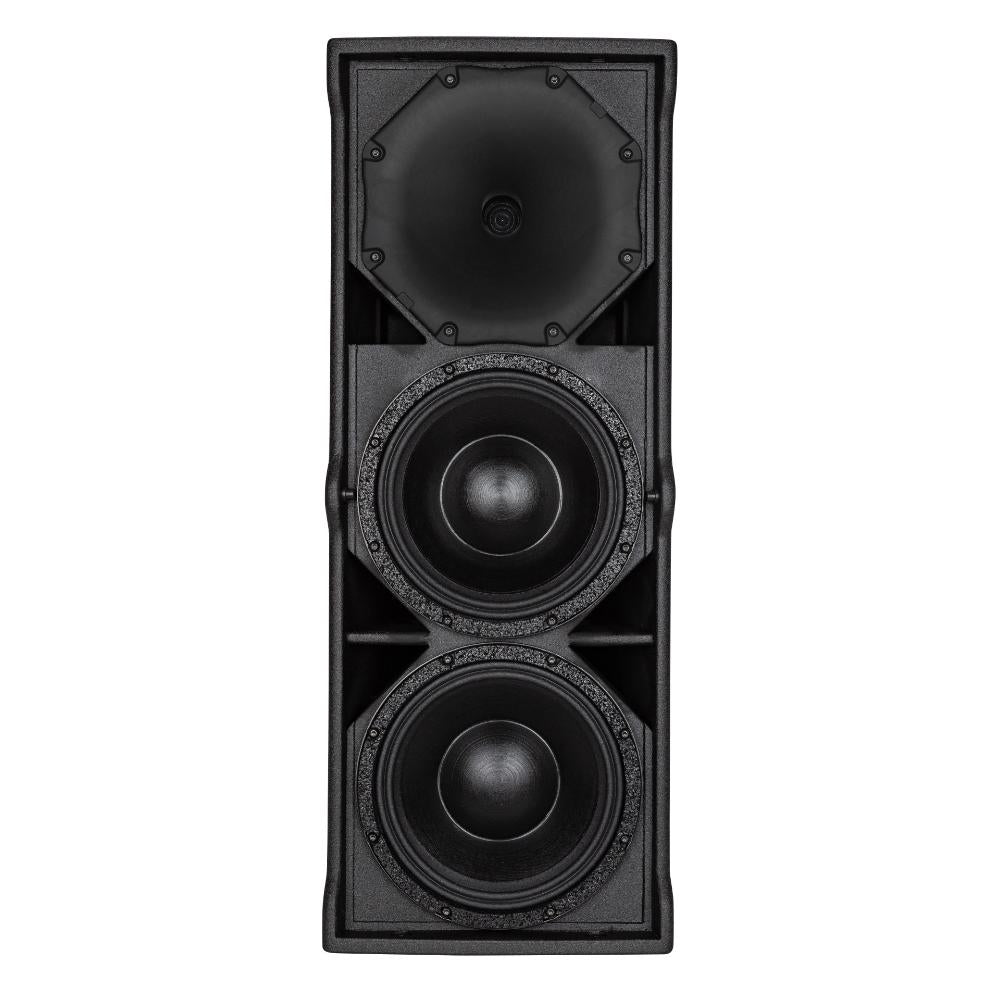

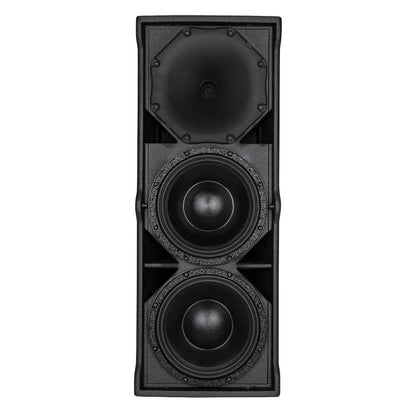

    Transducers
    Compression Driver 1 x 1.5'' neo, 4.0'' v.c
    Woofer 2 x 10'' neo, 3.0'' v.c

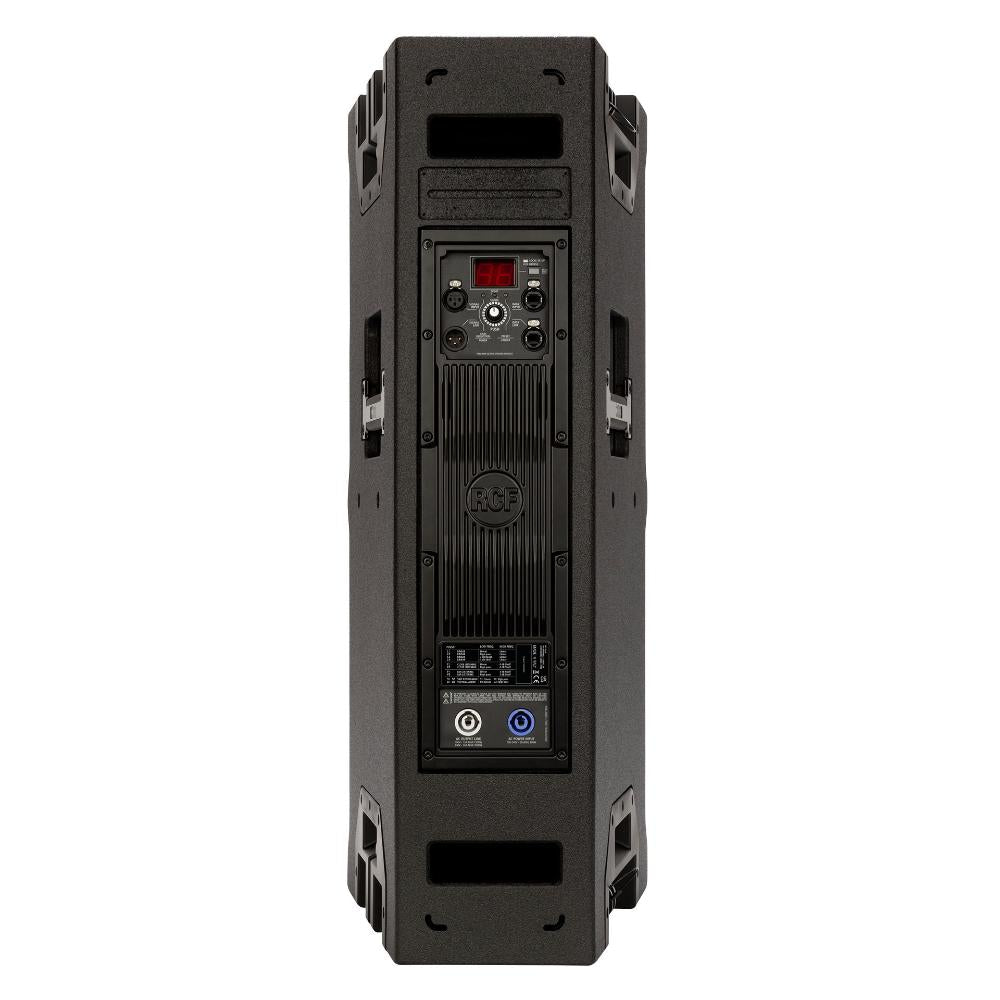

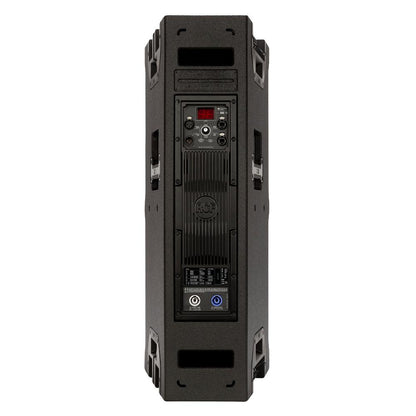

    Input/Output section
    Input signal bal/unbal
    Input connectors XLR, RDNet Ethercon
    Output connectors XLR, RDNet Ethercon
    Input sensitivity +4 dBu
    Processor section
    Crossover Frequencies 900Hz
    Protections Thermal, RMS
    Limiter Fast Limiter
    Controls Selectable preset, volume, delay
    RDNet Onboard
    Power section
    Total Power 3200 W Peak, 1600 W RMS
    High frequencies 1200 W Peak, 600 W RMS
    Low frequencies 2000 W Peak, 1000 W RMS
    Cooling Convection
    Connections Powercon IN/OUT
    Standard compliance
    Safety agency CE compliant
    Physical specifications
    Cabinet/Case Material Baltic birch plywood

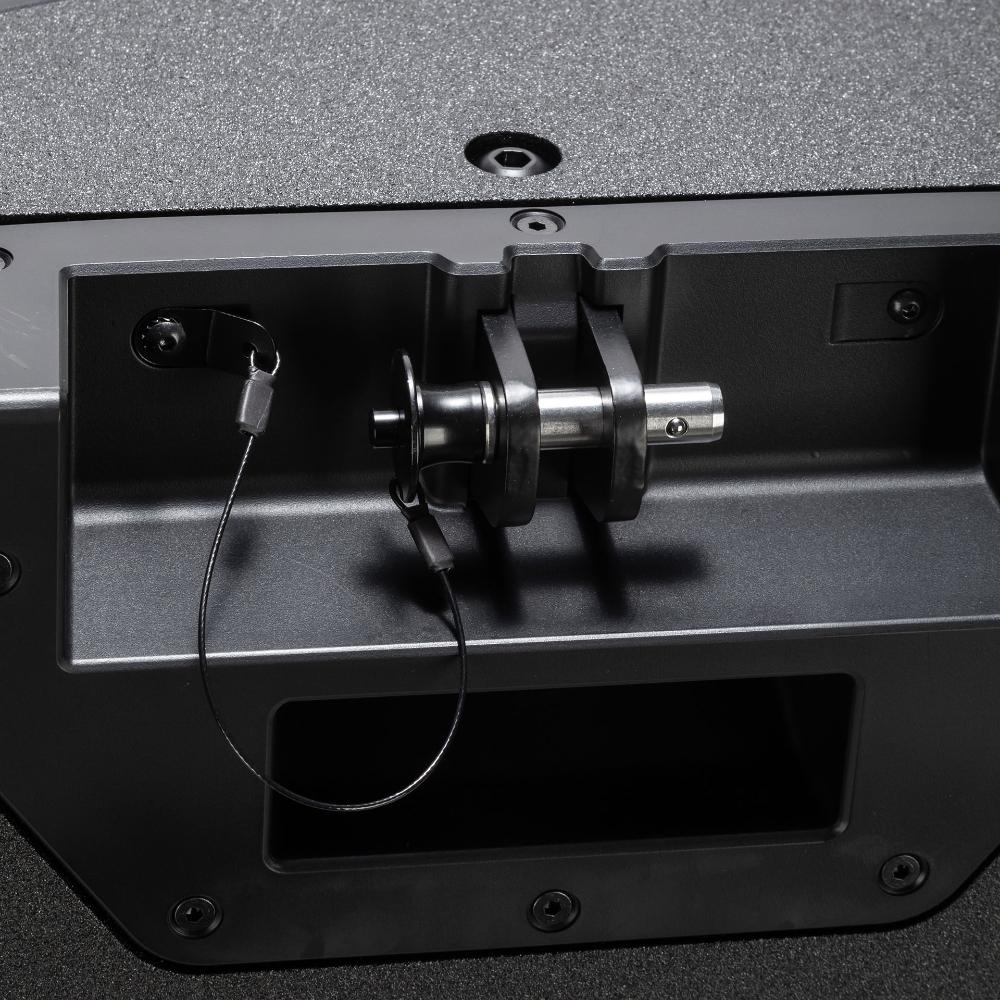

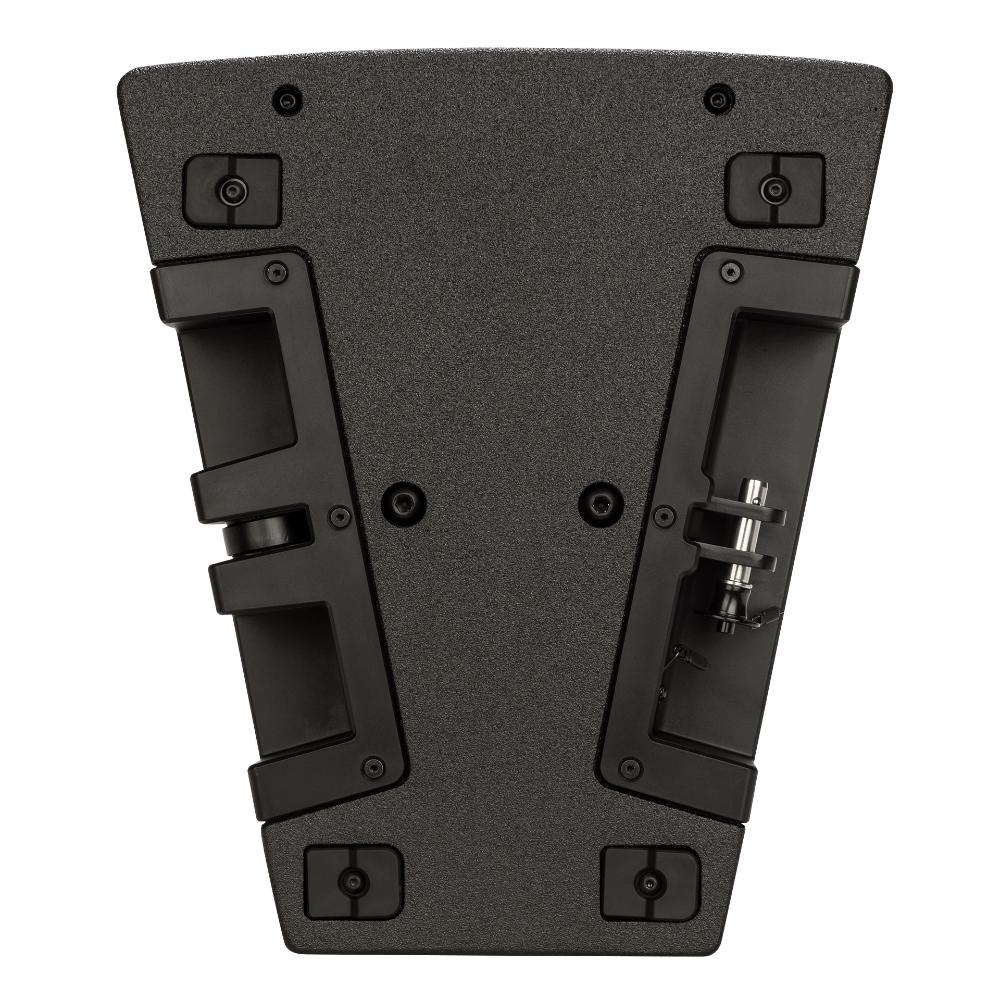

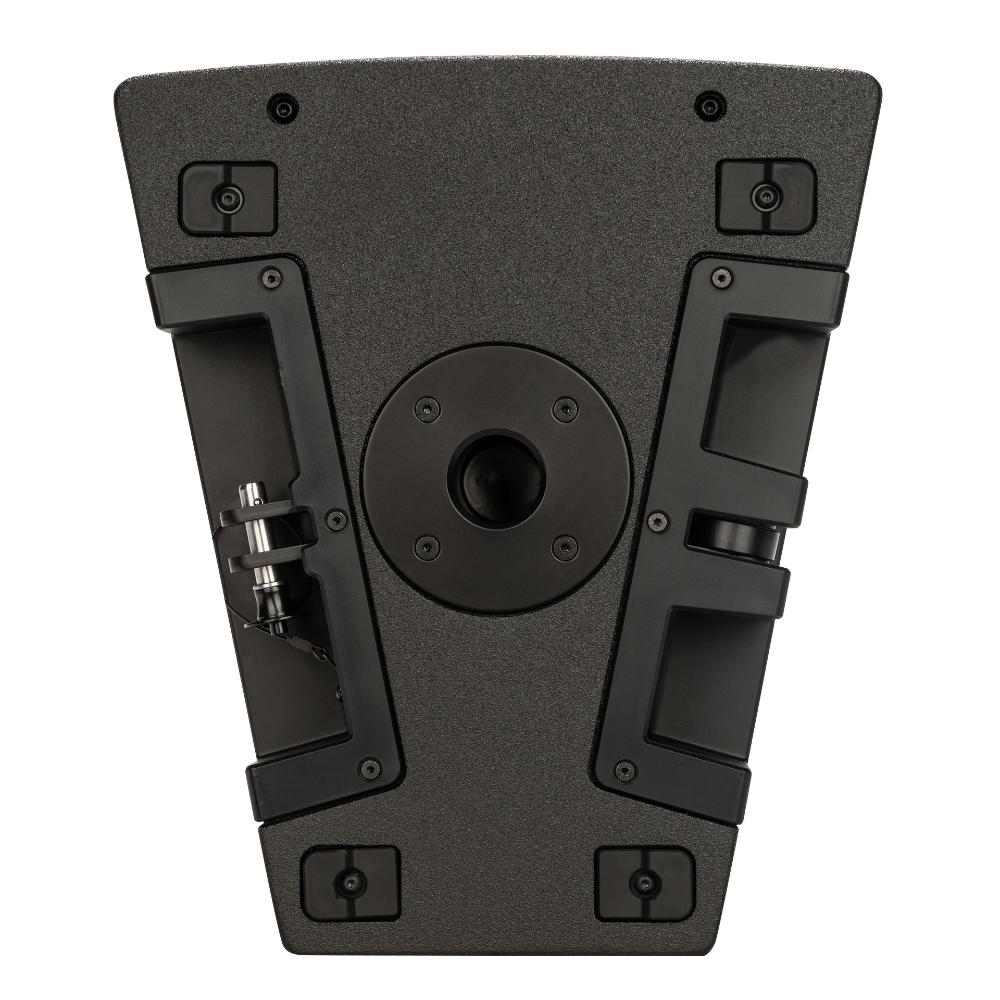

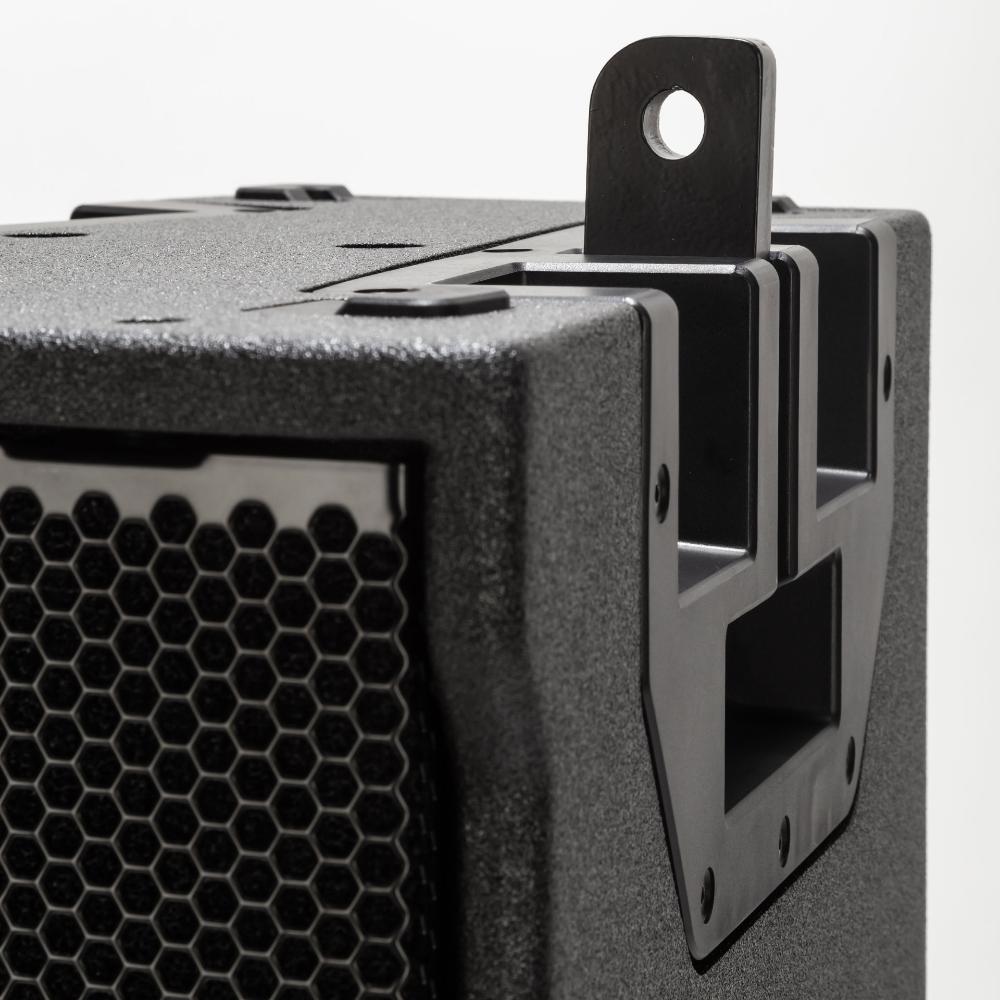

    Hardware Array fittings, 2xM10 on the top, 2xM8 on each side

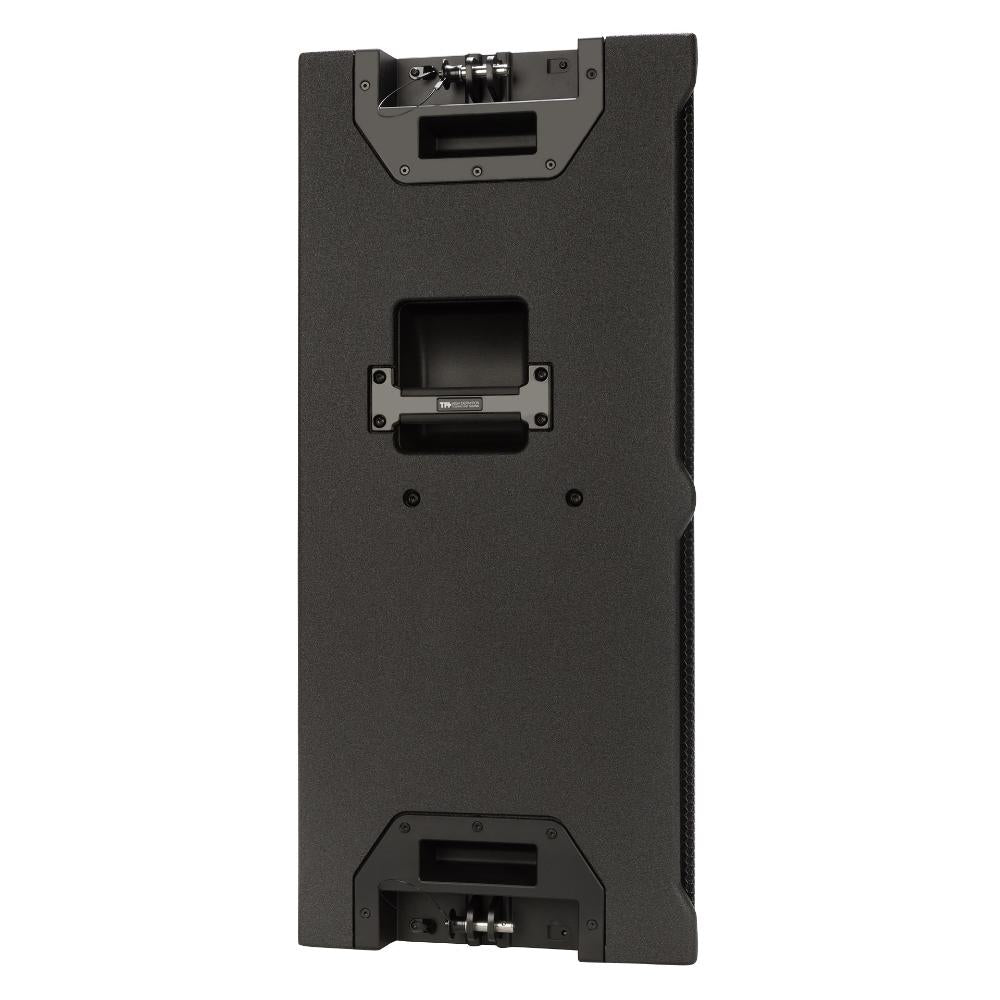

    Handles 2 Side, 2 Rear
    Grille Steel
    Color Black
    Size / Weight
    Height 825 mm / 32.48 inches
    Width 316 mm / 12.44 inches
    Depth 369 mm / 14.53 inches
    Weight 30.4 kg / 67.02 lbs
    Shipping information
    Package Height 410 mm / 16.14 inches
    Package Width 865 mm / 34.06 inches
    Package Depth 365 mm / 14.37 inches
    Package Weight 33.5 kg / 73.85 lbs
