Description

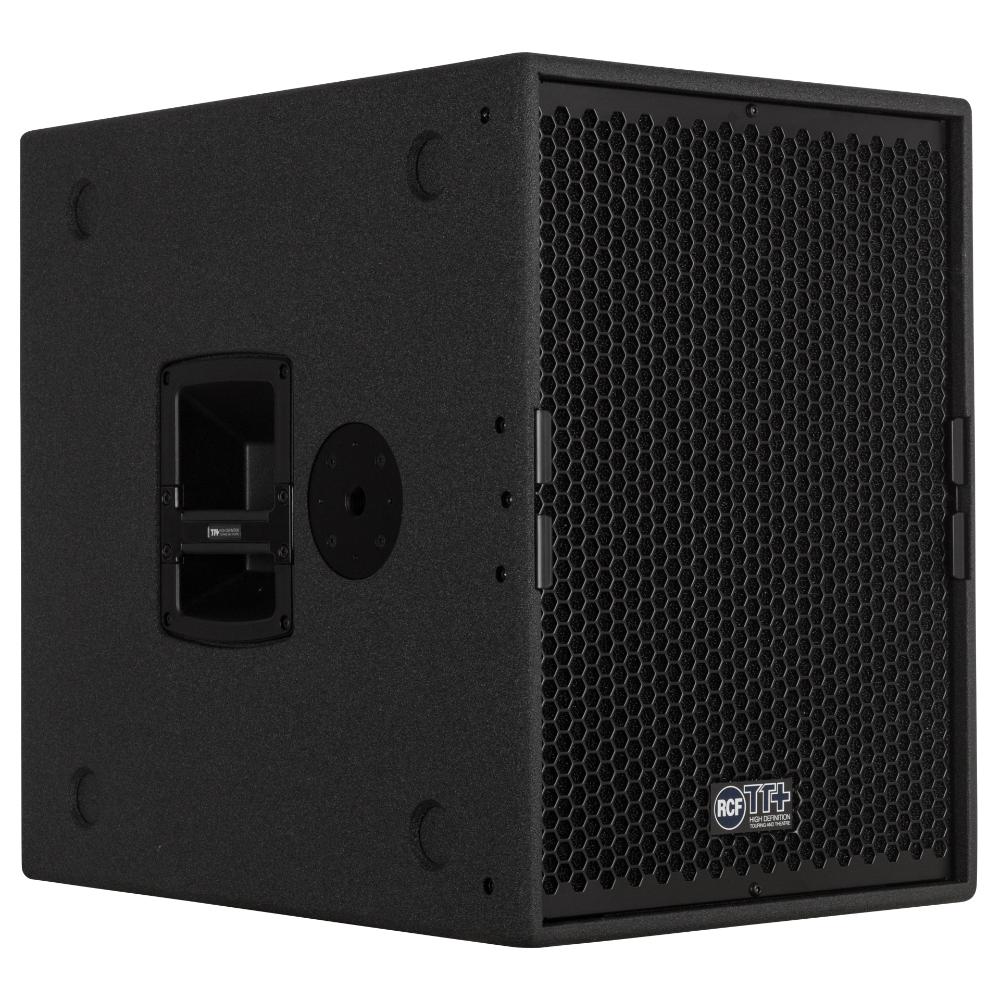

Active 2200W 15" Subwoofer (RDNET Ready)

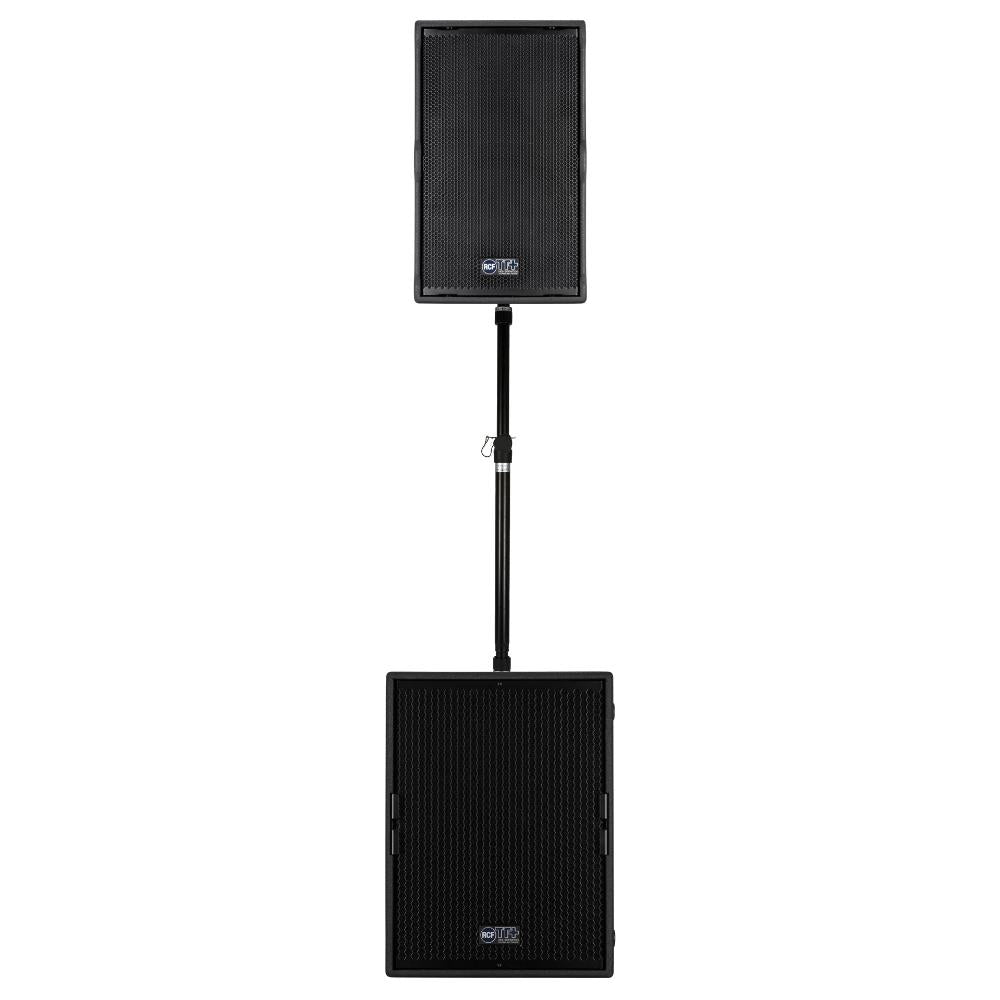

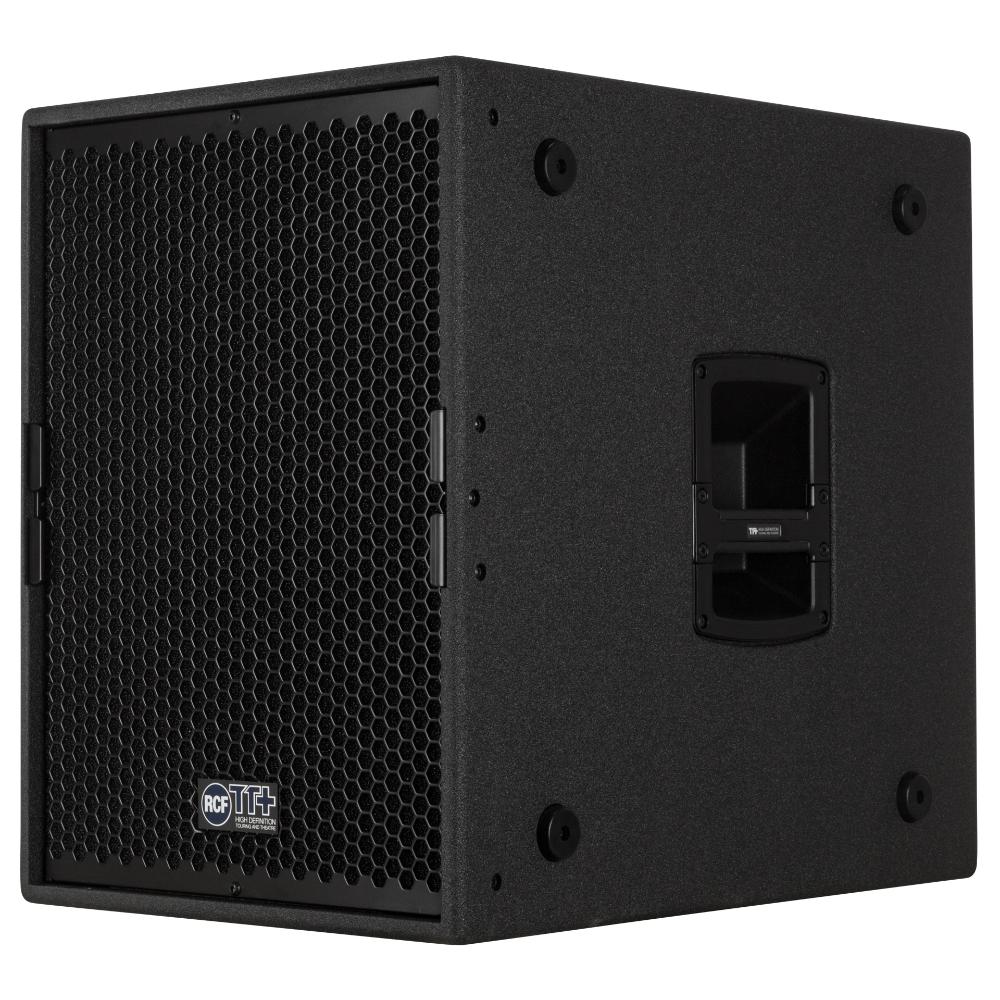

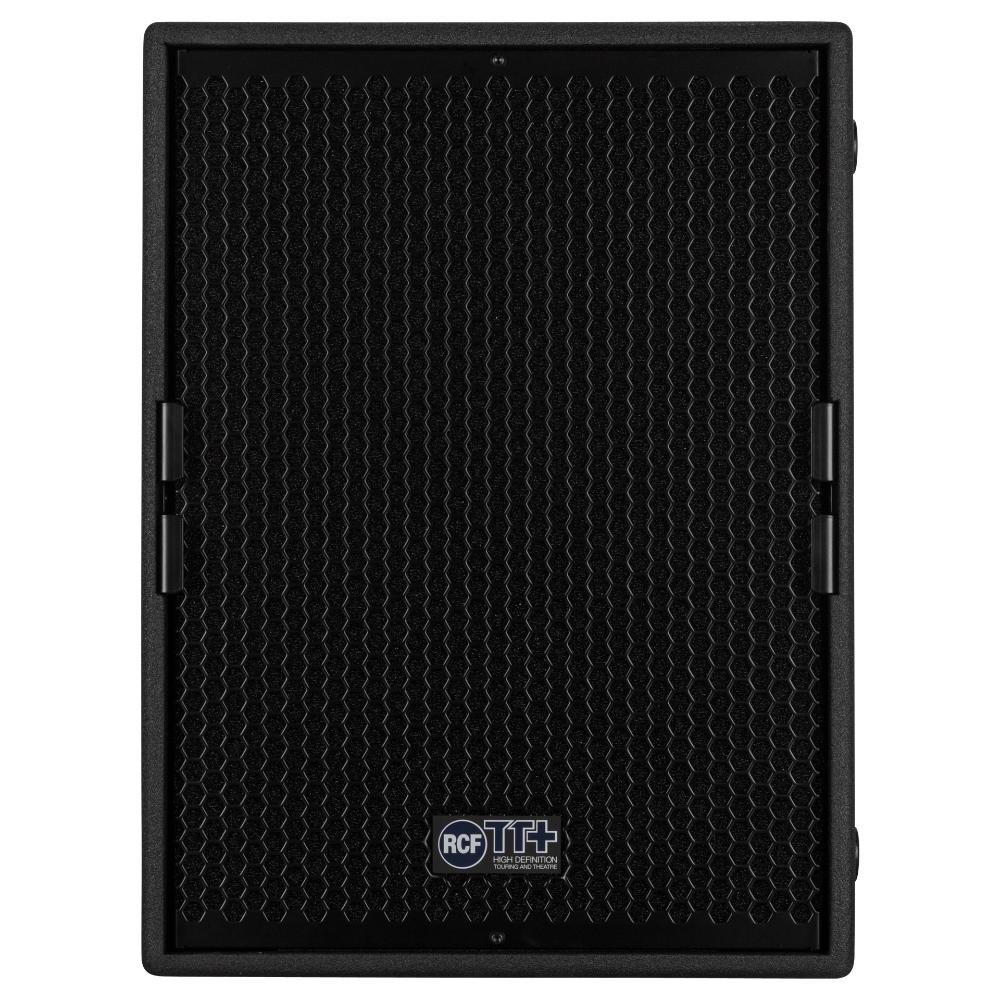

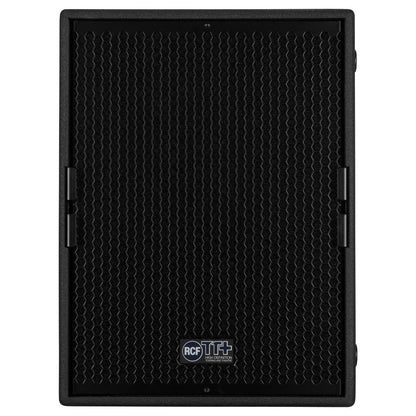

The RCF TTS 15-A is a compact, high output subwoofer module ideal in combination with TT+ two way touring systems. The RCF TTS 15-A features low weight for easy handling, weatherproof cabinet, a 15” woofer powered by a 1100 watt RMS SMPS class-D Amplifier with full DSP and RDNet network capabilities
Features
134 dB SPL Max40-400 Hz Frequency Range1 x 15" wooferDSP Controlled Input Section with selectable presets (e.g.cardioid)1100W RMS Class-D AmplifierRDNet remote monitoring and controlVertical and horizontal placement with M20 pole receptacle on top and sideBaltic Birch CabinetSpecifications
| Acoustical specifications |
|---|
| Frequency Response |
40 Hz - 400 Hz |
| Max SPL @ 1m |
134 dB |
| Transducers |
|---|

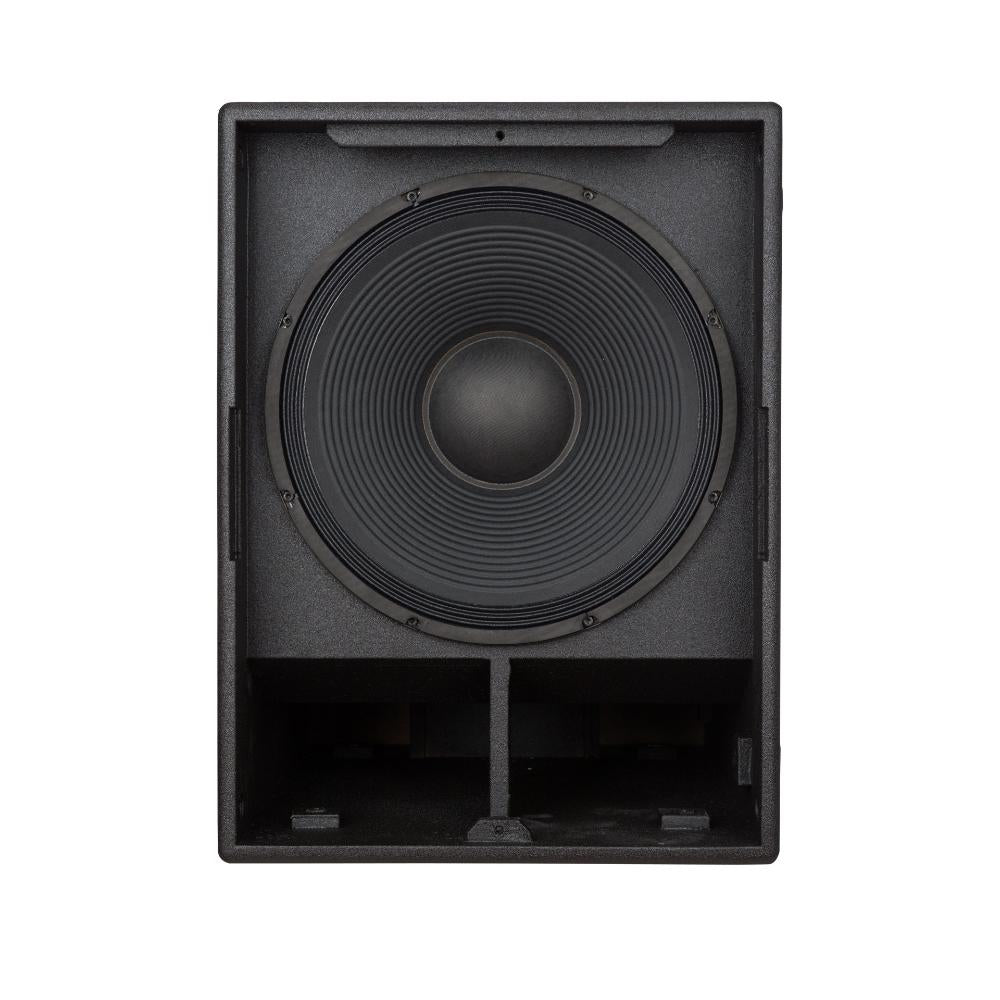

| Woofer |
1 x 15'', 3.0'' v.c |

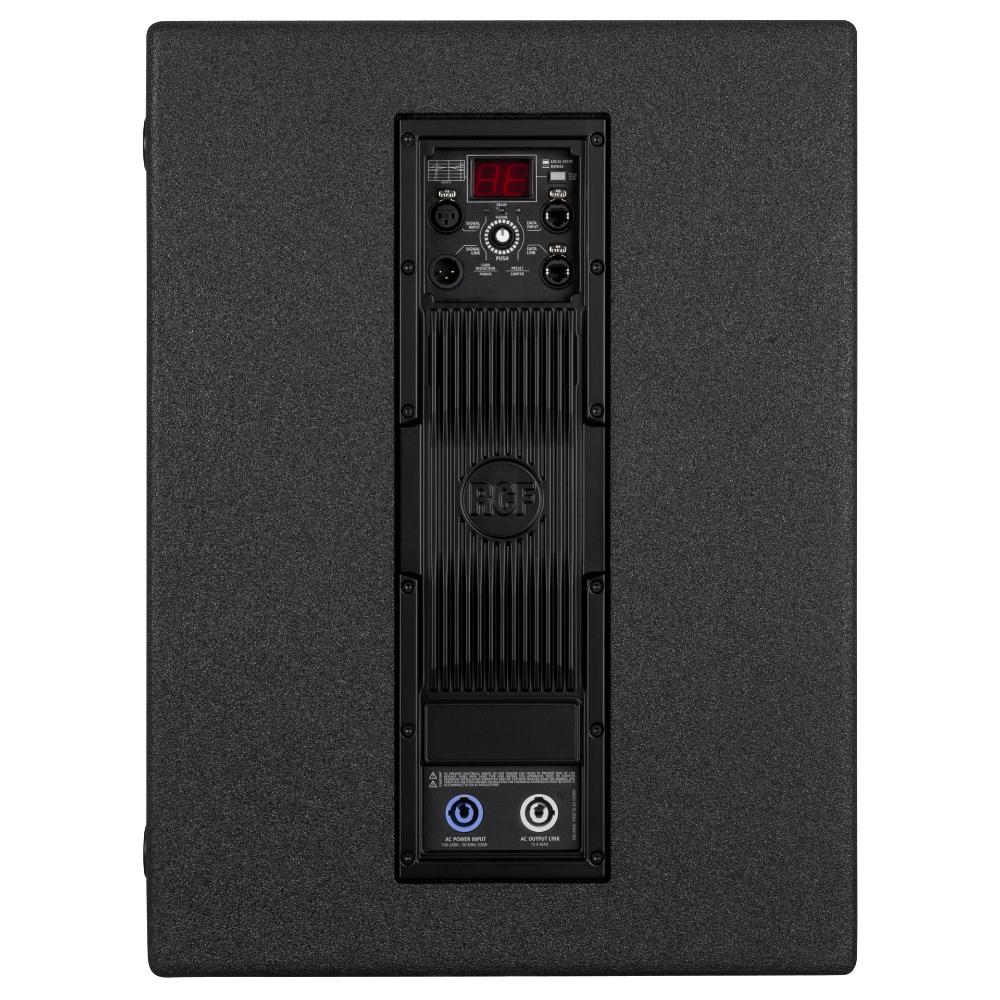

| Input/Output section |
|---|
| Input signal |
bal/unbal |
| Input connectors |
XLR, RDNet Ethercon |
| Output connectors |
XLR, RDNet Ethercon |
| Input sensitivity |
+4 dBu |
| Processor section |
|---|
| Hi-Pass Frequencies |
40 Hz, 50 Hz |
| Low-Pass Frequencies |
Variable from 60 Hz to 400 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Fast Limiter |
| Controls |
Gain, Eq, Prest Switch, Out Delay |
| RDNet |
Onboard |
| Power section |
|---|
| Total Power |
2200 W Peak, 1100 W RMS |
| Cooling |
Convection |
| Connections |
Powercon IN/OUT |
| Standard compliance |
|---|
| Safety agency |
CE compliant |
| Physical specifications |
|---|
| Cabinet/Case Material |
Baltic birch plywood |
| Hardware |
2 x M20 |

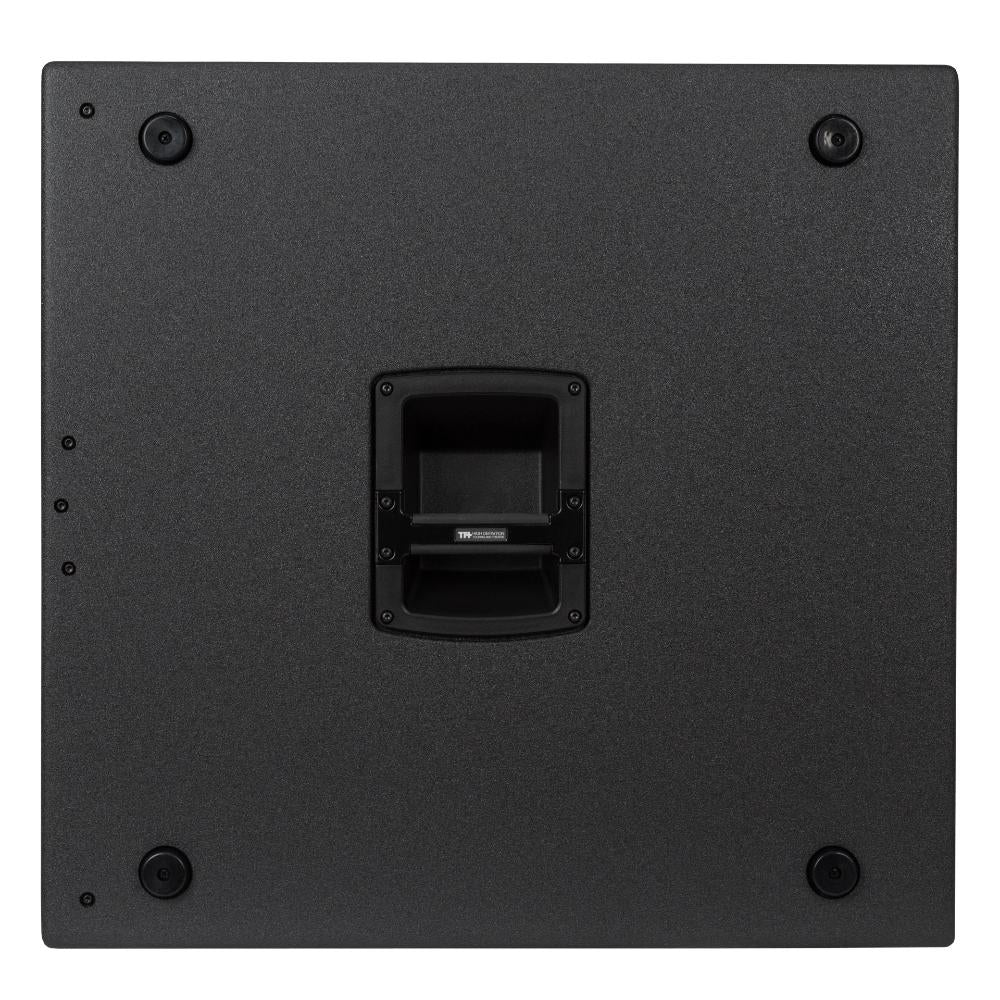

| Handles |
2 Side |

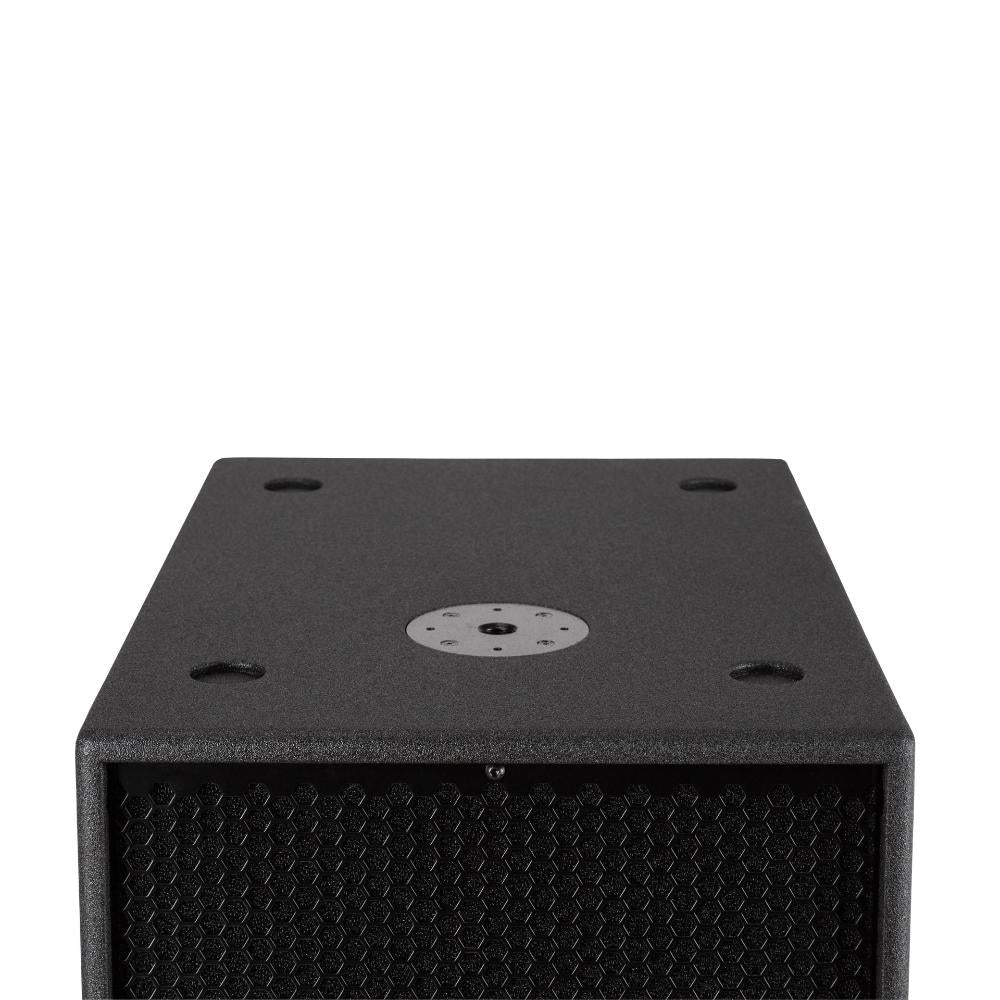

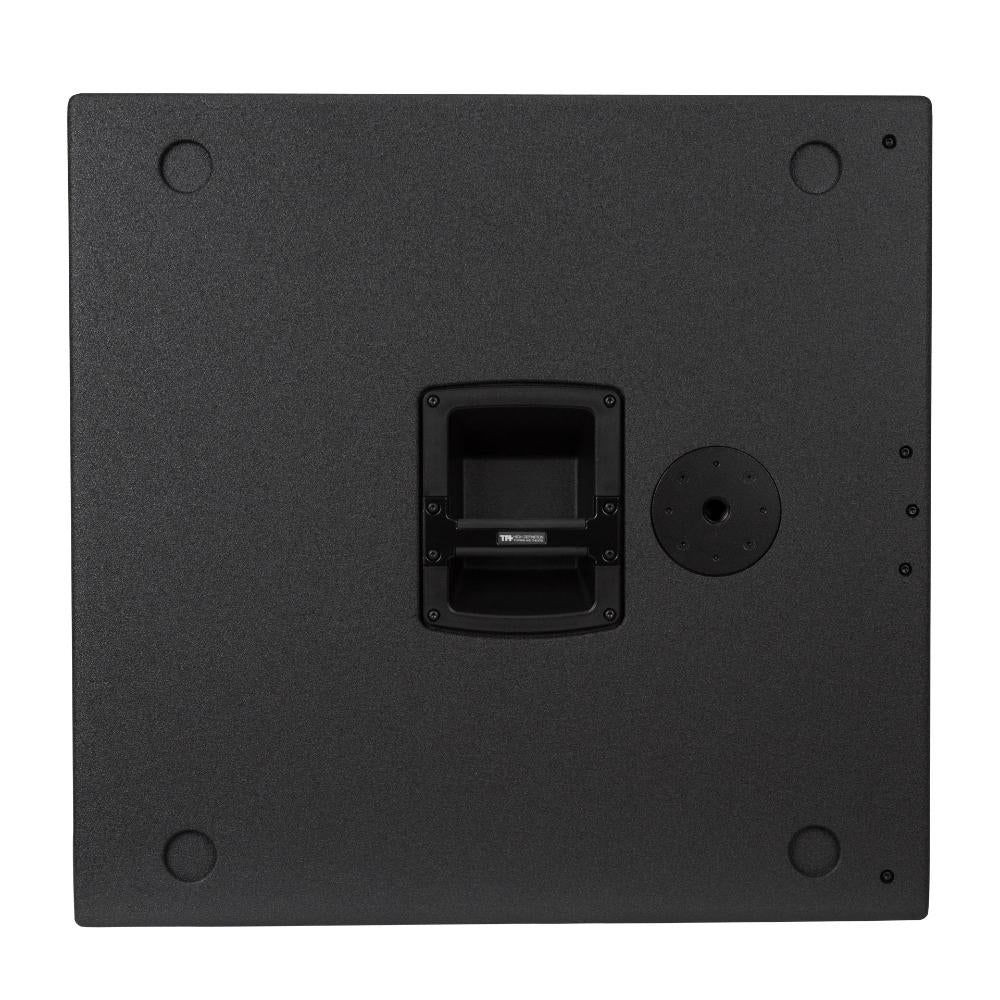

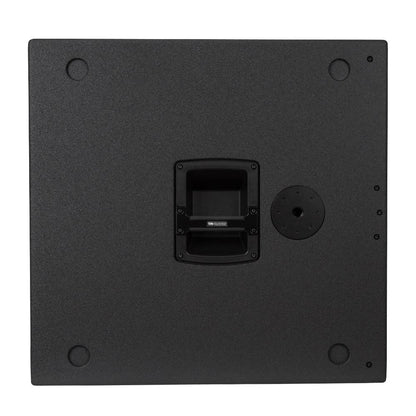

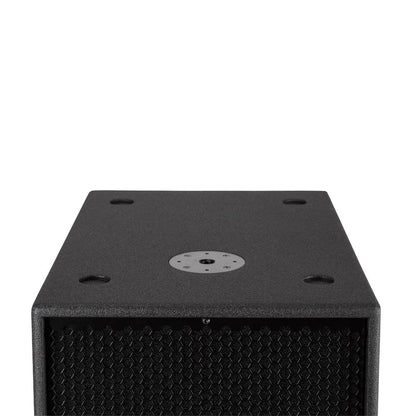

| Pole mount/Cap |
M20 thread |
| Grille |
Steel |
| Color |
Black |
| Size / Weight |
|---|
| Height |
600 mm / 23.62 inches |
| Width |
445 mm / 17.52 inches |
| Depth |
633 mm / 24.92 inches |
| Weight |
36.5 kg / 80.47 lbs |
| Shipping information |
|---|
| Package Height |
670 mm / 26.38 inches |
| Package Width |
705 mm / 27.76 inches |
| Package Depth |
520 mm / 20.47 inches |
| Package Weight |
41.3 kg / 91.05 lbs |
