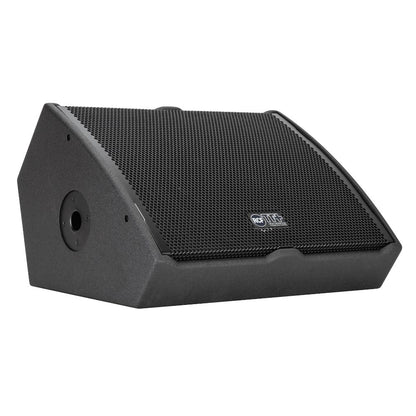

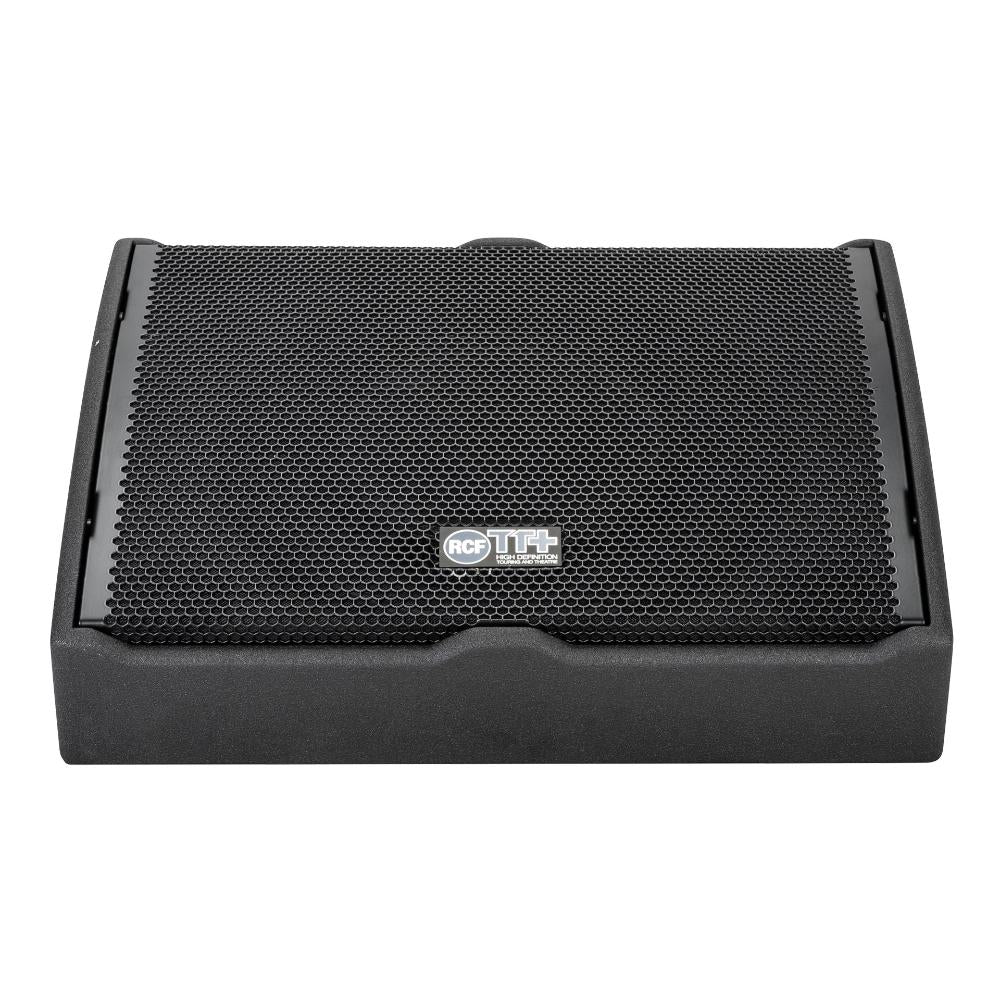

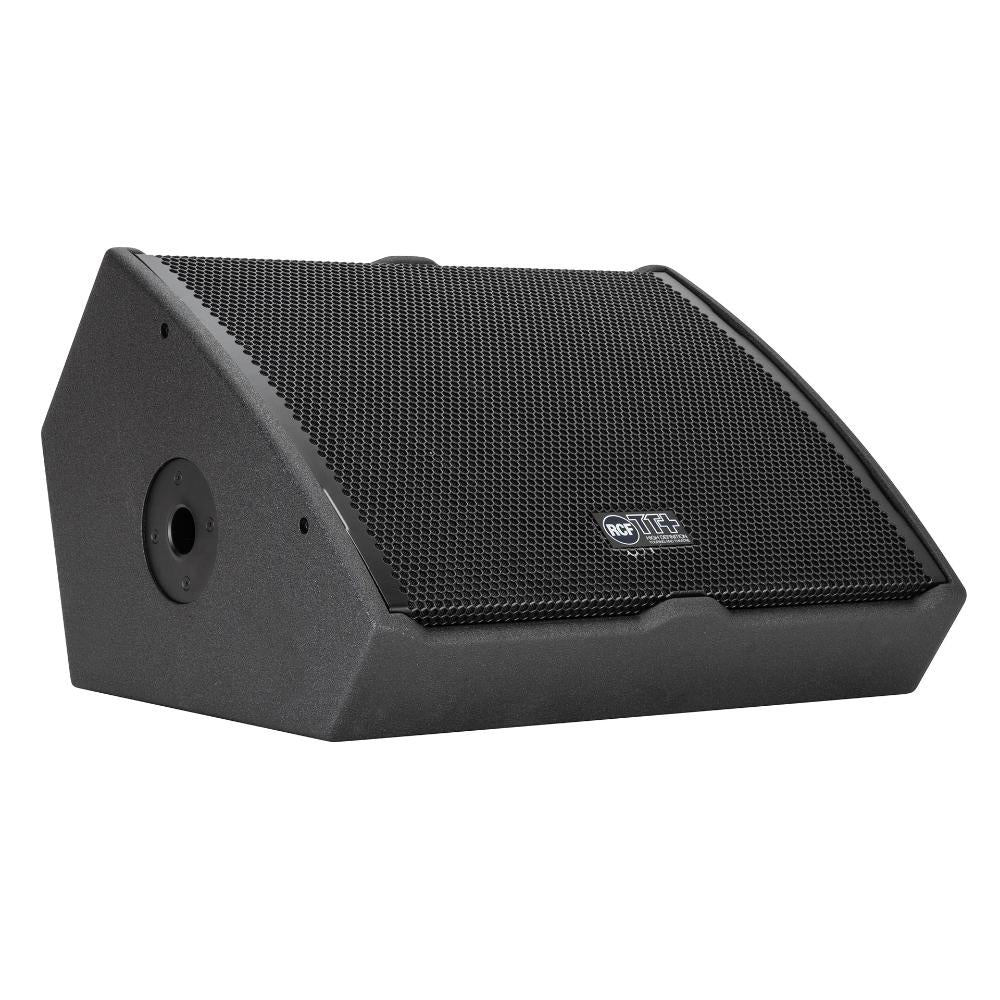

RCF TT25-CXA Active 2200W 15" 2-Way HD Coaxial Monitor (RDNET Ready)

RCF TT25-CXA Active 2200W 15" 2-Way HD Coaxial Monitor (RDNET Ready)

Write a review

SKU: TT25-CXA

$5,399.00
$5,399.00
Sale Sold out
Shipping calculated at checkout.

Available options

View full details

Description

Active 2200W 15" 2-Way HD Coaxial Monitor (RDNET Ready)

The TT25-CXA is a full range, high performance coaxial monitor. The linear response curve, the consistent coverage and acoustic output make the TT25-CXA II the professional choice for most demanding situations. The voicing is accurate and deep, the sound is transparent in the mids and extremely accurate at very high frequencies. The size is compact and the profile is very low for a discreet appearance. The TT25-CXA is a high power active system that sets a new standard in the touring and theatre sound reinforcement. By producing flat amplitude and phase response, full-range bandwidth and exceptional impulse response, the TT25-CXA far exceeds the capabilities of conventional stage monitors.

Features

  • 1100 W Class D Amplifier
  • 60 x 60 constant directivity coverage angle
  • 15" neo coaxial woofer, 3.5" voice coil
  • 1.5 " neo coaxial c. driver, 2.5" voice coil
  • DSP Processing
  • Onboard RDNet Control
  • Multifunctional cabinet
  • Very high output

    • Specifications

    Acoustical specifications
    Frequency Response 50 Hz - 20000 Hz
    Max SPL @ 1m 133 dB
    Horizontal coverage angle 60°
    Vertical coverage angle 60°
    Transducers
    Compression Driver Coaxial 1.5'' neo, 2.5'' v.c
    Woofer Coaxial 15'' neo, 3.5'' v.c
    Input/Output section
    Input signal bal/unbal
    Input connectors XLR, RDNet Ethercon
    Output connectors XLR, RDNet Ethercon
    Input sensitivity -2 dBu/+4 dBu
    Processor section
    Crossover Frequencies 900 Hz
    Protections Thermal, HF
    Limiter Soft Limiter
    Controls Proces., 8 sel. presets
    RDNet Onboard
    Power section
    Total Power 2200 W Peak, 1100 W RMS
    High frequencies 600 W Peak, 300 W RMS
    Low frequencies 1600 W Peak, 800 W RMS
    Cooling Convection
    Connections Powercon IN/OUT
    Standard compliance
    Safety agency CE compliant
    Physical specifications
    Cabinet/Case Material Baltic birch plywood
    Handles 1 Top
    Grille Steel
    Color Black
    Size / Weight
    Height 353 mm / 13.9 inches
    Width 580 mm / 22.83 inches
    Depth 486 mm / 19.13 inches
    Weight 18 kg / 39.68 lbs
    Shipping information
    Package Height 615 mm / 24.21 inches
    Package Width 390 mm / 15.35 inches
    Package Depth 515 mm / 20.28 inches
    Package Weight 23 kg / 50.71 lbs
