Description

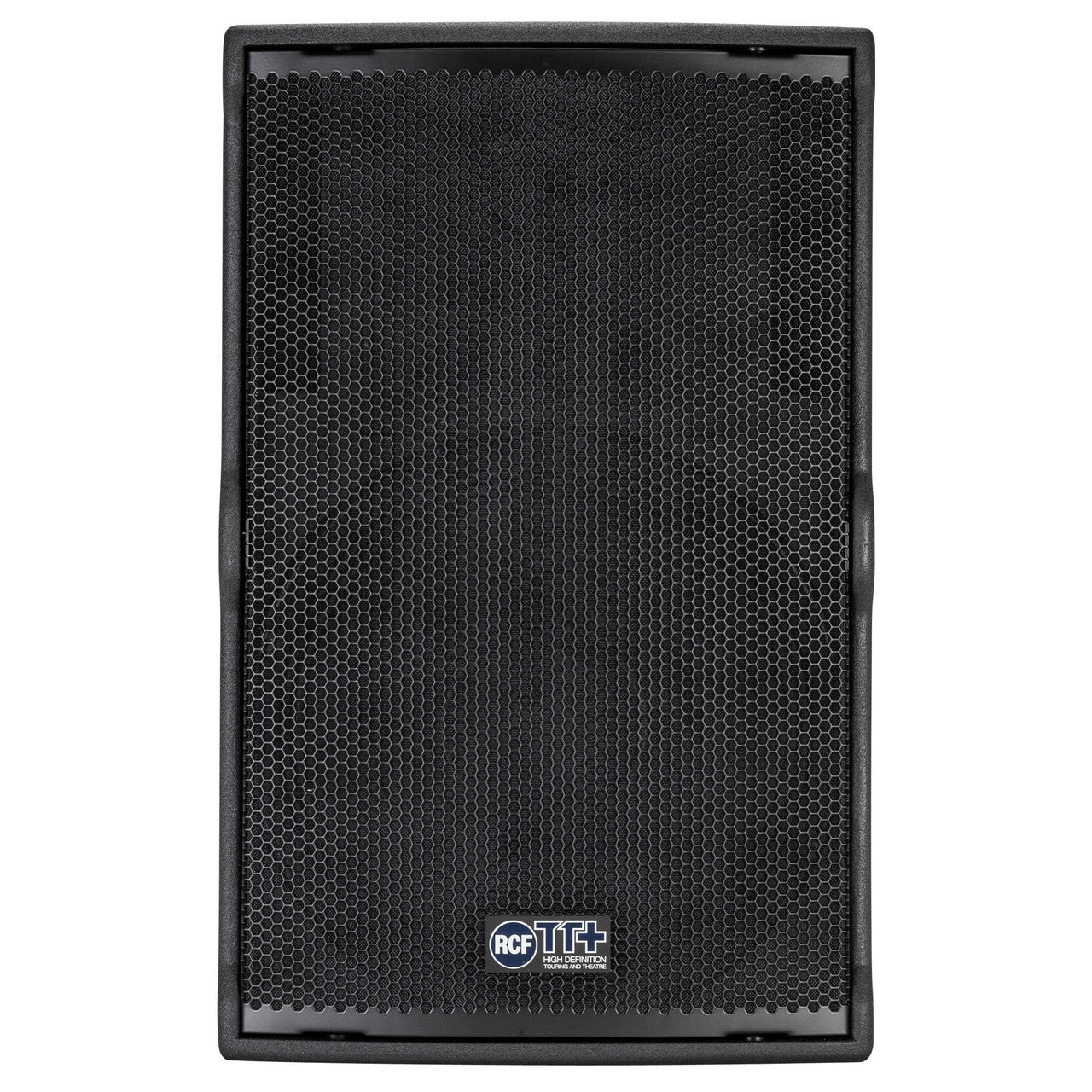

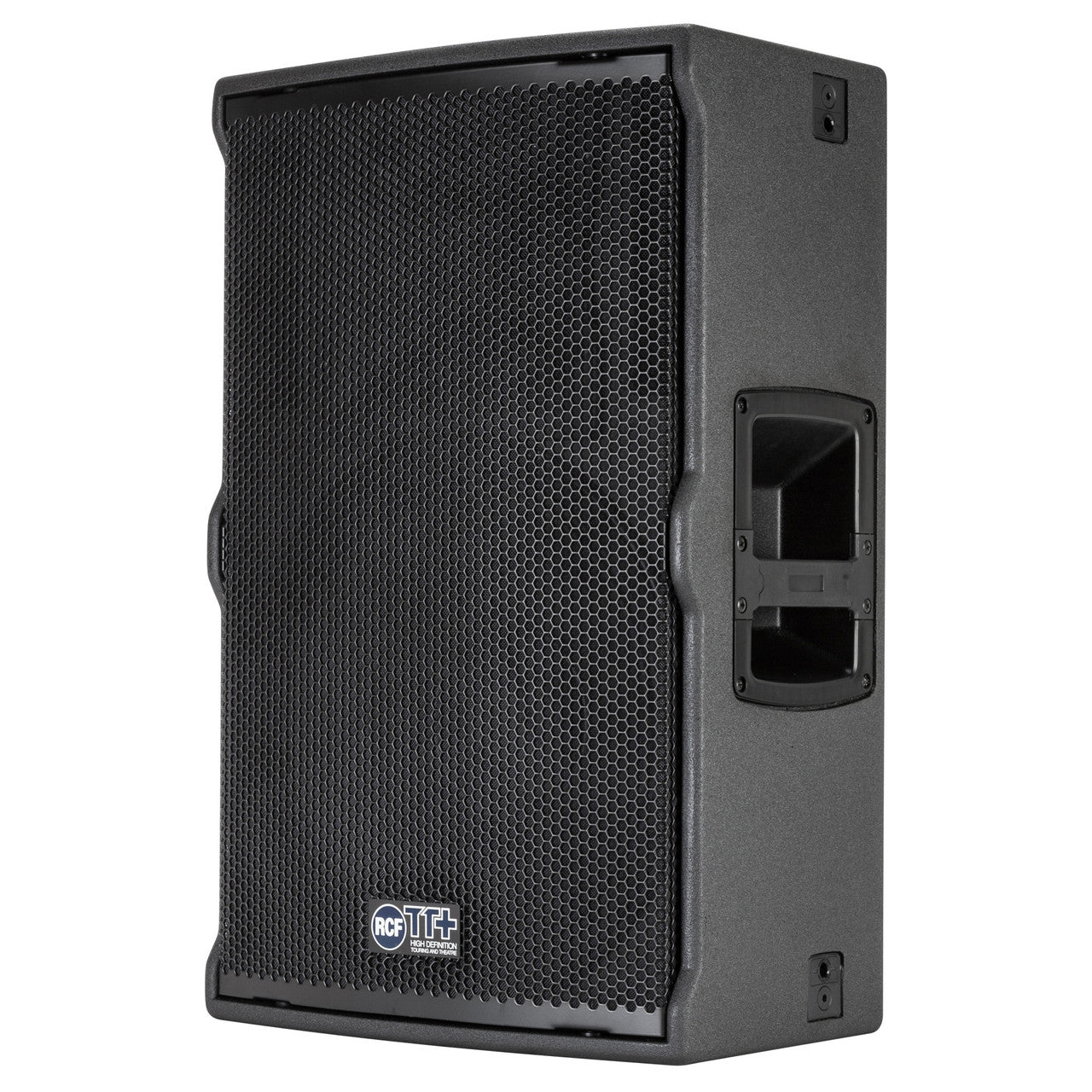

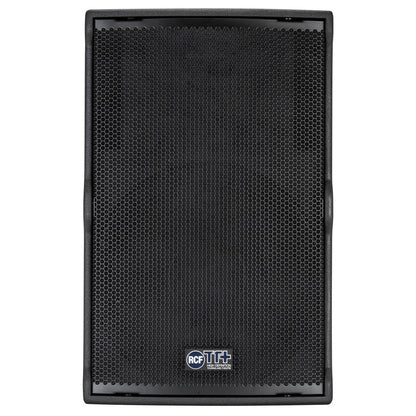

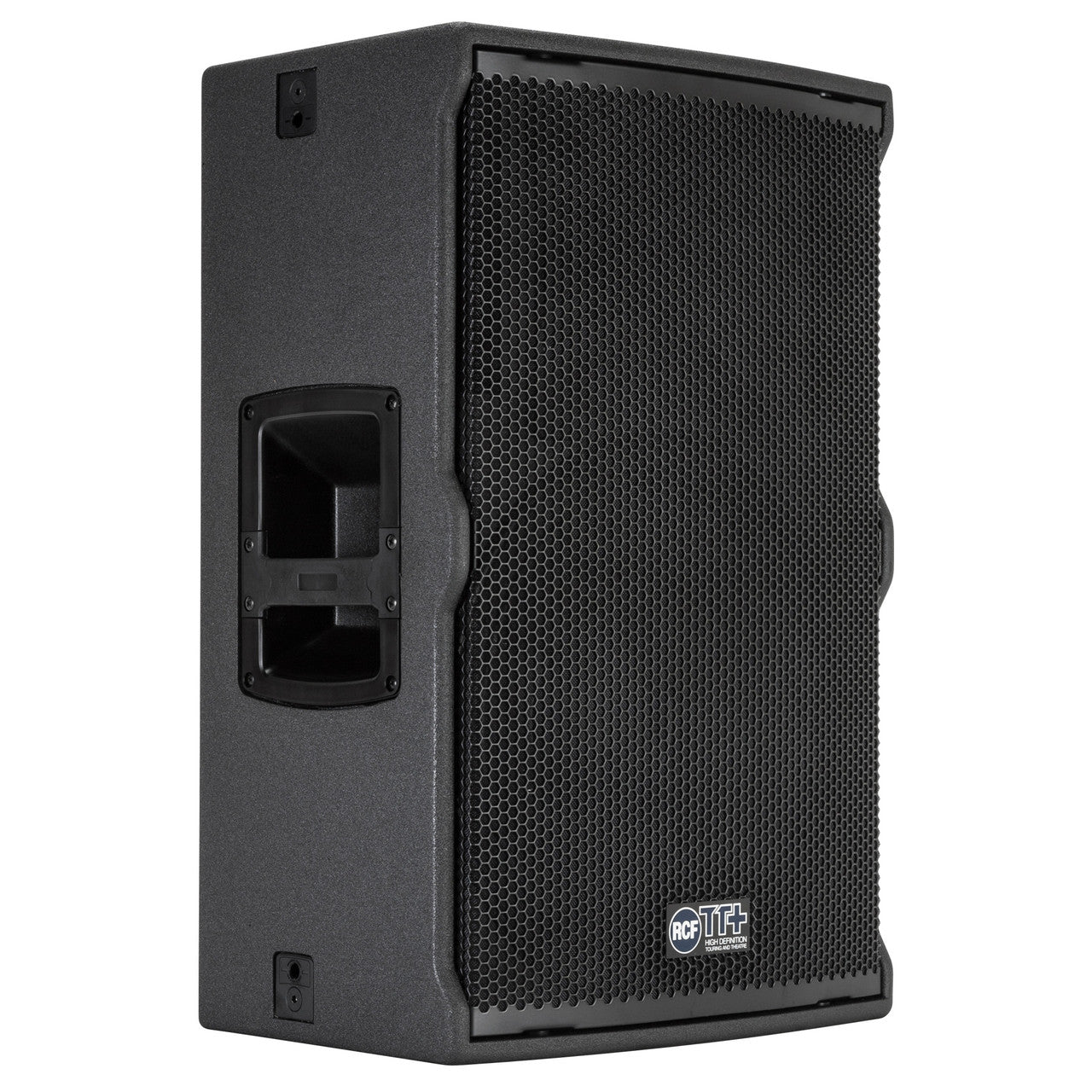

RCF TT25-A-II Active 2200W 15" 2-Way Speaker (RDNET Ready)

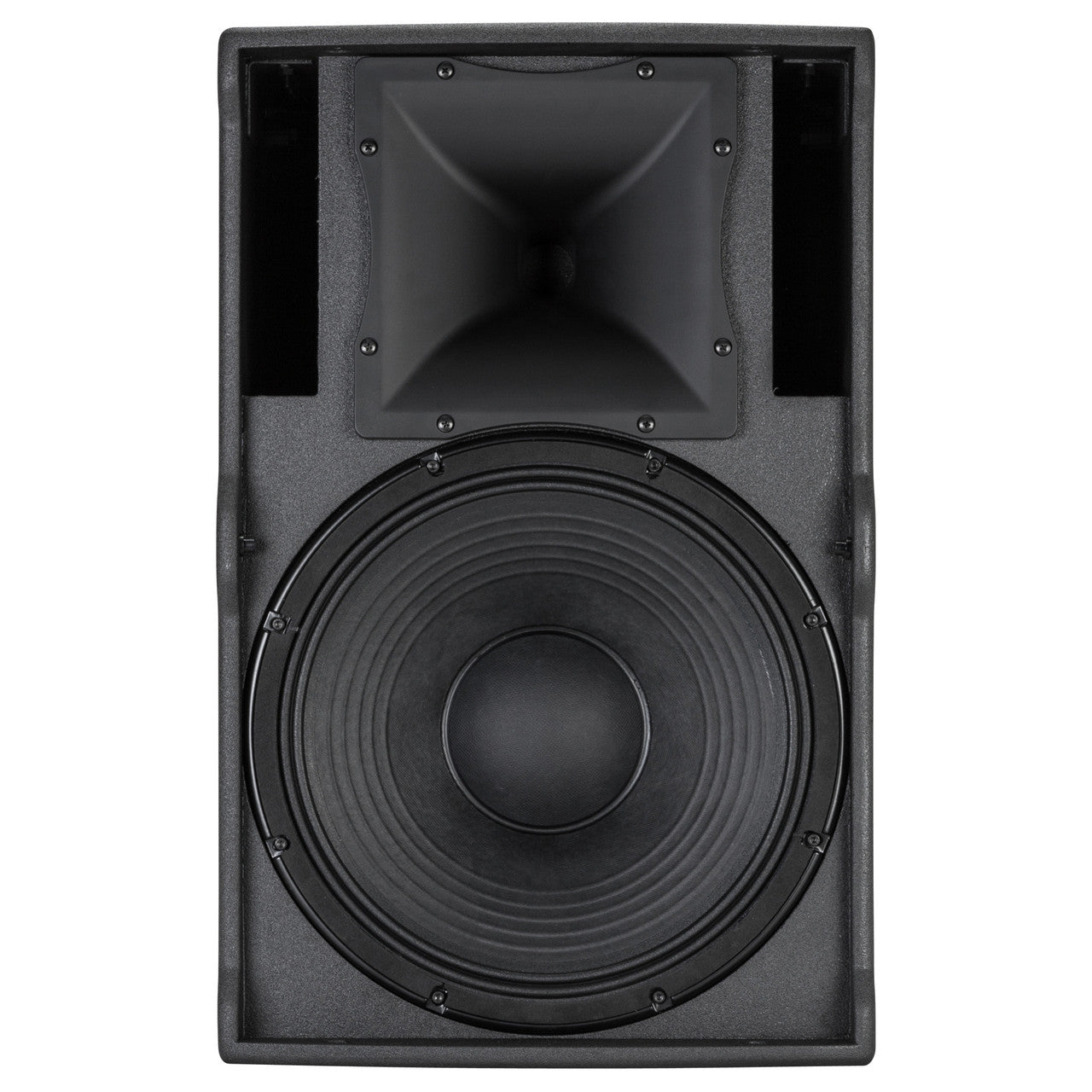

The TT25-A II is the most flexible and powerful tool in its class. TT25-A II offers very high output and dynamics, and extreme linearity and accuracy in a compact size. TT25-A II is a 2-way active system featuring a 15” neo woofer, 86 mm voice coil in a bass reflex configuration; 1,5” exit, 100 mm voice coil neo compression driver; 90° x 60° constant directivity horn, 90° rotating. The TT25-A II is the ideal professional speaker for sound reinforcement, live performances and events.
Features
- 1100 W Class D Amplifier
- 90 x 60 constant directivity coverage angle
- 15" neo woofer, 3.5" voice coil
- 1.5 " neo c. driver, 4.0" voice coil
- DSP Processing
- Onboard RDNet Control

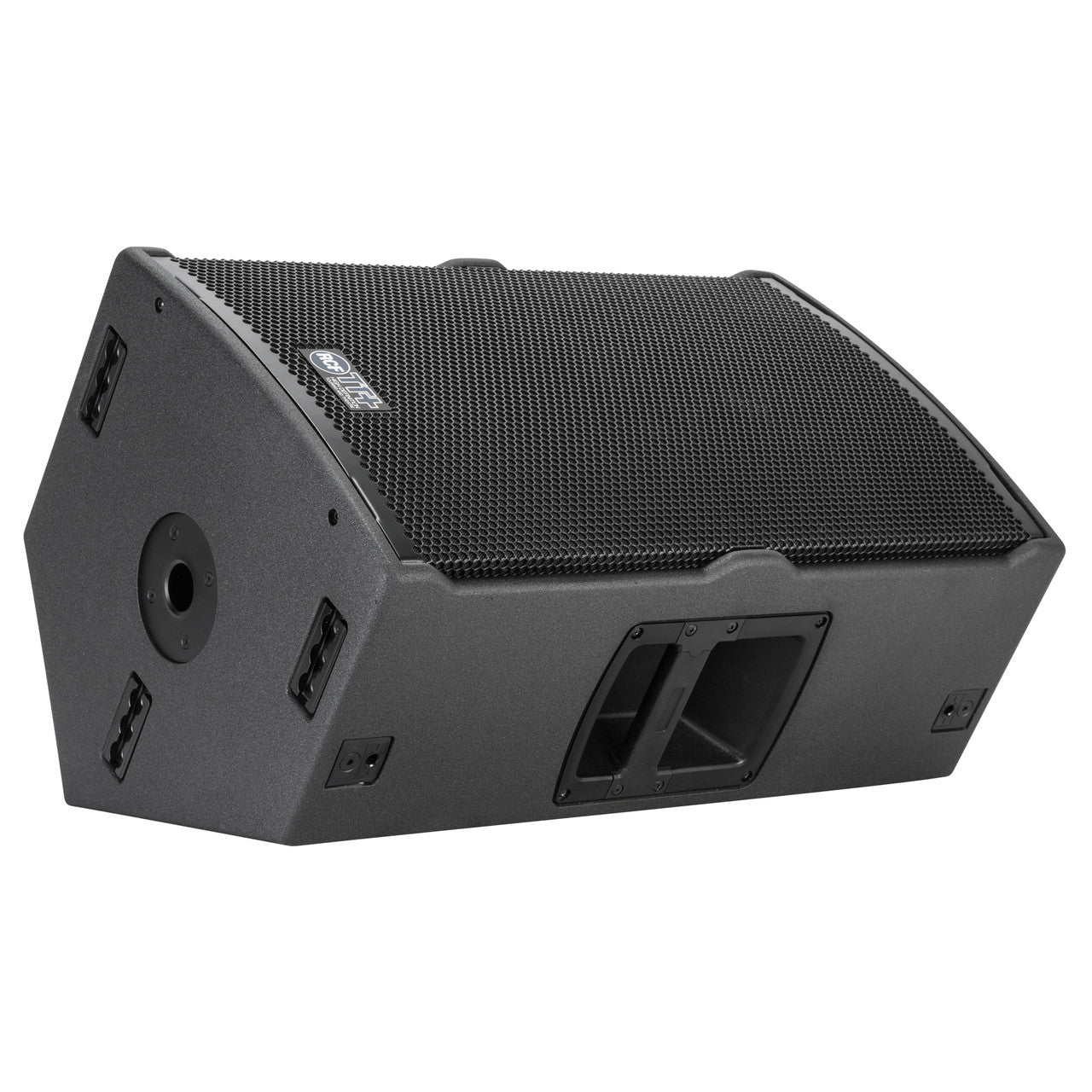

- Multifunctional cabinet
- Very high output
Specifications
Acoustical Specifications
- Frequency Response: 50 Hz – 20,000 Hz
- Max SPL @ 1 m: 134 dB
- Horizontal Coverage Angle: 90°
- Vertical Coverage Angle: 60°
Transducers
- Compression Driver: 1 × 1.5" Neo, 4.0" V.C
- Woofer: 1 × 15" Neo, 3.5" V.C
Input / Output Section
- Input Signal: Bal / Unbal
- Input Connectors: XLR, RDNet EtherCON
- Output Connectors: XLR, RDNet EtherCON
- Input Sensitivity: -2 dBu / +4 dBu
Processor Section
- Crossover Frequency: 750 Hz
- Protections: Thermal, HF
- Limiter: Fast Limiter
- Controls: Proces., 8 Selectable Presets
- RDNet: Yes
Power Section
- Total Power: 2,200 W Peak, 1,100 W RMS
- High Frequencies: 600 W Peak, 300 W RMS
- Low Frequencies: 1,600 W Peak, 800 W RMS
- Cooling: Convection

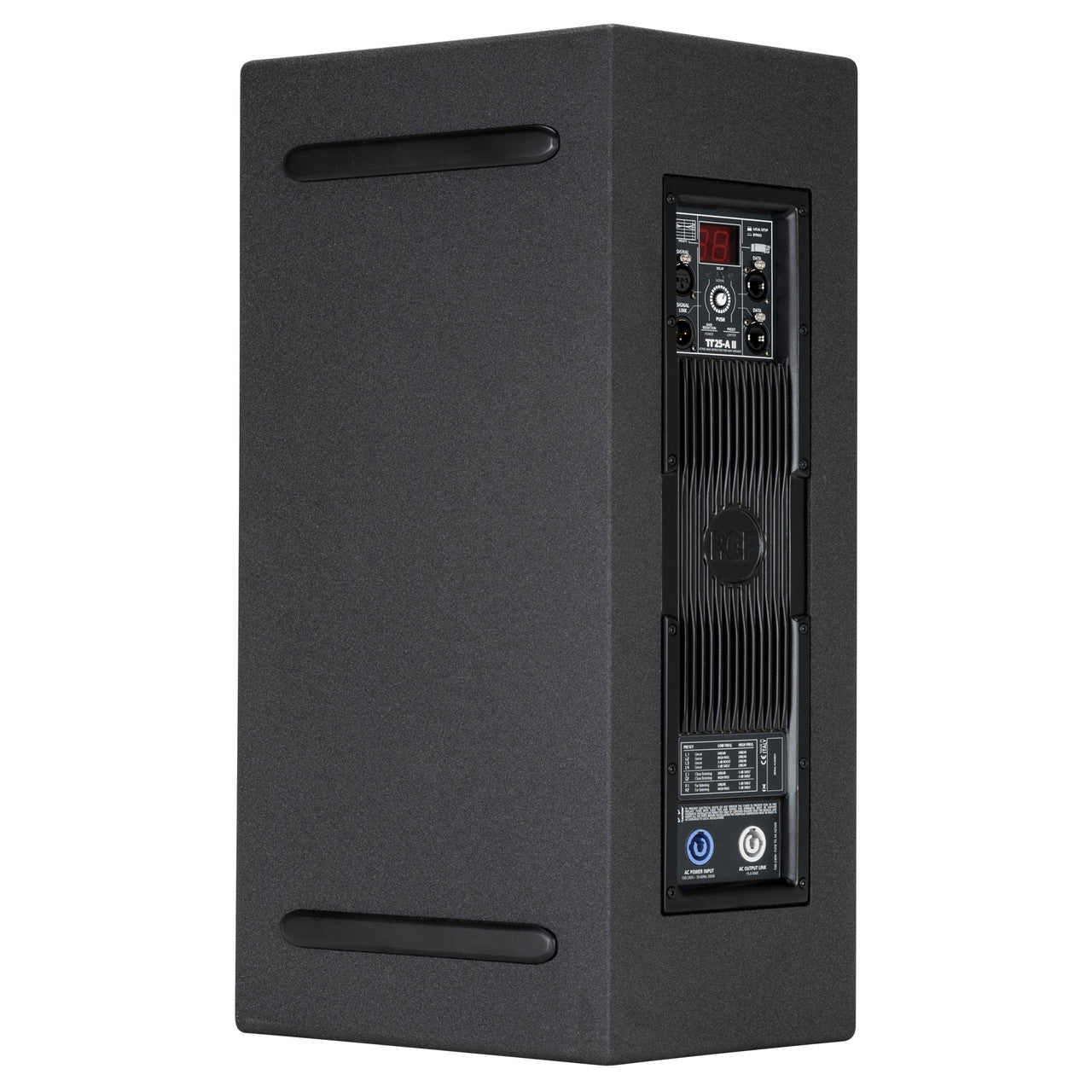

- Connections: PowerCON IN / OUT
Standard Compliance
- Safety Agency: CE Compliant
Physical Specifications
- Cabinet / Case Material: Baltic Birch Plywood

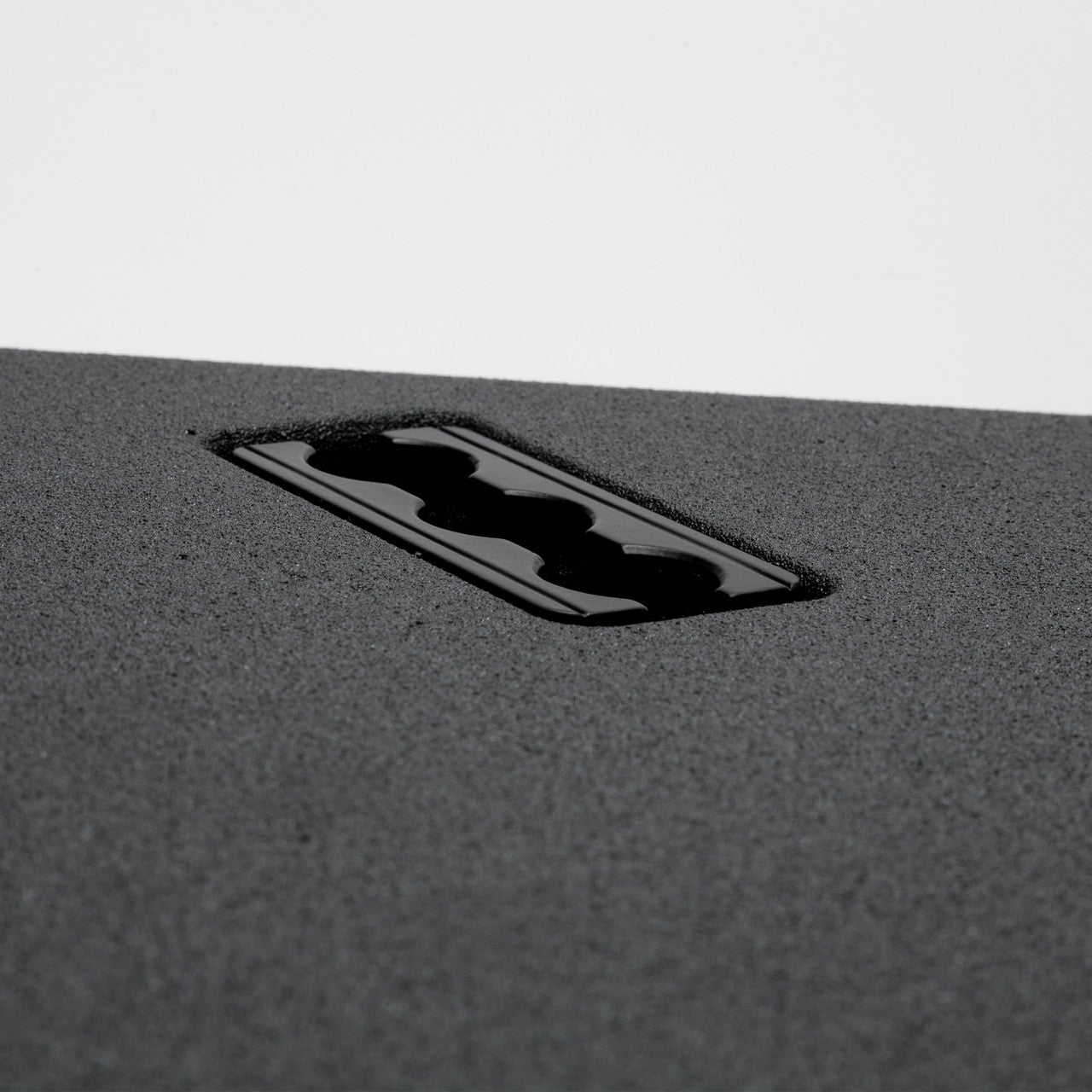

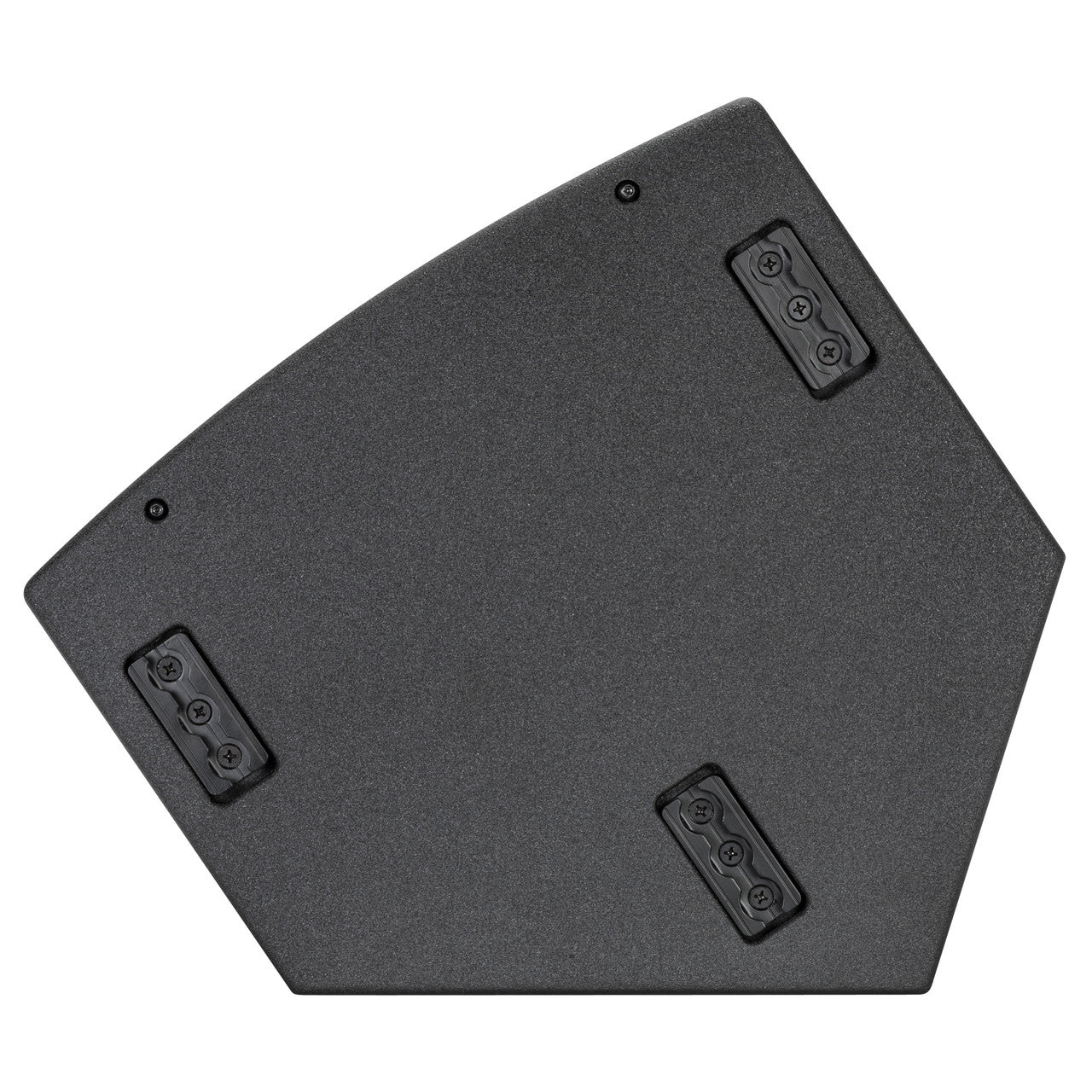

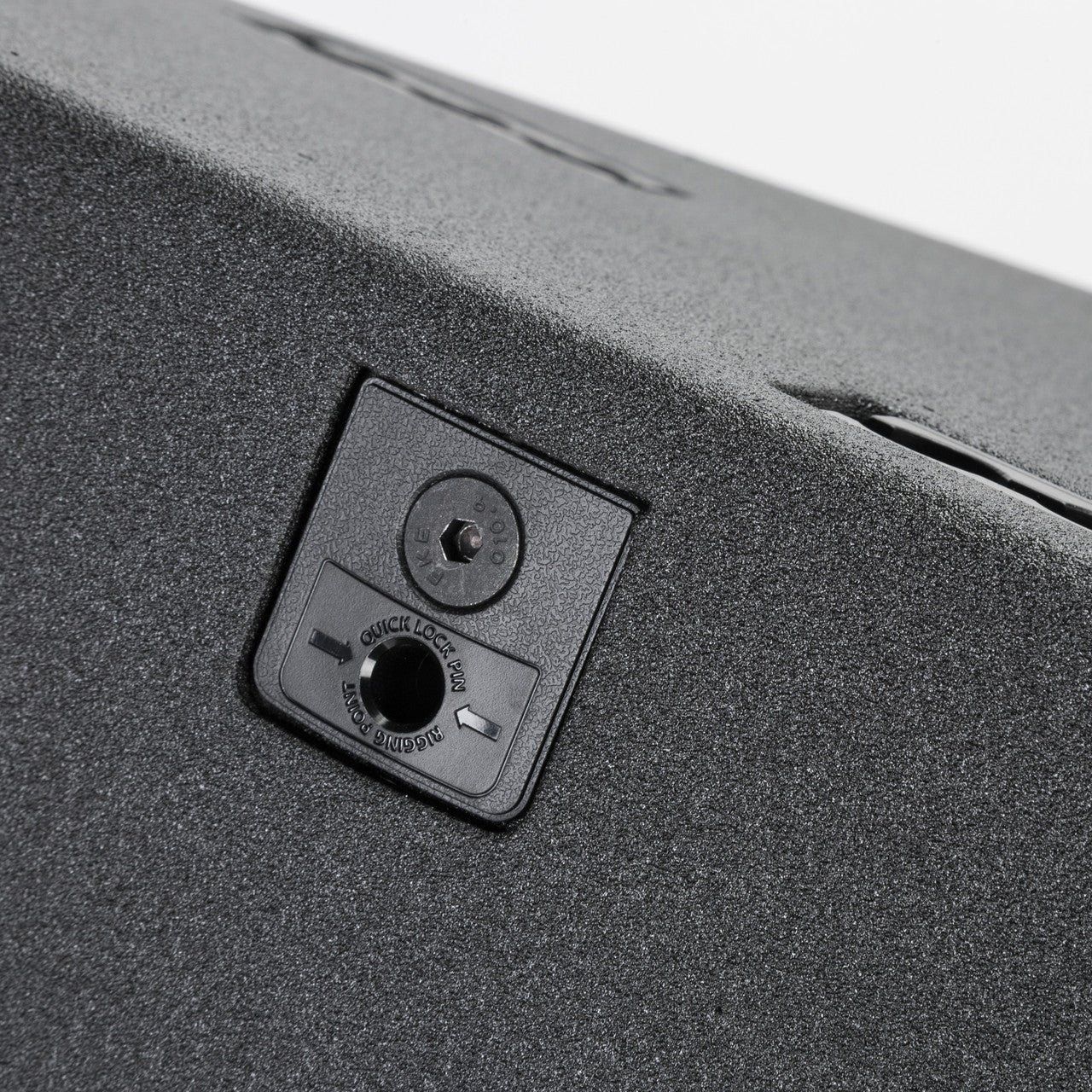

- Hardware: 6 × Fly Track, Quick Lock, Pole Mount
- Handles: 2 on Side

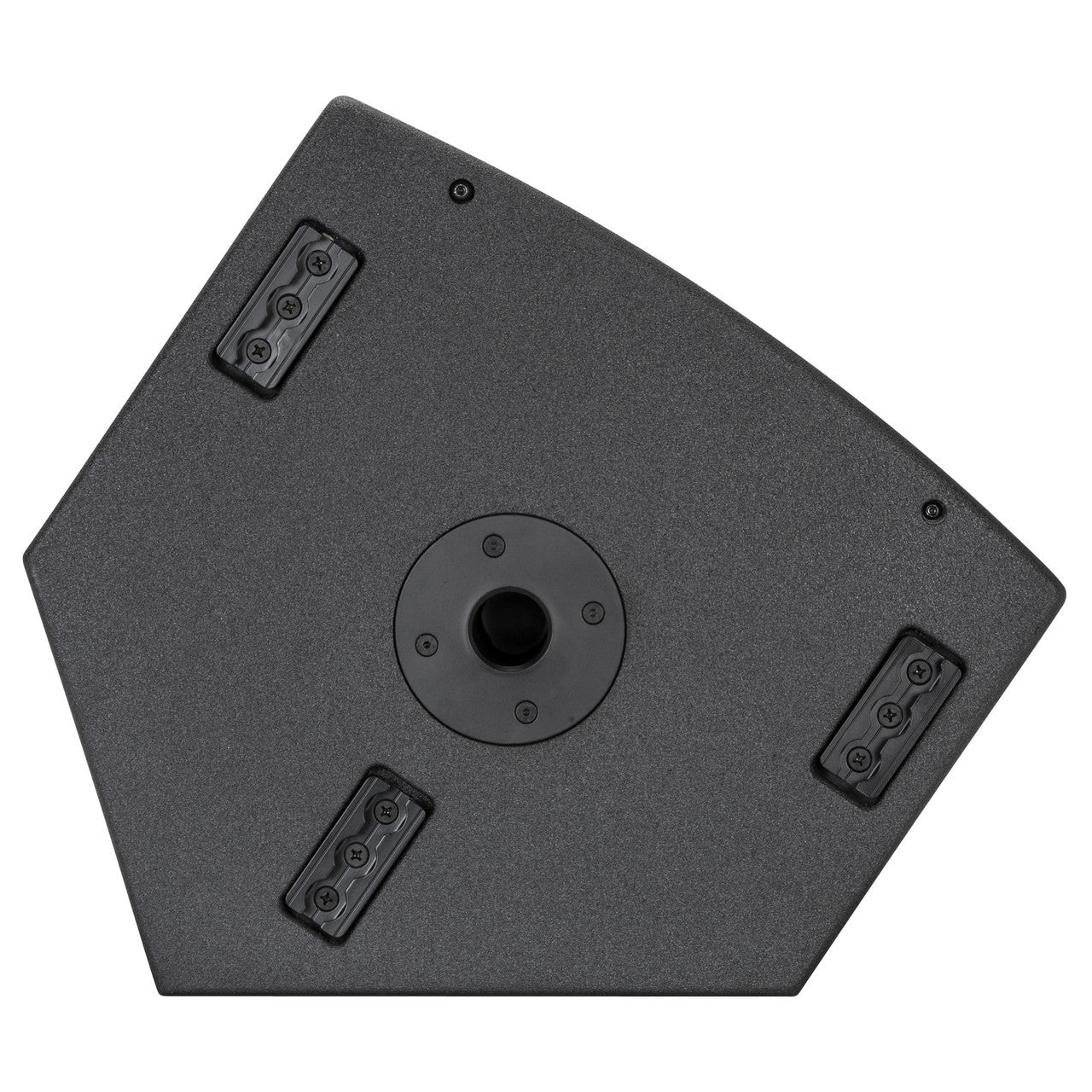

- Pole Mount / Cap: Yes
- Grille: Steel
- Color: Black
Size / Weight
- Height: 670 mm (26.38 inches)
- Width: 425 mm (16.73 inches)
- Depth: 425 mm (16.73 inches)
- Weight: 26 kg (57.32 lbs)
Shipping Information
- Package Height: 715 mm (28.15 inches)
- Package Width: 470 mm (18.5 inches)
- Package Depth: 470 mm (18.5 inches)
- Package Weight: 32.7 kg (72.09 lbs)
