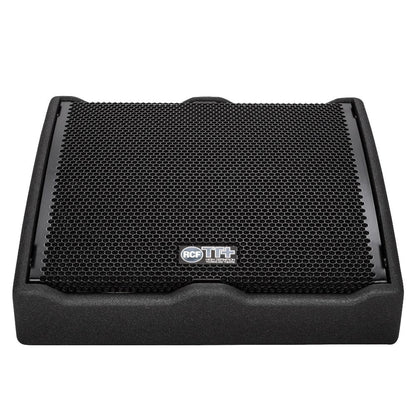

RCF TT20-CXA Active 2000W Dual 8" 2-Way HD Monitor (RDNET Ready)

RCF TT20-CXA Active 2000W Dual 8" 2-Way HD Monitor (RDNET Ready)

Write a review

SKU: TT20-CXA

$4,399.00
$4,399.00
Sale Sold out
Shipping calculated at checkout.

Available options

View full details

Description

Active 2000W Dual 8" 2-Way HD Monitor (RDNET Ready)

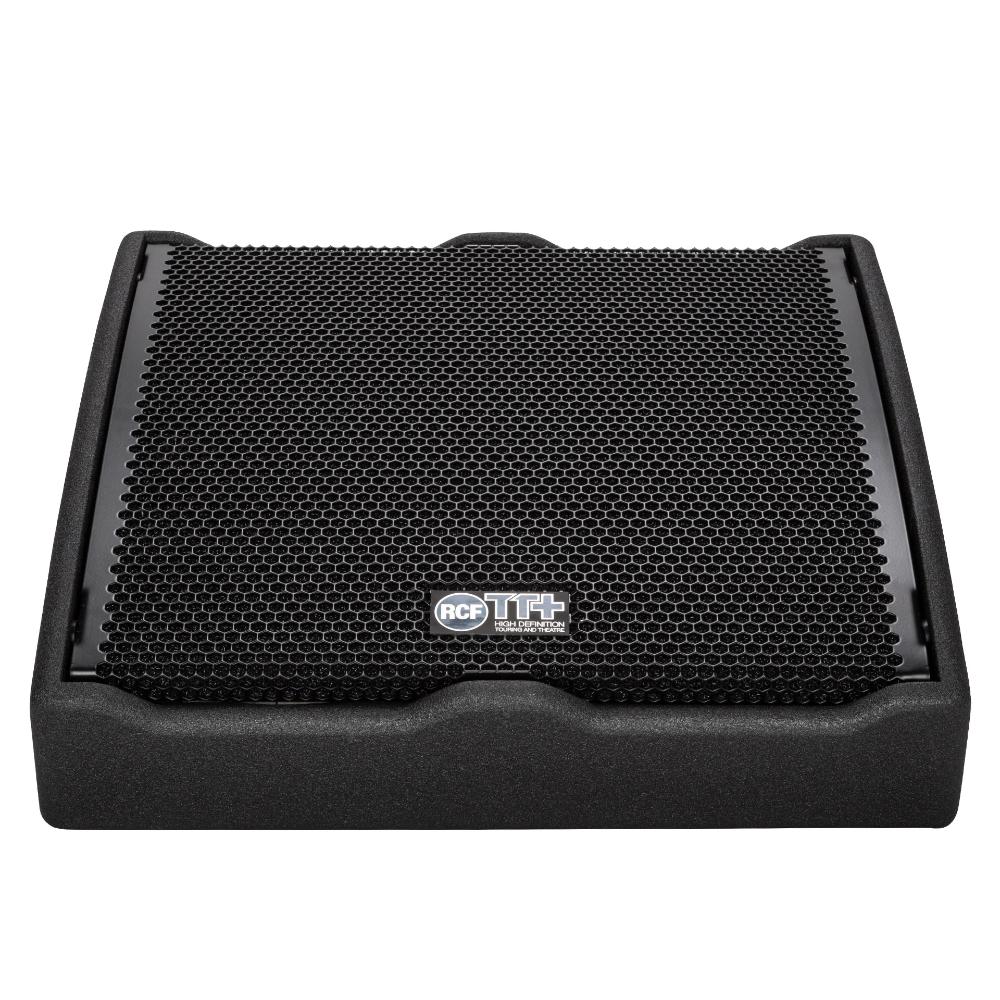

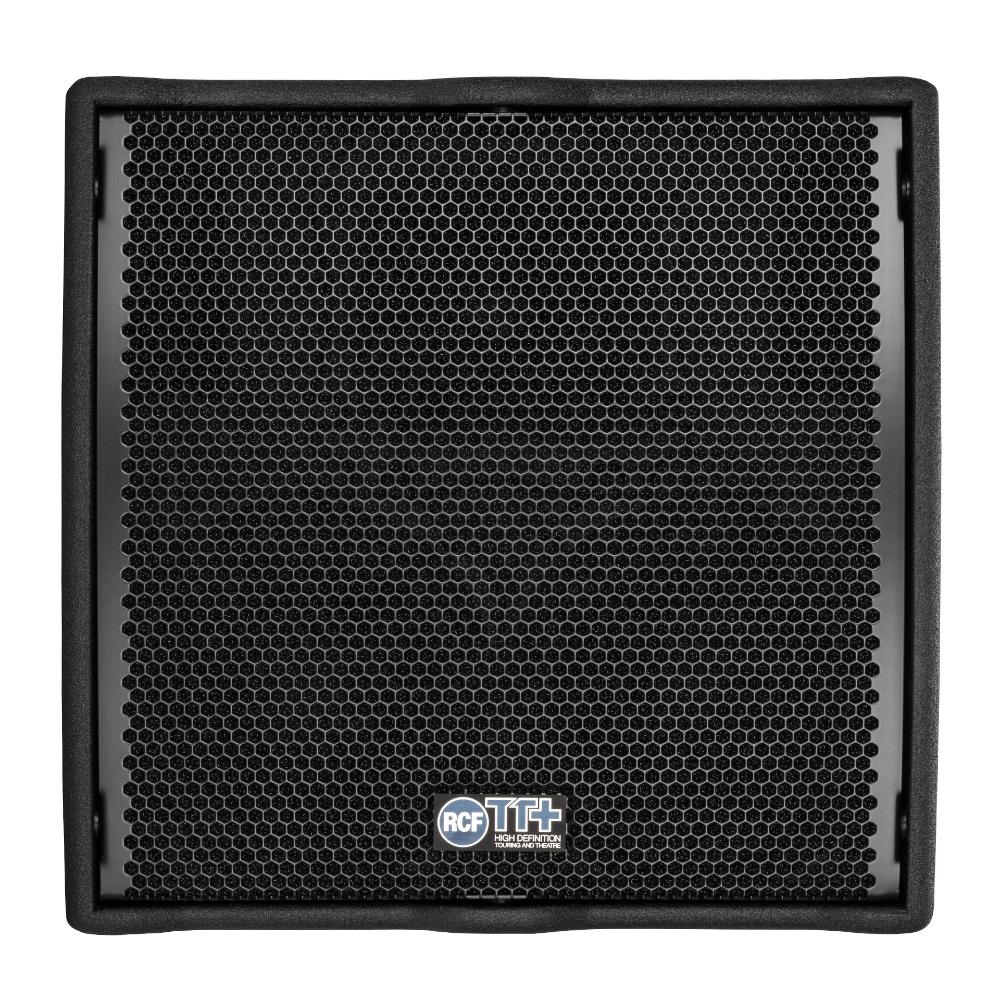

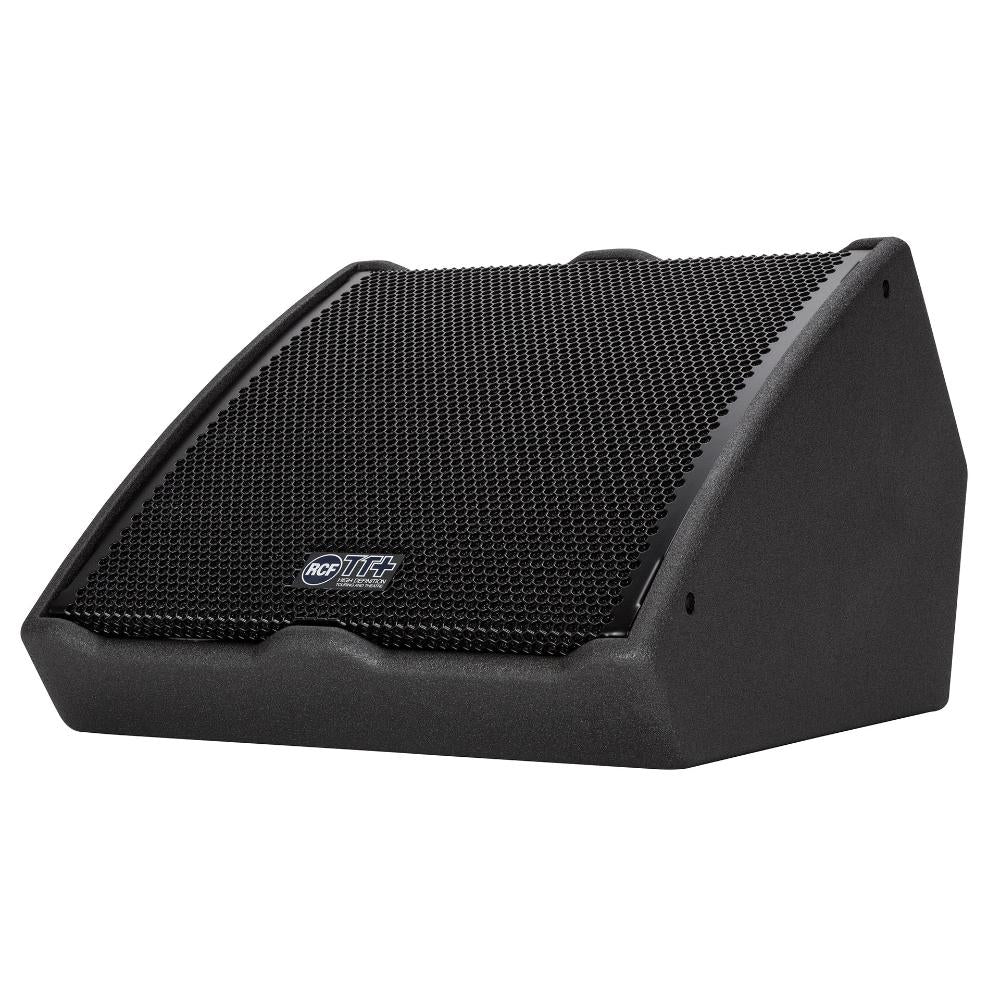

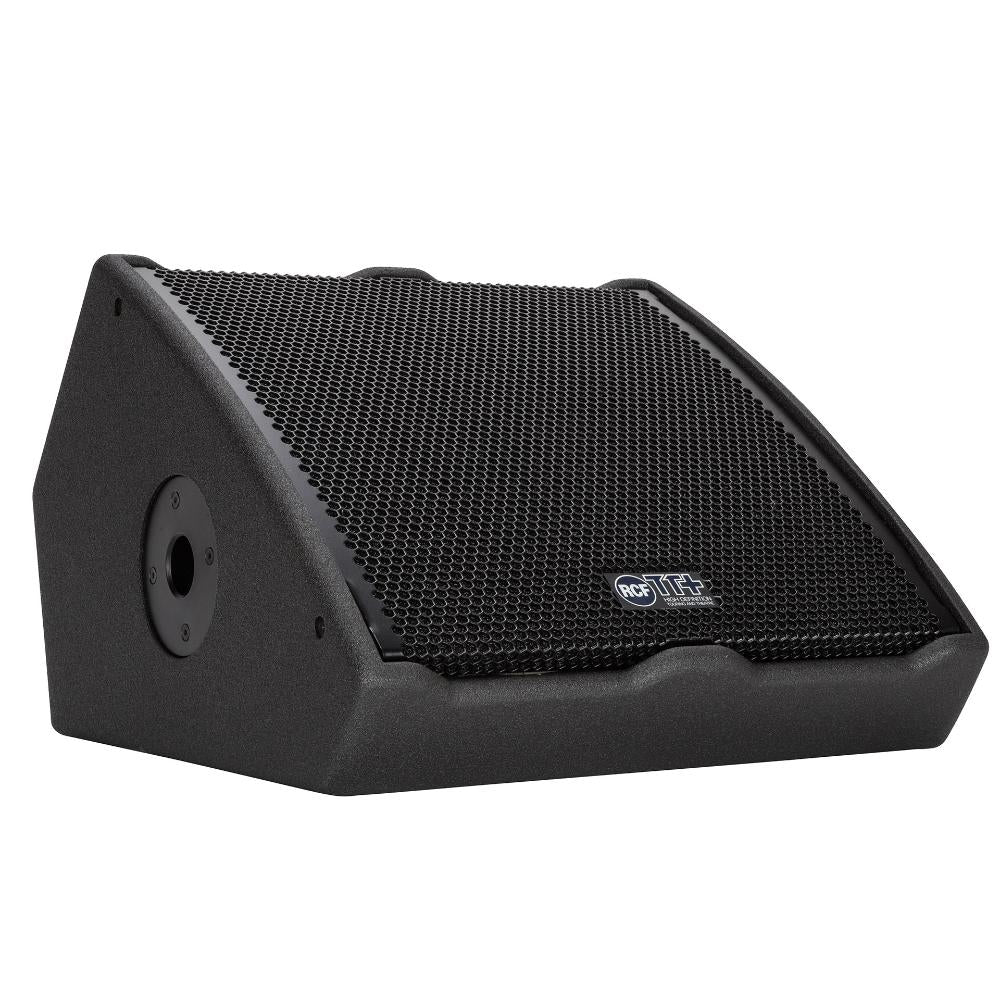

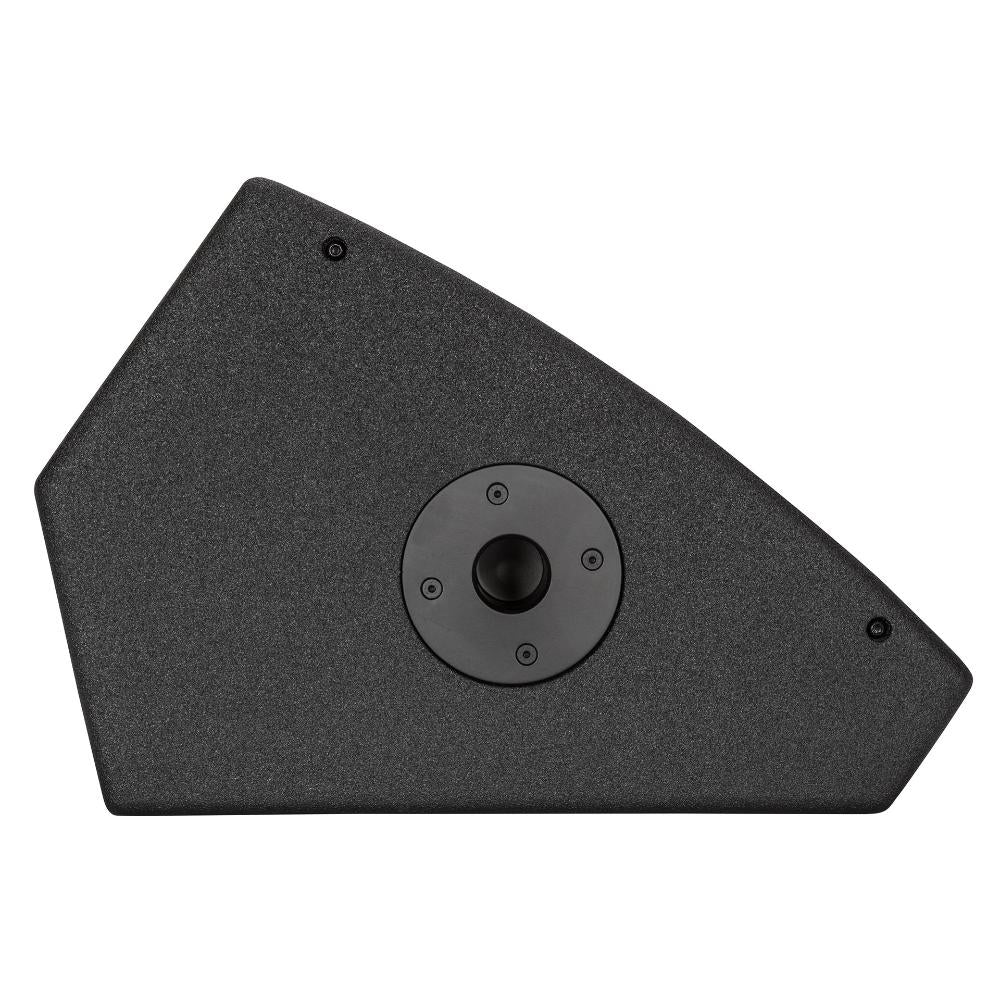

This active high output stage monitor is a full range, low-profile enclosure with symmetrical transducers arrangement. The optimized frequency and phase response, consistent coverage of 90° x 70°, and potent acoustic output make the TT20-CXA the professional choice for any stage as a monitor or, thanks to the pole socket, as full range front of house system. With an exceptional transient response and the powerful FiRPHASE processing, the TT CXA series far exceeds the capabilities of conventional stage monitors.

Features

  • 131 dB SPL Max
  • 1000W RMS, two-way Class-D amplifier
  • 90° x 70° constant directivity coverage
  • Multifuncional cabinet with symmetrical transducers’ design
  • FiRPHASE

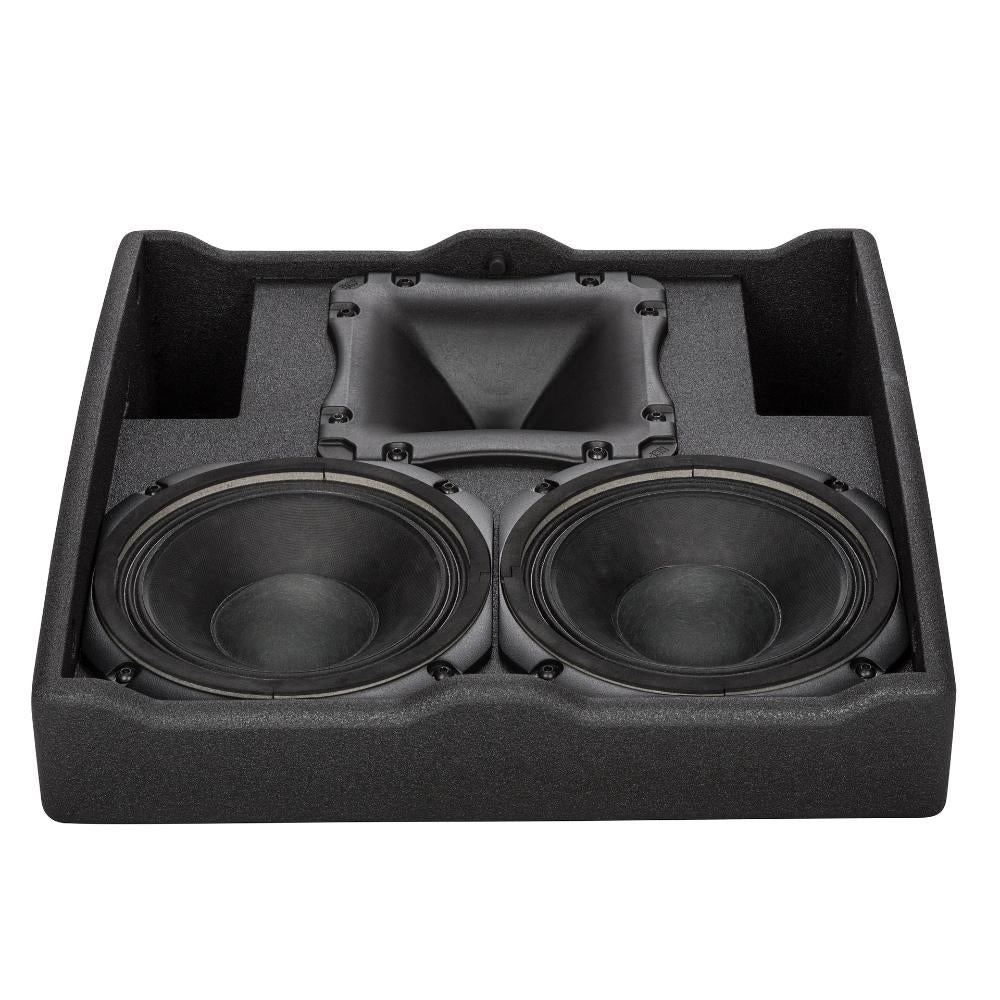

  • 2 x 8’’ neodymium Woofers, 2.5’’ voice coil
  • Horn loaded 1.4” neo comp. driver, 3’’ voice coil
  • RDNet Networked Management

    • Specifications

    Acoustical specifications
    Frequency Response 60 Hz - 20000 Hz
    Max SPL @ 1m 131 dB
    Horizontal coverage angle 90°
    Vertical coverage angle 70°
    Transducers
    Compression Driver 1 x 1.5'' neo, 3.0'' v.c
    Woofer 2 x 8'' neo, 2.5'' v.c

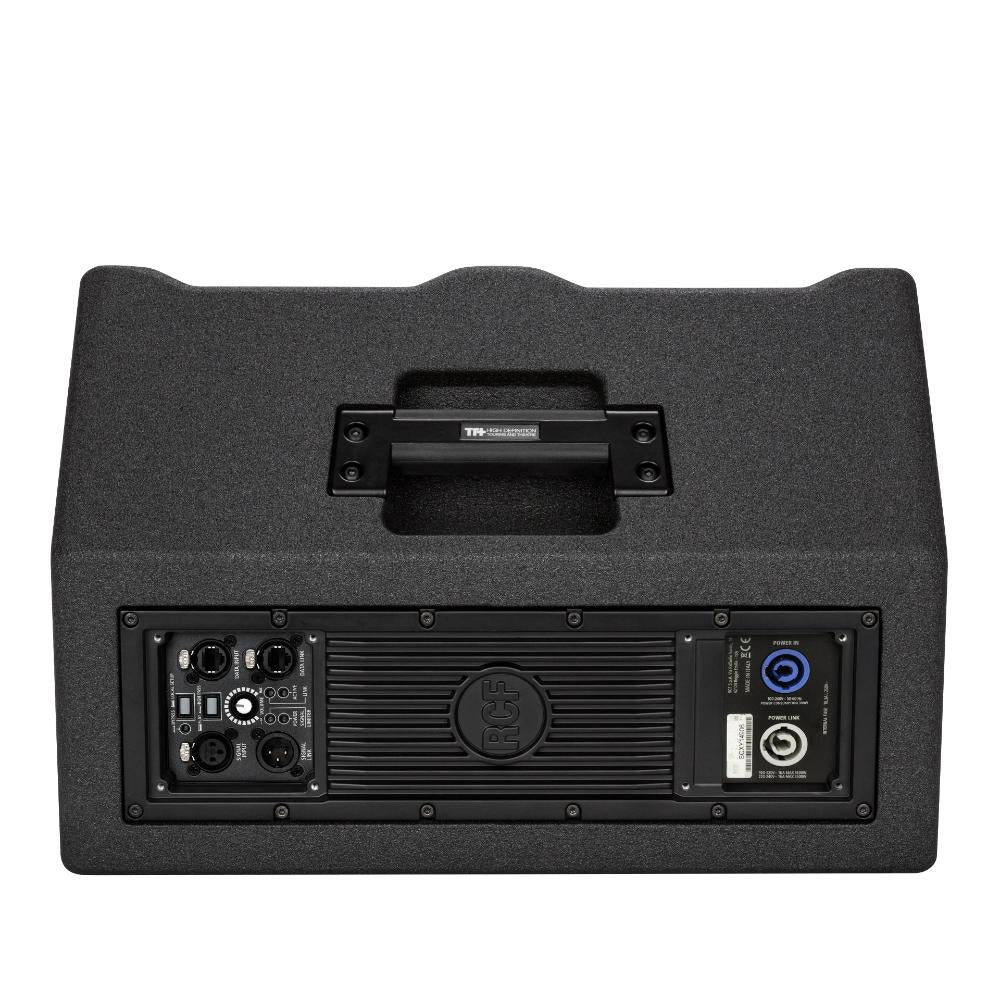

    Input/Output section
    Input signal bal/unbal
    Input connectors XLR, RDNet Ethercon
    Output connectors XLR, RDNet Ethercon
    Input sensitivity -2 dBu/+4 dBu
    Processor section
    Crossover Frequencies 900 Hz
    Protections Thermal, HF
    Limiter Fast Limiter
    Controls Bypass, Linear/High Pass, Volume, RDnet on boar
    RDNet Onboard
    Power section
    Total Power 2000 W Peak, 1000 W RMS
    High frequencies 600 W Peak, 300 W RMS
    Low frequencies 1400 W Peak, 700 W RMS
    Cooling Convection
    Connections Powercon IN/OUT
    Standard compliance
    Safety agency CE compliant
    Physical specifications
    Cabinet/Case Material Baltic birch plywood
    Handles 1 TOP
    Grille Steel
    Color Black
    Size / Weight
    Height 318 mm / 12.52 inches
    Width 445 mm / 17.52 inches
    Depth 450 mm / 17.72 inches
    Weight 14 kg / 30.86 lbs
    Shipping information
    Package Height 500 mm / 19.69 inches
    Package Width 490 mm / 19.29 inches
    Package Depth 375 mm / 14.76 inches
    Package Weight 16.4 kg / 36.16 lbs
