Description

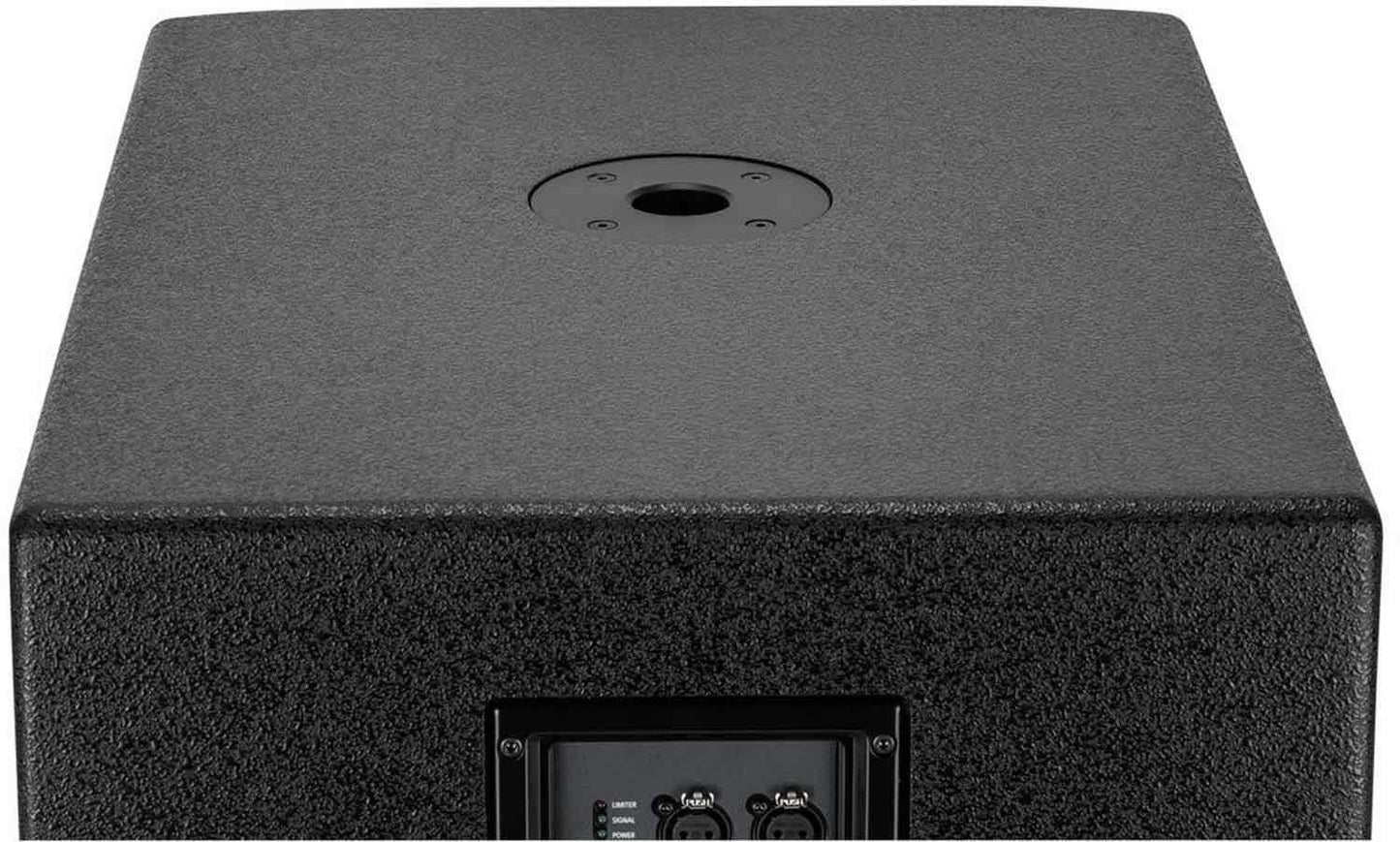

RCF SUB705-AS-MKII Powered 15-Inch Subwoofer

The SUB 705-AS II is a compact and powerful bass reflex subwoofer. It is equipped with a 15" high power woofer with 3" voice coil, powered by a 1400 Watt digital amplifier in a robust plywood housing with deep and punchy tuning for a powerful bass. Thanks to the built-in digital stereo crossover (DSP) with adjustable crossover frequency, it can be easily and quickly set up with a satellite speaker. The SUB 705-AS II easily combines with 12" and 15", ideal for RCF ART and D-Line Series.

FEATURES
  • 1400 Watt Digital Amplifier
  • 15" Woofer, bass reflex housing
  • Stereo crossover
  • Switchable crossover frequencies
  • Phase-reverse switch
  • Electronic equalization, soft limiter and protection
  • Stereo XLR input, Stereo XLR signal output
ACOUSTICAL SPECIFICATIONS
  • Frequency Response -3 dB: 40 Hz + 120 Hz
  • Max SPL: 131 dB
  • Woofer: 15", 3.0" v.c.
INPUT/OUTPUT SECTION
  • Input connectors: Stereo XLR
  • Output connectors: Stereo XLR
  • Input sensitivity: -2 dBu / + 4 dBu
  • PROCESSOR SECTION
  • Crossover frequencies: 80-110 Hz Hz
  • Protections: thermal, rms
  • Limiter: soft limiter
  • Controls: Volume, EQ, phase, xover
AMPLIFIER SPECIFICATIONS
  • Total power: 1400 W PEAK
  • Low frequencies: 1400 W PEAK
  • Total power: 700 W RMS
  • Low frequencies: 700 W RMS
  • Cooling: convection
  • Connections: VDE connector
CABINET
  • Cabinet Material: Baltic birch plywood
  • Hardware: Pole mount
  • Handles: 2 side
  • Pole Mount/Cap: yes
  • Grille: Steel
  • Colour: Black
PHYSICAL SPECIFICATIONS
  • Height: 568/22.36 mm/inch
  • Width: 430/16.93 mm/inch
  • Depth: 595/23.43 mm/inch
  • Net Weight: 28.0/50.70 kg/lbs
