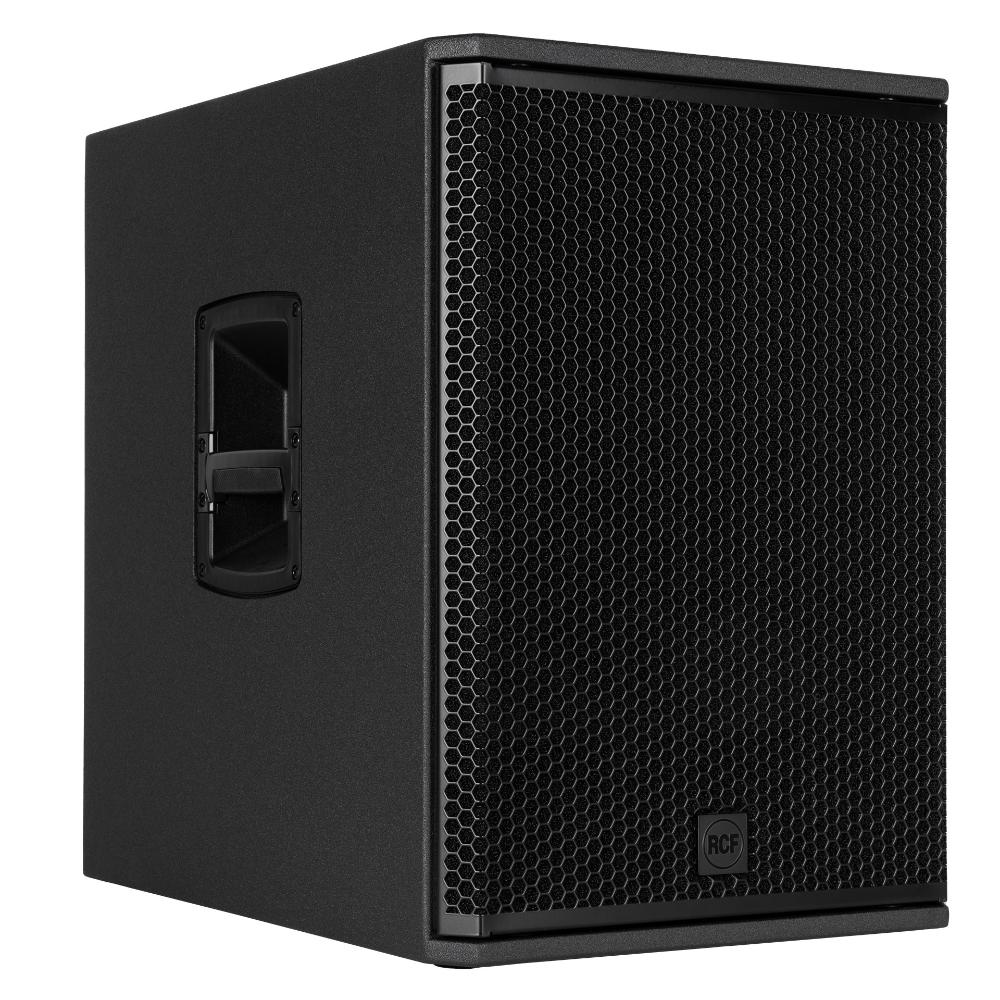

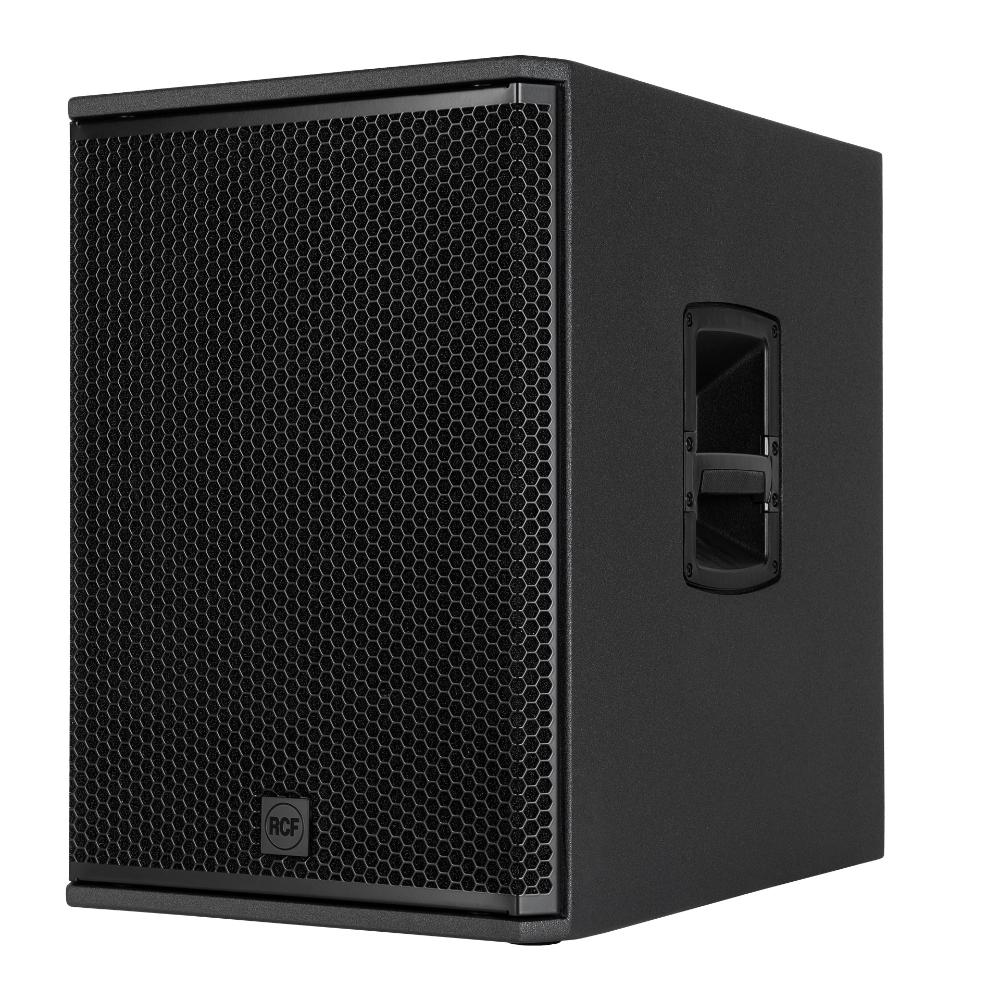

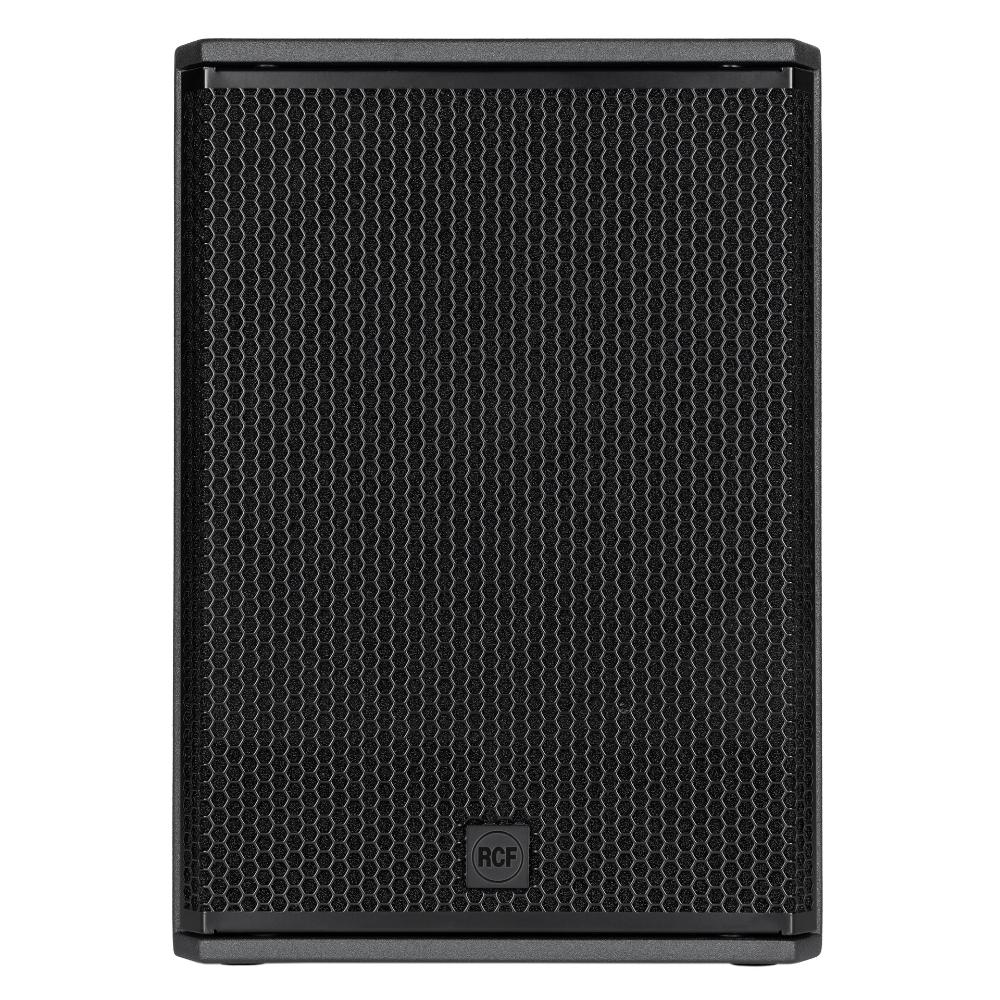

RCF SUB15-AS Active 2200W 15" Subwoofer

RCF SUB15-AS Active 2200W 15" Subwoofer

Write a review

SKU: SUB15-AS

$2,599.00
$2,599.00
Sale Sold out
Shipping calculated at checkout.

Available options

View full details

Description

Active 2200W 15" Subwoofer

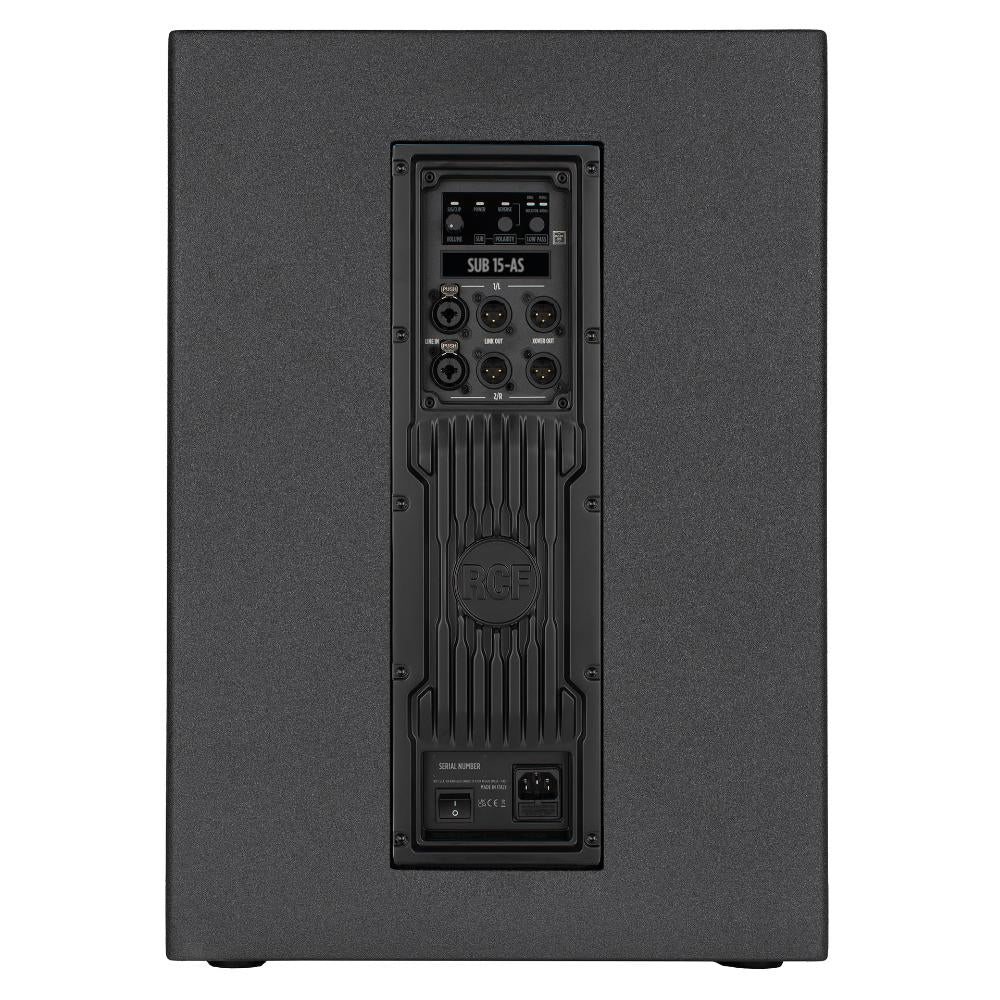

The SUB 15-AS is a portable 15" high-power active subwoofer for live sound applications. It features a state-of-the-art transducer and a powerful 2200 Watts Class-D amplifier that delivers sound pressure levels up to 133 dB with exceptional headroom. Designed as the ideal complement for 8", 10" and 12" loudspeakers, it includes Bass Motion Control algorithm for extended bass response at any volume. The connection panel features mono/stereo Combo inputs, an XLR stereo link, and XLR crossover outputs. Rear panel controls include volume, polarity, and low-pass frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 15-AS is perfect for small to mid-sized venues and portable applications.

Features

  • 2200Watt
  • 133 dB max SPL
  • 35Hz - 400Hz frequency response
  • 15" Woofer, 3.0" voice coil
  • Birch tour grade cabinet with polyurea coating
  • Mono/Stereo XLR/TRS combo In + Link, Stereo XLR Xover Out
  • Volume, polarity, and lowpass frequency selection

    • Specifications

    Acoustical specifications
    Frequency Response 35 Hz - 400 Hz
    Max SPL @ 1m 133 dB
    Transducers

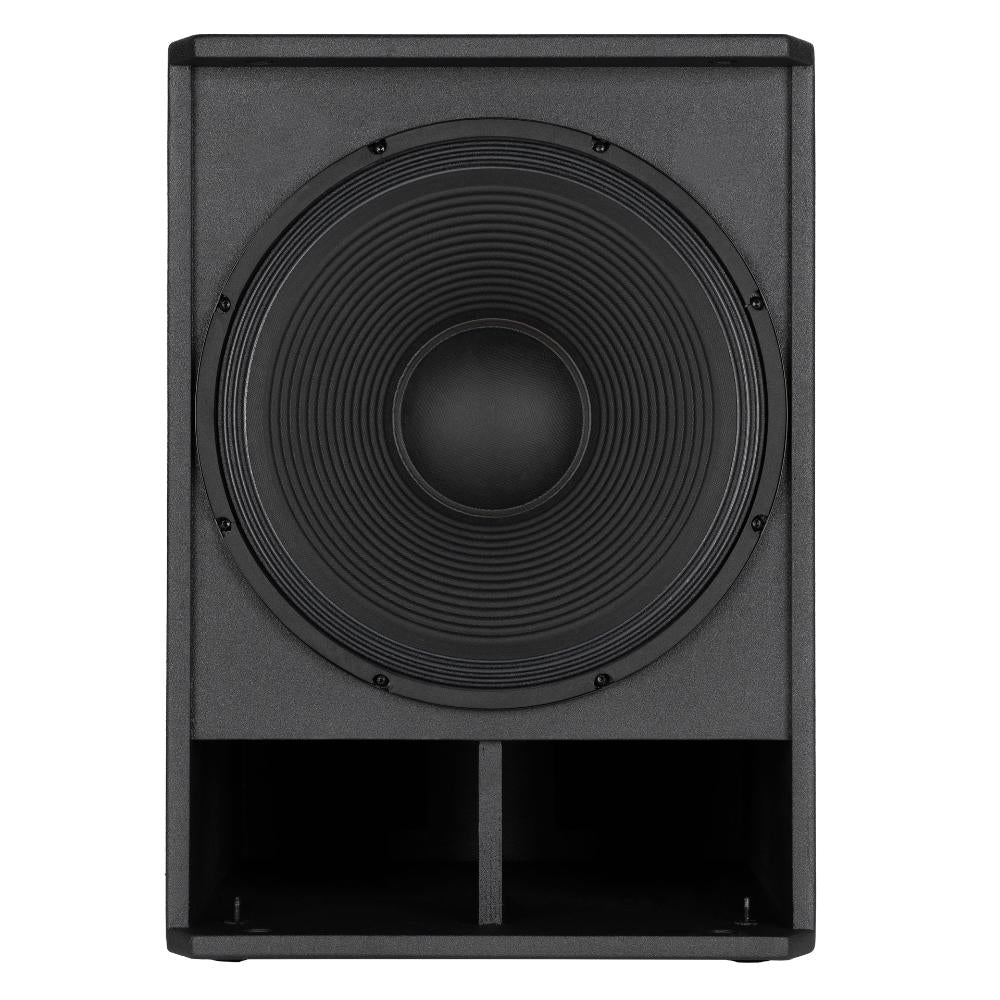

    Woofer 1 x 15'', 3.0'' v.c
    Input/Output section
    Input signal bal/unbal
    Input connectors Combo XLR/Jack
    Output connectors XLR
    Input sensitivity -2 dBu/+4 dBu
    Processor section
    Protections Thermal
    Limiter Soft Limiter
    Controls Volume, Polarity, Low pass filter frequency
    Power section
    Total Power 2200 W Peak
    Cooling Convection
    Connections VDE
    Standard compliance
    Safety agency CE compliant
    Physical specifications
    Cabinet/Case Material Baltic birch plywood

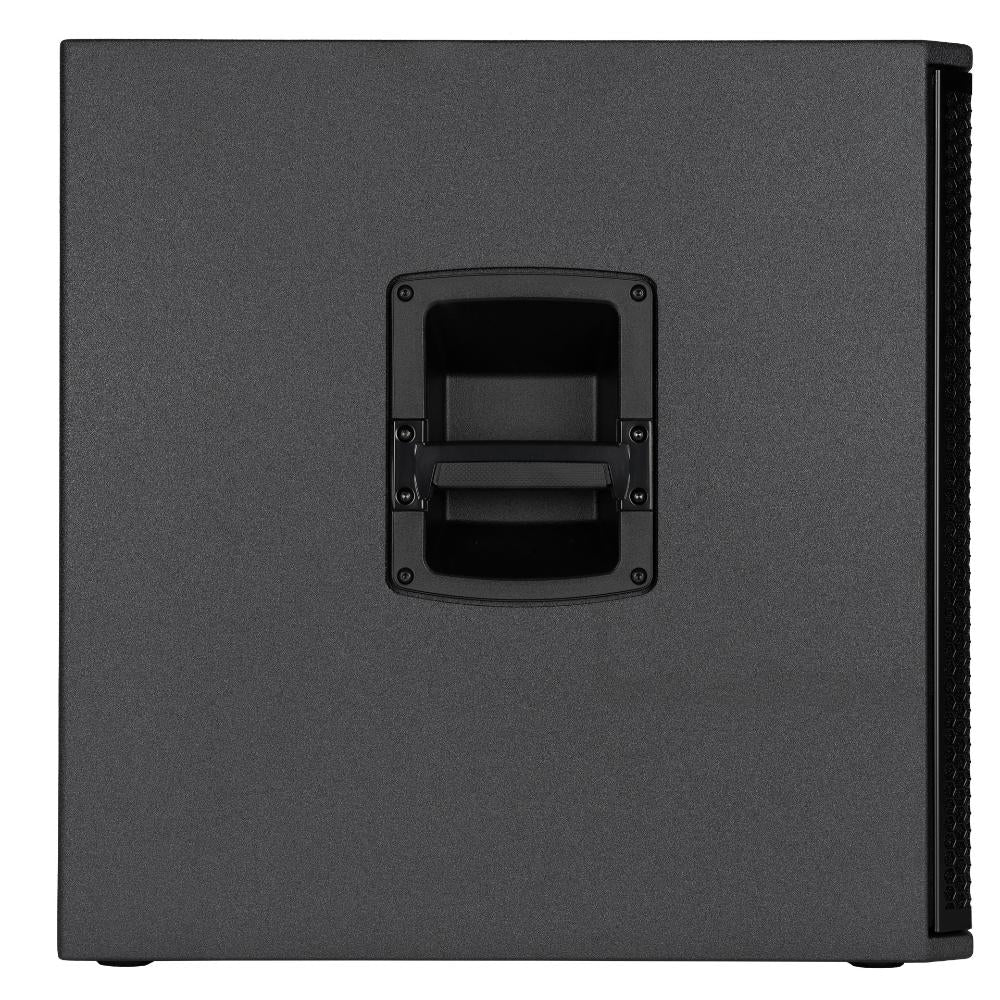

    Handles 1 each side

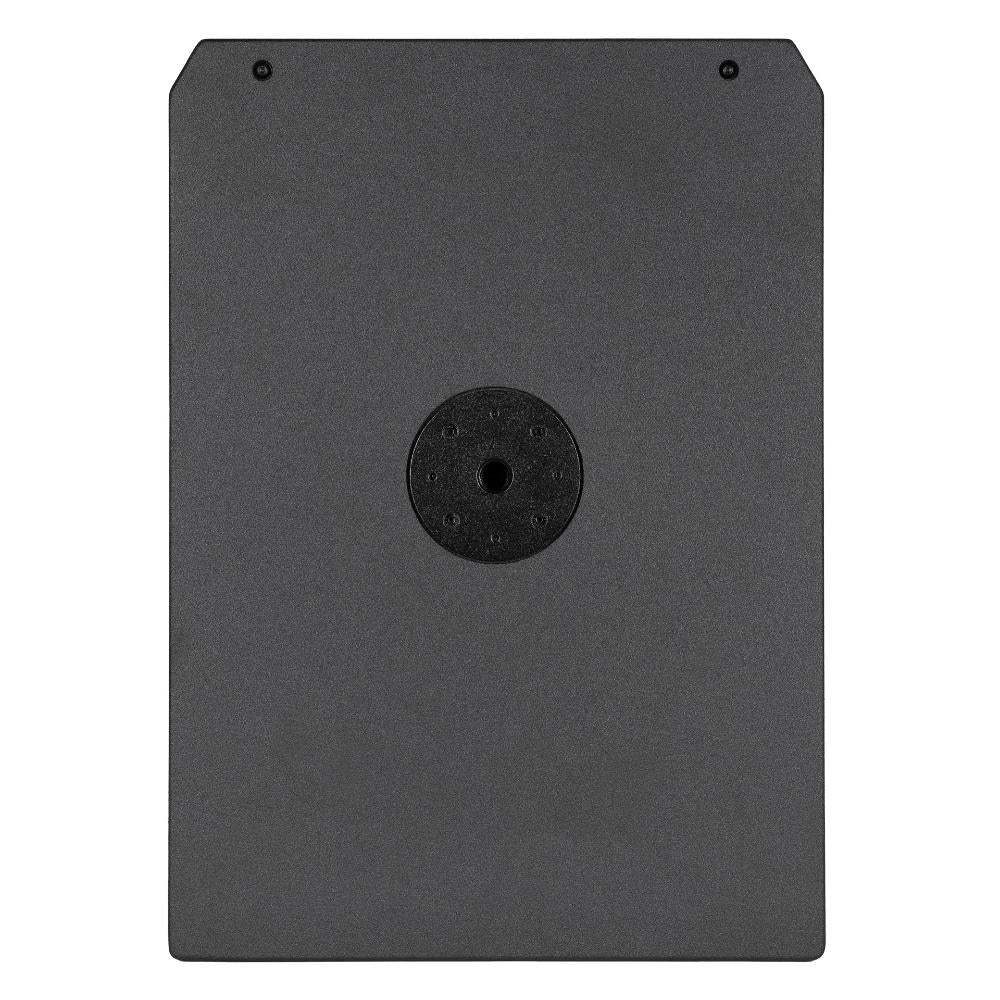

    Pole mount/Cap M20 thread
    Grille Steel with clothing
    Color Black
    Size / Weight
    Height 590 mm / 23.23 inches
    Width 420 mm / 16.54 inches
    Depth 590 mm / 23.23 inches
    Weight 30 kg / 66.14 lbs
    Shipping information
    Package Height 648 mm / 25.51 inches
    Package Width 638 mm / 25.12 inches
    Package Depth 478 mm / 18.82 inches
    Package Weight 34.9 kg / 76.94 lbs
