Description
RCF SUB-S29 Passive 12000W Dual 19" Bass Reflex Subwoofer (Must Sold With XPS Amp)
S 29 is a high-power double 19" subwoofer suitable for RCF Installed Sound systems. The bass-reflex design ensures an efficient acoustic response down to 25 Hz. The high-quality plywood cabinet is finished with a black, heavy-duty polyurea coating and protected by a powder-coated metal grille. The recessed input panel features two Speakon NL4 connectors, allowing a quick and safe connection. A M20 pole mount adaptor on top and handles on both sides are provided. Both models can be ground-stacked and are cardioid-arrayable for improved rear rejection.
Features
- Up to 3000 W power handling
- 143 dB max SPL
- 25 ÷ 200 Hz frequency range
- 2x19" HyperVented Neodymium Woofer with 4’’ v.c.
- High-quality polyurea-coated multi-ply cabinet
- Steel front grille with clothing
- M20 standard pole mount in top section of cabinet
- Speakon NL4 connectors
Specifications
Acoustical Specifications
- Frequency Response (-10 dB): 25 Hz – 200 Hz
- Max SPL @ 1 m: 143 dB
Power Section
- Amplification: Full Range
- Nominal Impedance: 4 Ω
- Power Handling: 3,000 W
- Peak Power Handling: 12,000 W Peak
Transducers

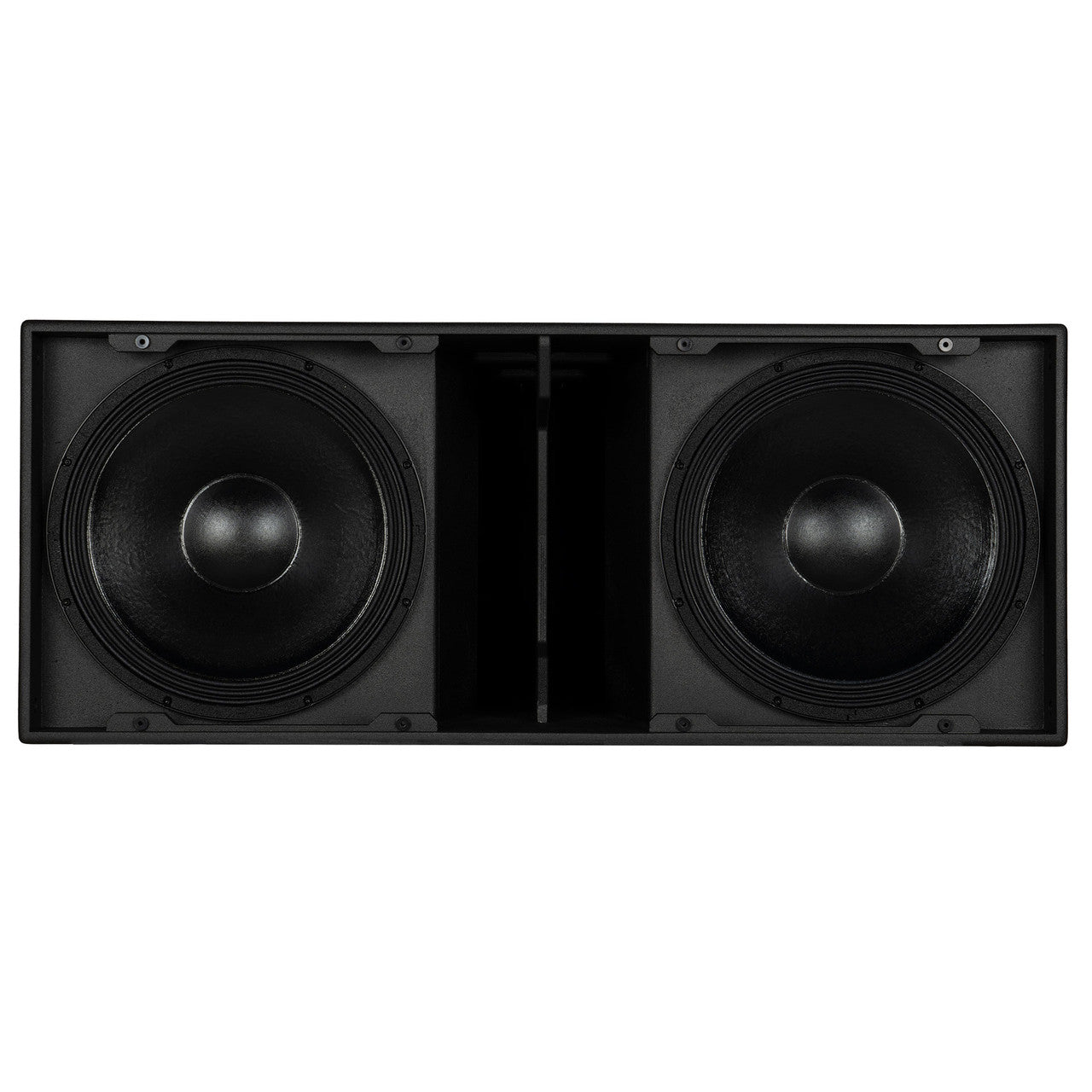

- Woofer: 2 × 19" Neo, 4.0" V.C

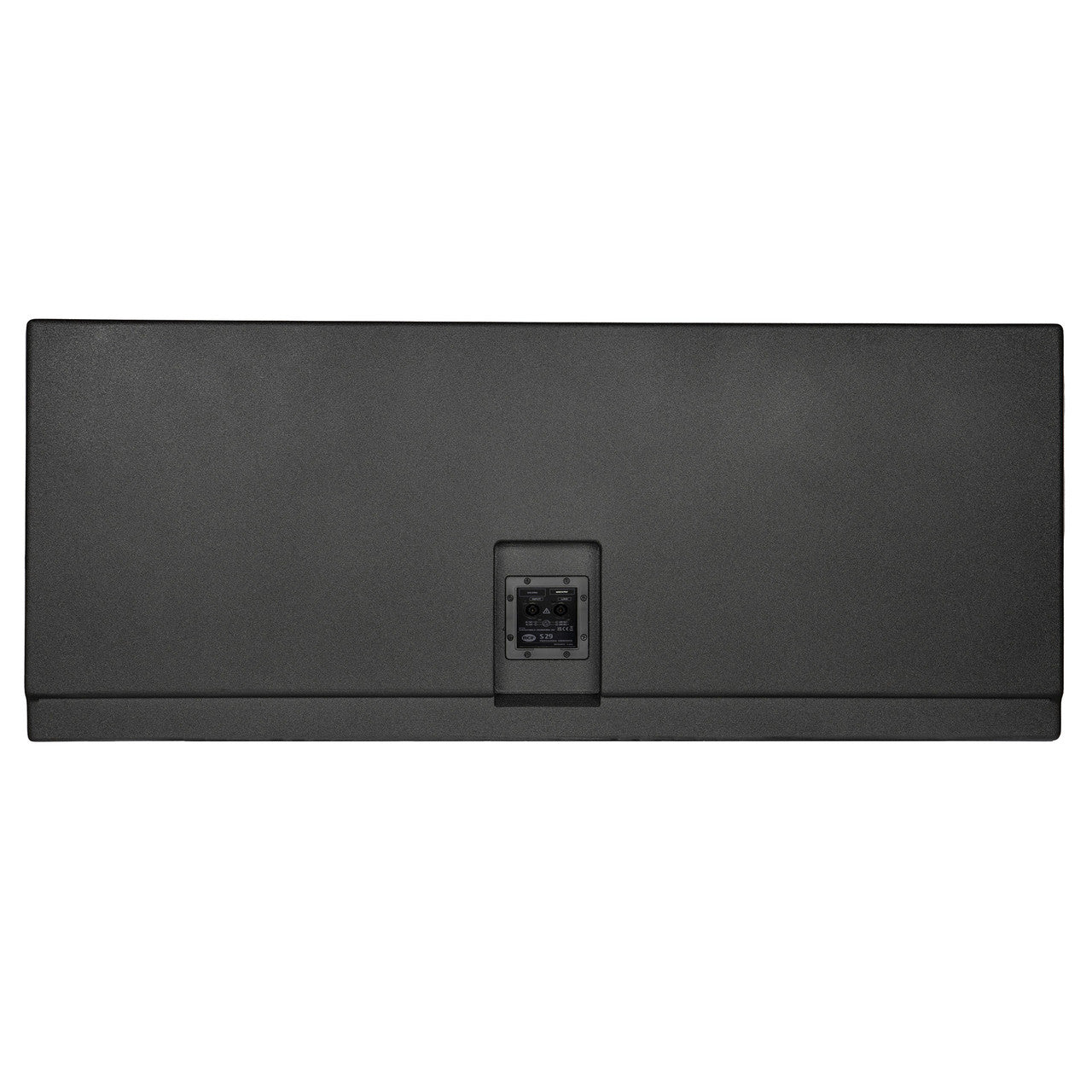

Input / Output Section
- Input Connectors: Speakon® NL4
- Output Connectors: Speakon® NL4
Standard Compliance
- Safety Agency: CE Compliant
Physical Specifications
- Cabinet / Case Material: Plywood
- Handles: 2 Side
- Pole Mount / Cap: M20 Thread
- Grille: Steel with Clothing
Size / Weight
- Height: 534 mm (21.02 inches)
- Width: 1,300 mm (51.18 inches)
- Depth: 730 mm (28.74 inches)
- Weight: 85 kg (187.39 lbs)
Shipping Information
- Package Height: 620 mm (24.41 inches)
- Package Width: 1,360 mm (53.54 inches)
- Package Depth: 800 mm (31.5 inches)
- Package Weight: 90 kg (198.42 lbs)
