Description

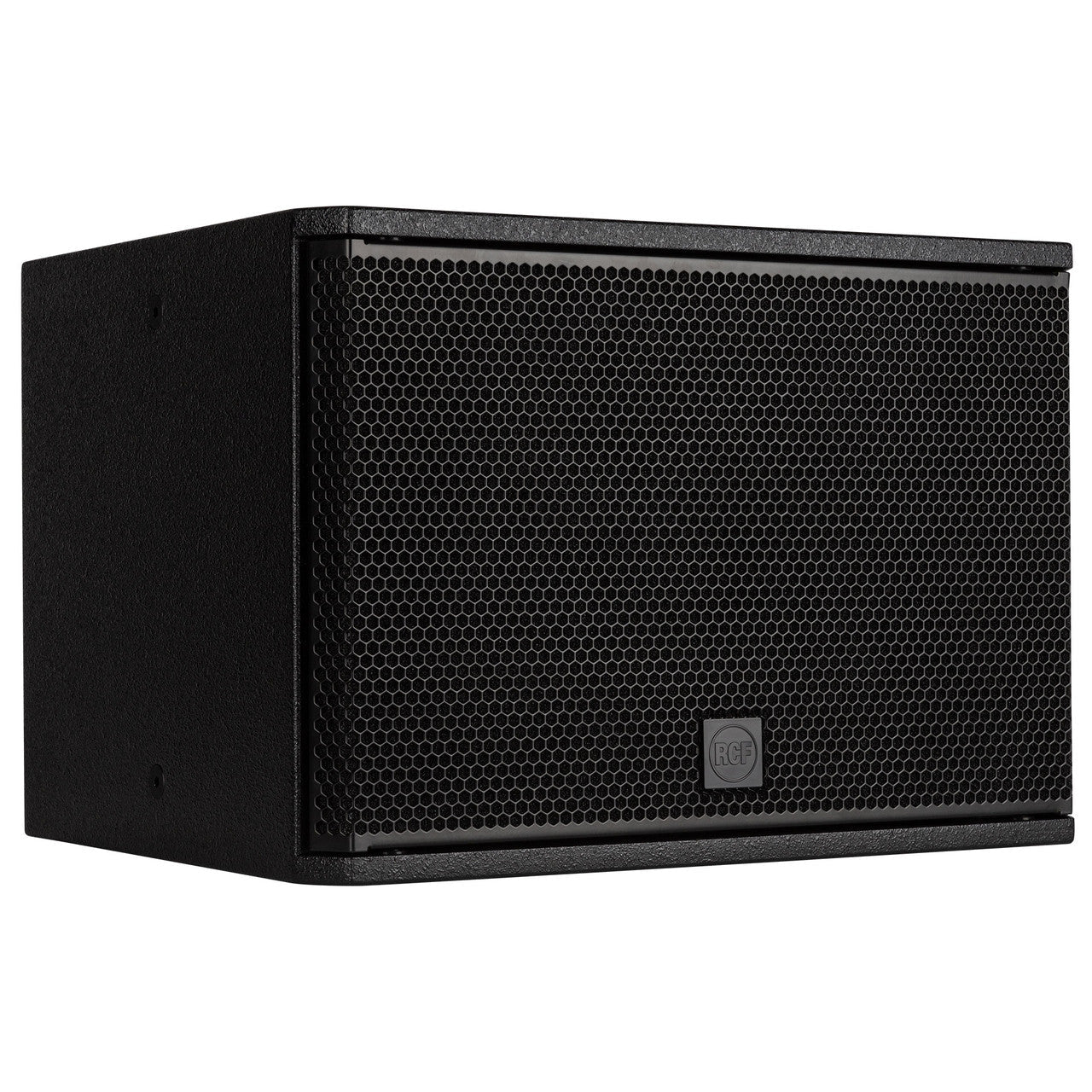

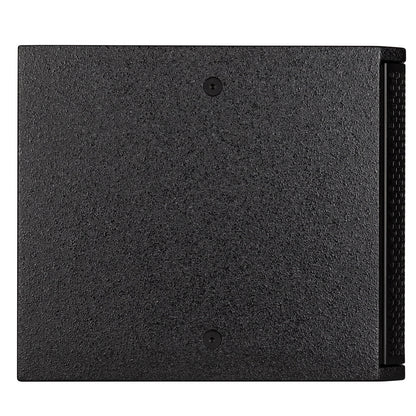

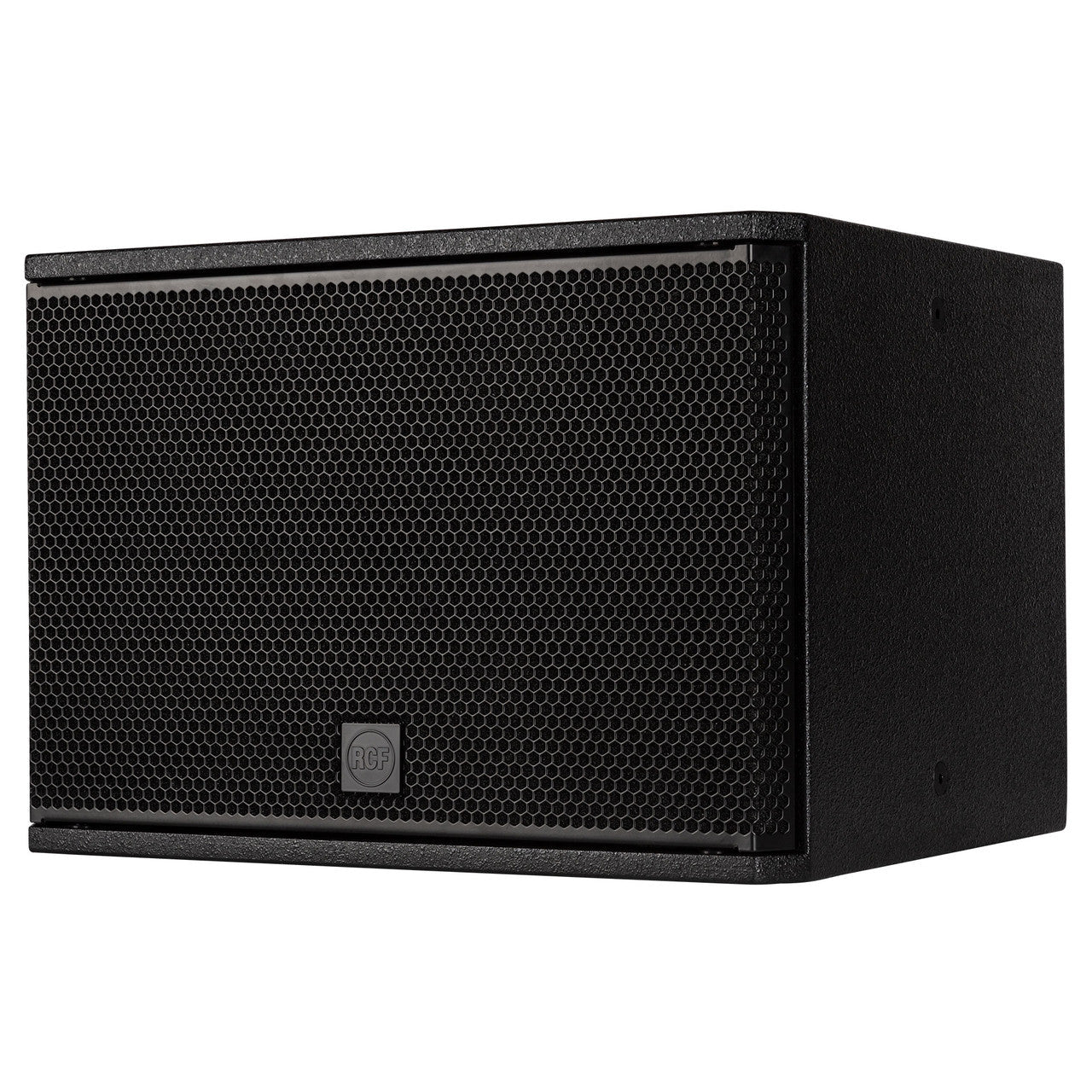

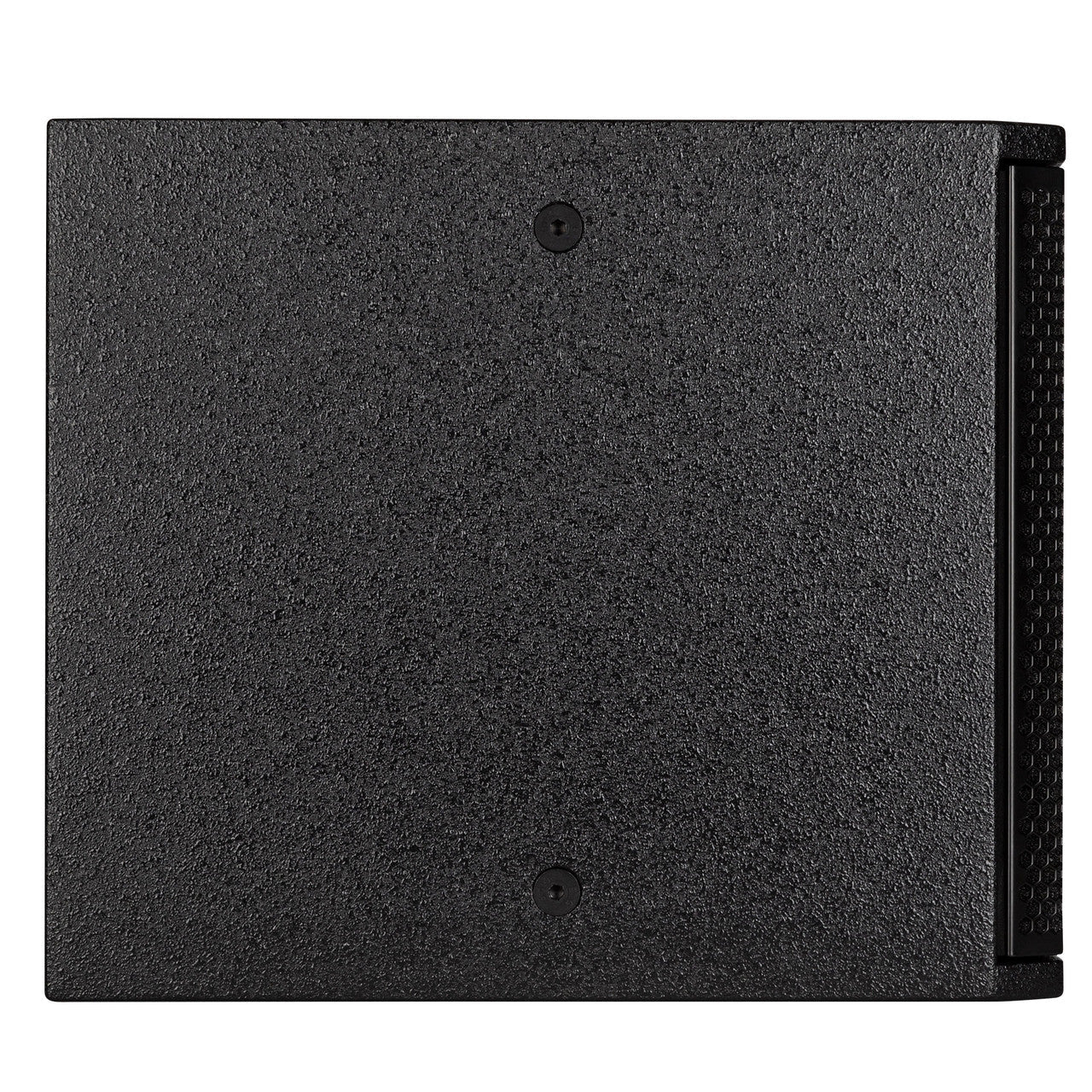

RCF SUB-S12 Passive 1600W 12" Bass Reflex Subwoofer
S 12 is a high power, compact subwoofer system ideal for those installations where the physically small size and impact of a 12'' driver are desired. Extending the frequency response of these systems to below 40Hz this highly efficient design is capable of providing output levels normally associated with considerably larger enclosures. A system suited to background music playback in applications ranging from clubs, bars and cafes, right through to theatres and AV presentations. The low-frequency transducer is a 12” woofer with a 2,5” voice coil. Woofer design is the result of the latest refinements in RCF experiences in compact active and passive subwoofer design, resulting in a fast and controlled reproduction of the bass frequency range.
Features
- 400 W RMS power handling
- 125 dB max SPL
- 40 ÷ 200 Hz frequency range
- 1 x 12" high power woofer
- High quality plywood cabinet

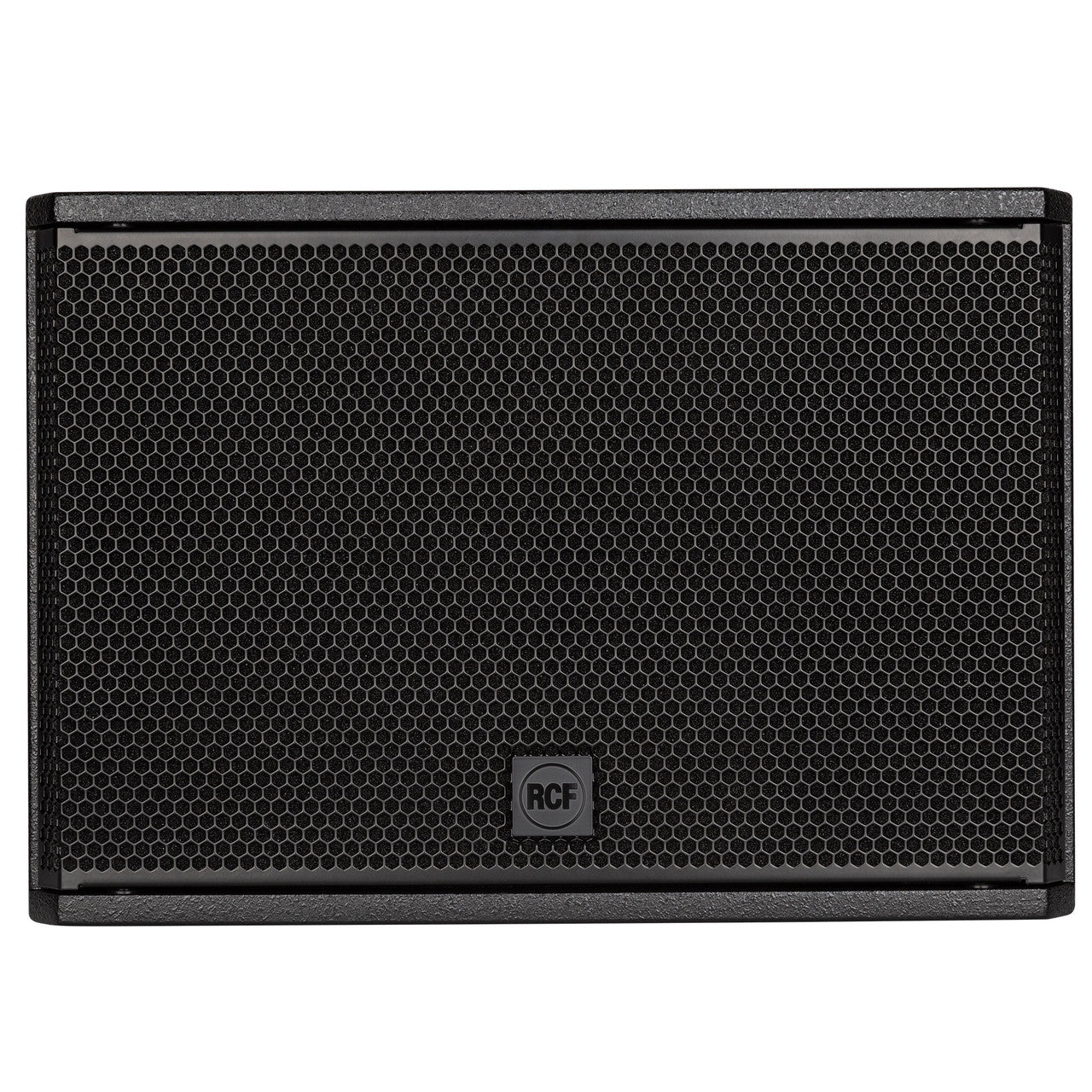

- Steel front grille with clothing

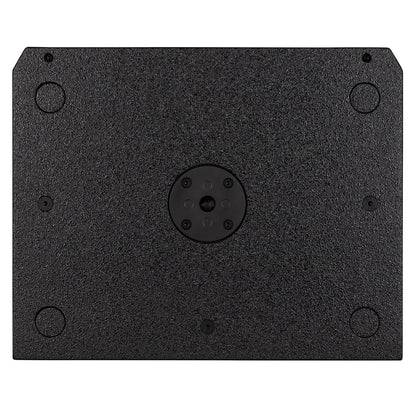

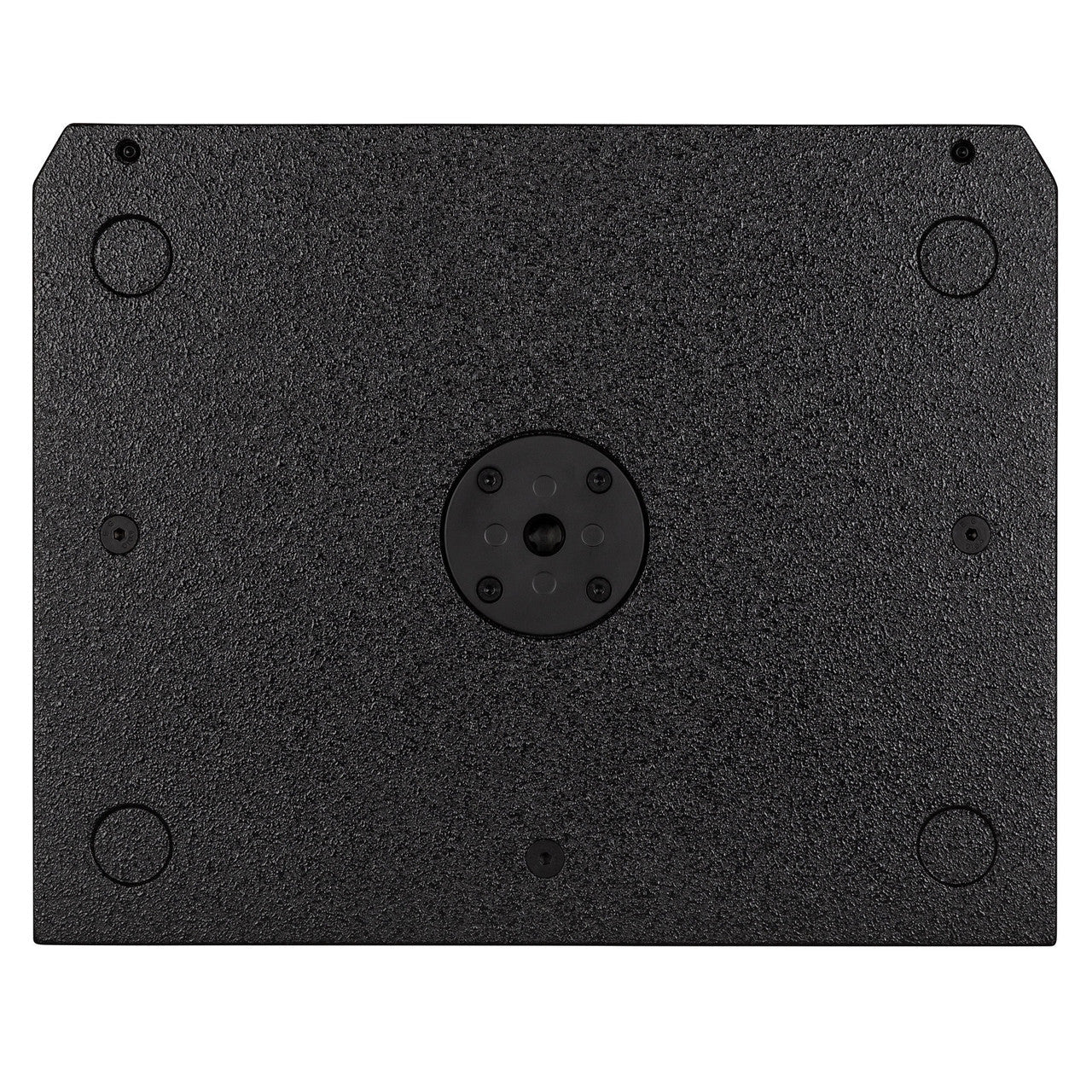

- M20 standard pole mount in top section of cabinet

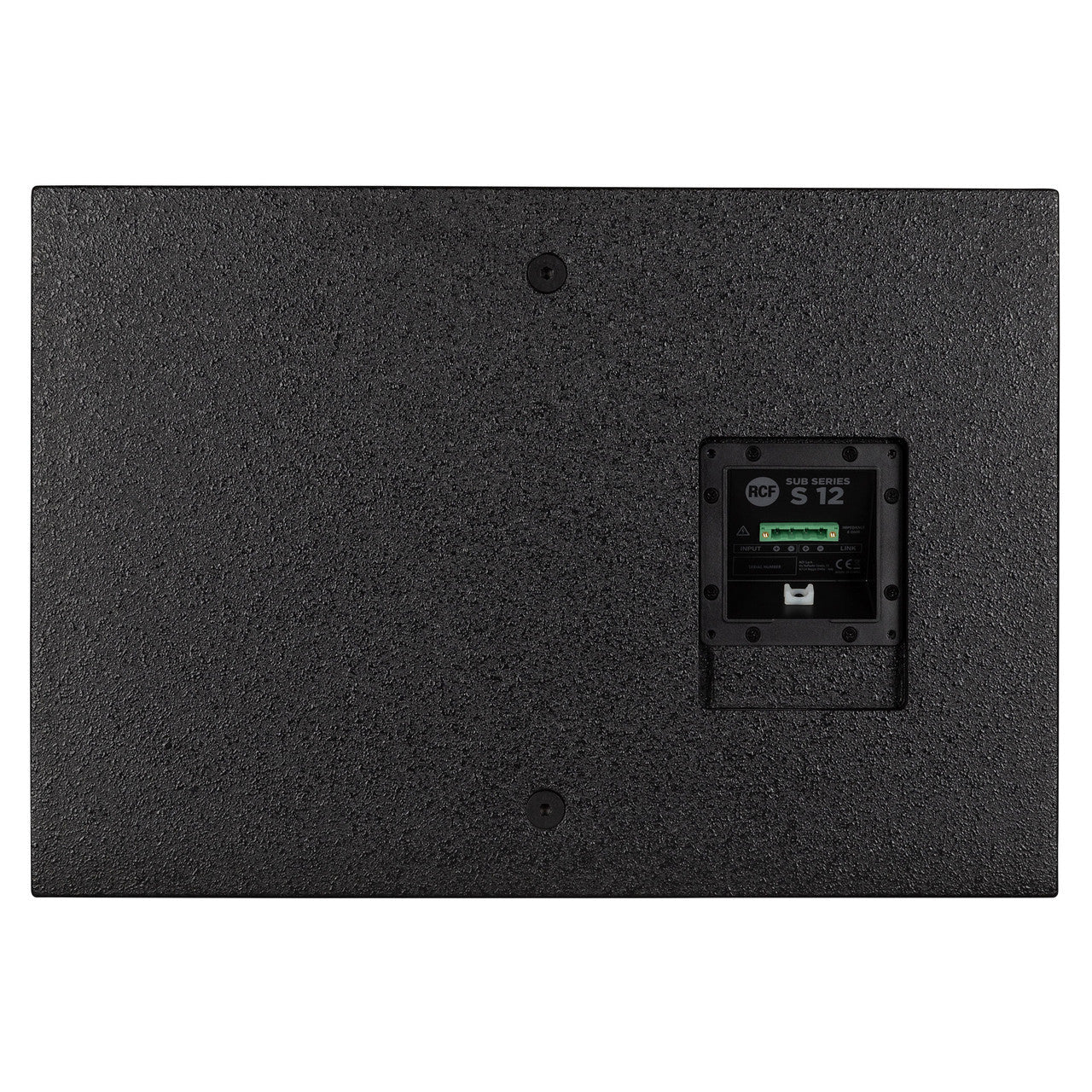

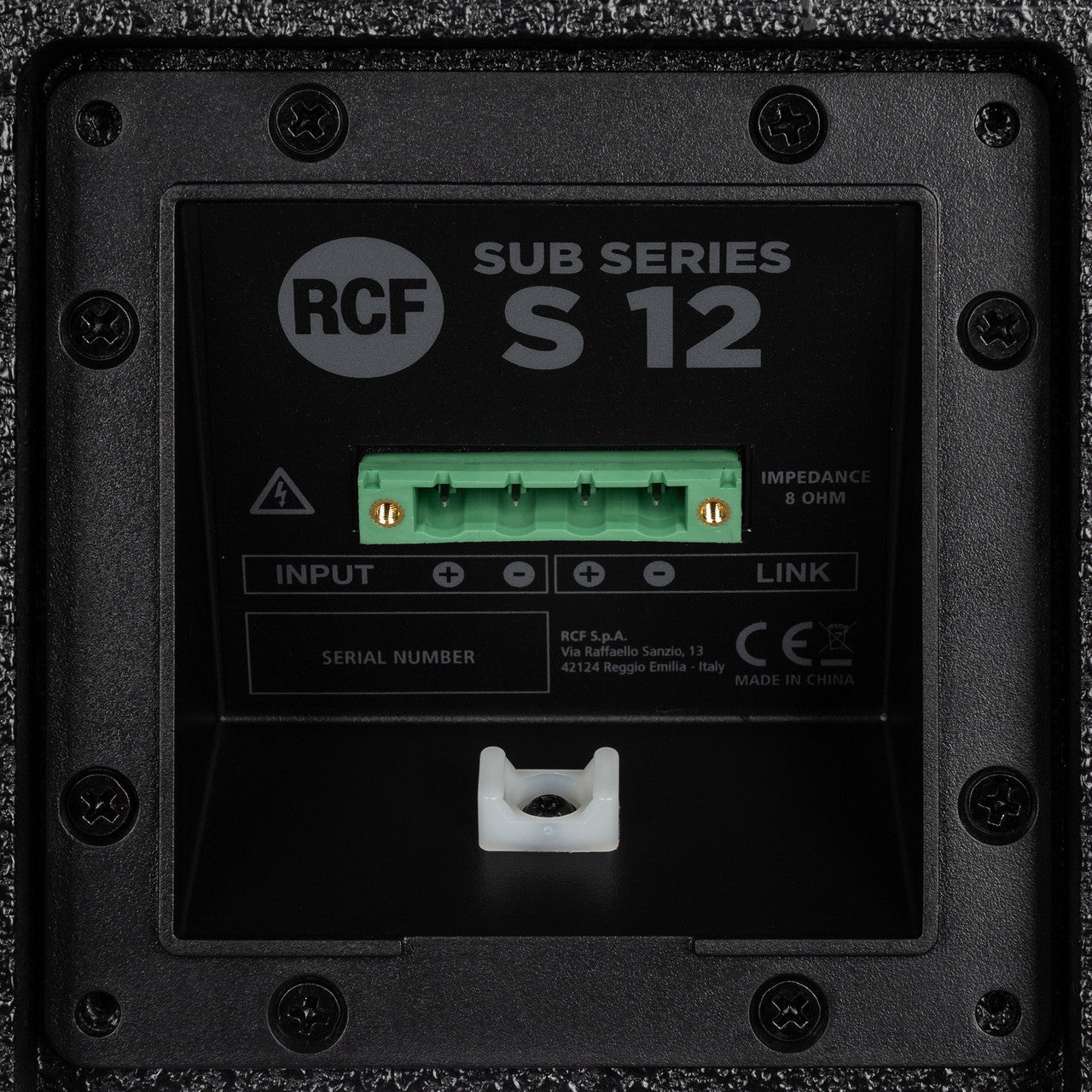

- 4 pole EUROBLOCK connector (audio input and parallel link output)
Specifications
Acoustical Specifications
- Frequency Response (-10 dB): 40 Hz – 200 Hz
- Max SPL @ 1 m: 125 dB
- System Sensitivity: 93 dB
Power Section
- Amplification: Full Range
- Nominal Impedance: 8 Ω
- Power Handling: 400 W RMS
- Peak Power Handling: 1,600 W Peak
- Recommended Amplifiers: DMA 162, DMA 162P, DMA 504, IPS 1.5K, IPS 2.5K, QPS 6.0K
Transducers

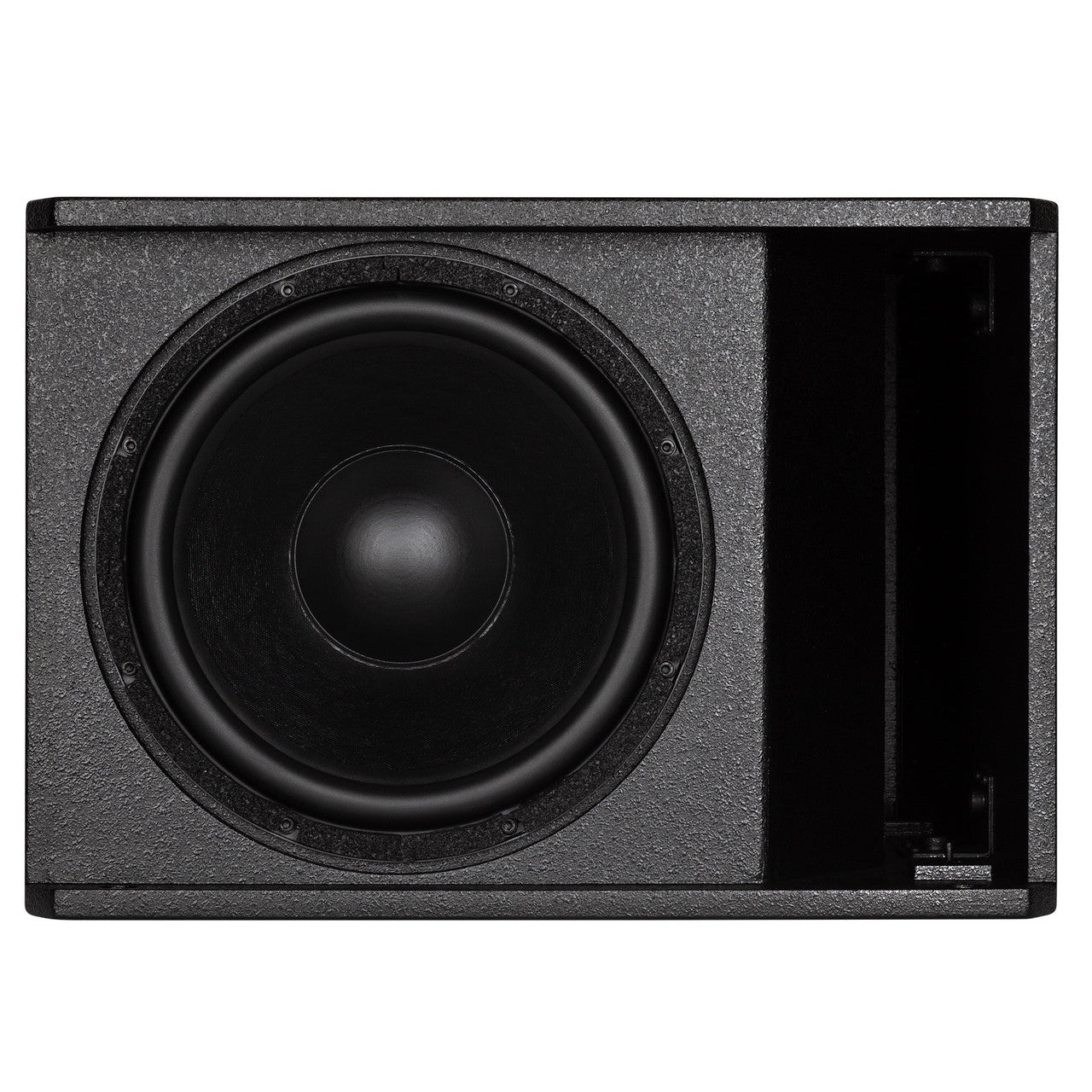

- Woofer: 1 × 12", 2.5" V.C
Input / Output Section

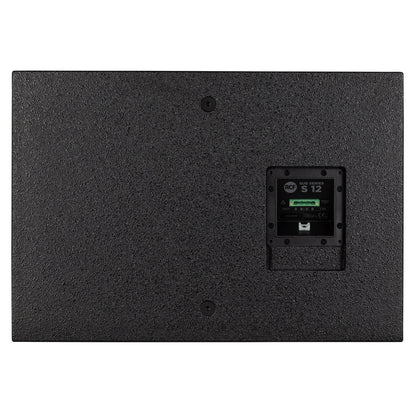

- Input Connectors: Euroblock
- Output Connectors: Euroblock
Standard Compliance
- Safety Agency: CE Compliant
Physical Specifications
- Cabinet / Case Material: Plywood
- Hardware: 12 × M10
- Pole Mount / Cap: M20 Thread
- Grille: Steel with Clothing
- Color: Black
Size / Weight
- Height: 373 mm (14.69 inches)
- Width: 530 mm (20.87 inches)
- Depth: 425 mm (16.73 inches)
- Weight: 24.6 kg (54.23 lbs)
Shipping Information
- Package Height: 423 mm (16.65 inches)
- Package Width: 470 mm (18.5 inches)
- Package Depth: 575 mm (22.64 inches)
- Package Weight: 27.4 kg (60.41 lbs)
