Description

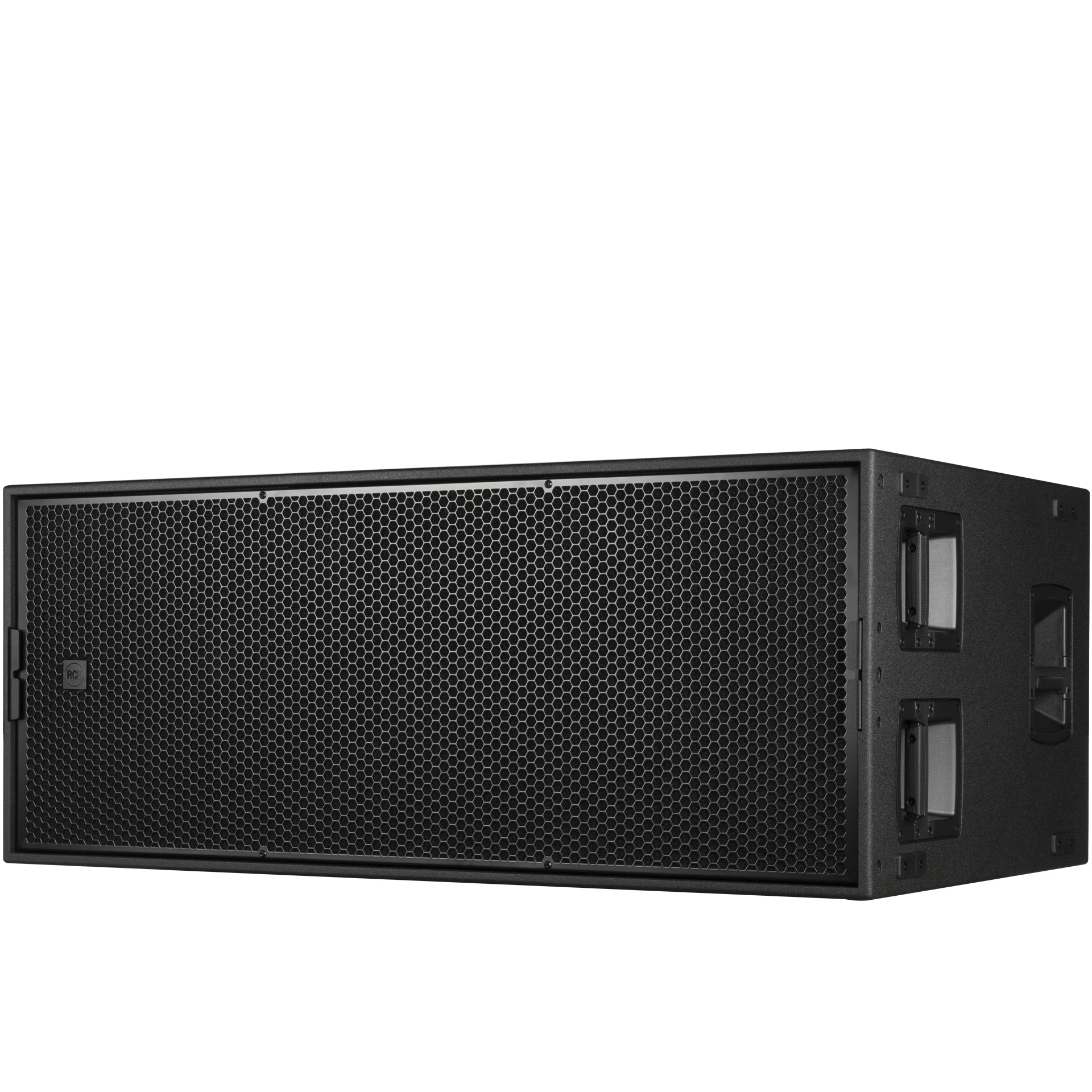

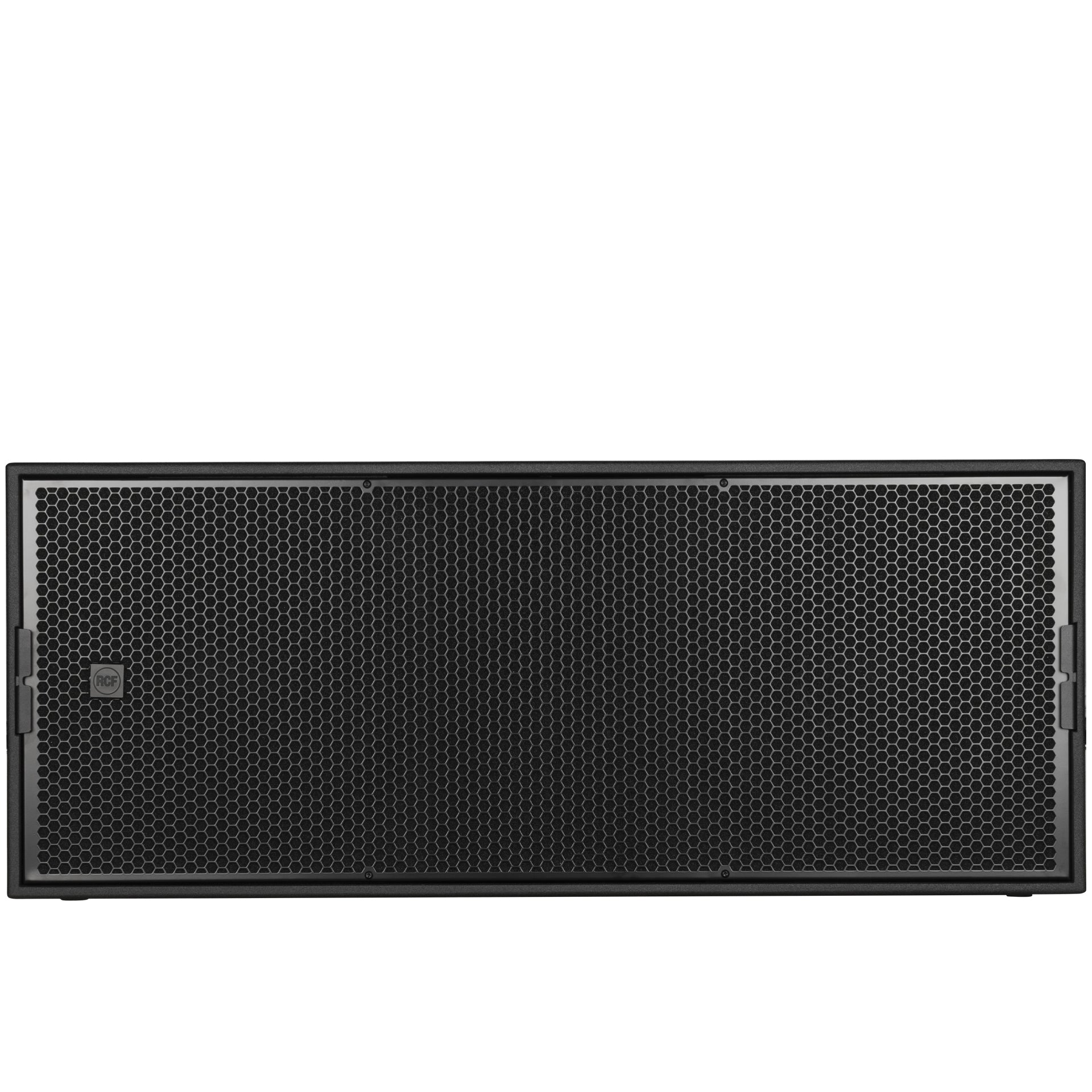

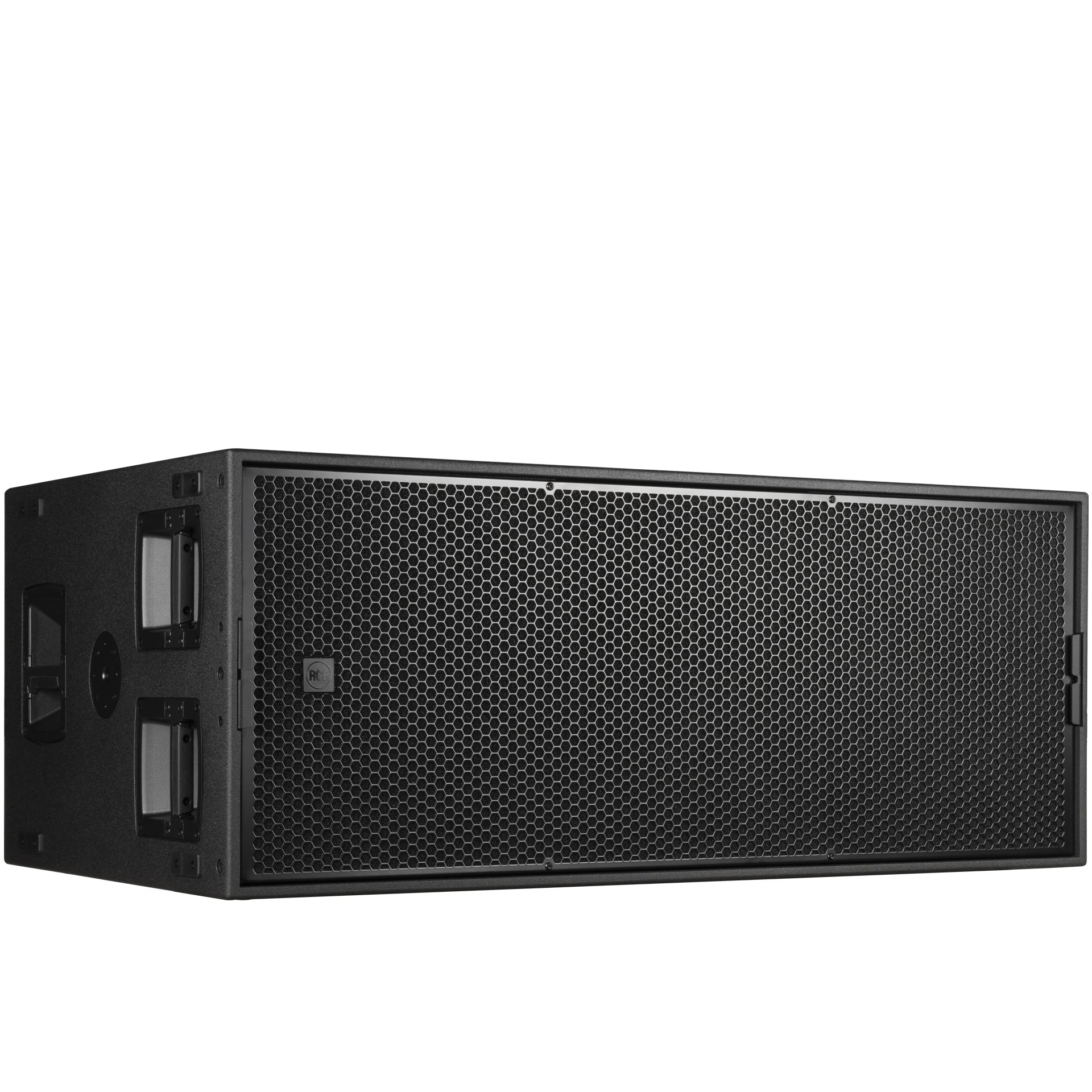

Active 8000W Dual 19" Subwoofer (RDNET Ready)
SUB 9029-AS is a high-performance dual 19" active subwoofer delivering up to 142 dB Max SPL, powered by a robust 8000W Class-D amplifier. Designed for rigorous touring, the SUB 9029-AS features a tour-ready, weatherproof cabinet with a durable Polyurea finish and a detachable front cart for easy transport. Control is precise with RDNet network management, offering adjustable EQ, delay, cardioid options, and tailored crossover presets for RCF speakers. Innovative contactless configuration via RDTap allows seamless setup even when the unit is unpowered, ensuring perfect integration every time. Despite its small footprint and lightweight cabinet, the SUB 9029-AS produces powerful yet articulate bass, remaining true to even the most subtle low-frequency variations.
FEATURES
- 142 dB Max SPL
- 8000W Class-D Amplification

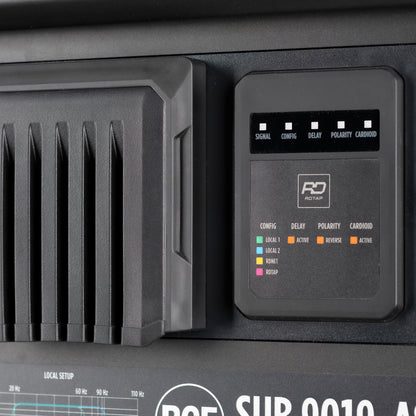

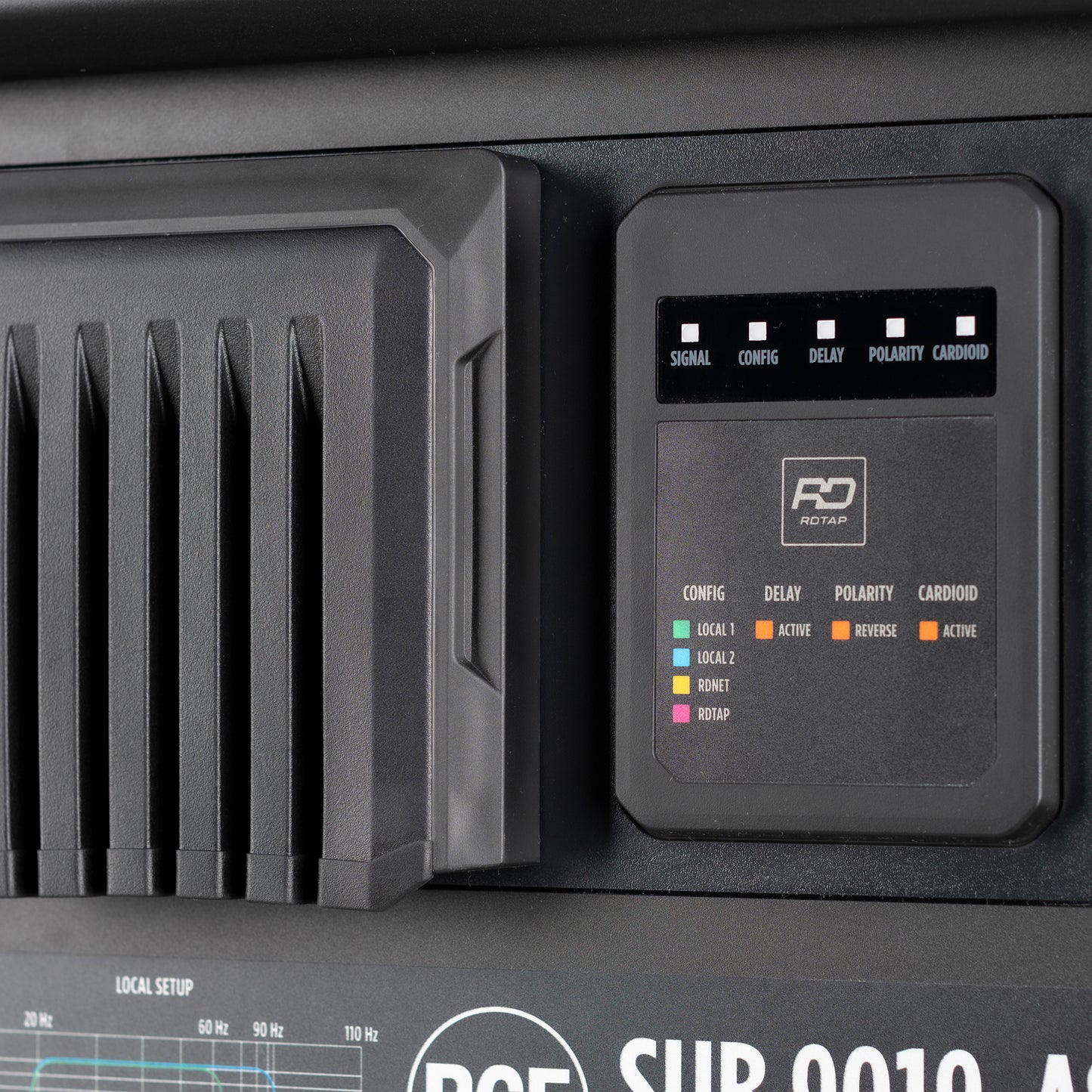

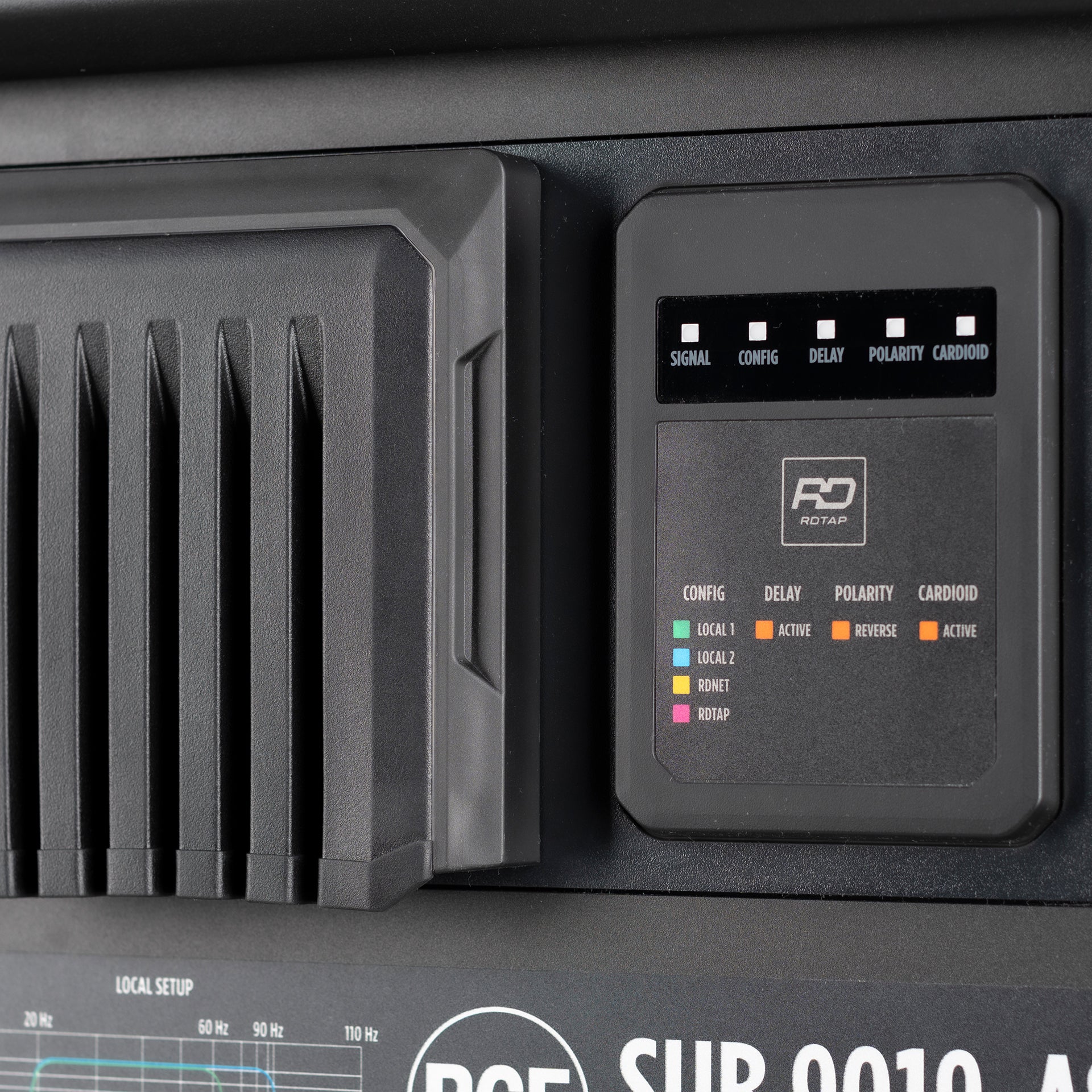

- RDTap Contactless Configuration
- I/O Panel Rain Cover Included
- RDNet Networked Control
- BMC, EQ, DLY, Cardioid
- ACE Crossover Presets for RCF Speakers
- 2 x 19" High-Excursion Precision Transducers
- Detachable Front Cart (sold separately)
- powerCON TRUE1 TOP AC Connector
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response: 25 Hz - 200 Hz
-
Max SPL @ 1m: 142 dB
TRANSDUCERS
-

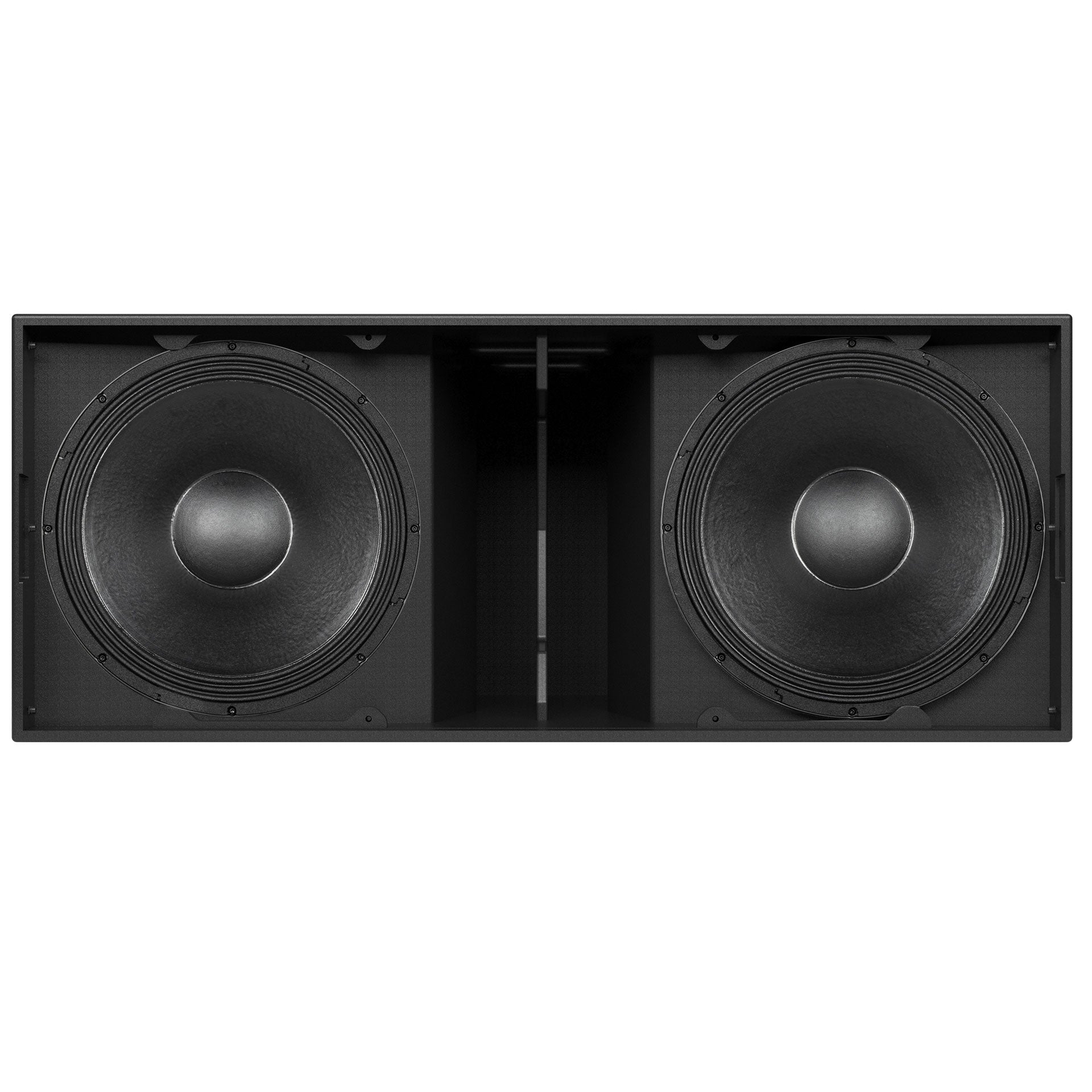

Woofer: 2 x 19'' neo, 4.0'' v.c

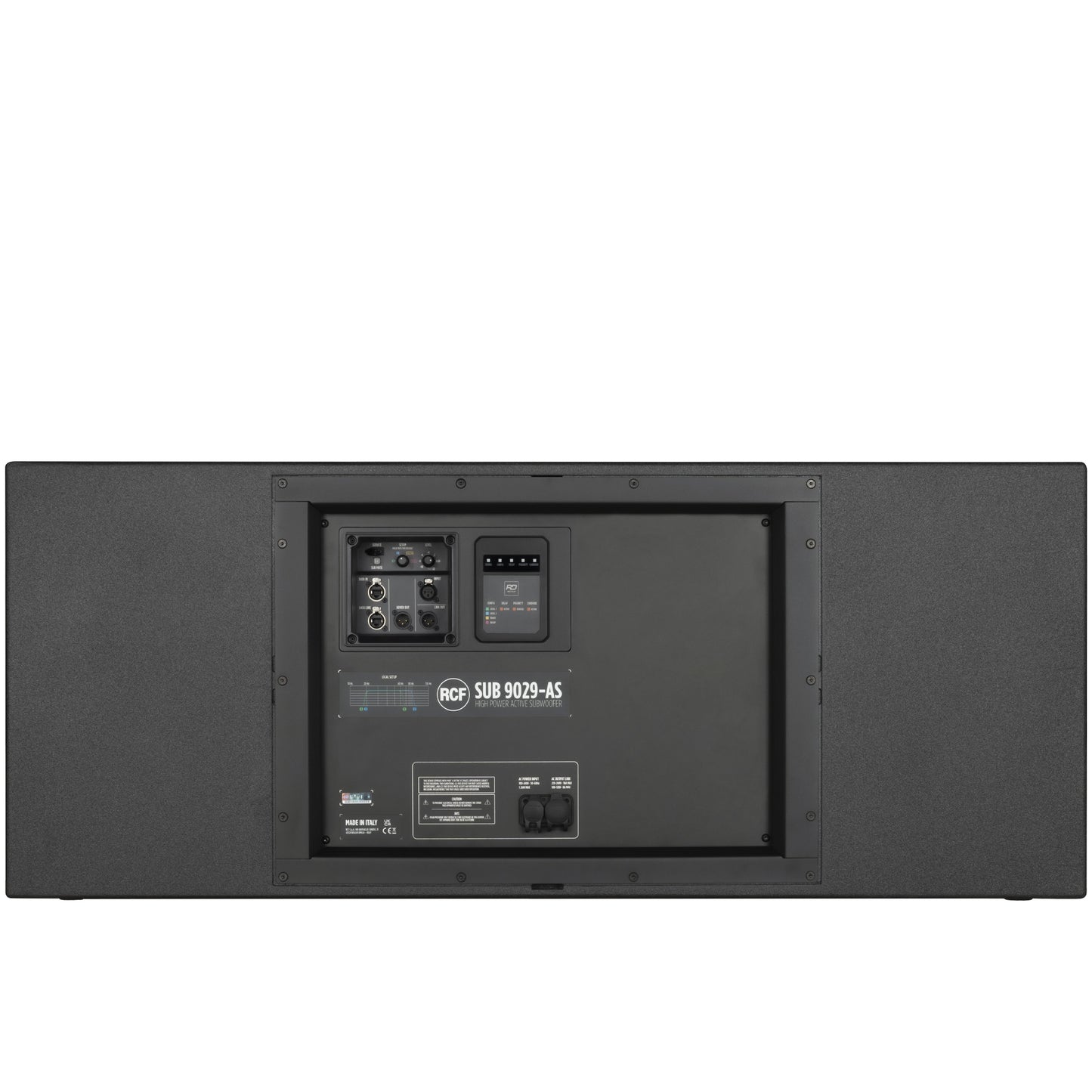

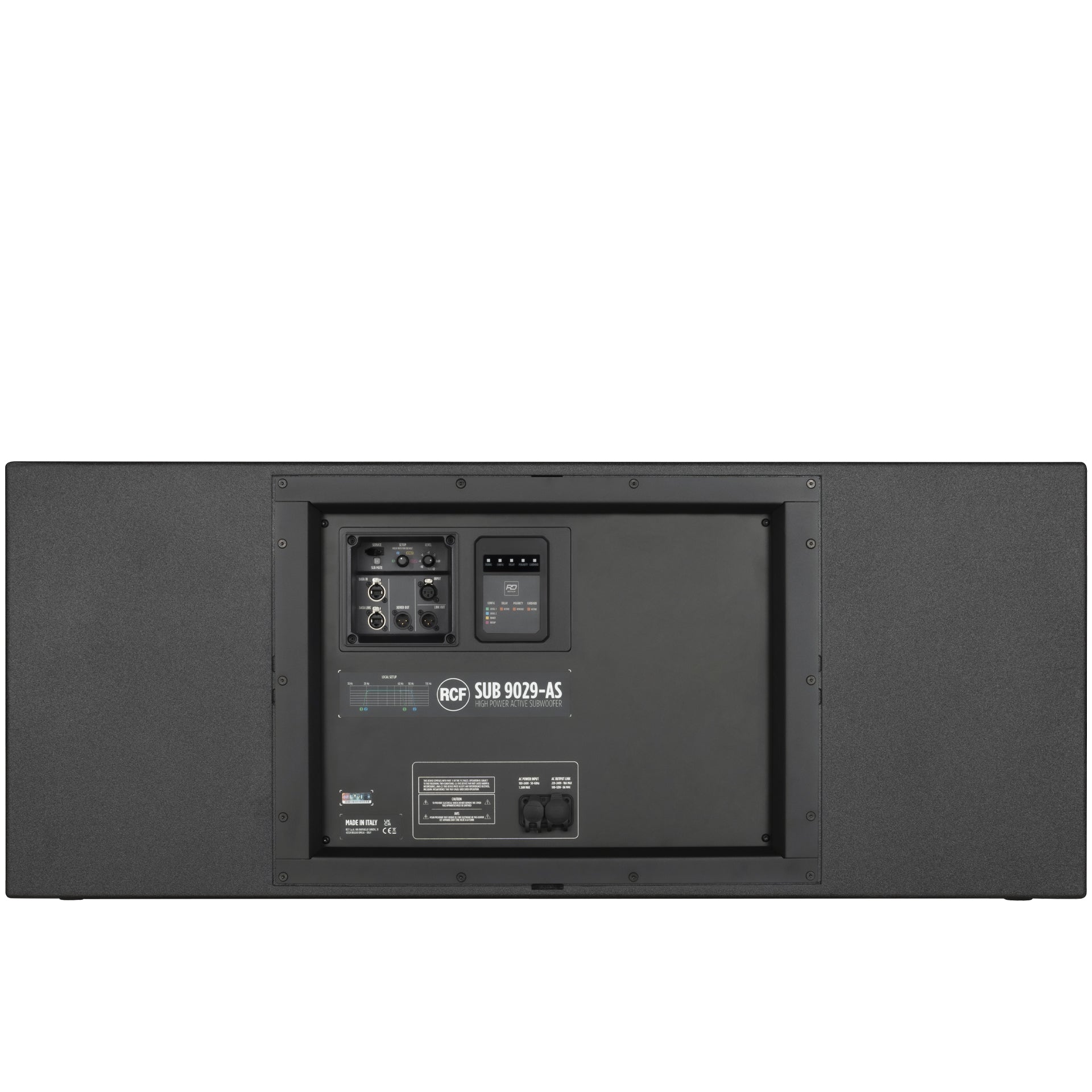

INPUT/OUTPUT SECTION
-
Input signal: bal/unbal
-

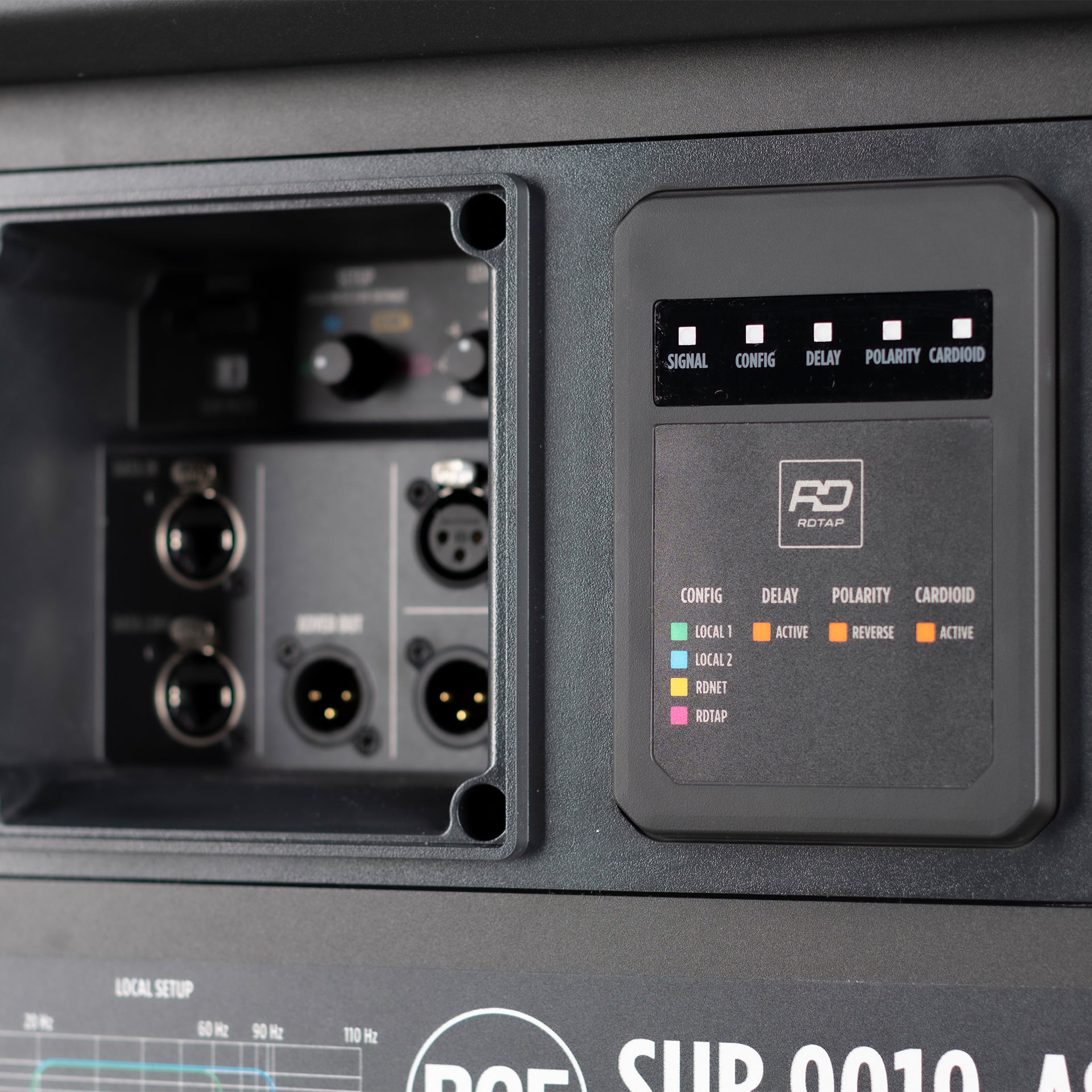

Input connectors: XLR, RDNet Ethercon
-
Output connectors: XLR, RDNet Ethercon
-
Input sensitivity: -2 dBu/+4 dBu
PROCESSOR SECTION
-
Protections: Thermal
-
Limiter: Soft Limiter
-
Controls: MUTE, VOL, PRESETS, RDTAP
-
RDNet: Onboard
POWER SECTION
-
Total Power: 8000 W Peak
-
Cooling: Convection/Forced
-
Connections: Powercon TRUE1 TOP IN/OUT
STANDARD COMPLIANCE
-
Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Plywood
-
Hardware: 2 x M20 pole mount accessories
-

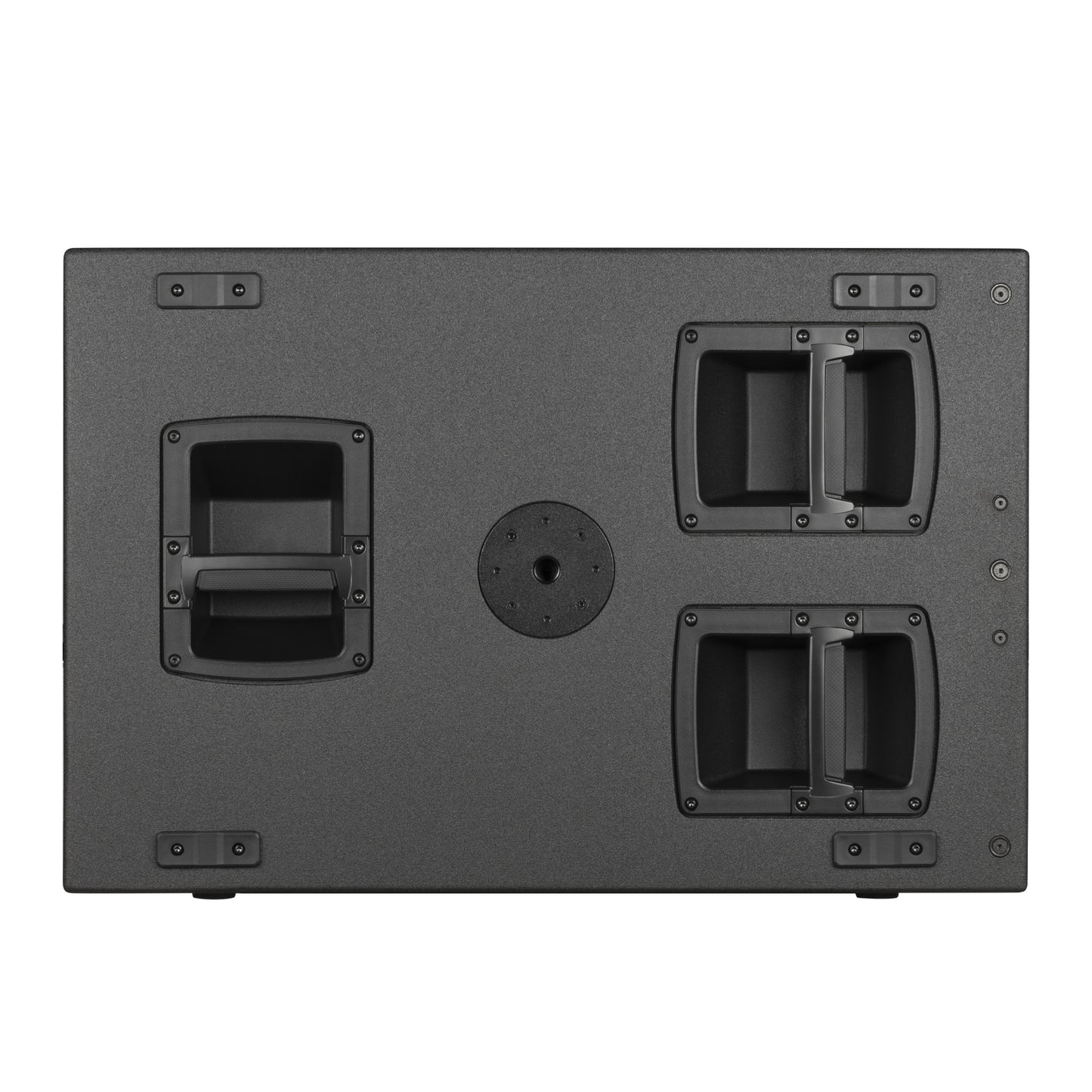

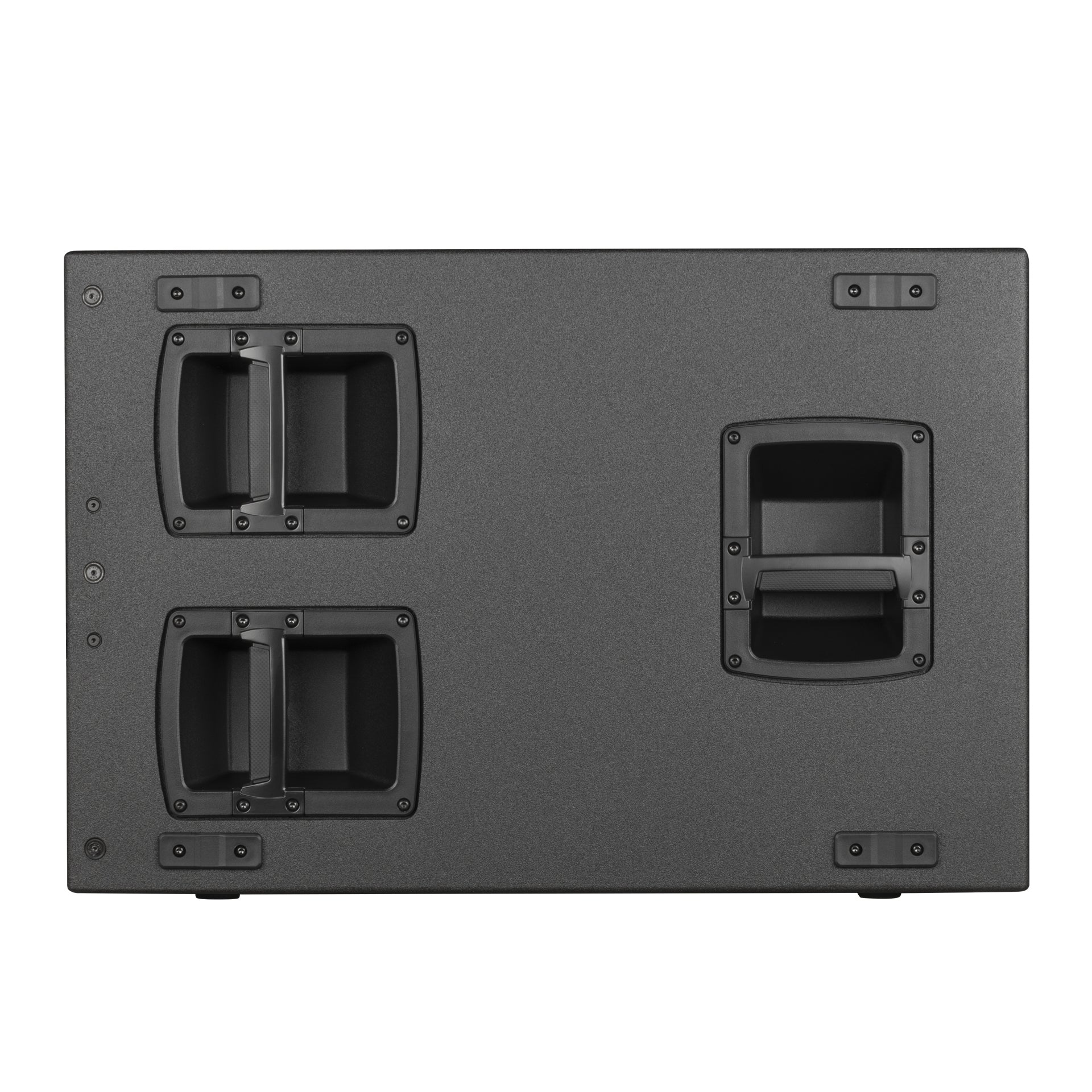

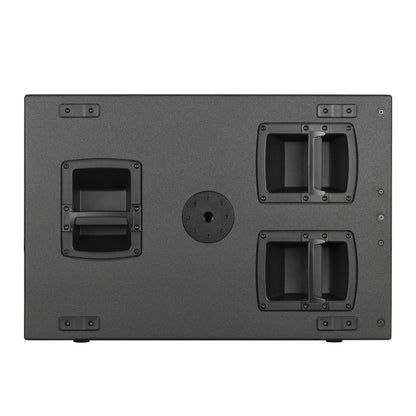

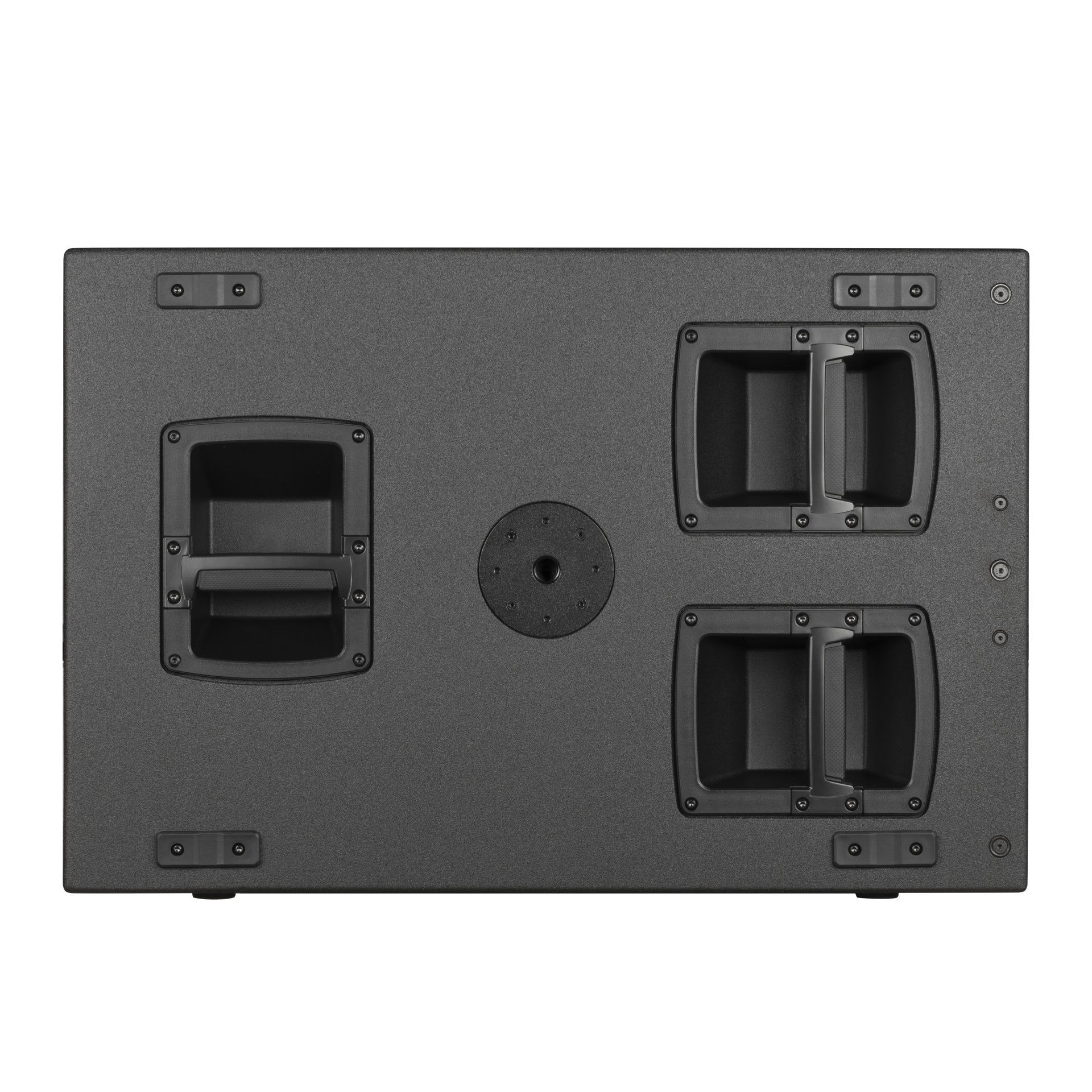

Handles: 3 handle per side
-

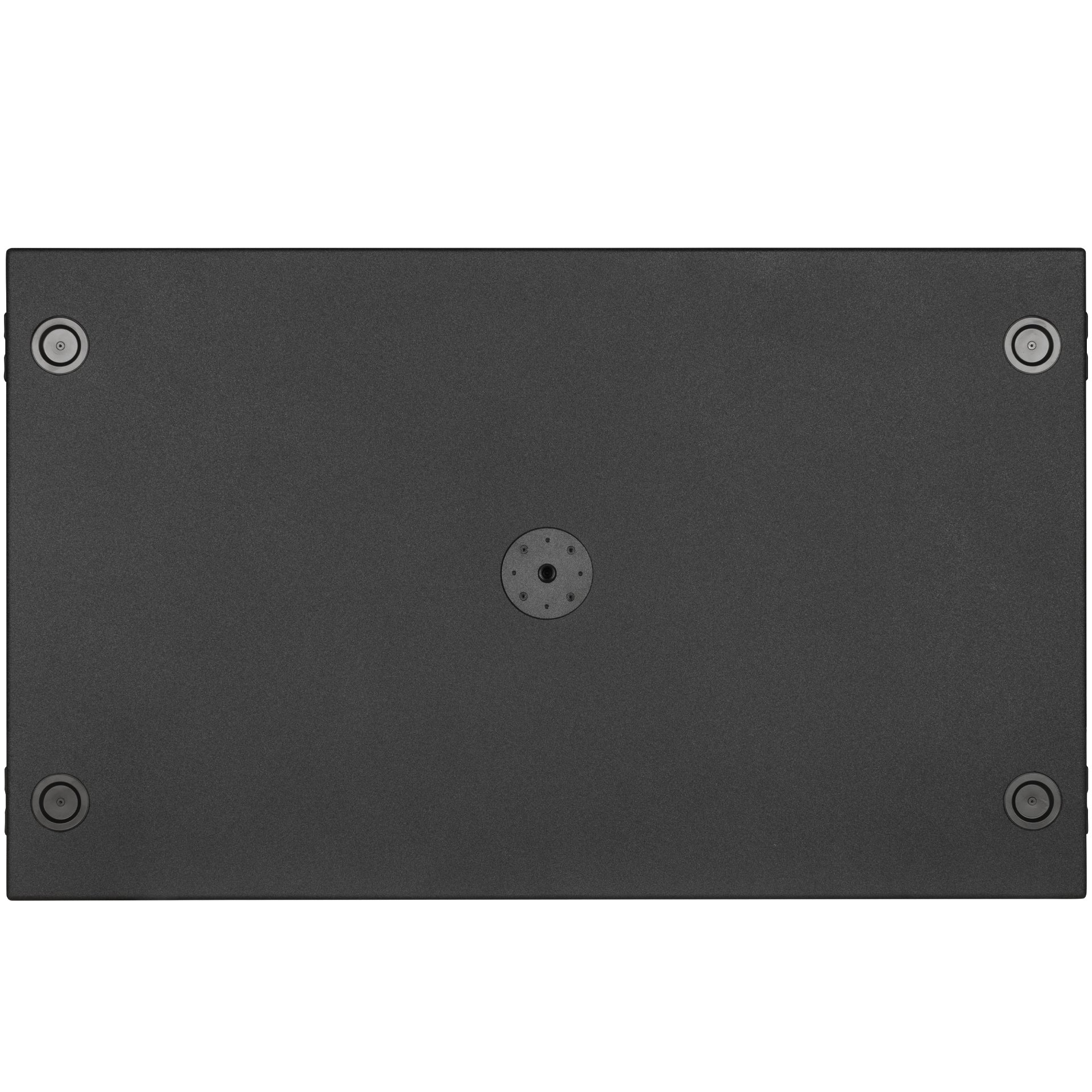

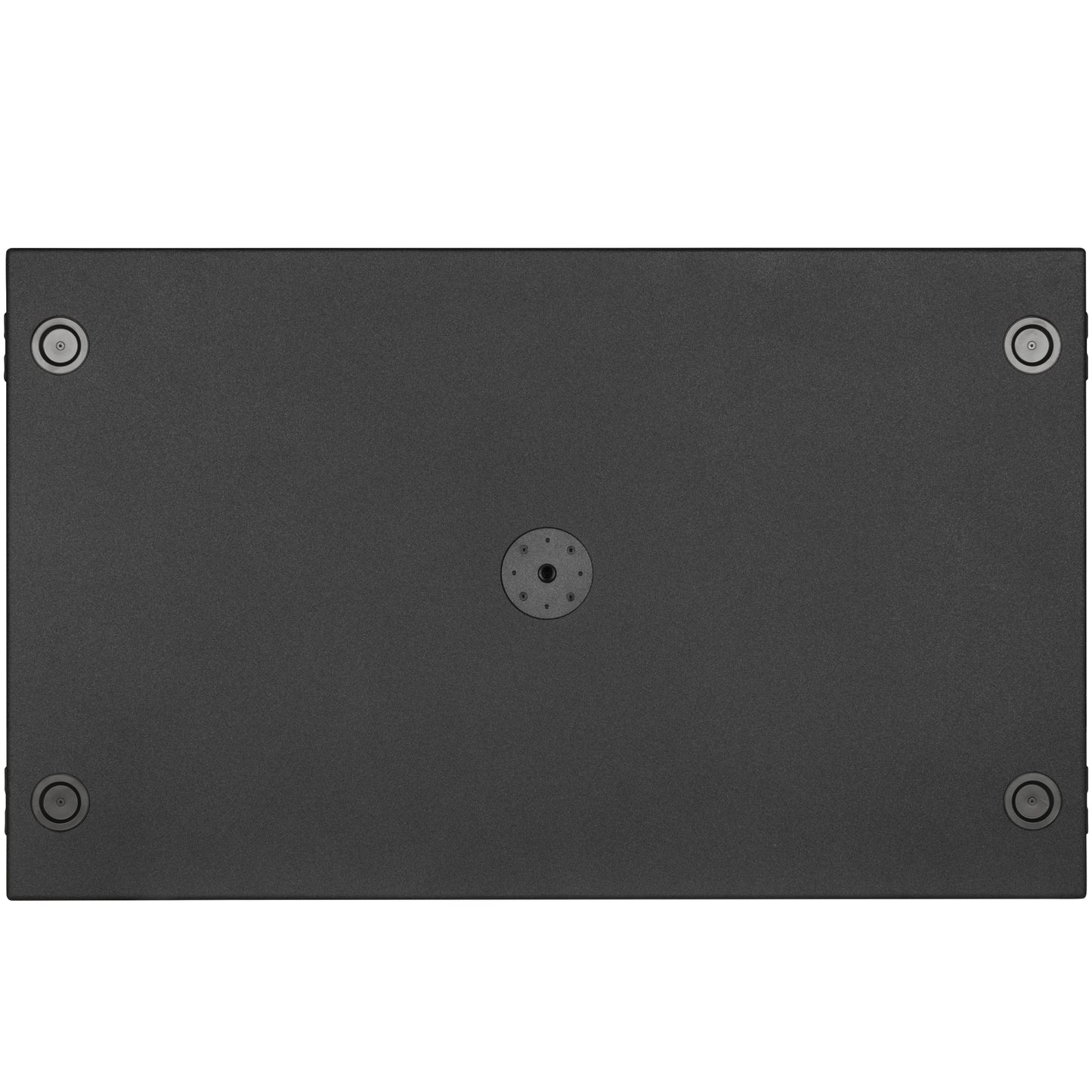

Pole mount/Cap: M20 thread
-

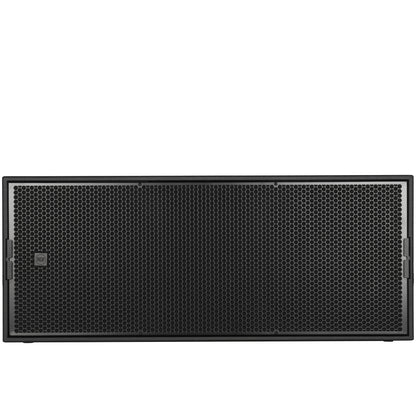

Grille: Steel with clothing
-
Color: Black
SIZE / WEIGHT
-
Height: 533 mm / 20.98 inches
-
Width: 1310 mm / 51.57 inches
-
Depth: 785 mm / 30.91 inches
-
Weight: 93 kg / 205.03 lbs
SHIPPING INFORMATION
-
Package Height: 570 mm / 22.44 inches
-
Package Width: 830 mm / 32.68 inches
-
Package Depth: 1350 mm / 53.15 inches
-
Package Weight: 98 kg / 216.05 lbs
