Description

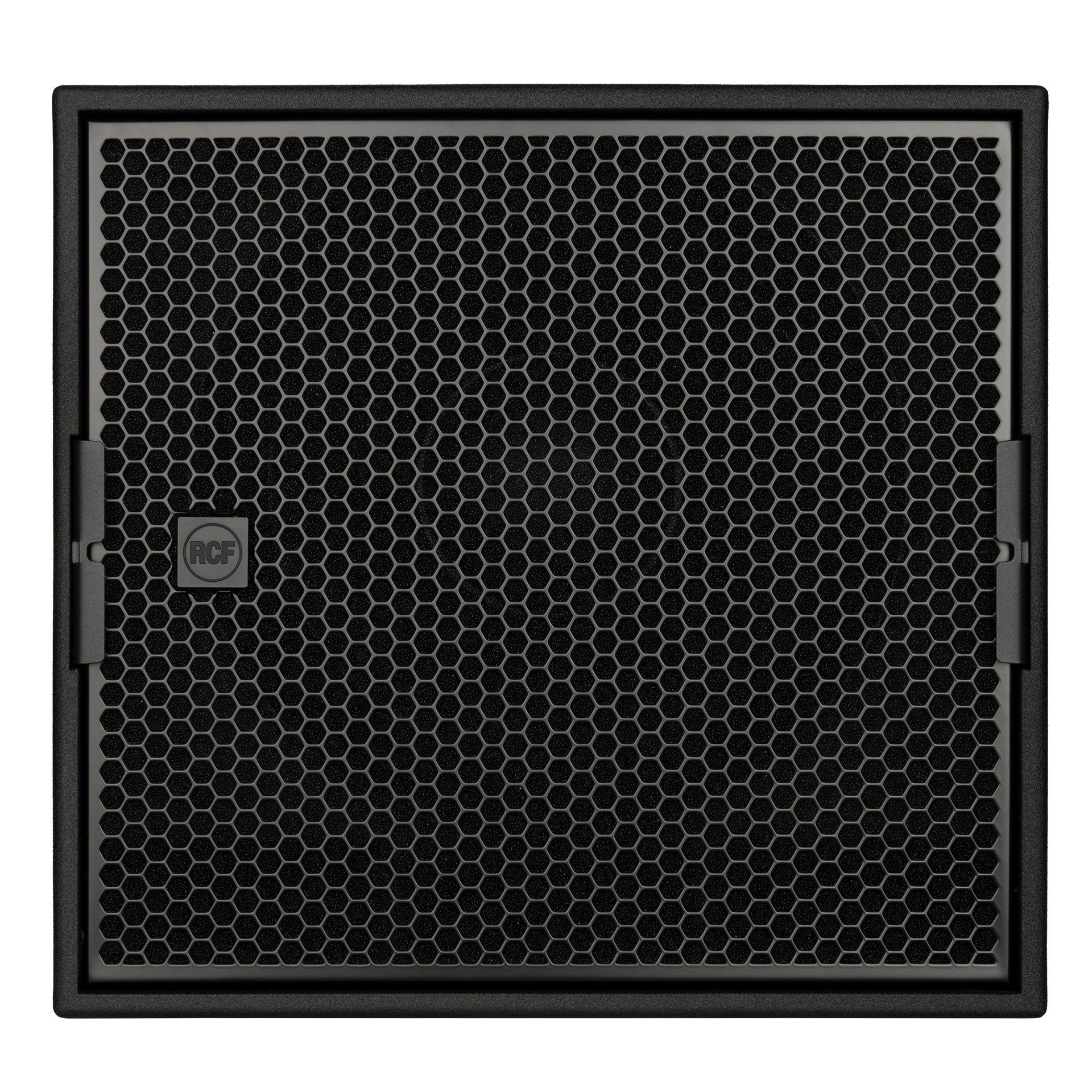

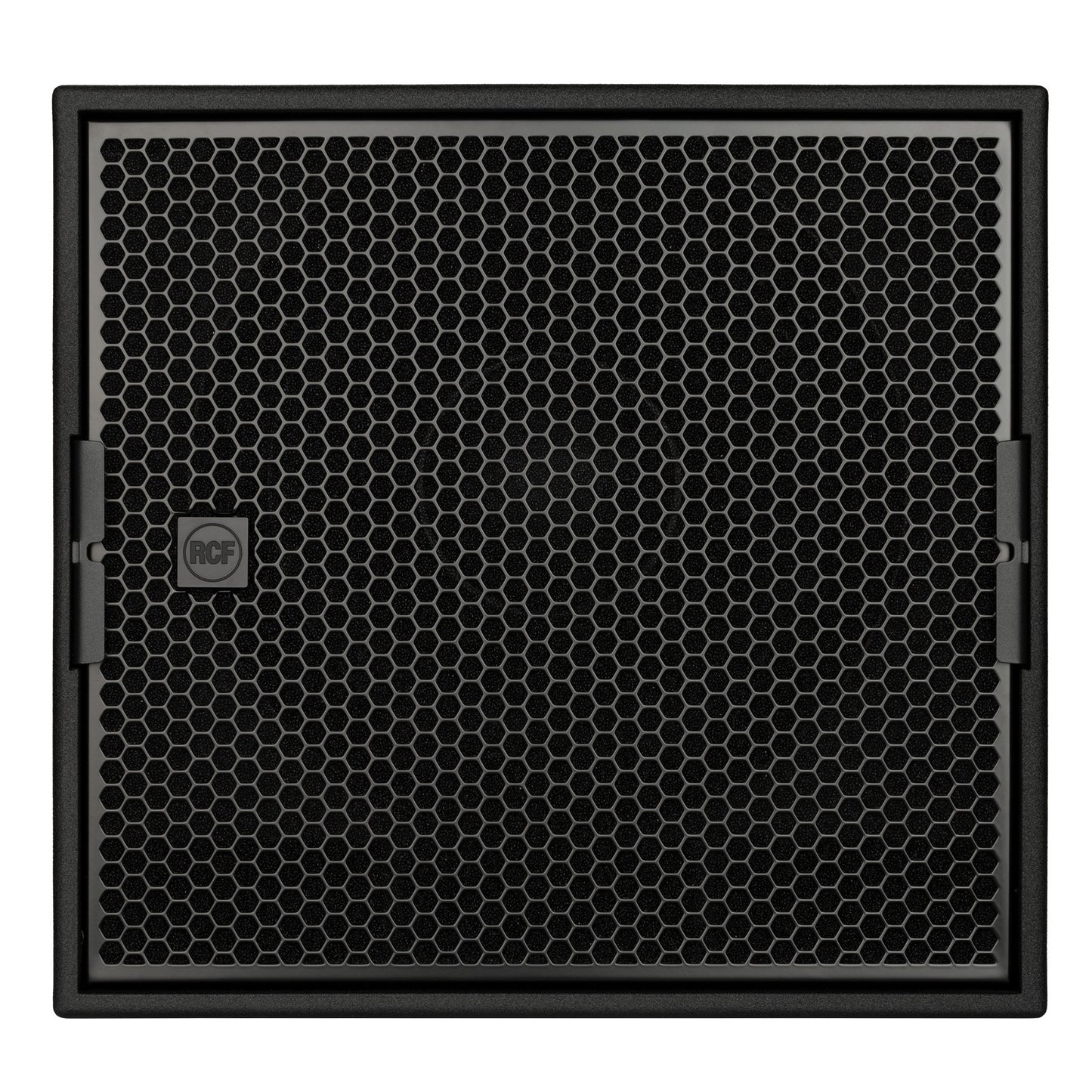

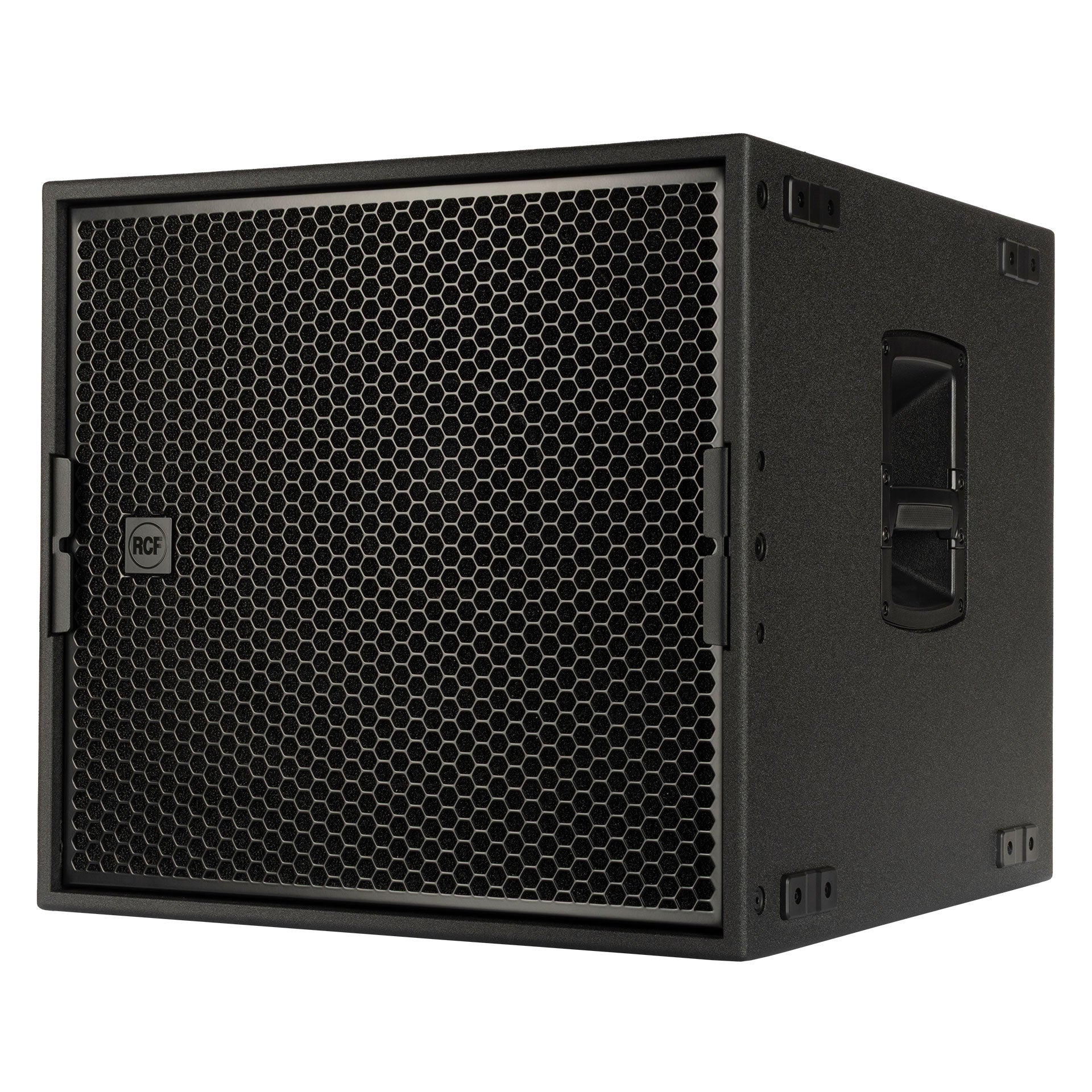

Active 4000W 16" Subwoofer (RDNET Ready)

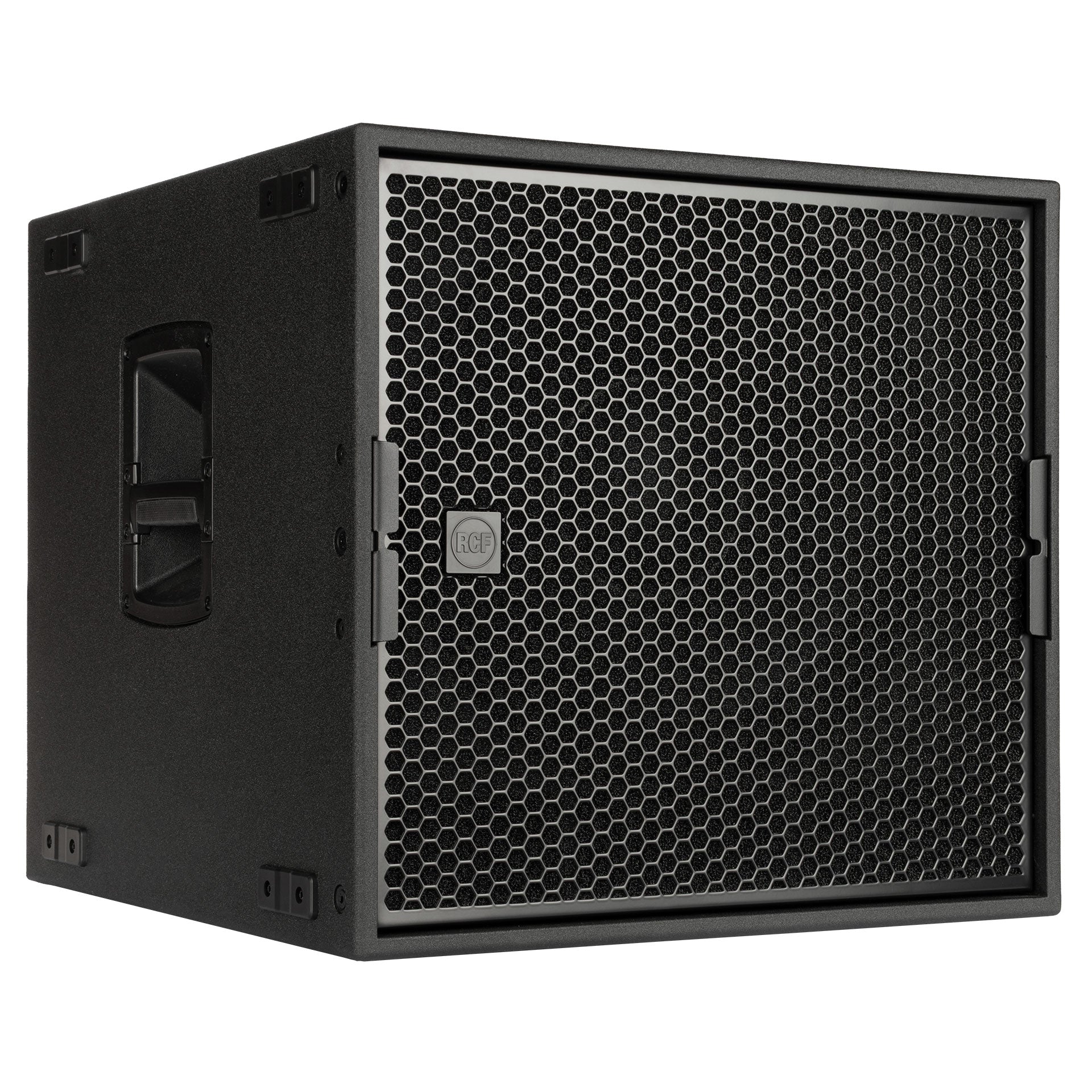

SUB 9016-AS is a high-performance 16" active subwoofer delivering up to 137 dB Max SPL, powered by a robust 4000W Class-D amplifier. Designed for rigorous touring, the SUB 9016-AS features a tour-ready, weatherproof cabinet with a durable Polyurea finish and a detachable front cart for easy transport. Control is precise with RDNet network management, offering adjustable EQ, delay, cardioid options, and tailored crossover presets for RCF speakers. Innovative contactless configuration via RDTap allows seamless setup even when the unit is unpowered, ensuring perfect integration every time. Despite its small footprint and lightweight cabinet , the SUB 9016-AS produces powerful yet articulate bass, remaining true to even the most subtle low-frequency variations.
FEATURES
- 137 dB Max SPL
- 4000W Class-D Amplification
- RDTap Contactless Configuration

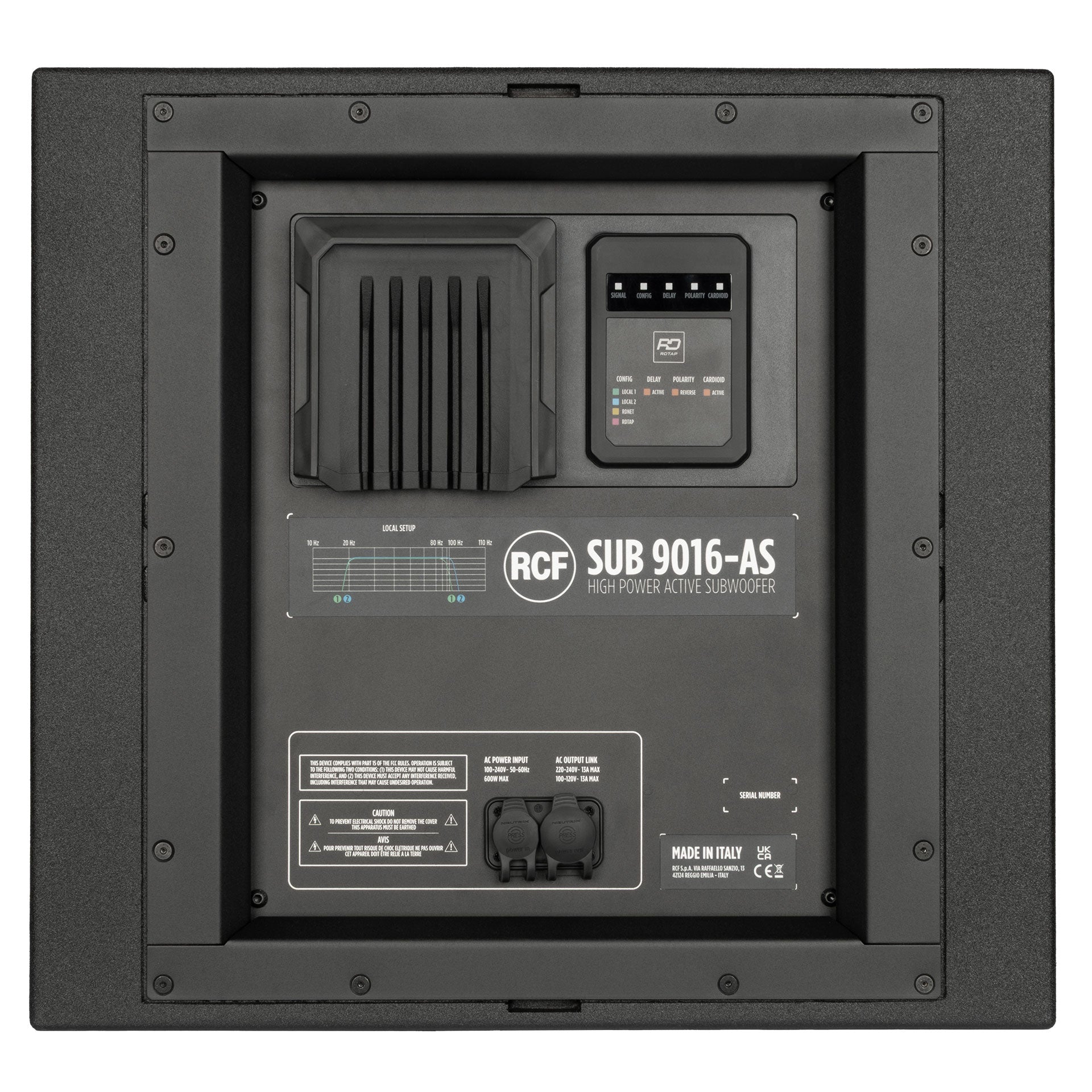

- I/O Panel Rain Cover Included
- RDNet Networked Control
- BMC, EQ, DLY, Cardioid
- ACE Crossover Presets for RCF Speakers
- 16" High-Excursion Precision Transducer
- Detachable Front Cart (sold separately)
- powerCON TRUE1 TOP AC Connector
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response: 30 Hz - 200 Hz
-
Max SPL @ 1m: 137 dB
TRANSDUCERS
-
Woofer: 1 x 16'' neo, 4.0'' v.c

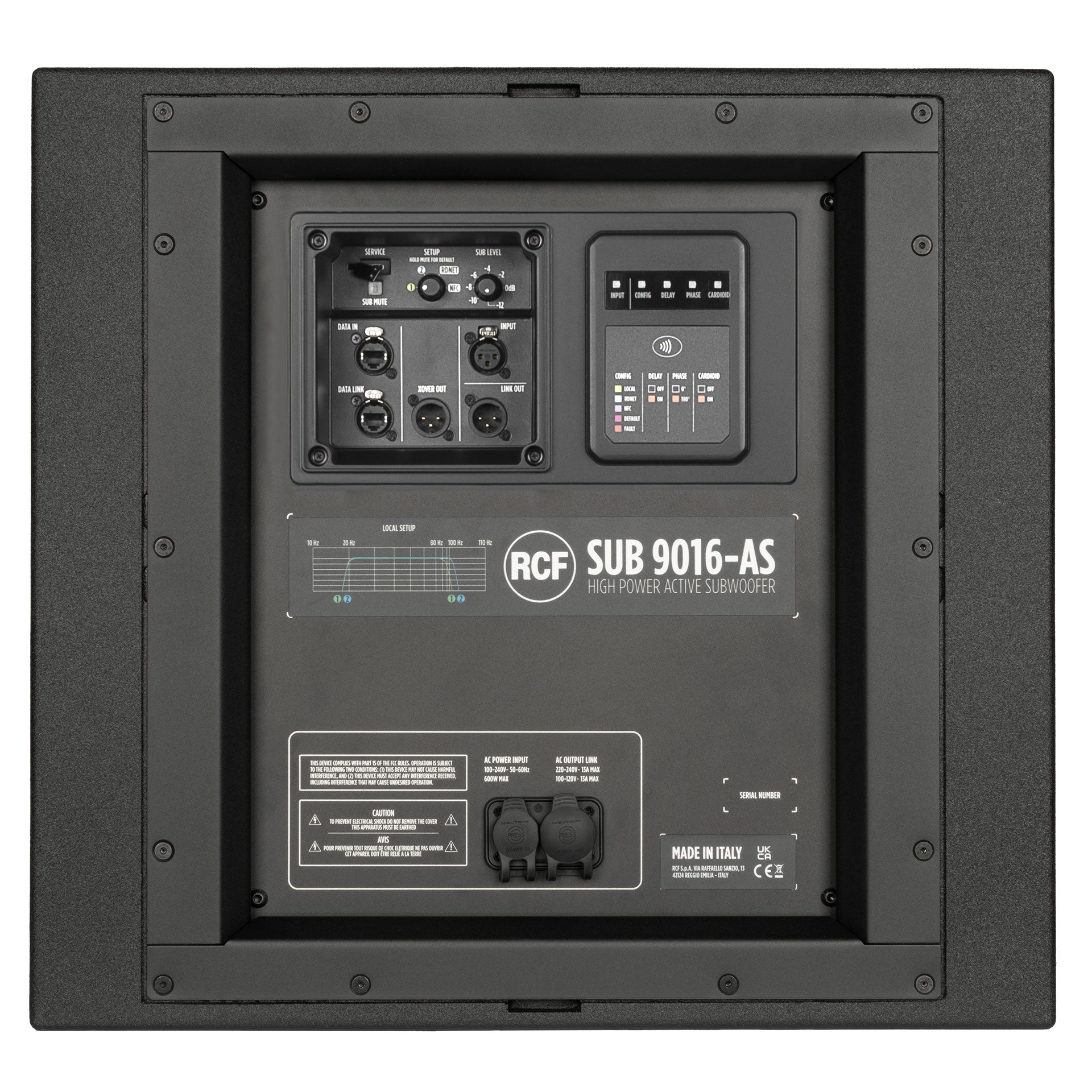

INPUT/OUTPUT SECTION
-
Input signal: bal/unbal
-
Input connectors: XLR, RDNet Ethercon
-
Output connectors: XLR, RDNet Ethercon
-
Input sensitivity: -2 dBu/+4 dBu
PROCESSOR SECTION
-
Protections: Thermal
-
Limiter: Soft Limiter
-
Controls: MUTE, VOL, PRESETS, RDTAP
-
RDNet: Onboard
POWER SECTION
-
Total Power: 4000 W Peak
-
Cooling: Convection/Forced
-
Connections: Powercon TRUE1 TOP IN/OUT
STANDARD COMPLIANCE
-
Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Plywood
-
Hardware: 2 x M20 pole mount accessories
-

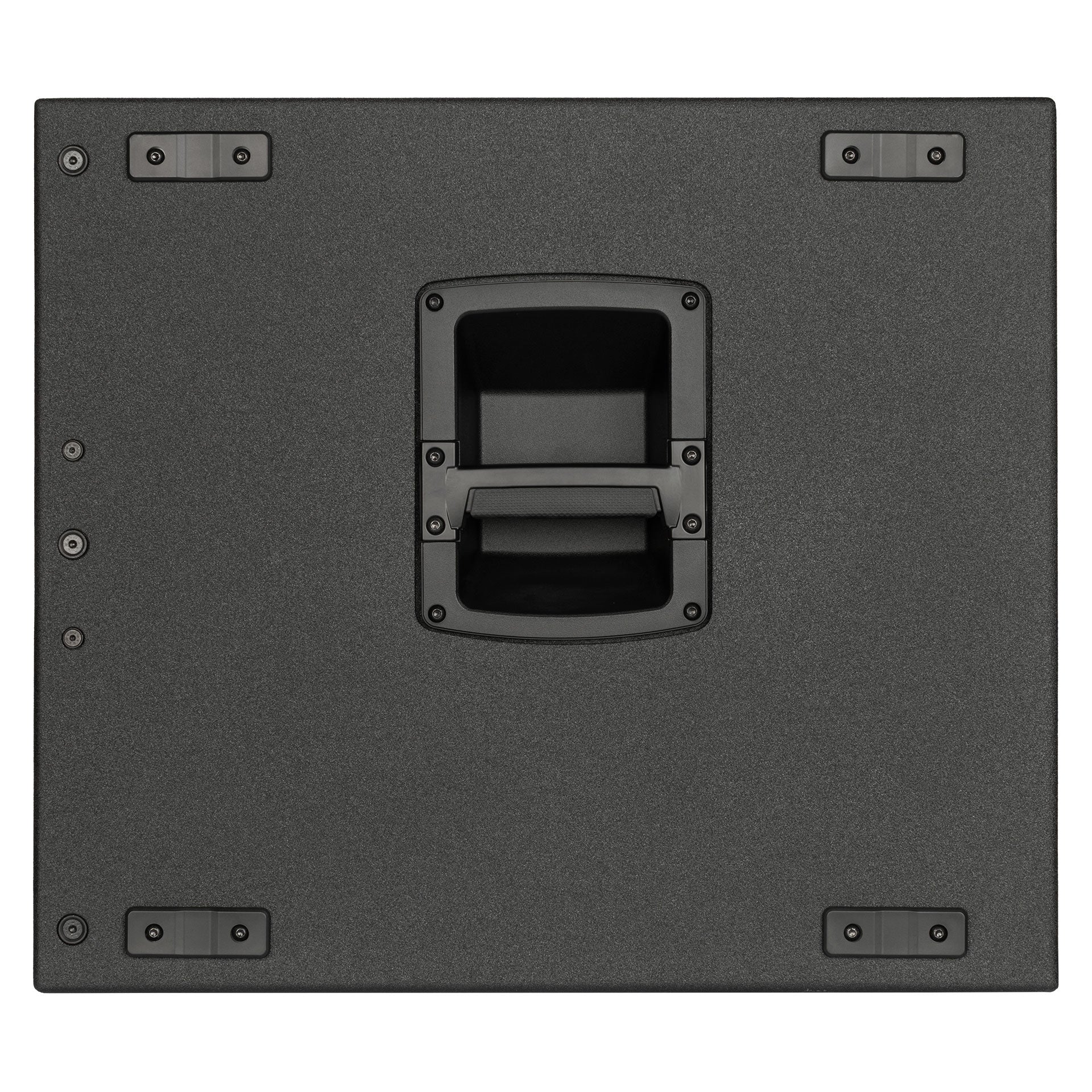

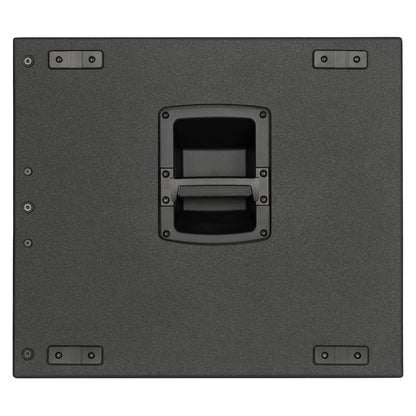

Handles: 1 handle per side
-

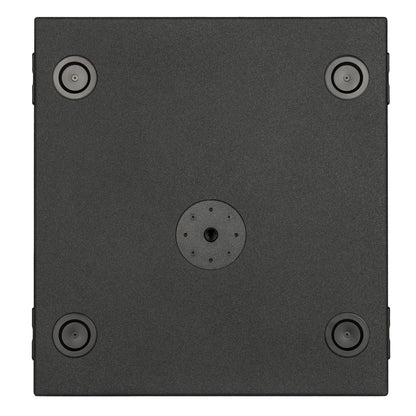

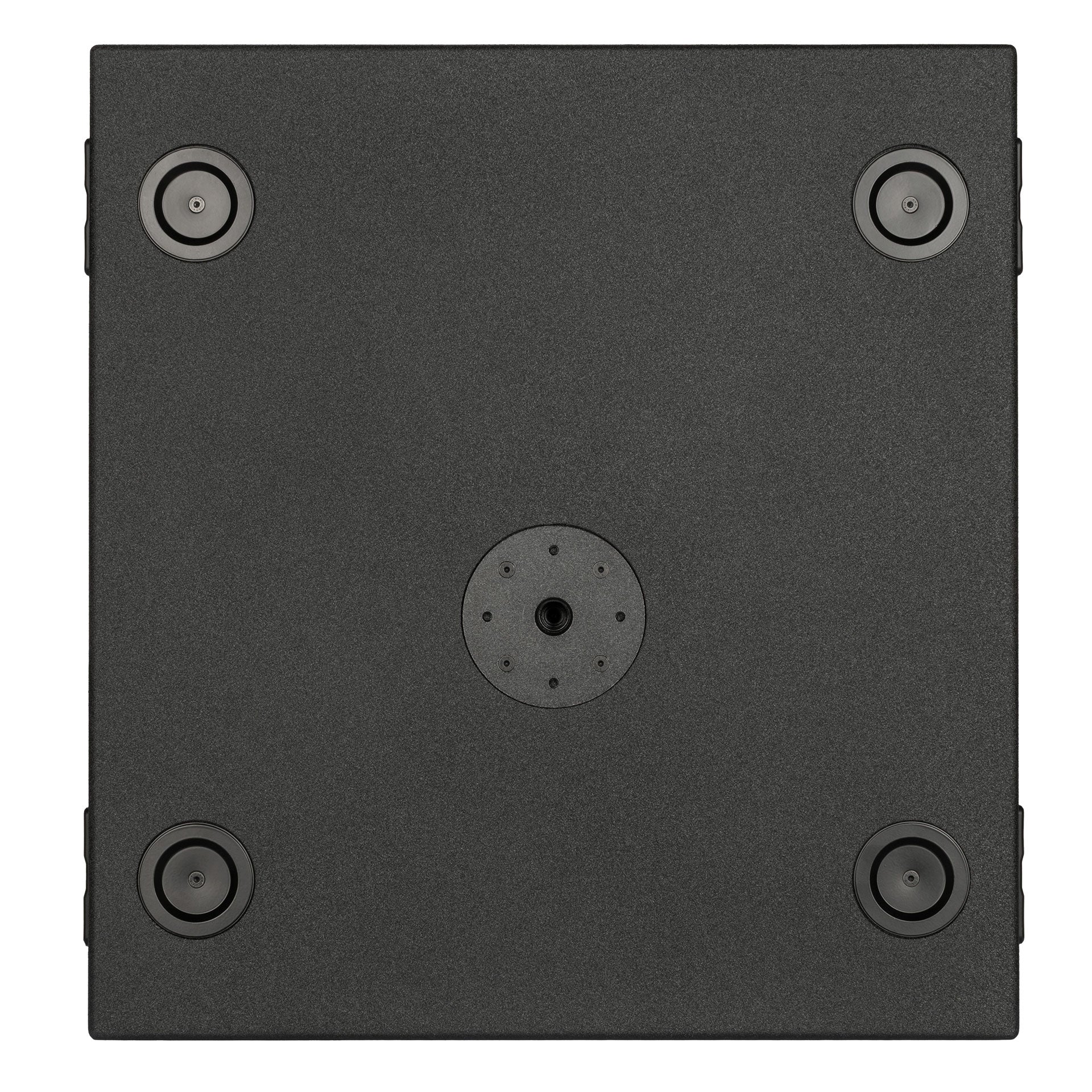

Pole mount/Cap: M20 thread
-
Grille: Steel with clothing
-
Color: Black
SIZE / WEIGHT
-
Height: 533 mm / 20.98 inches
-
Width: 570 mm / 22.44 inches
-
Depth: 600 mm / 23.62 inches
-
Weight: 45 kg / 99.21 lbs
SHIPPING INFORMATION
-
Package Height: 560 mm / 22.05 inches
-
Package Width: 595 mm / 23.43 inches
-
Package Depth: 647 mm / 25.47 inches
-
Package Weight: 50 kg / 110.23 lbs
