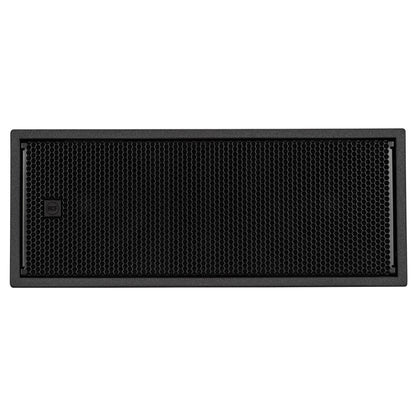

Active 2000W Dual 8" Subwoofer (RDNET Ready)

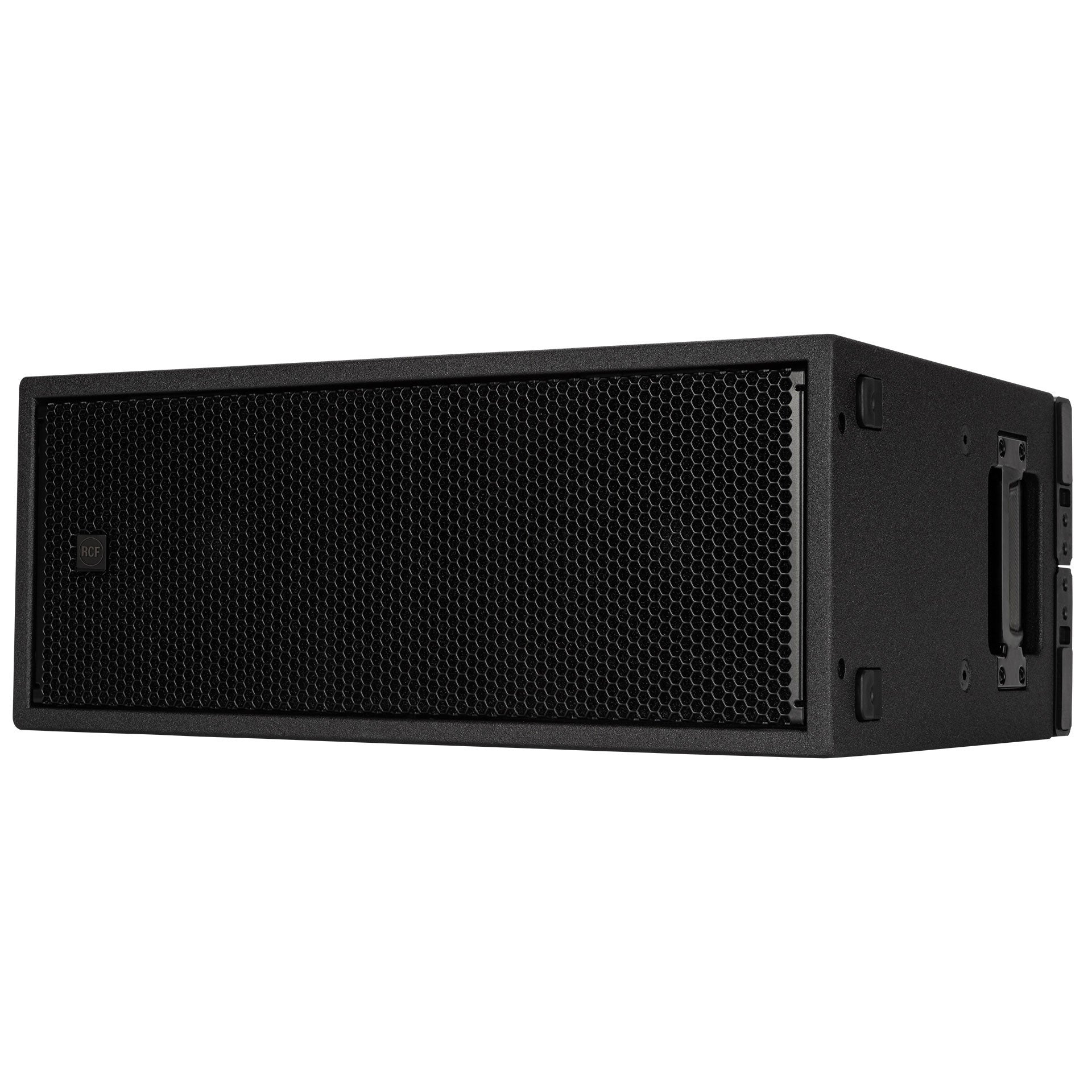

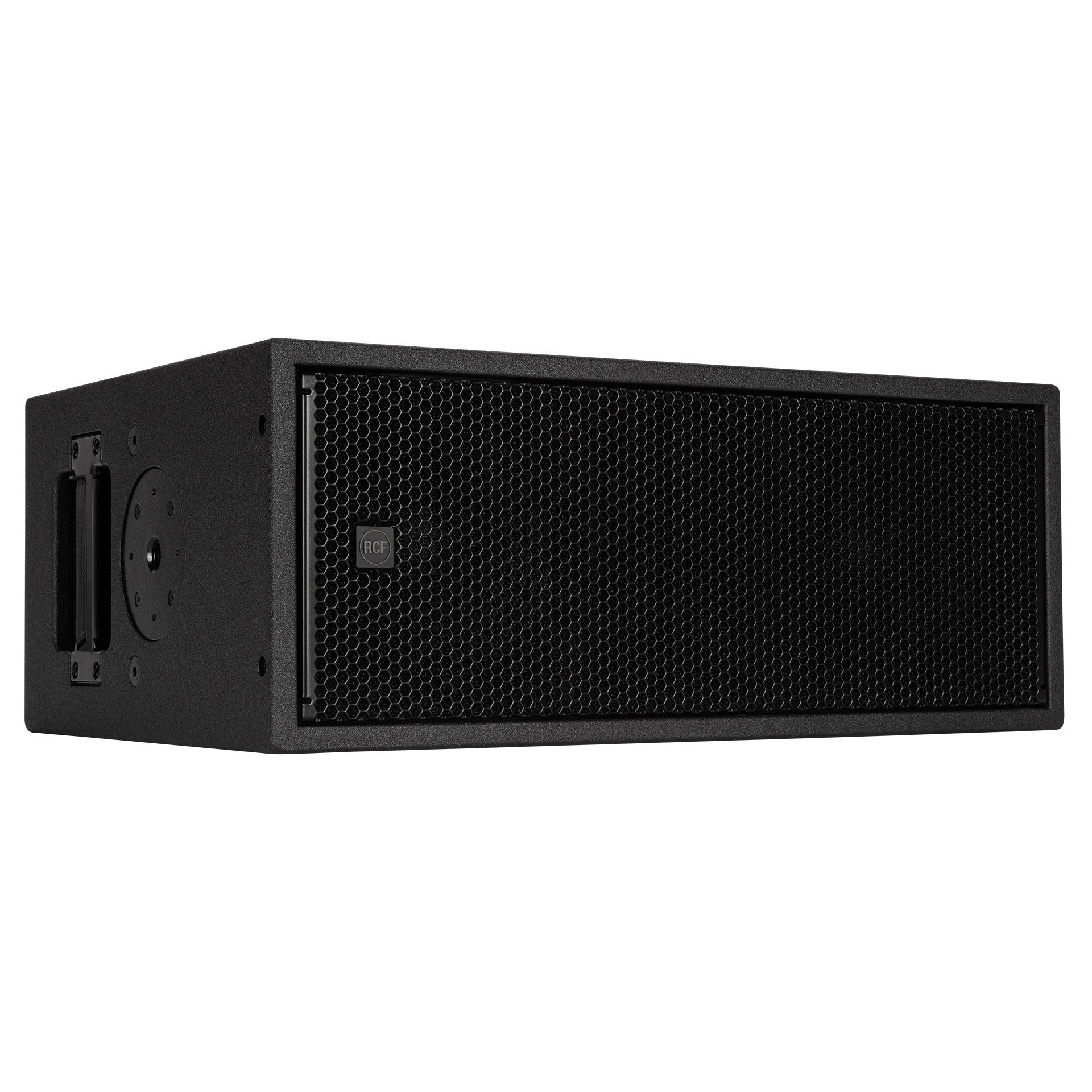

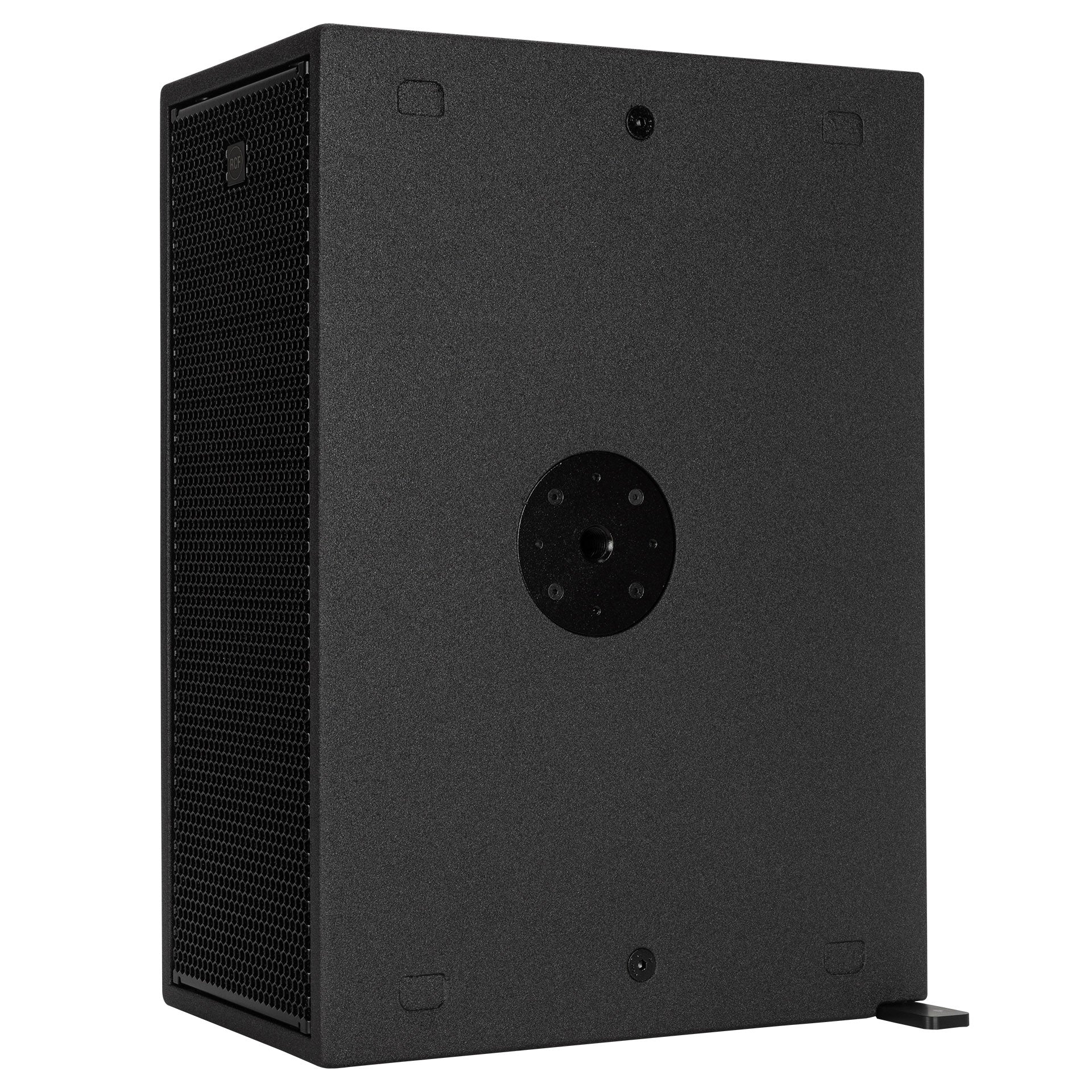

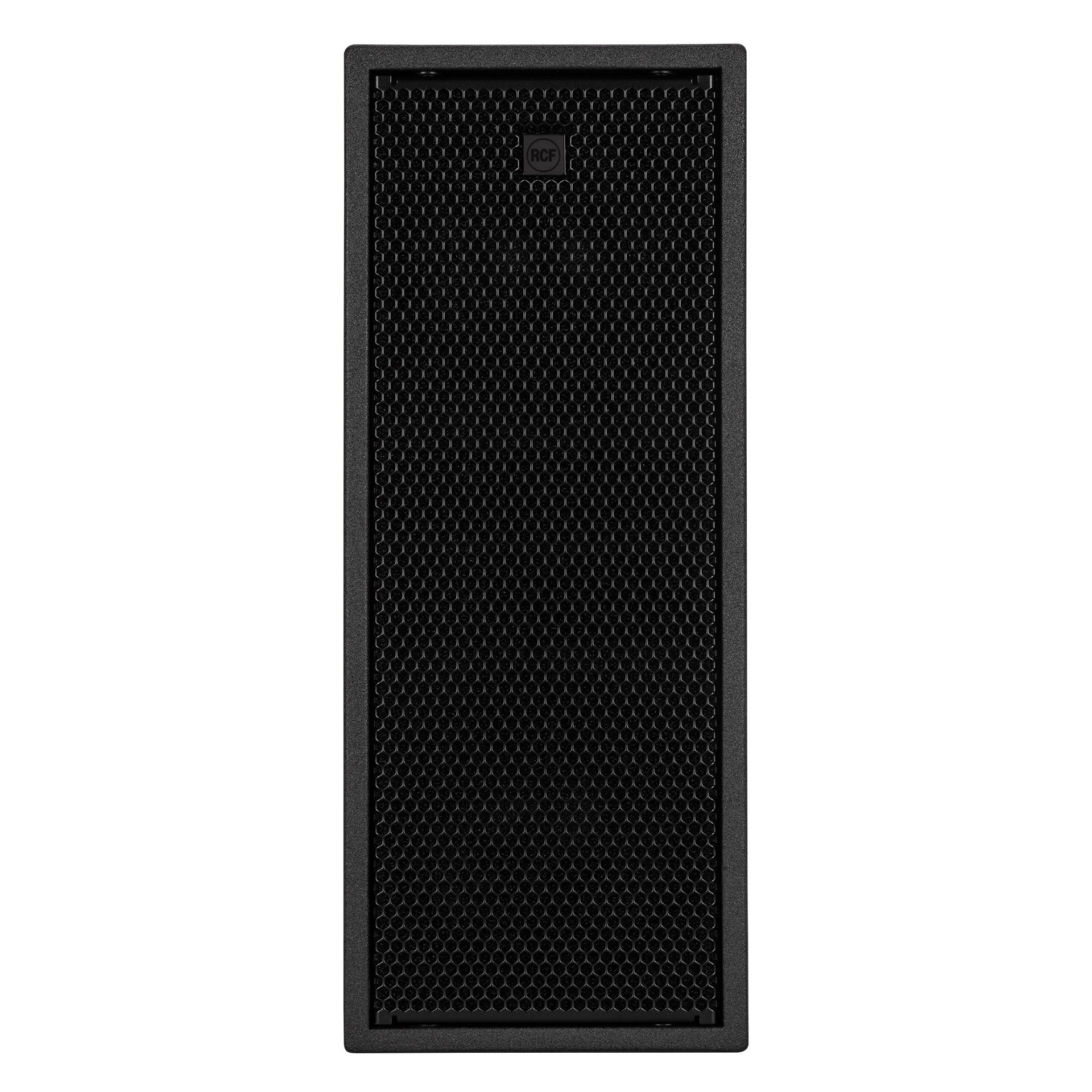

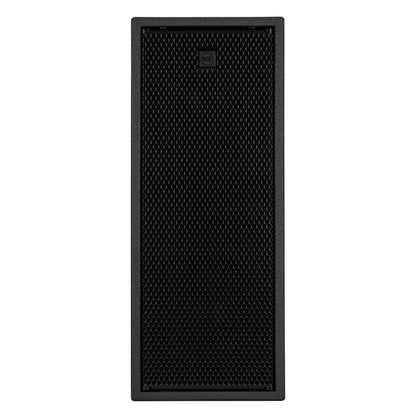

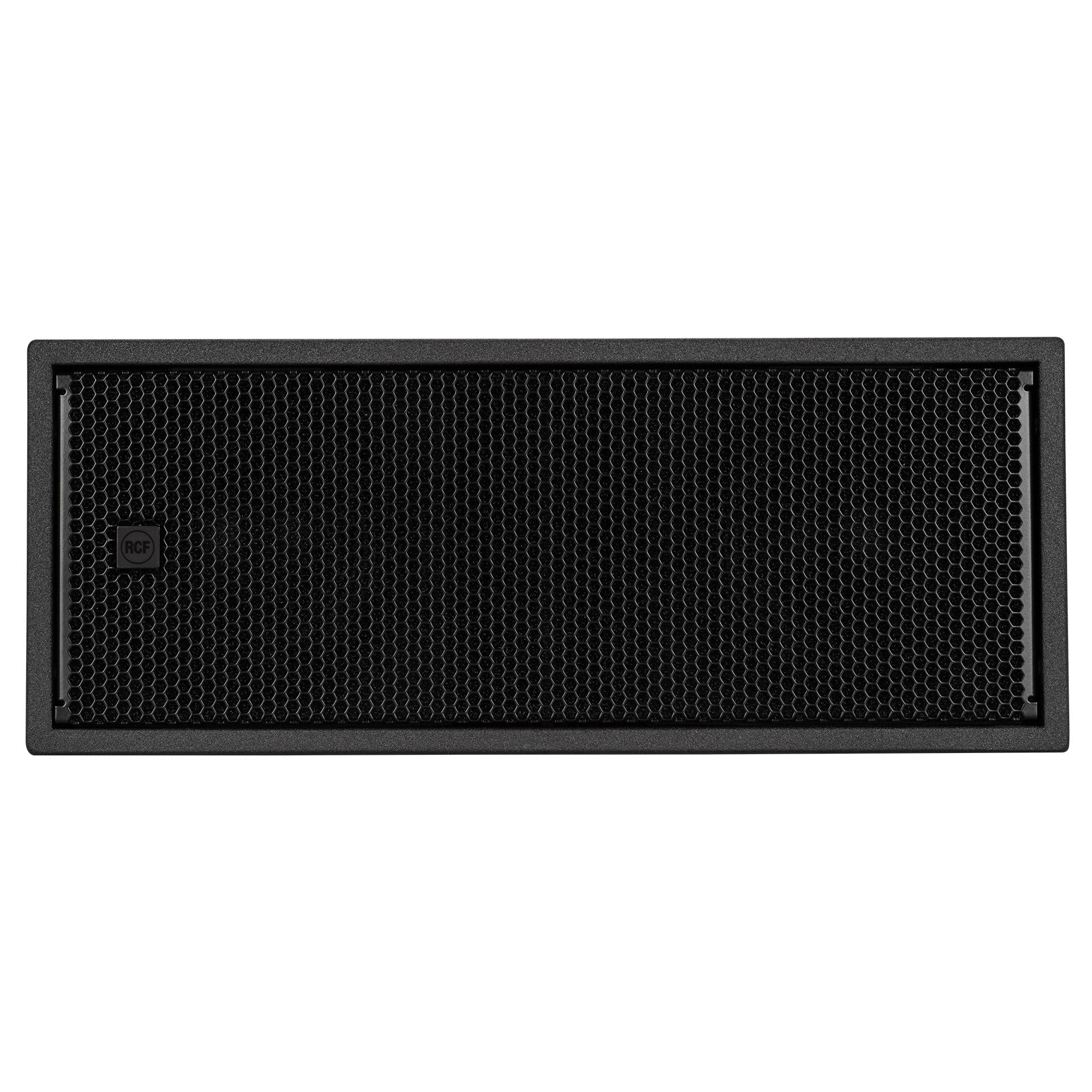

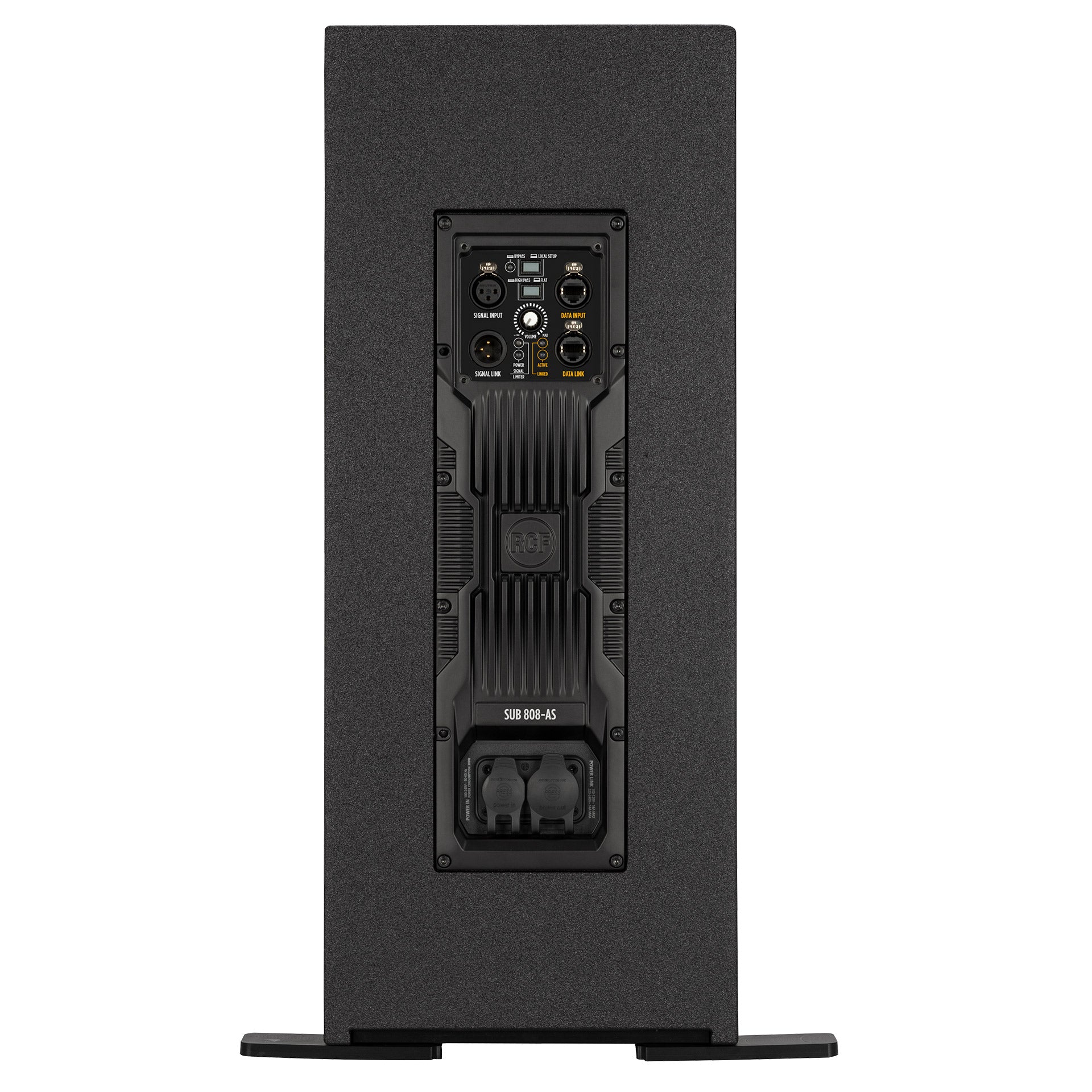

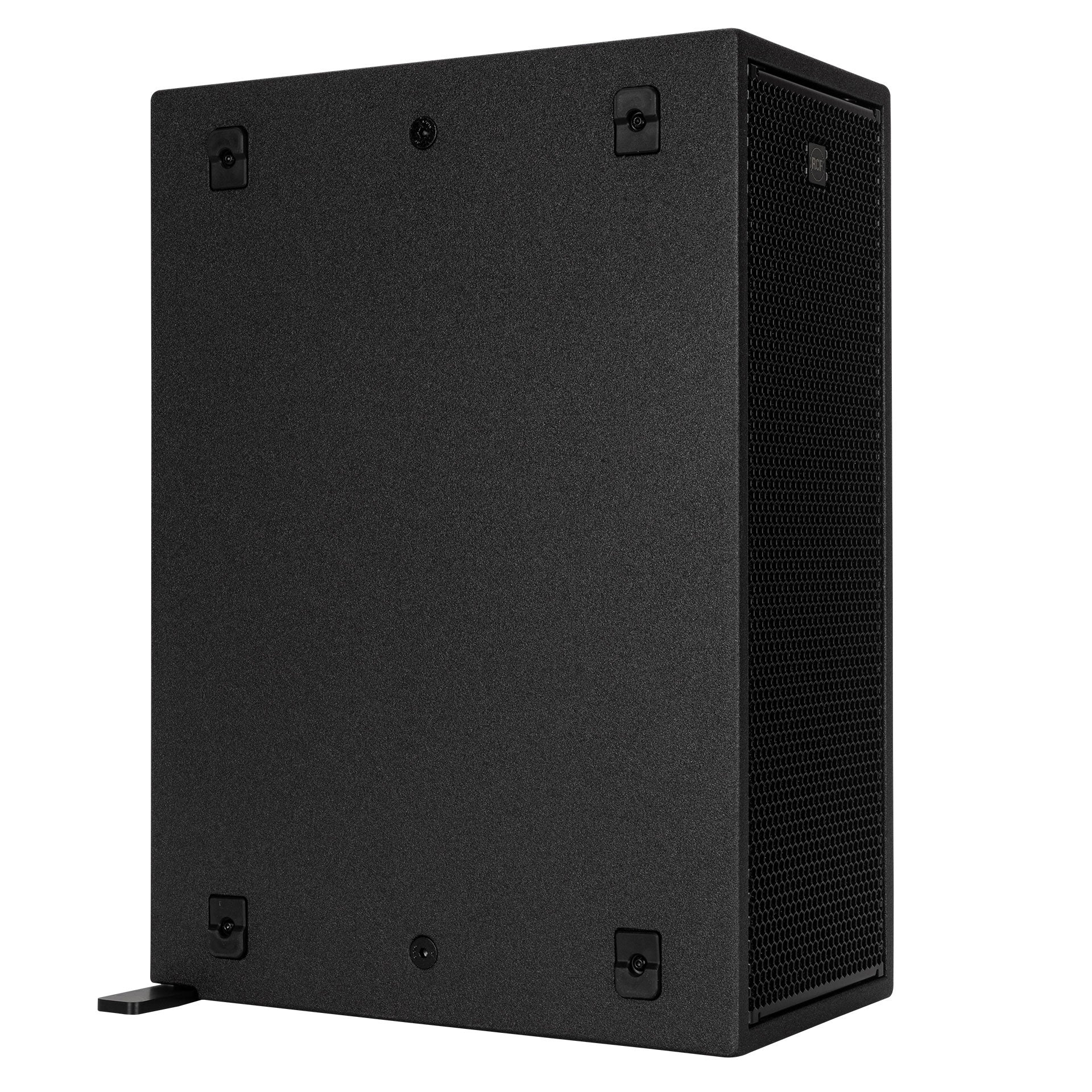

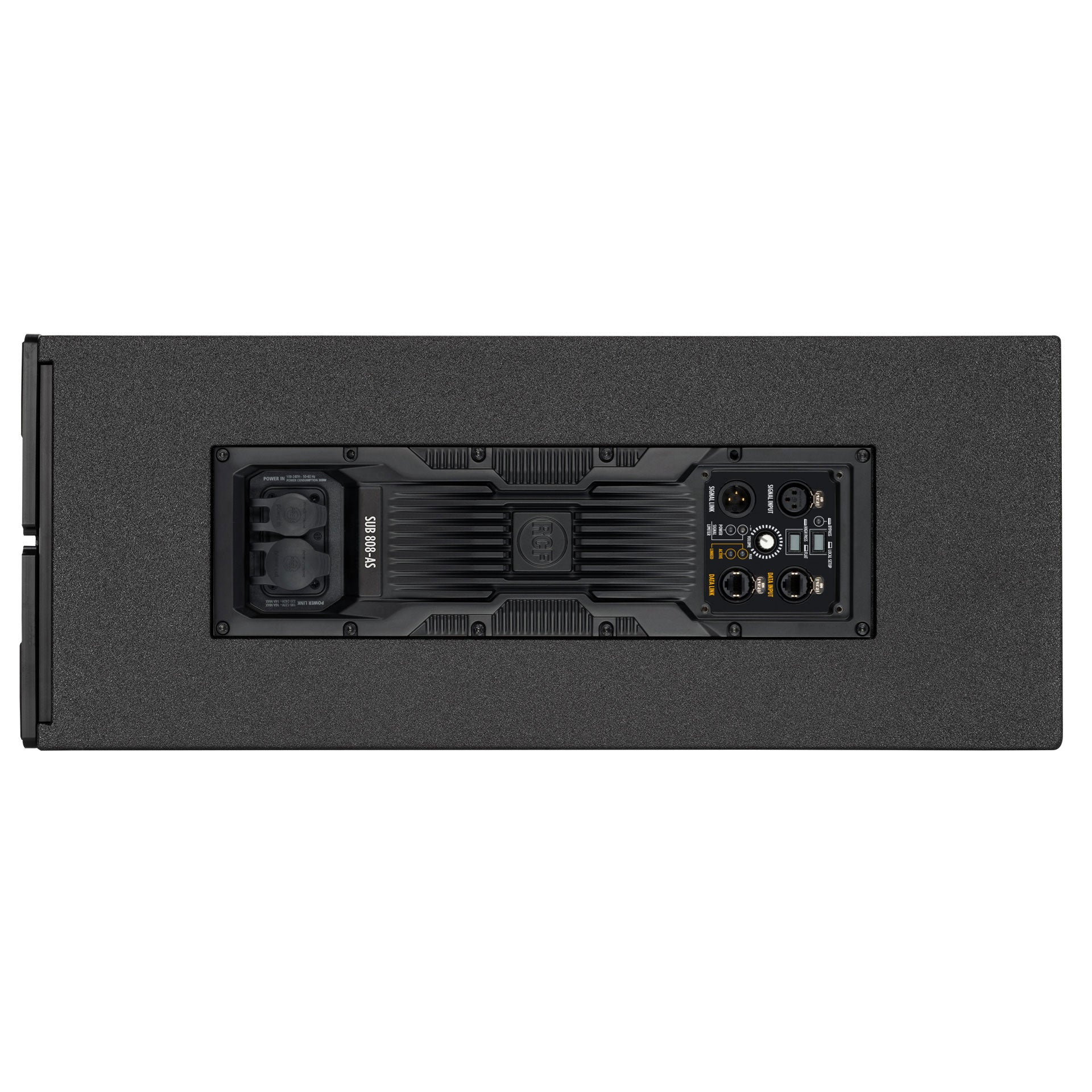

SUB 808-AS is a compact low-profile high-performance active subwoofer. It features two vented-loaded 8” cone woofers powered by a 2000 Watts two-channel amplifier -one for each woofer- on a baltic birch plywood cabinet painted with black or white polyurea and weatherproof treatment. Management and tuning are available via RDNet software. The cabinet features rubber feet on two sides and two threaded pole-mounts for horizontal and vertical placement. Two stabilizing brackets make the vertical placement stable and firm. SUB 808-AS can be used stand-alone, in subwoofer arrays, or as the low-frequency complement for KX 515-A speaker.
FEATURES
- 129 dB max SPL
- 40 Hz to 400 Hz frequency range
- 2 x 8’’ neodymium woofers, 2.5’’ v.c.
- 2000 W Class-D Amplifier
- RDNet Networked Management
- Bass Motion Control excursion management
- powerCON TRUE1 TOP mains connectors
- Available in full black or white coating
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response: 40 Hz - 400 Hz
-
Max SPL @ 1m: 129 dB
TRANSDUCERS
-
Woofer: 2 x 8'' neo, 2.5'' v.c

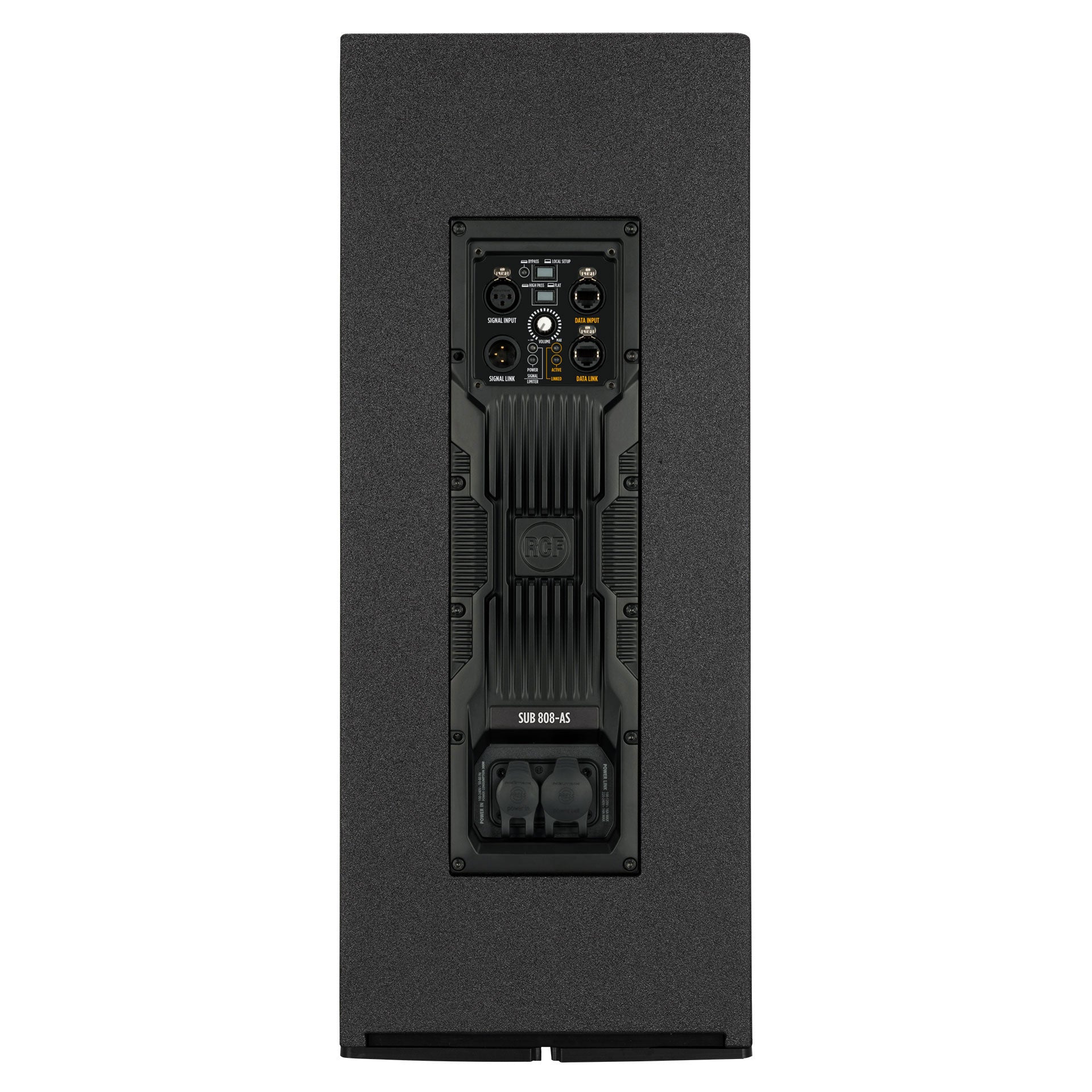

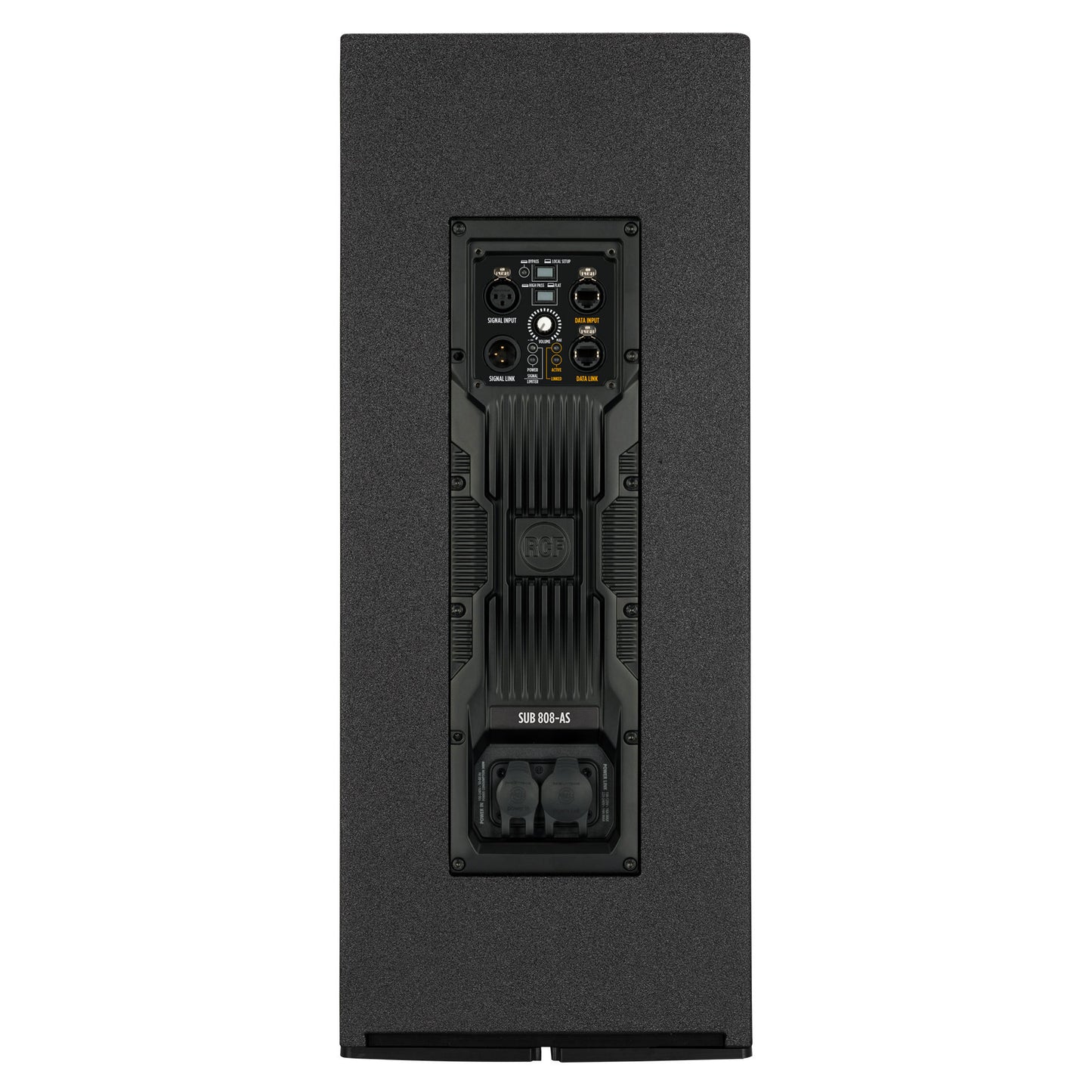

INPUT/OUTPUT SECTION
-
Input signal: bal/unbal
-
Input connectors: XLR, RDNet Ethercon
-
Output connectors: XLR, RDNet Ethercon
-
Input sensitivity: -2 dBu/+4 dBu
PROCESSOR SECTION
-
Protections: Excurs.
-
Limiter: Fast Limiter
-
Controls: Volume
-
RDNet: Onboard
POWER SECTION
-
Total Power: 2000 W Peak
-
Low frequencies: 2000 W Peak
-
Cooling: Convection
-
Connections: Powercon TRUE1 TOP IN/OUT
STANDARD COMPLIANCE
-
Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Baltic birch plywood
-
Hardware: 2X M20 TOP AND SIDE 8X M10 2X SIDE
-
Handles: 1 X SIDE
-
Pole mount/Cap: 35 mm insert
-
Grille: Steel with clothing
-
Color: Black, White
SIZE / WEIGHT
-
Height: 243.5 mm / 9.59 inches
-
Width: 603.5 mm / 23.76 inches
-
Depth: 430 mm / 16.93 inches
-
Weight: 20 kg / 44.09 lbs
SHIPPING INFORMATION
-
Package Height: 290 mm / 11.42 inches
-
Package Width: 480 mm / 18.9 inches
-
Package Depth: 650 mm / 25.59 inches
-
Package Weight: 21 kg / 46.3 lbs
