Description

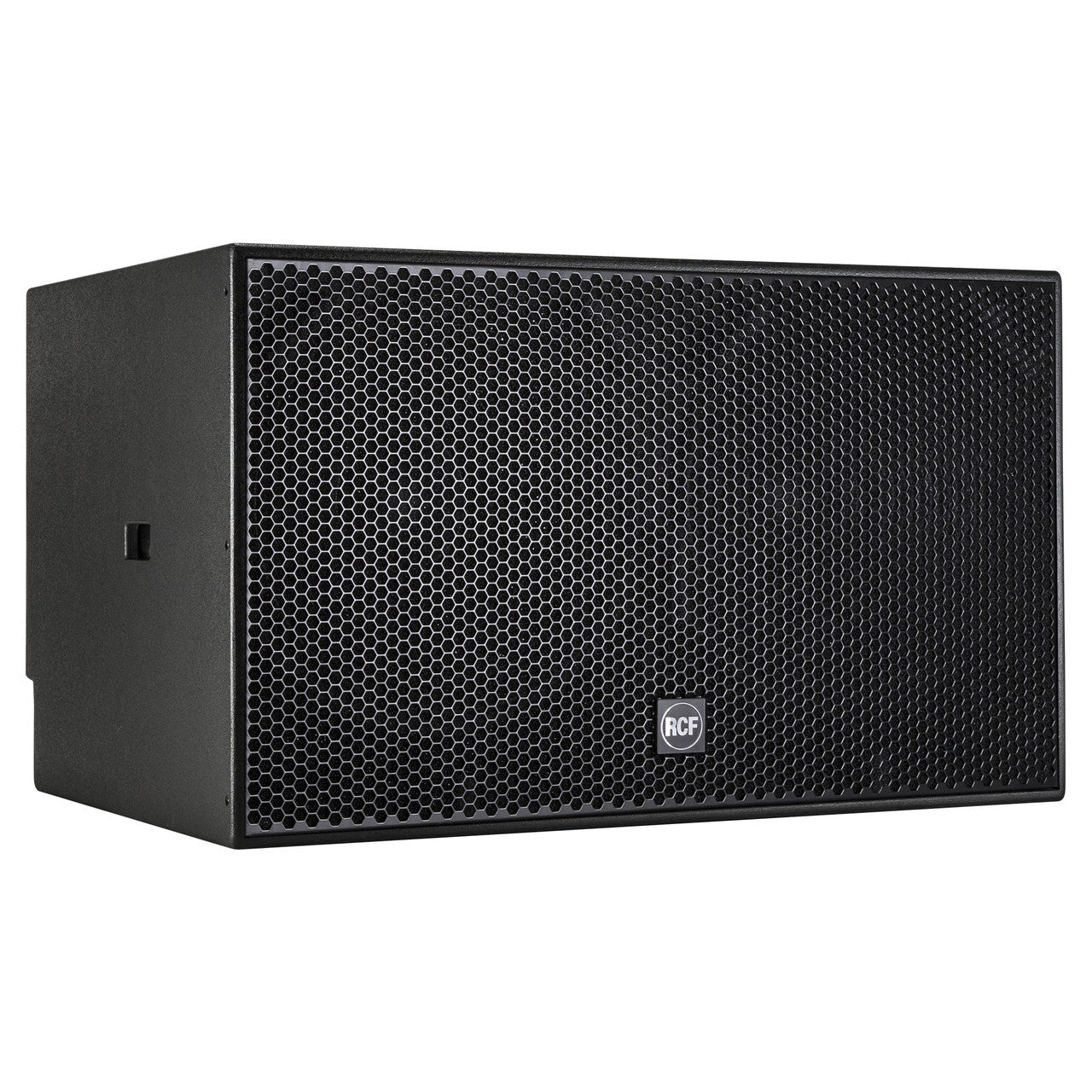

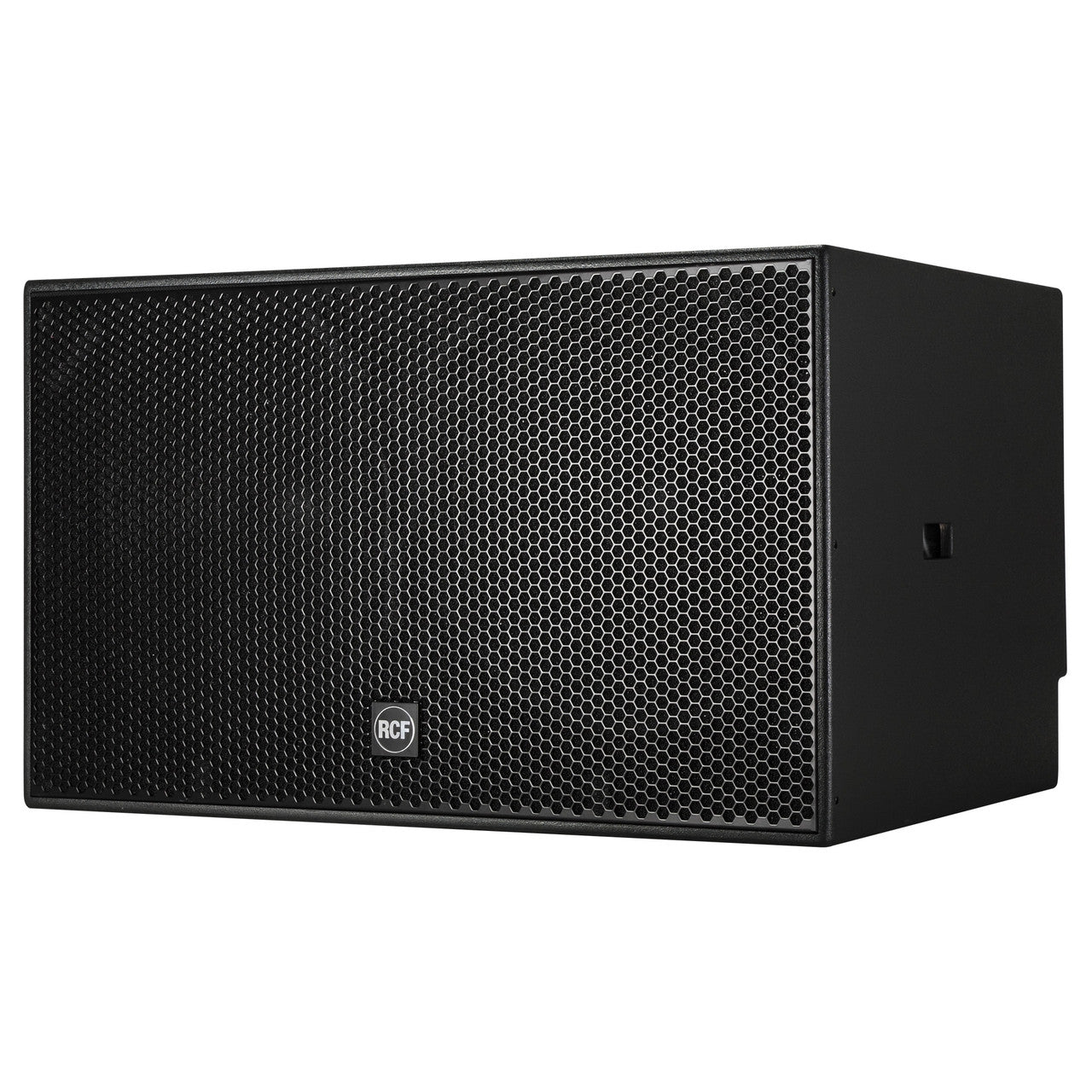

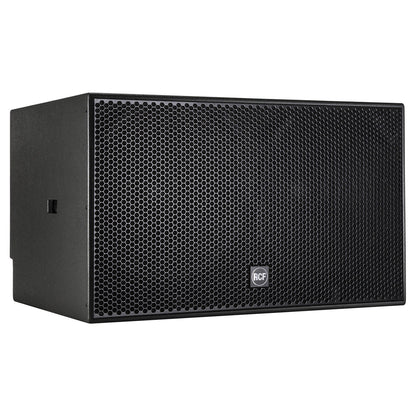

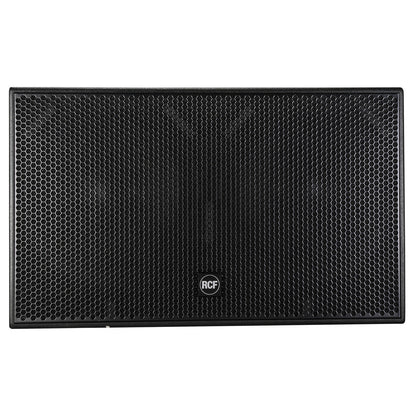

RCF S8028-MK2 Passive 12000W Dual 18" High-Efficiency Bass Reflex Subwoofer

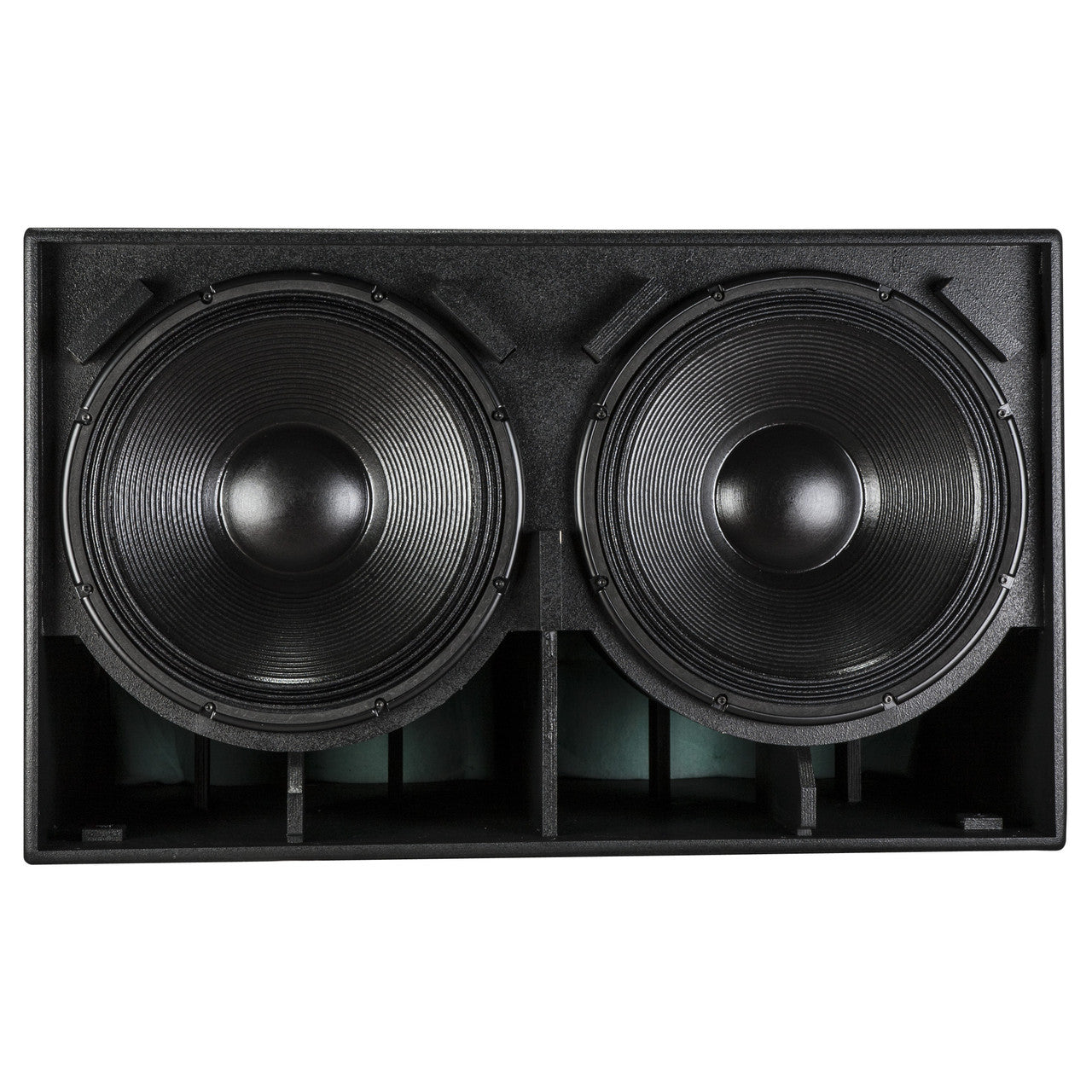

The S8028 II is a very high-output, high power bass reflex subwoofer. The system is equipped with two advanced, hypervented 18” RCF precision woofers mounted in a bass reflex configuration. The cabinet design is optimised to achieve tight and maximised output. Each 18” features massive vented magnets and 4” copper voice coil and represents the state of the art of RCF precision transducers technology. The system is able to produce a Max SPL of 141 dB and handles 3000 Watts AES. The cabinet features two Neutrik Speakon™ connectors in a recessed input plate. A M20 pole mount adaptor is provided on the top of the cabinet.
Features
- 2 x 18" high-efficiency 4.0" voice-coil woofer with Inside/Outside Coil Technology
- 141 dB maximum sound pressure level
- Response down to 30 Hz
- System Power rating 3000 Watt RMS

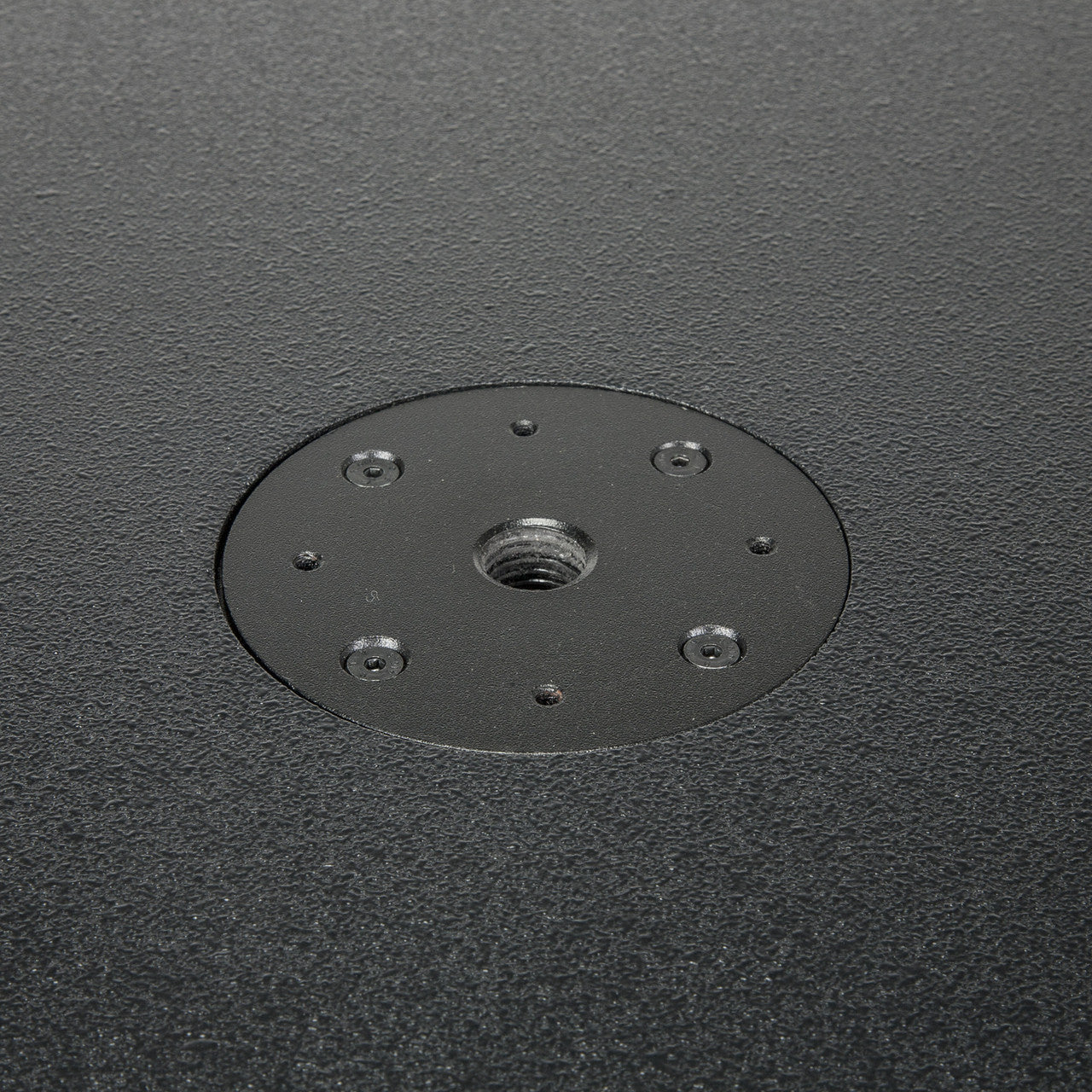

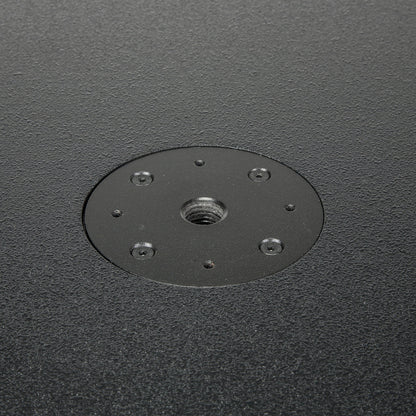

- M20 standard pole mount in top section of cabinet
- Baltic Birch cabinet painted with black, heavy duty, textured epoxy

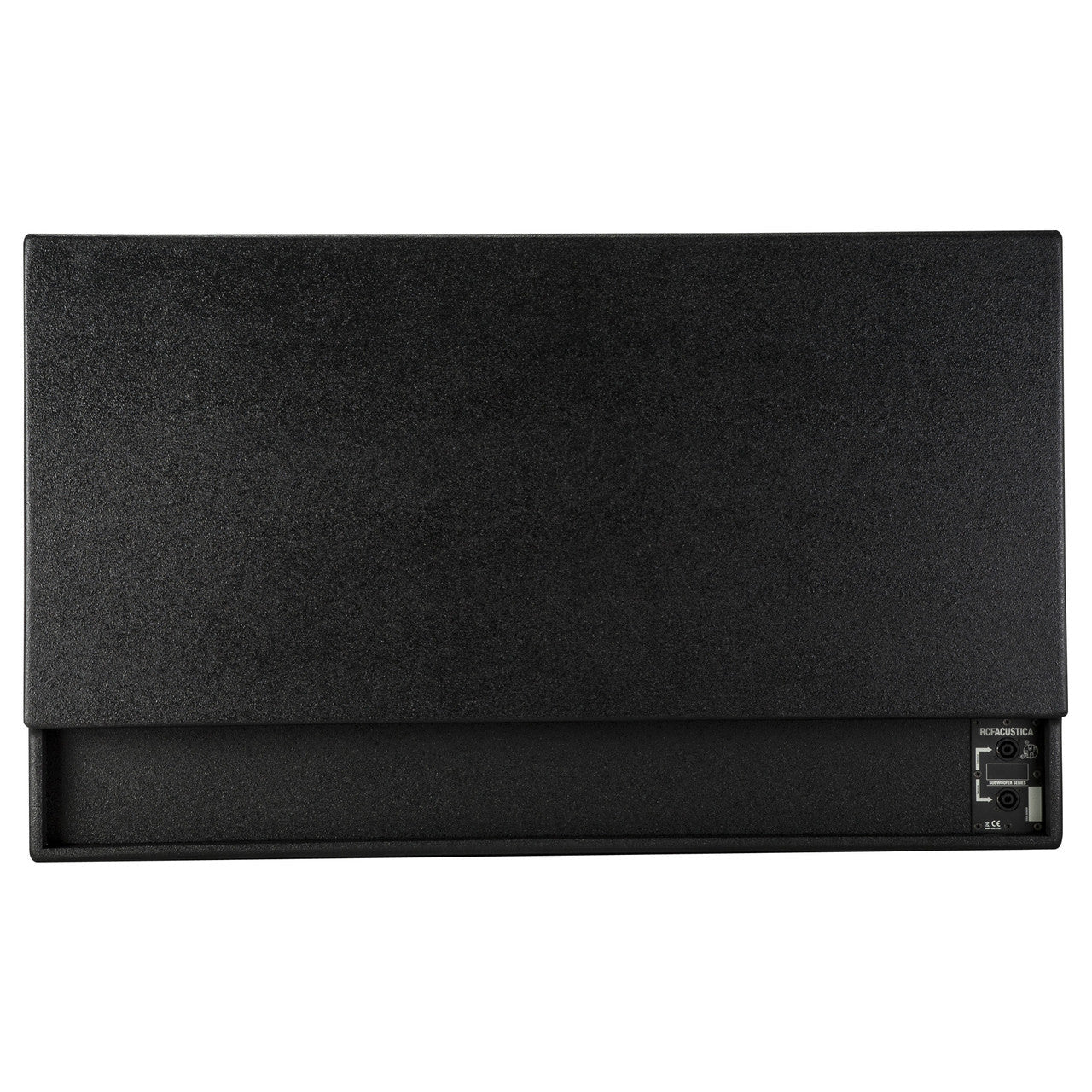

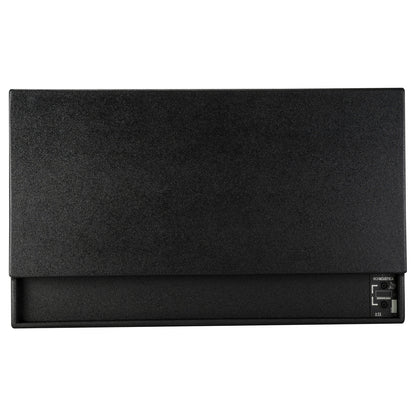

- Recessed Speakon NL4 Input/Output

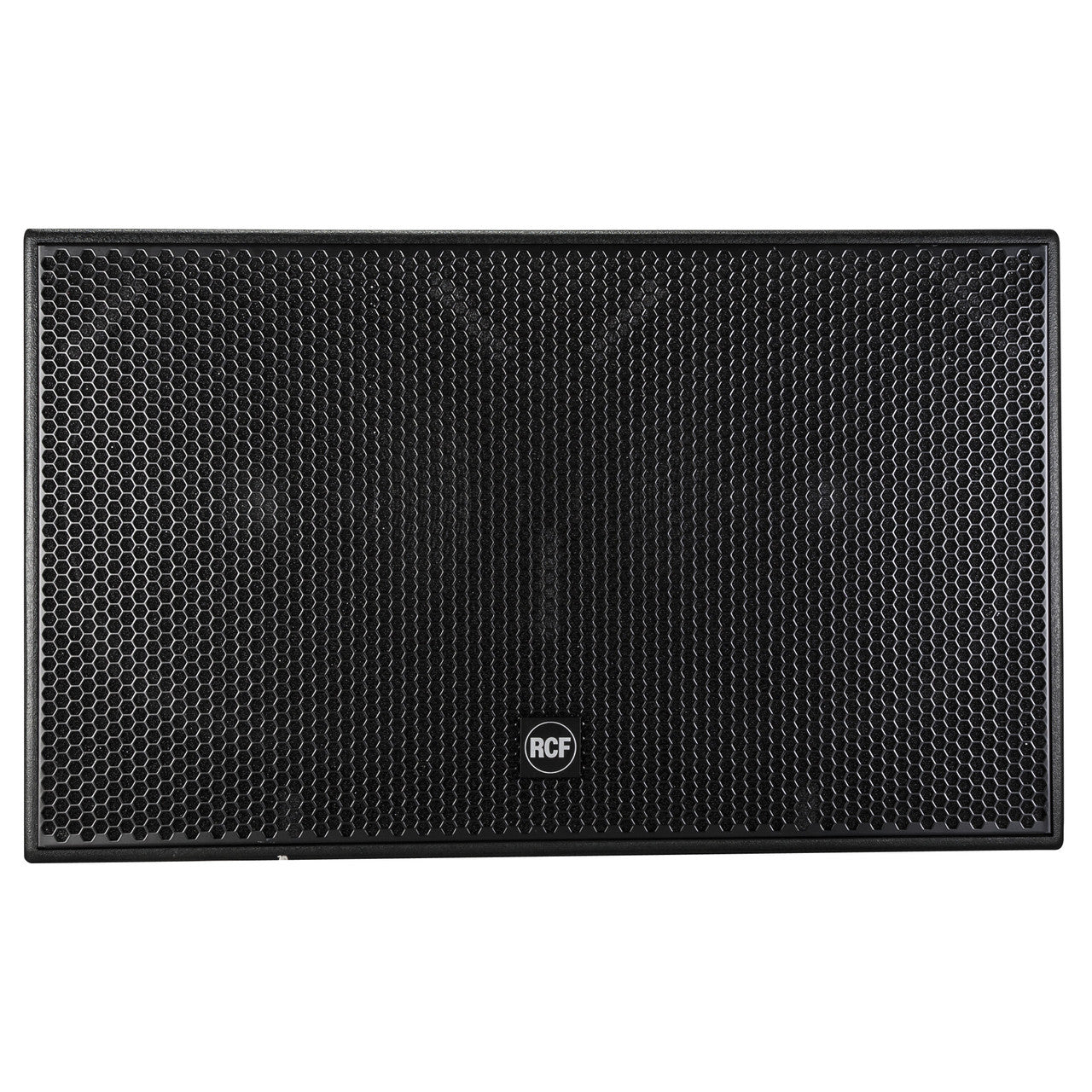

- Protective metal grille, polyester fabric coated
Specifications
Acoustical Specifications
- Frequency Response (-10 dB): 30 Hz – 200 Hz
- Max SPL @ 1 m: 141 dB
- System Sensitivity: 101 dB
Power Section
- Amplification: Full Range
- Nominal Impedance: 4 Ω
- Power Handling: 3,000 W
- Peak Power Handling: 12,000 W Peak
Transducers
- Woofer: 2 × 18", 4.0" V.C
Input / Output Section
- Input Connectors: Speakon® NL4
- Output Connectors: Speakon® NL4
Standard Compliance
- Safety Agency: CE Compliant
Physical Specifications
- Cabinet / Case Material: Baltic Birch Plywood
- Handles: Integrated Hand Carry Points
- Pole Mount / Cap: M20 Thread
- Grille: Metal
- Color: Black
Size / Weight
- Height: 639 mm (25.16 inches)
- Width: 1,045 mm (41.14 inches)
- Depth: 770 mm (30.31 inches)
- Weight: 80 kg (176.37 lbs)
Shipping Information
- Package Height: 675 mm (26.57 inches)
- Package Width: 1,080 mm (42.52 inches)
- Package Depth: 805 mm (31.69 inches)
- Package Weight: 85 kg (187.39 lbs)
