Description

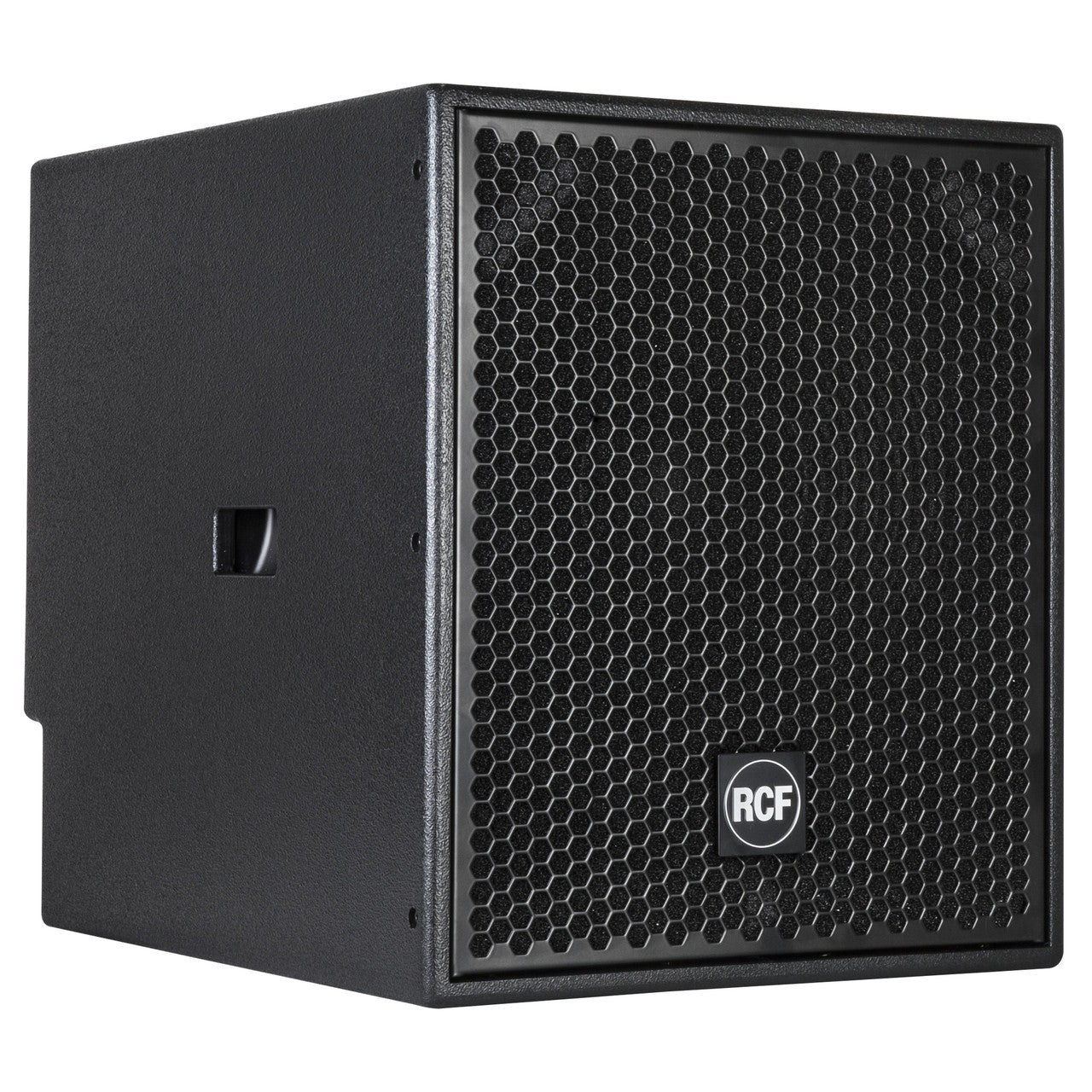

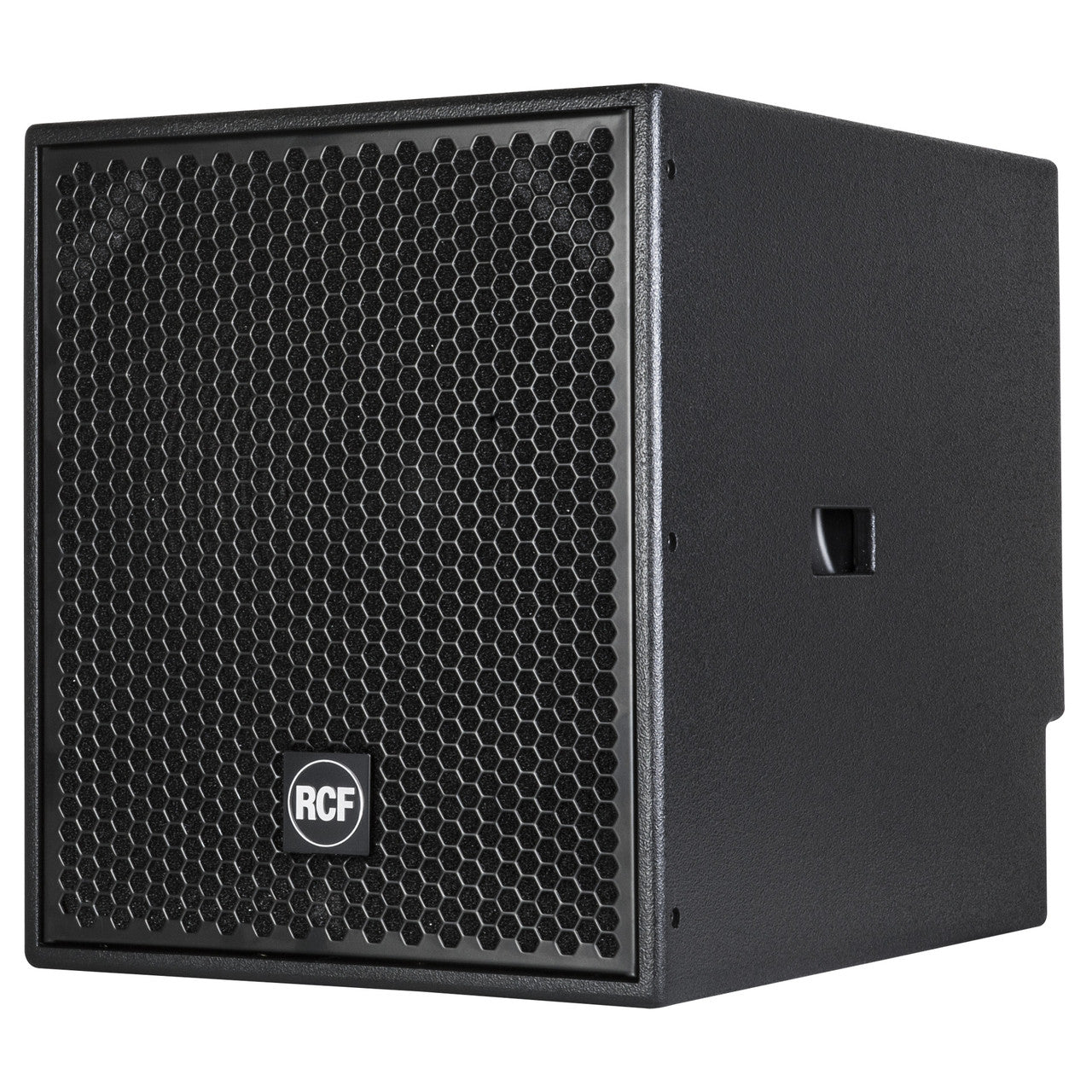

RCF S8015-MK2 Passive 6000W 15" High-Efficiency Bass Reflex Subwoofer
The S8015 II is a compact, high-output, bass reflex subwoofer. The system is equipped with an advanced, hypervented 15” RCF precision woofer. It features massive ceramic magnet and high excursion 4” copper voice coil. The cabinet is designed to achieve tight and maximised output. The system is able to produce a Max SPL of 133 dB and handles 1000 Watts AES. The loudspeaker enclosure shape is rectangular and the cabinet is constructed of multi-ply Baltic birch plywood and finished in a very resistant, textured, polyurethane black paint. It features a M20 polemount receptacle, rubber feet, 2 x recessed handles. The front steel grille is epoxy powder coated.
Features

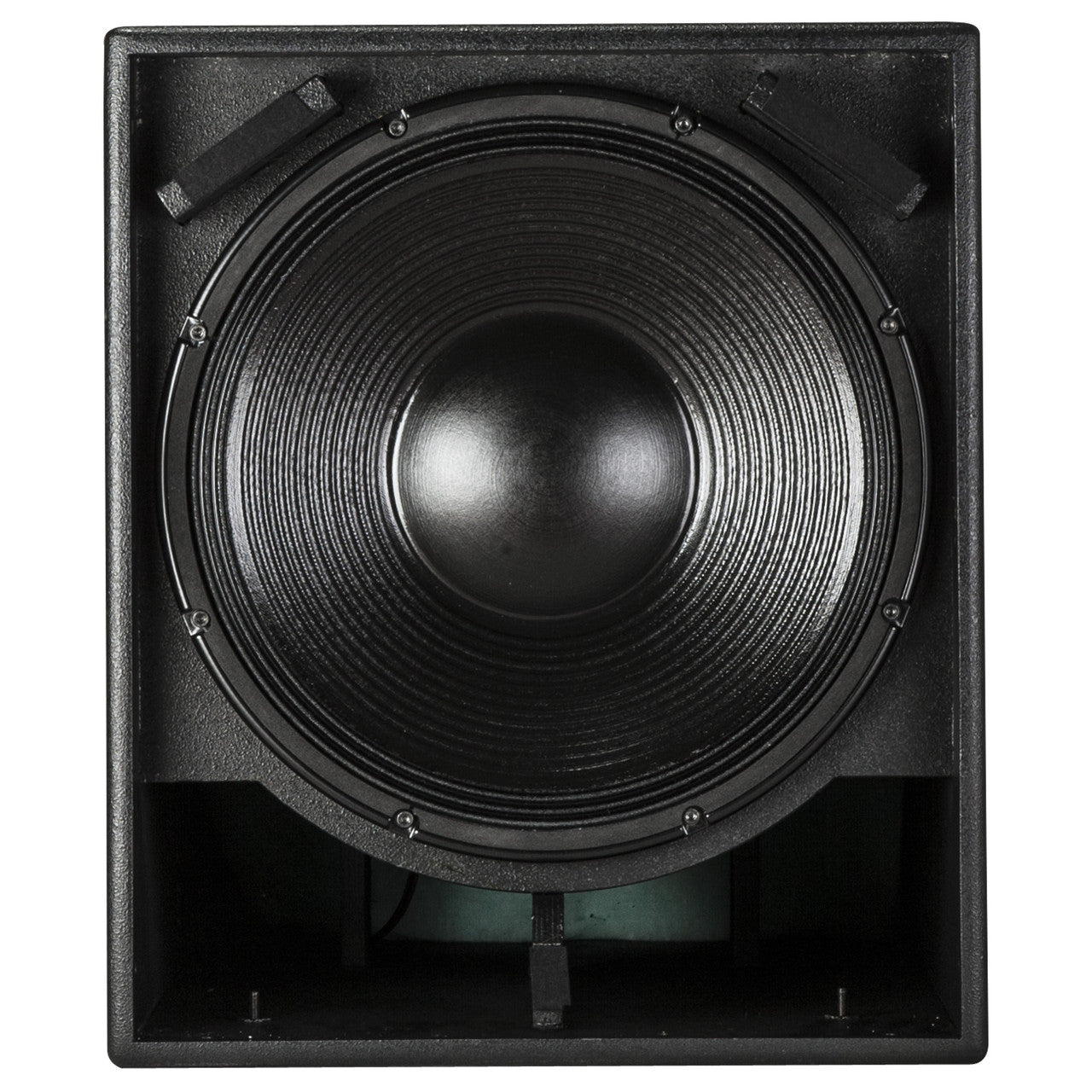

- 15" high-efficiency RCF Precision 4" voice-coil woofer with Inside/Outside Coil Technology
- 133 dB maximum sound pressure level
- Response down to 35 Hz

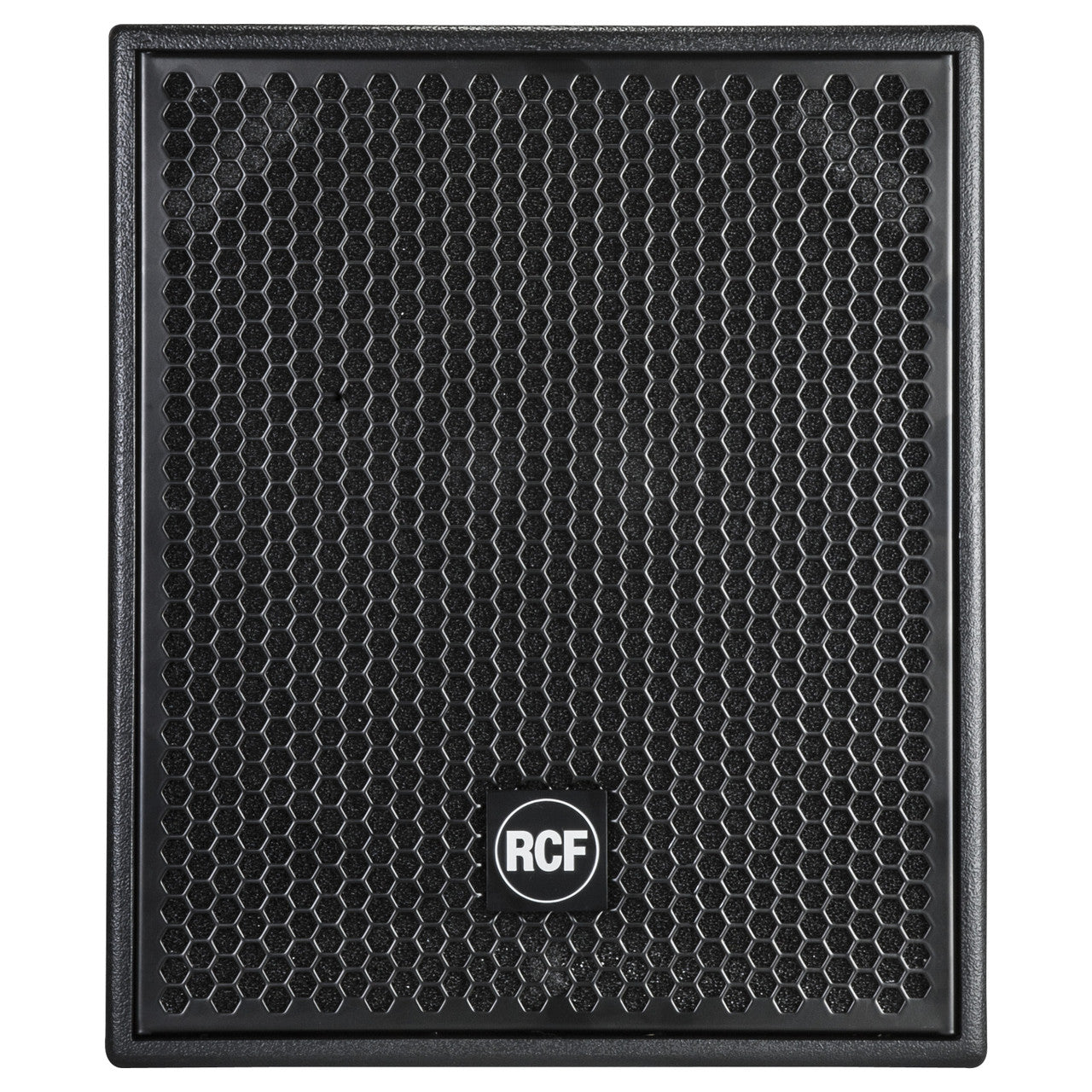

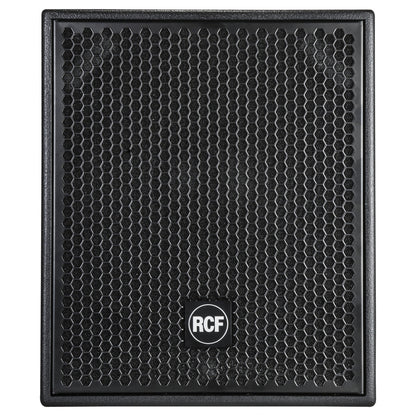

- Rectangular box enclosure with protective metal grille
- 35 mm standard pole mount in top section of cabinet
- Baltic Birch cabinet painted with black, heavy duty, textured epoxy
- Integrated hand carry points
Specifications
Acoustical Specifications
- Frequency Response (-10 dB): 35 Hz – 200 Hz
- Max SPL @ 1 m: 133 dB
- System Sensitivity: 98 dB
Power Section
- Amplification: Full Range
- Nominal Impedance: 8 Ω
- Power Handling: 1,500 W
- Peak Power Handling: 6,000 W Peak
Transducers
- Woofer: 15" Neo, 4.0" V.C

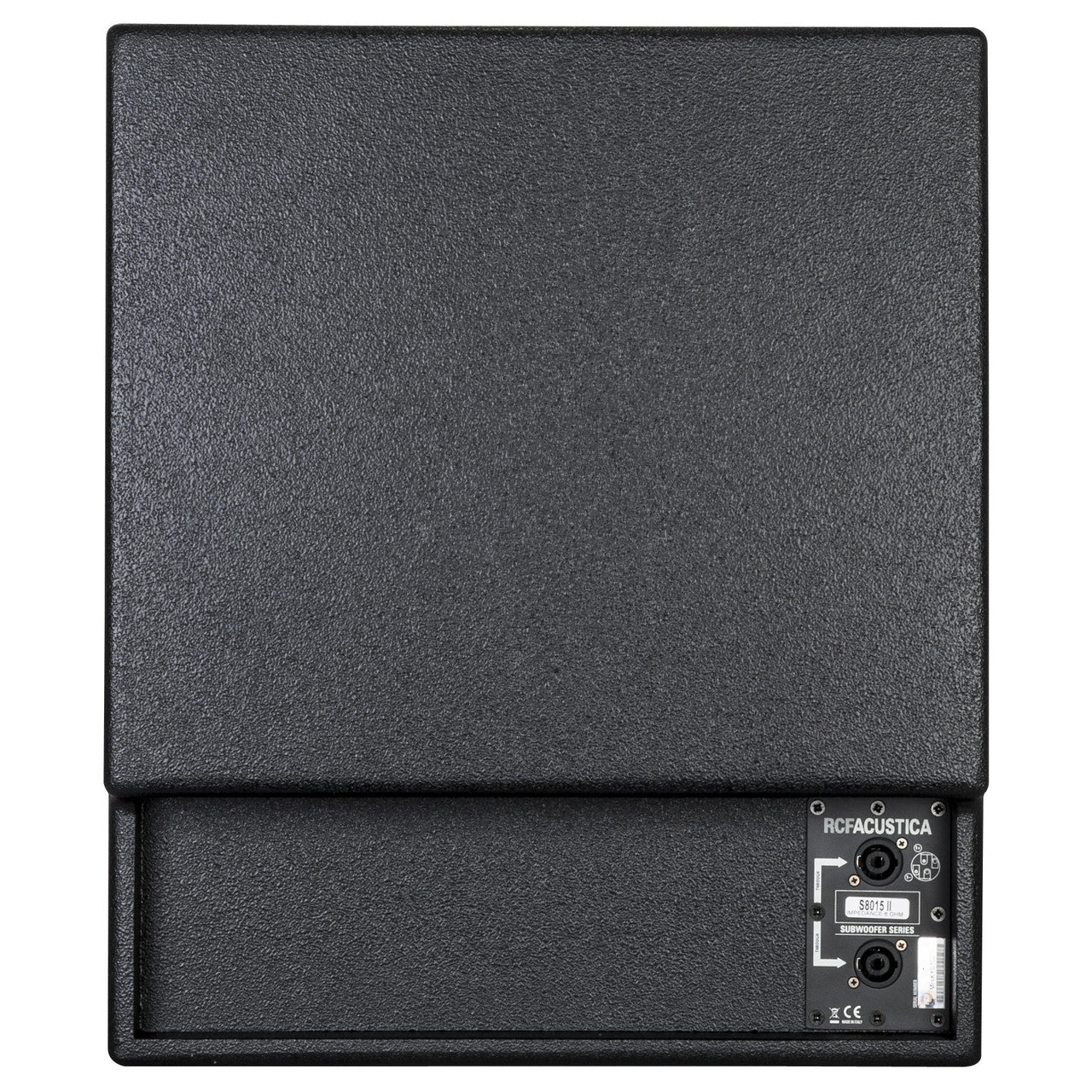

Input / Output Section
- Input Connectors: Speakon® NL4
- Output Connectors: Speakon® NL4
Standard Compliance
- Safety Agency: CE Compliant
Physical Specifications
- Cabinet / Case Material: Baltic Birch Plywood
- Handles: Integrated Hand Carry Points
- Pole Mount / Cap: M20 Thread
- Grille: Steel
- Color: Black
Size / Weight
- Height: 529 mm (20.83 inches)
- Width: 440 mm (17.32 inches)
- Depth: 615 mm (24.21 inches)
- Weight: 34 kg (74.96 lbs)
Shipping Information
- Package Height: 675 mm (26.57 inches)
- Package Width: 805 mm (31.69 inches)
- Package Depth: 565 mm (22.24 inches)
- Package Weight: 38 kg (83.78 lbs)
