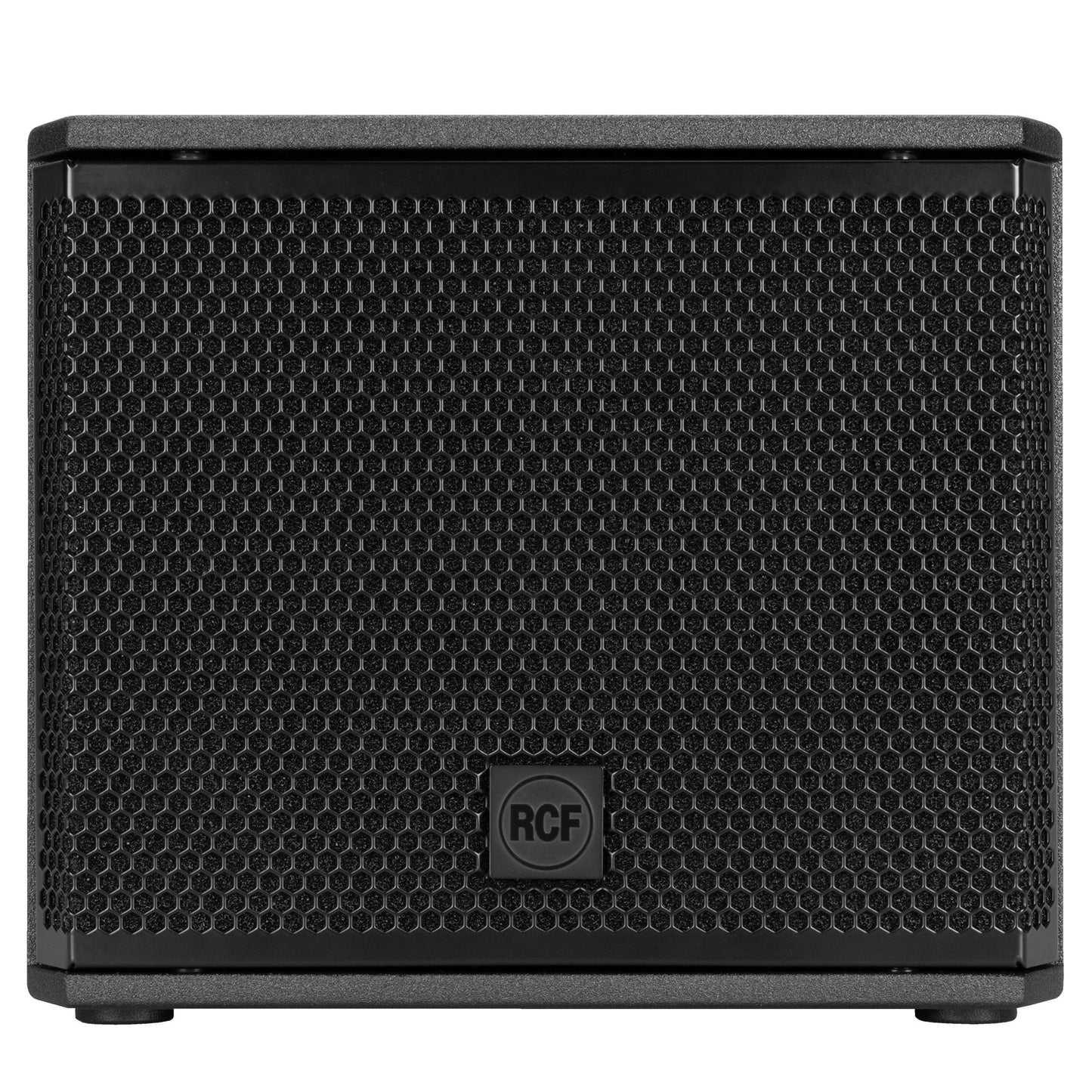

RCF S-08-A Active (4 X 250W @ 4 OHM) 8" Subwoofer for Satelite System, 4 Channels, Bluetooth

Active (4 X 250W @ 4 OHM) 8" Subwoofer for Satelite System, 4 Channels, Bluetooth

S 08-A is a self-powered audio system providing all those features required for a complete environment sonorization. It features a four channel class D amplifier able to power the integrated 8’’ woofer, 2 satellites lines for both mono and stereo applications, and an additional passive S 08 subwoofer. Line and mic inputs can be mixed in an optimized way balancing each single level. Bluetooth connectivity allows audio streaming from any mobile device, and comes alongside traditional RCA, combo XLR and 3.5mm jack connectors. S 08-A offers 8 different equalizations, optimized for music and voice reproduction. Specific HI-PASS filter values allow to combine the system with a wide range of RCF speaker models, ensuring high application flexibility.

FEATURES

• 4 x 250 W Class-D power amplifier

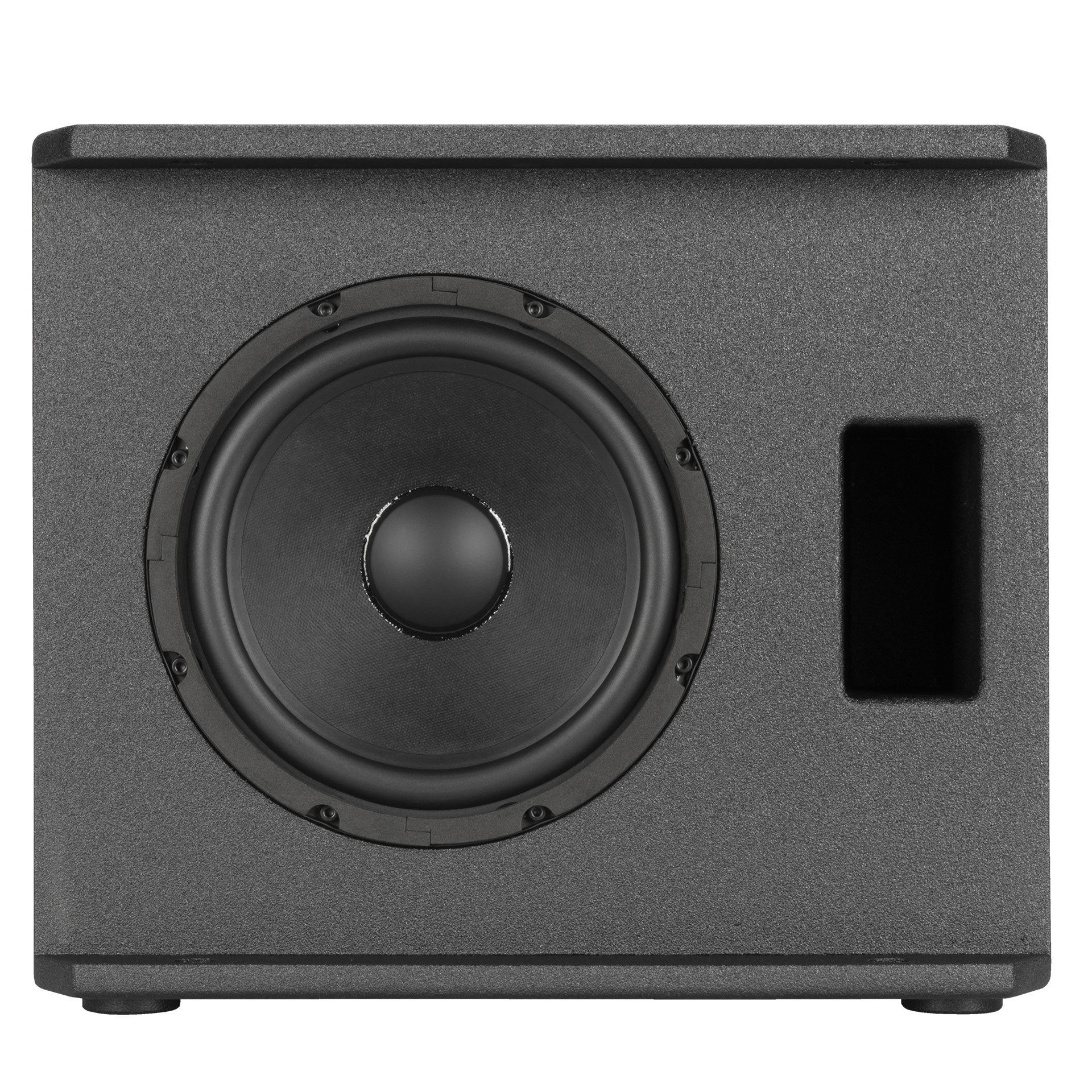

• Integrated 8'' subwoofer (1.5'' v.c.)
• On-board processing (8 different equalizations)
• Bluetooth audio streaming
• 3 line inputs and 2 mic inputs
• High quality plywood cabinet
• Steel front grille with clothing
• 6 pole EUROBLOCK connector

Specifications

AMPLIFIER SPECIFICATIONS

• Amplifier Class: D
• Output Power: 4 x 250 W @ 4 ohm 4 x 250 W @ 8 ohm
• Frequency Response (-3dB): 20 Hz - 20000 Hz

INPUT SECTION

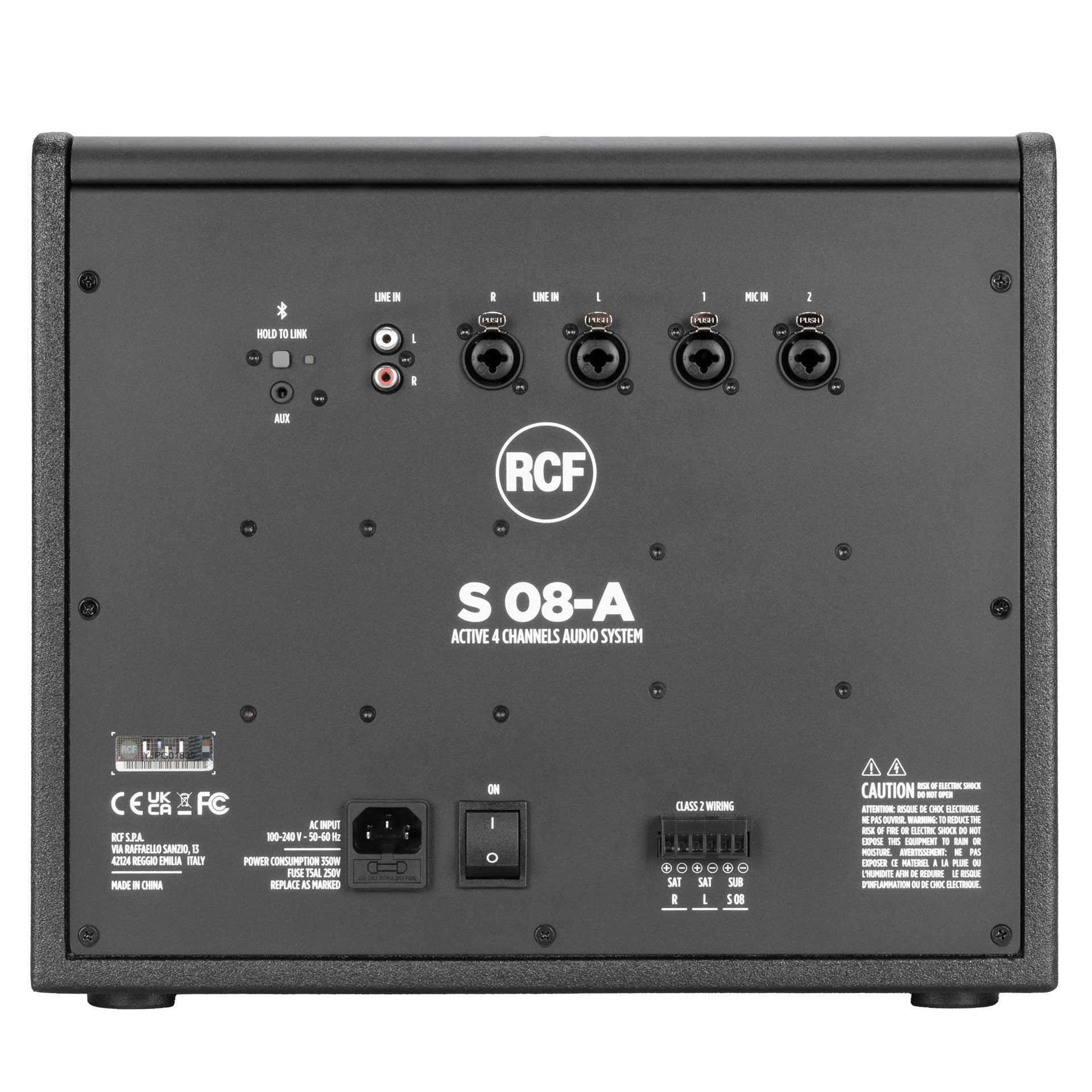

• Total number of inputs: 4
• Mic inputs: 2
• Mic connectors: Combo XLR/Jack
• Line inputs: 2
• Line connectors: Combo XLR/Jack, JACK, RCA

OUTPUT SECTION

• Power output connectors: Euroblock

PROCESSING

• DSP: Yes
• EQ Filters: 8 different equalizations, optimized for music and voice reproduction

CONFIGURATION AND CONTROL

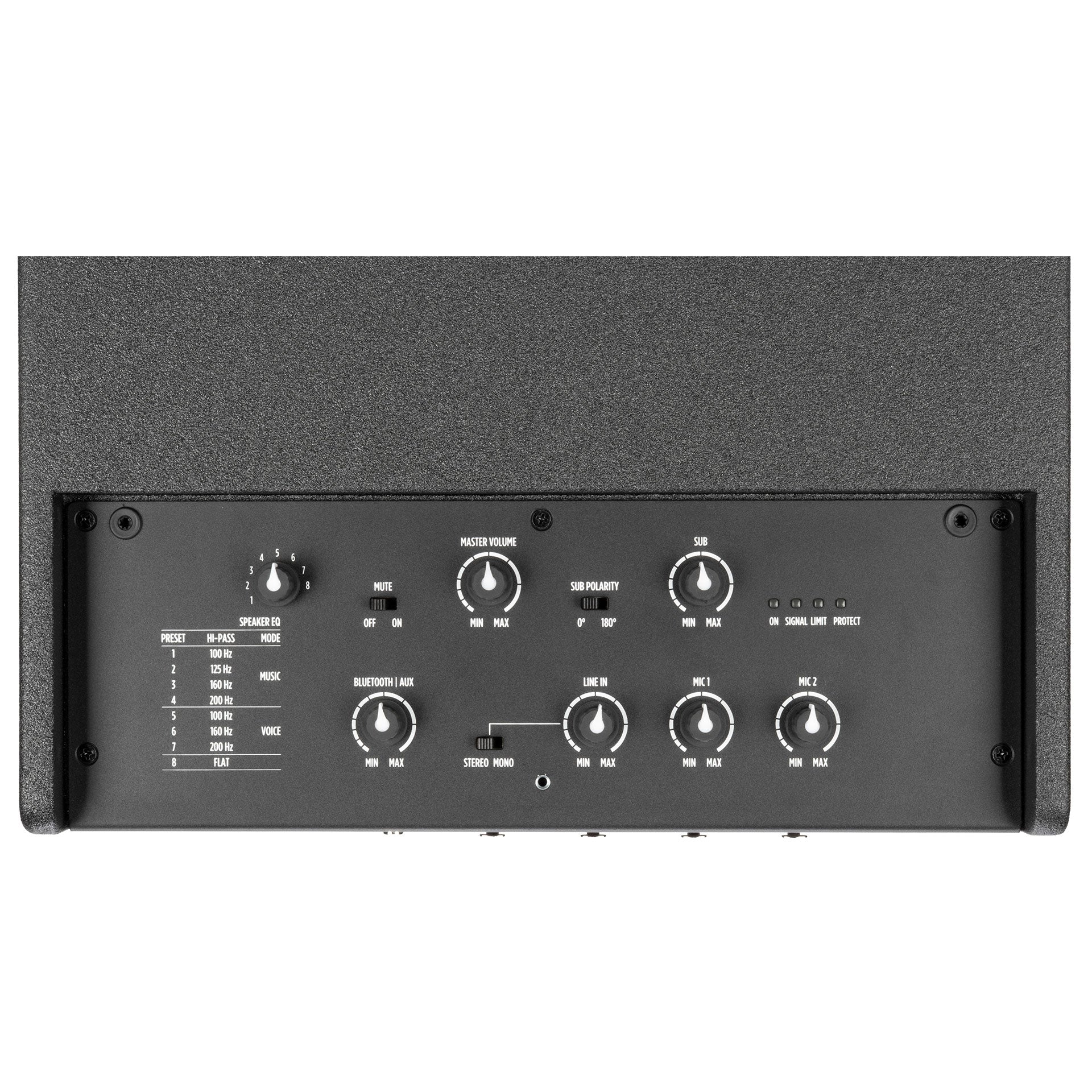

• Configuration: Front panel
• Number of programs/presets: 8

PROTECTIONS

• Short circuit: Yes
• Thermal: Yes
• DC: Yes
• Fuses: Yes
• VHF (Very High Frequencies): Yes

AUDIO SOURCES

• Bluetooth: Yes

POWER REQUIREMENT

• Operating voltage: 90-240 V~ 50/60Hz

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Cabinet/Case Material: Plywood
• Grille: Steel with clothing
• Color: Black

SIZE / WEIGHT

• Height: 319 mm / 12.56 inches
• Width: 370 mm / 14.57 inches
• Depth: 337 mm / 13.27 inches
• Weight: 10.2 kg / 22.49 lbs

SHIPPING INFORMATION

• Package Height: 367 mm / 14.45 inches
• Package Width: 416 mm / 16.38 inches
• Package Depth: 383 mm / 15.08 inches
• Package Weight: 12.2 kg / 26.9 lbs
