Description
Passive 6000W 15" 2-Way Point Source Module Speaker (22.5°x 60° Coverage)

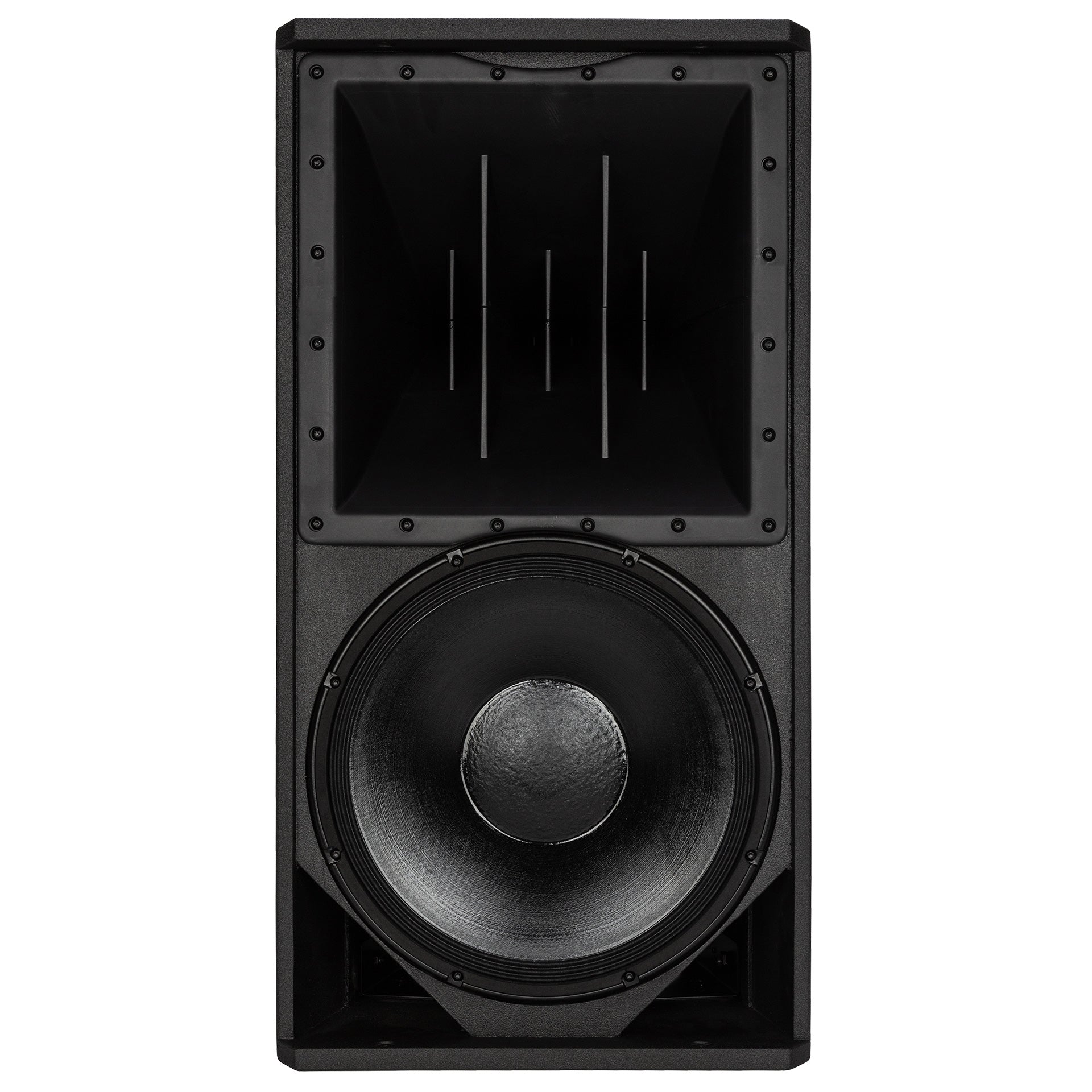

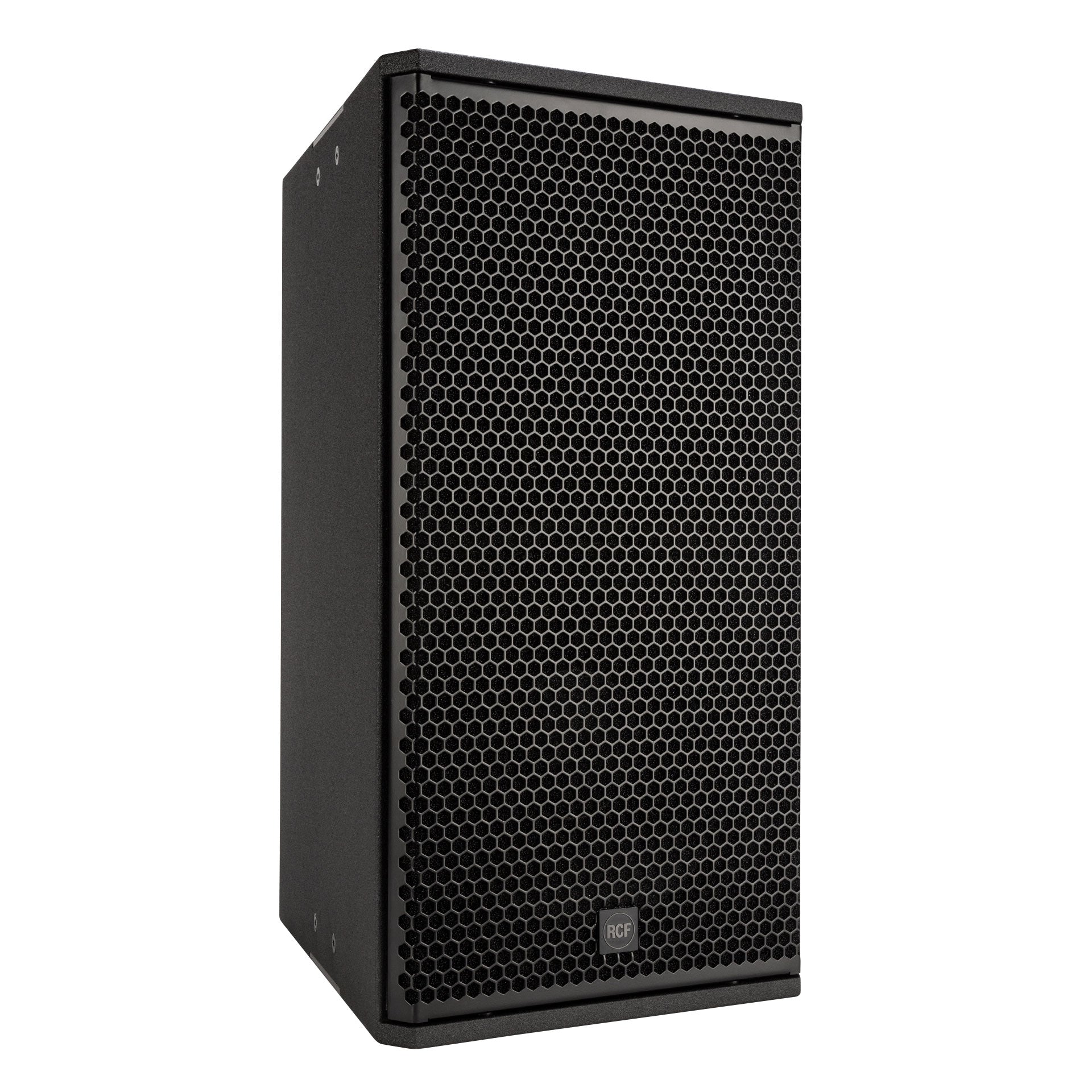

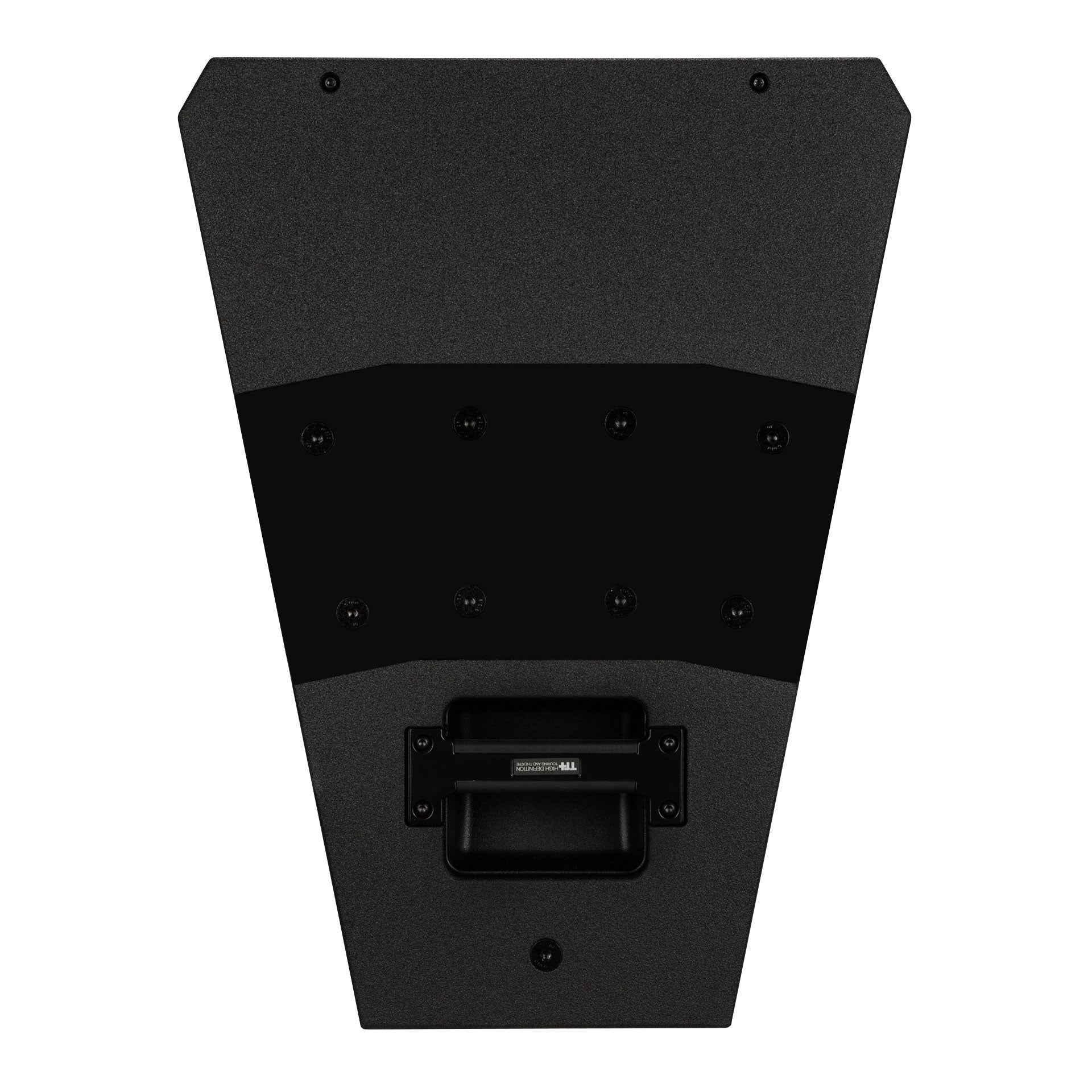

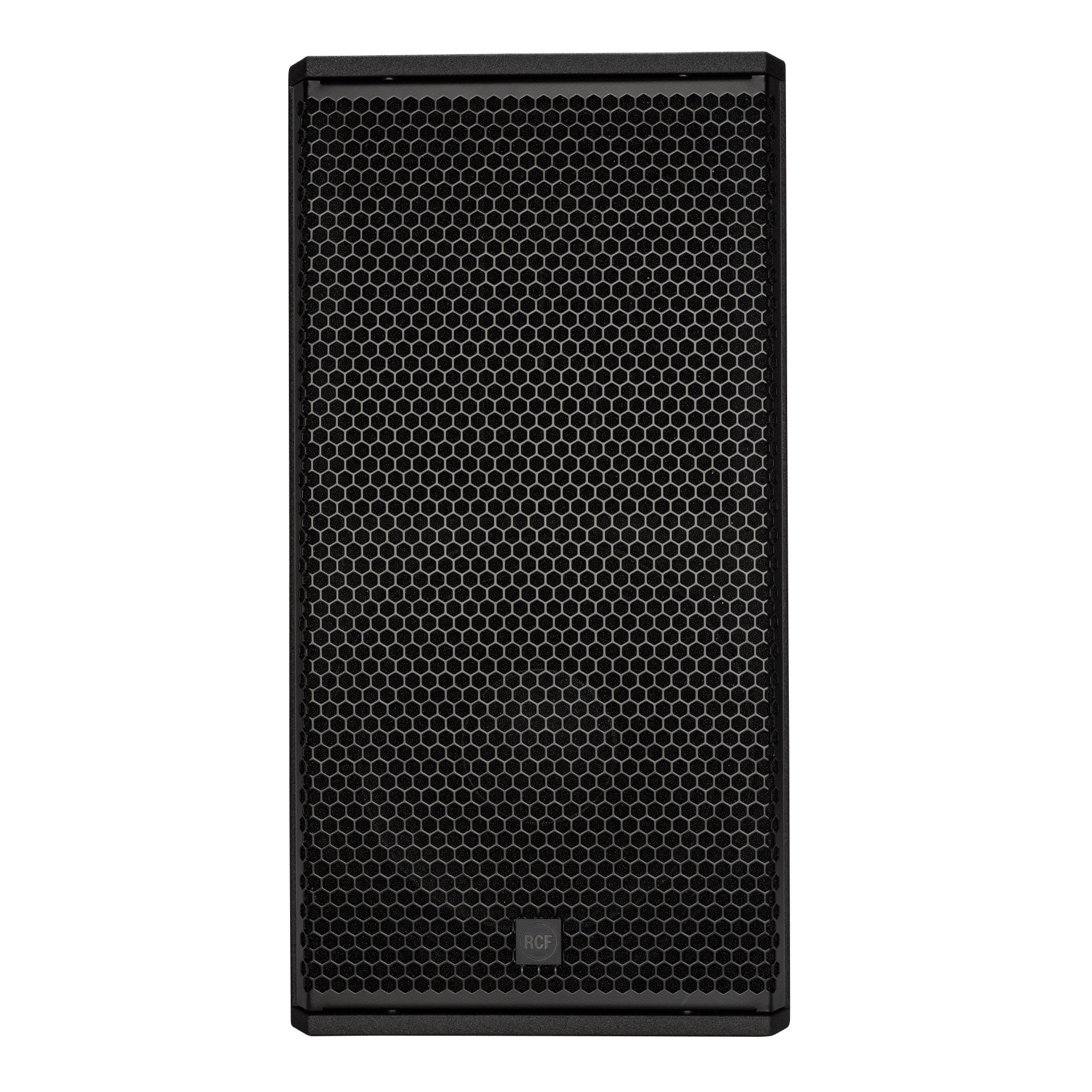

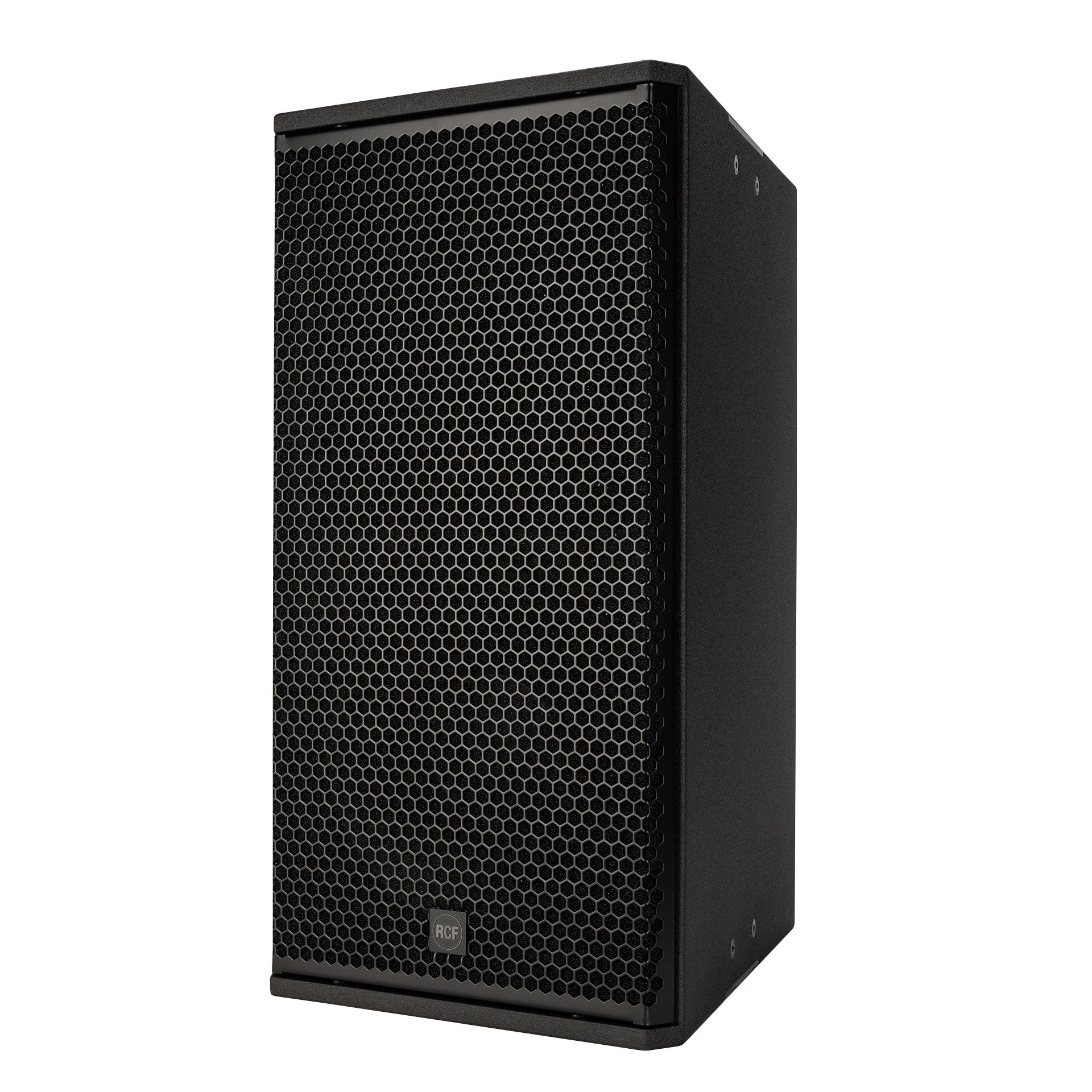

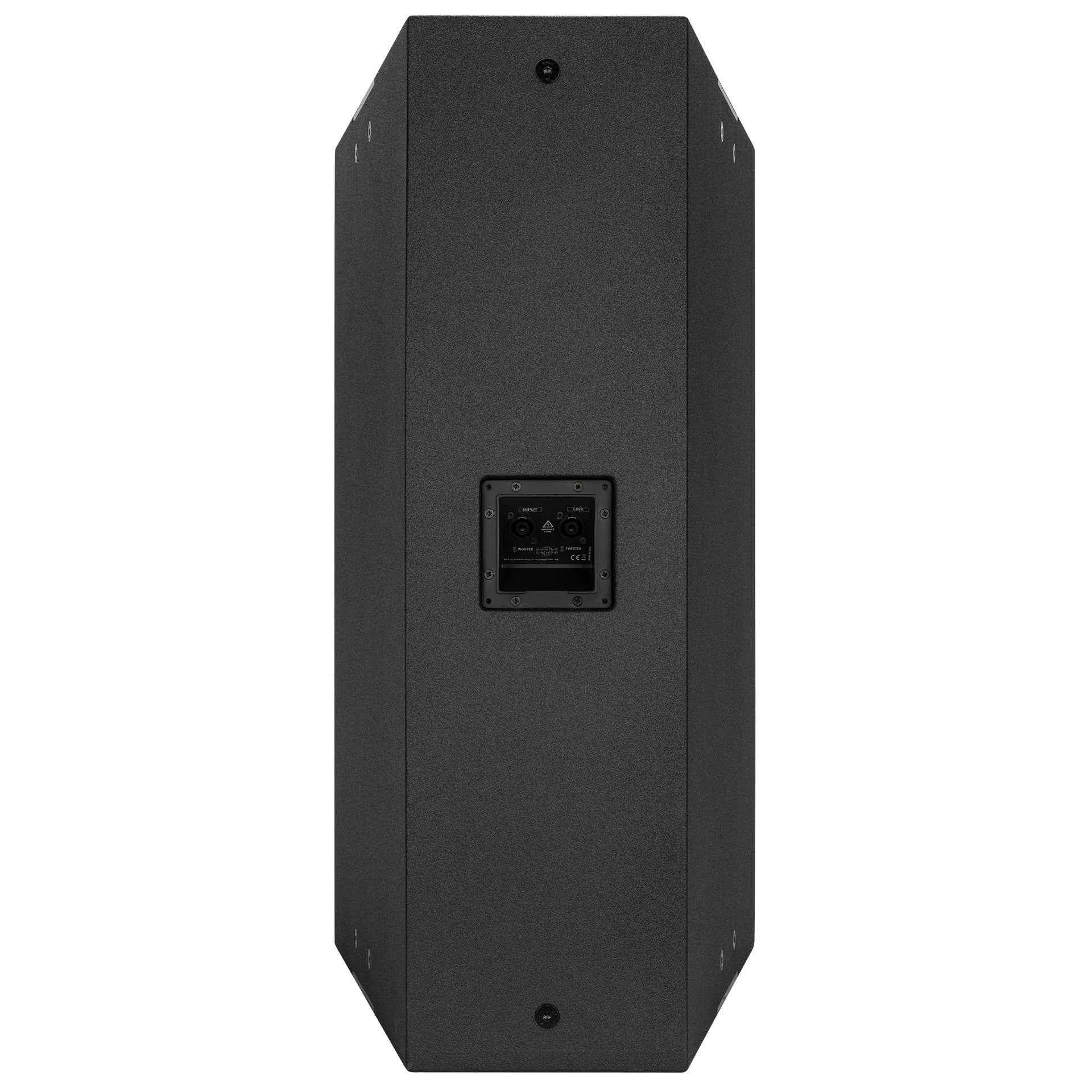

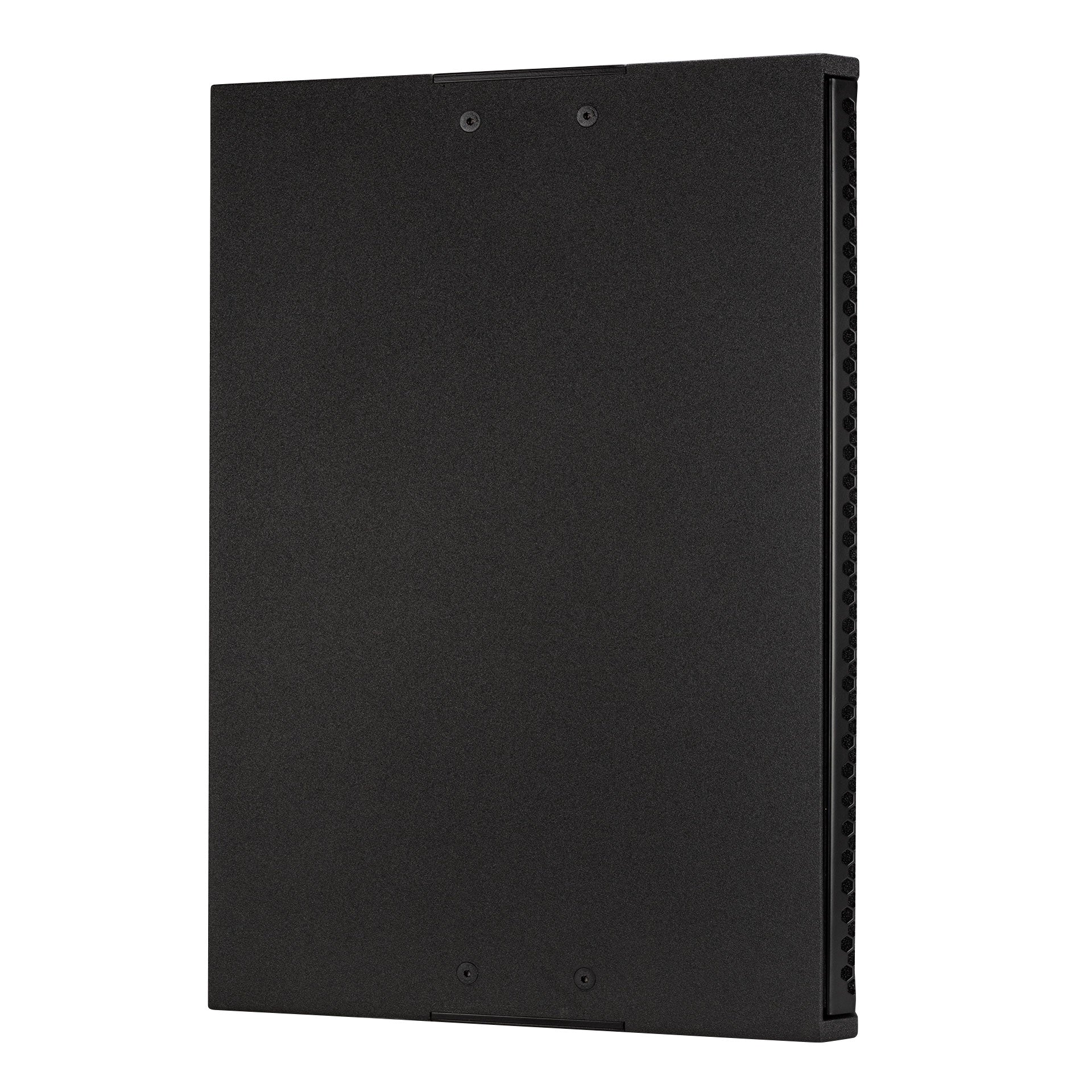

Q 15 is a two-way, bi-amp point source module for mid-distance and long-throw applications, combining a compact size with very high output and accurate speech and music reproduction. The system is equipped with the latest generation of RCF precision transducers featuring one 15" neodymium woofer and a 4" titanium-neodymium compression driver for a total of 1500 W power rating and 60° (vertical) and 22.5° (horizontal) directivity. The enclosure shape is trapezoidal and offers a 22.5° coupling angle on each side. Q Series typical applications span from point-source configurations for mid-distance applications to clusters up to 8 modules for long-throw applications. The grille is epoxy-coated, with a woven fabric backing for dust protection. The cabinet is made of multi-ply Baltic birch plywood with a highly resistant, textured, black polyurea finishing and features two rear-panel Neutrik Speakon NL4 connections for bi-amplification (4 poles)
FEATURES
- 138 dB Max SPL
- 1500 W AES power handling
- 45 ÷ 20000 Hz
- 60° x 22.5° constant directivity coverage
- 1 x 15" neodymium woofer, 4.0" v.c.
- 4" neodymium compression driver
- Baltic birch plywood cabinet
- Steel front grille with clothing
- Integrated array mechanics
- Multi-pole Speakon connectors
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response (-10dB): 45 Hz - 20000 Hz
-
Max SPL @ 1m: 138 dB
-
Horizontal coverage angle: 22.5°
-
Vertical coverage angle: 60°
-
Directivity index Q: 20
POWER SECTION
-
Amplification: Bi-Amp
-
Crossover Frequencies: 600 Hz
-
Nominal Impedance LF: 8 ohm
-
Power Handling LF: 1350 W
-
Peak Power Handling LF: 5400 W
-
Sensitivity LF: 97 dB
-
Nominal Impedance HF: 8 ohm
-
Power Handling HF: 150 W
-
Peak Power Handling HF: 600 W
-
Sensitivity HF: 113 dB
-
Protections HF: Capacitor on Compression Driver
-
Recommended Amplifiers: XPS 16K, XPS 16KD, QPS 10K
TRANSDUCERS
-
Compression Driver: 1 x 1.4'' neo, 4.0'' v.c
-
Woofer: 1 x 15'' neo, 4.0'' v.c
INPUT/OUTPUT SECTION
-
Input connectors: Speakon® NL4
-
Output connectors: Speakon® NL4
STANDARD COMPLIANCE
-
Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Baltic birch plywood
-
Hardware: Side and rear array rigging point
-
Handles: 2
-
Grille: Steel
-
Color: Black - RAL 9005
SIZE / WEIGHT
-
Height: 860 mm / 33.86 inches
-
Width: 446 mm / 17.56 inches
-
Depth: 590 mm / 23.23 inches
-
Weight: 55 kg / 121.25 lbs
SHIPPING INFORMATION
-
Package Height: 965 mm / 37.99 inches
-
Package Width: 585 mm / 23.03 inches
-
Package Depth: 775 mm / 30.51 inches
-
Package Weight: 59 kg / 130.07 lbs
