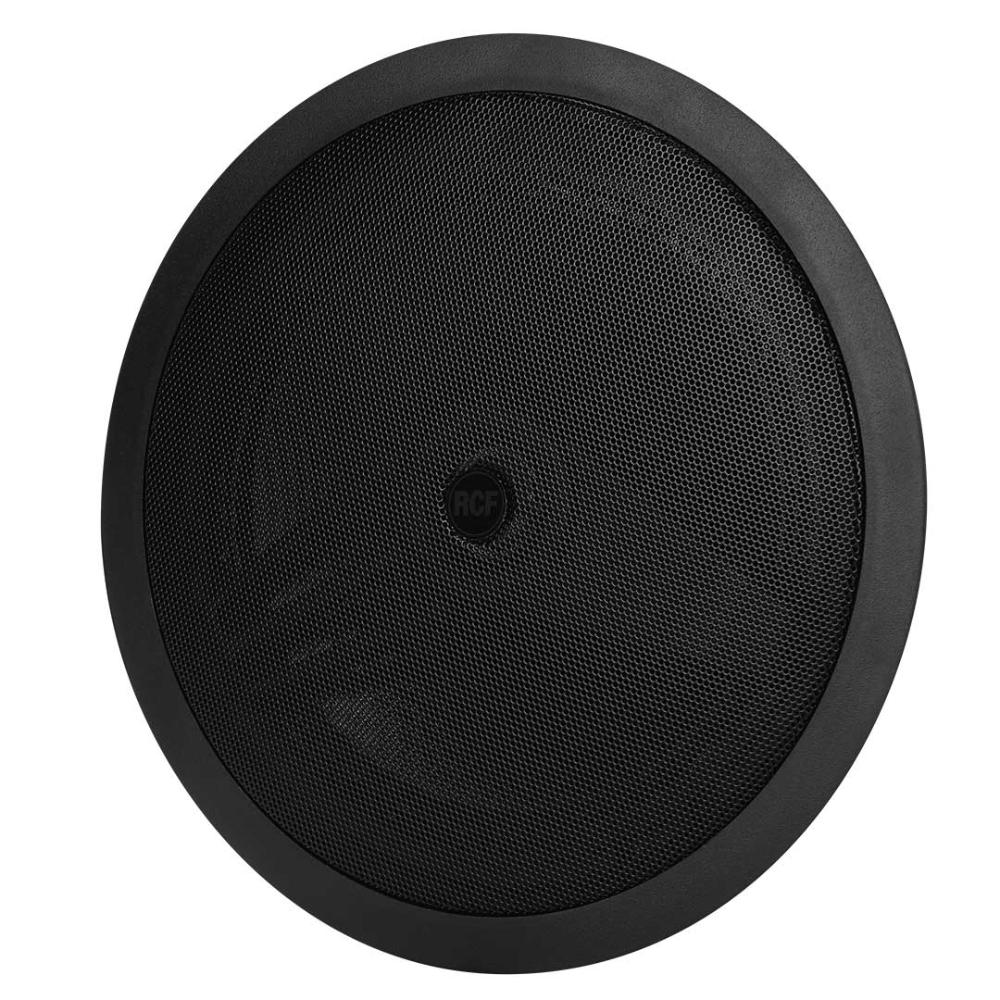

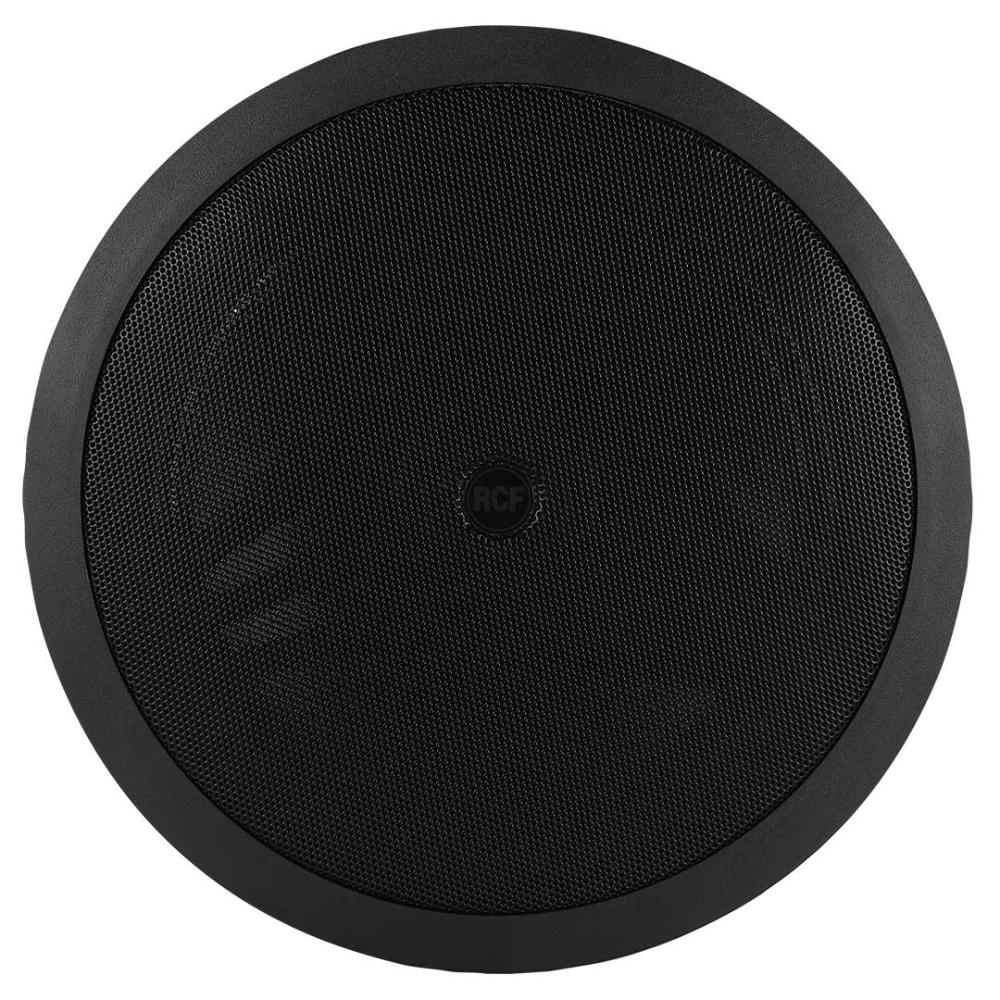

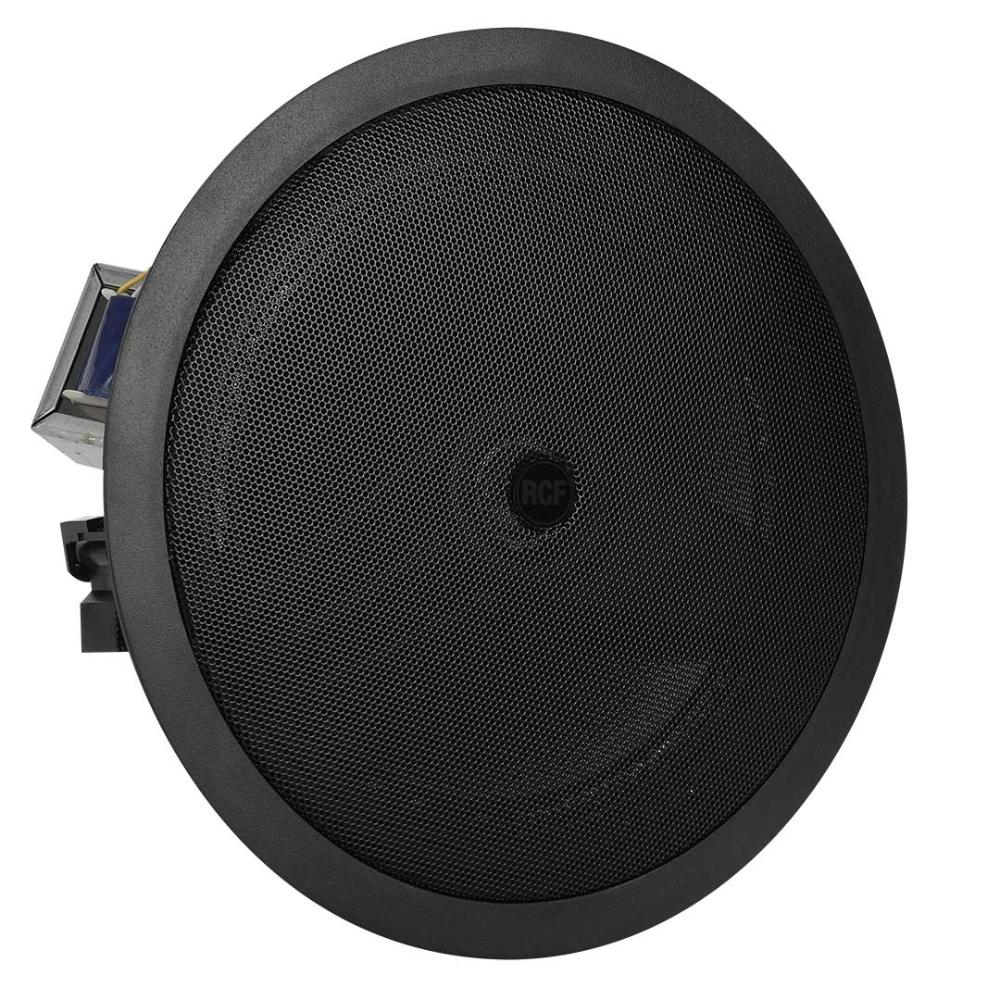

RCF PL8X Passive 80W 8" 2-Way Coaxial Ceiling Speaker with Transformer - 70/100V (IP44)

RCF PL8X Passive 80W 8" 2-Way Coaxial Ceiling Speaker with Transformer - 70/100V (IP44)

Write a review

SKU: PL8X

$159.00
$159.00
Sale Sold out
Shipping calculated at checkout.

Available options

View full details

Description

Passive 80W 8" 2-Way Coaxial Ceiling Speaker with Transformer - 70/100V (IP44)

PL 8X is a ceiling speakers featuring elegant and innovative design that can be flush-mounted in false ceilings or panels. Incorporating a 8” coaxial woofer with a 1” tweeter placed on a bridge support. PL 8X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.

Features

  • 8" woofer with 1" dome tweeter
  • Power selectable (70 V / 100 V): 20 W – 10 W – 5 W – 2.5 W
  • 93 dB sensitivity
  • Colour white RAL 9003 and black RAL 9005
  • Plastic frame UL 94 V0, aluminium grille

    • Specifications

    Acoustical specifications
    Frequency Response (-10dB) 60 Hz - 20000 Hz
    Max SPL @ 1m 109 dB
    Coverage angle 80°
    System Sensitivity 93 dB
    Power section
    Amplification Full Range
    Power Handling 20 W RMS
    Peak Power Handling 80 W PEAK
    Recommended Amplifiers DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162
    Transducers
    Dome Tweeter 1.0''
    Woofer 8''
    Input/Output section
    Input connectors Screw Terminals
    Output connectors Screw Terminals
    Constant Voltage Transformer 70/100 V
    Power selection 1 20 W - 500 ohm
    Power selection 2 10 W - 1000 ohm
    Power selection 3 5 W - 2000 ohm
    Power selection 4 2.5 W - 4000 ohm
    Standard compliance
    IP protection grade IP 44
    Safety agency CE compliant
    Physical specifications
    Cabinet/Case Material Plastic
    Hardware Plastic Material
    Grille Aluminium
    Color White - RAL 9003, Black - RAL 9005
    Size / Weight
    Depth 88 mm / 3.46 inches
    Recessed Depth 80 mm / 3.15 inches
    Diameter 247 mm / 9.72 inches
    Cut out diameter 224 mm / 8.82 inches
    Weight 1.23 kg / 2.71 lbs
    Shipping information
    Package Height 280 mm / 11.02 inches
    Package Width 280 mm / 11.02 inches
    Package Depth 130 mm / 5.12 inches
    Package Weight 2.09 kg / 4.61 lbs
