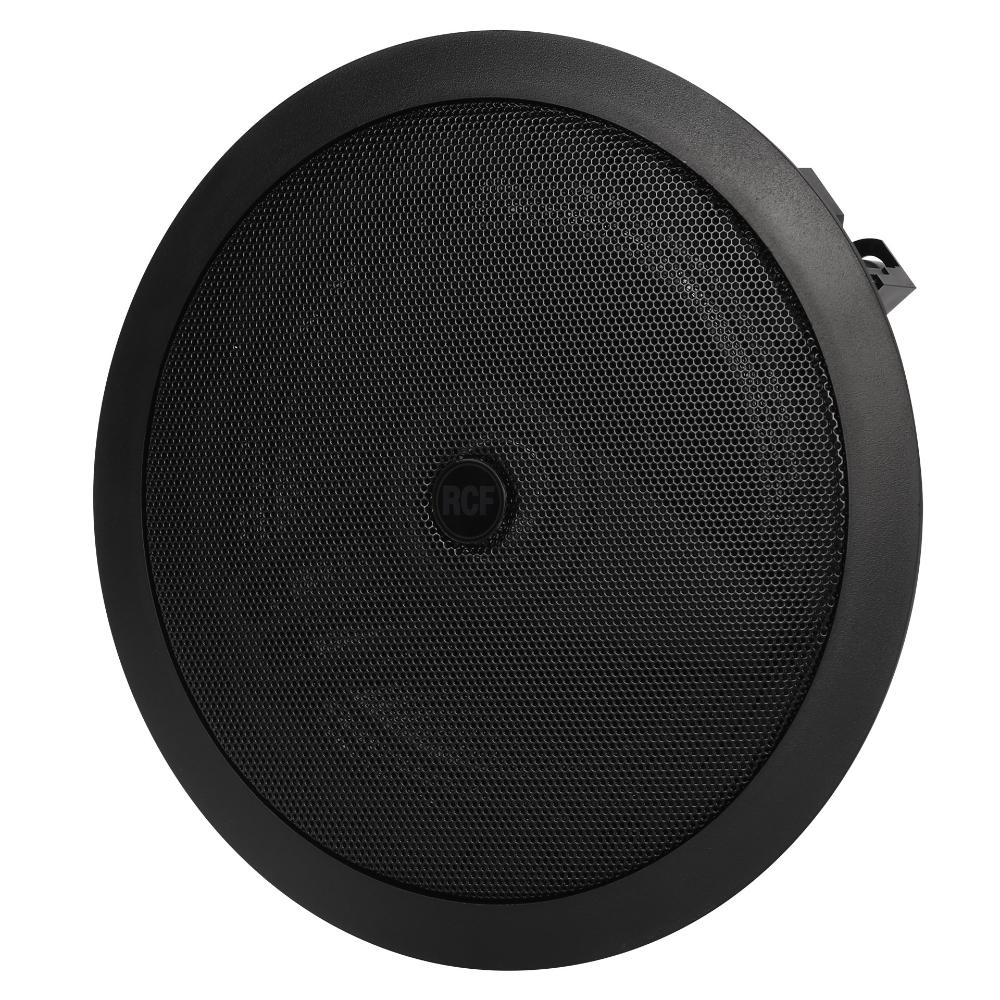

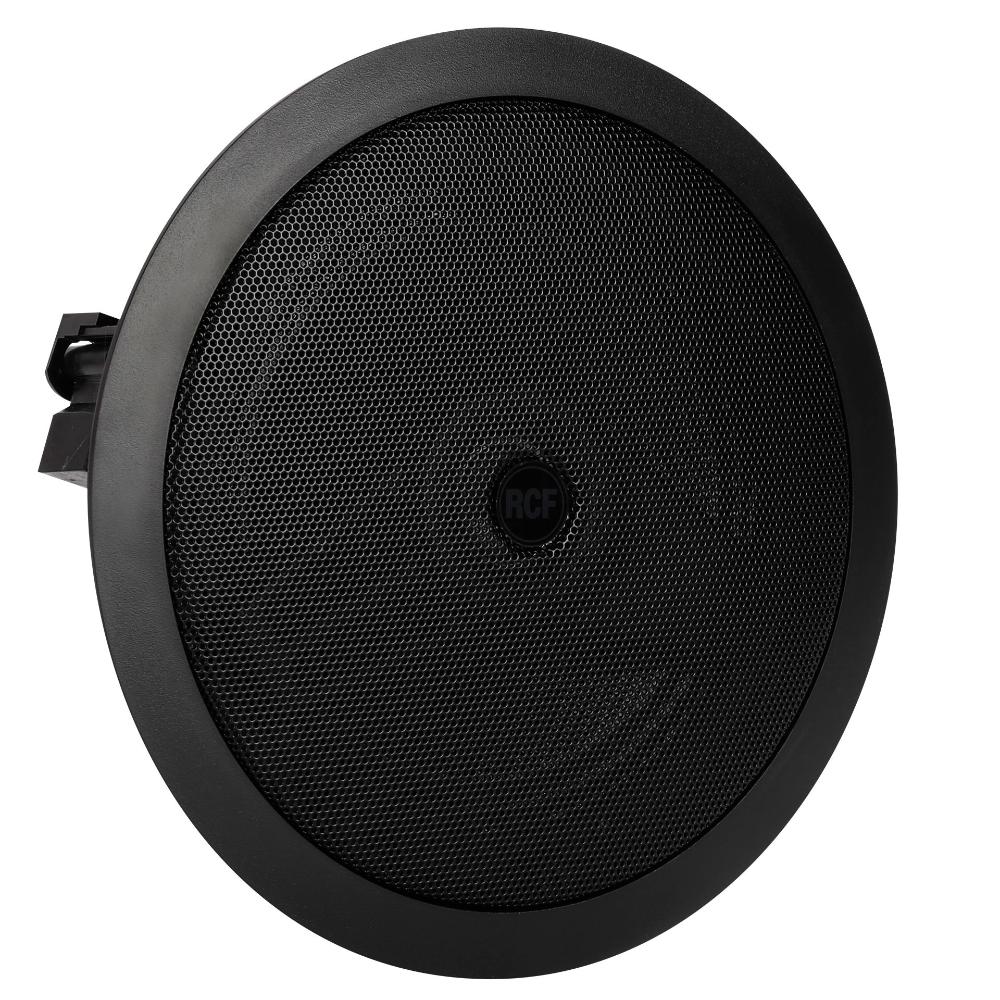

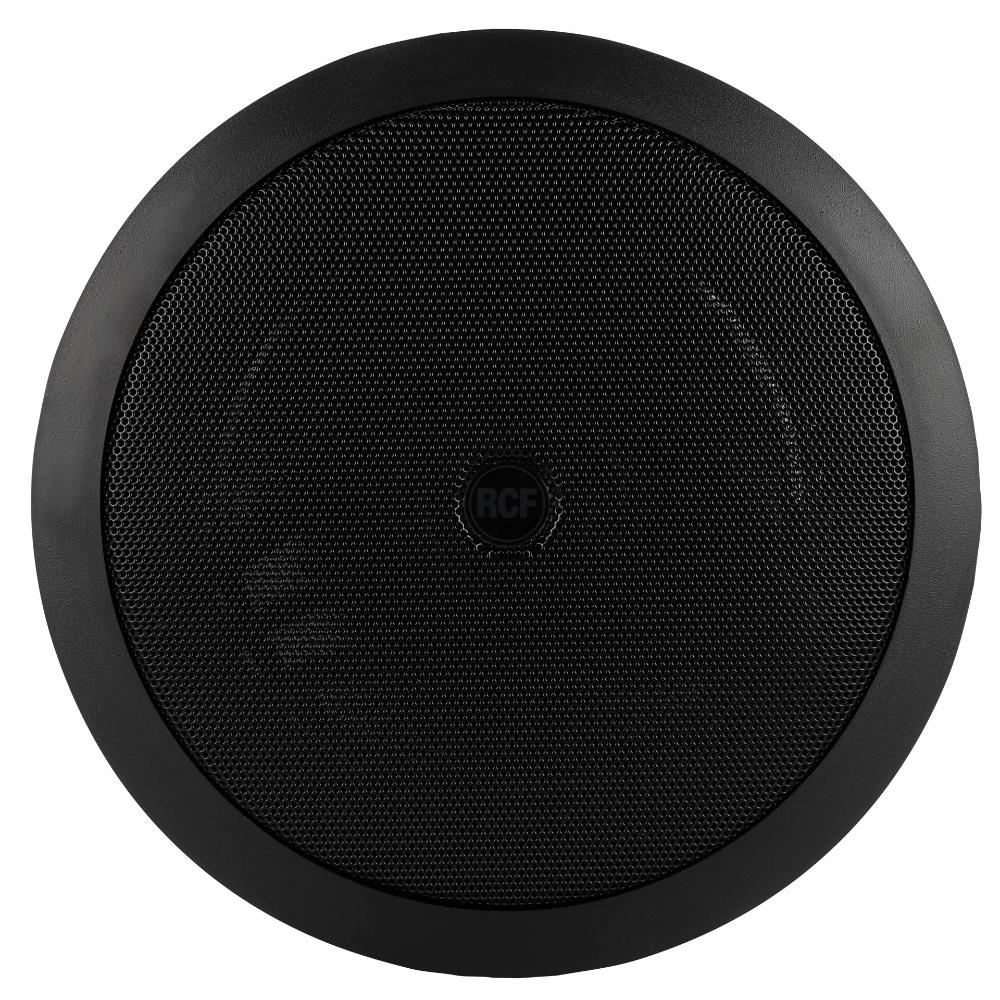

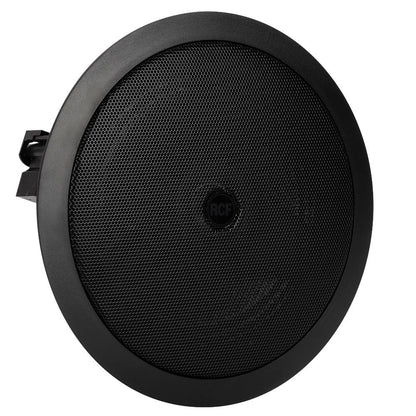

RCF PL 6X B 6" Coax Flush Mnt. Ceil. Speaker With Line Transf., 12W, IP. 44 (Black)

RCF PL 6X B 6" Coax Flush Mnt. Ceil. Speaker With Line Transf., 12W, IP. 44 (Black)

Write a review

SKU: PL 6X B

$119.00
$119.00
Sale Sold out
Shipping calculated at checkout.

Available options

View full details

Description

6" Coax Flush Mnt. Ceil. Speaker With Line Transf., 12W, IP. 44 (Black)

PL 6X is a ceiling speakers featuring elegant and innovative design that can be flushmounted in false ceilings or panels. Incorporating a 6” coaxial woofer with a 1” tweeter placed on a bridge support. PL 6X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks toa special three-hook system that avoids the need for using screws and pallet or other attachment elements.

Features

  • 6" woofer with 1" dome tweeter
  • Power selectable (70 V / 100 V): 12 W – 6 W – 3 W – 1.5 W
  • 92 dB sensitivity
  • Colour white RAL 9003 and black RAL 9005
  • Plastic frame UL 94 V0, aluminium grille

    • Specifications

    Acoustical specifications
    Frequency Response (-10dB) 70 Hz - 20000 Hz
    Max SPL @ 1m 106 dB
    Coverage angle 100°
    System Sensitivity 92 dB
    Power section
    Amplification Full Range
    Power Handling 12 W RMS
    Peak Power Handling 48 W PEAK
    Recommended Amplifiers DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162
    Transducers
    Dome Tweeter 1.0''
    Woofer 6.0''
    Input/Output section
    Input connectors Screw Terminals
    Output connectors Screw Terminals
    Constant Voltage Transformer 70/100 V
    Power selection 1 12 W - 833 ohm
    Power selection 2 6 W - 1667 ohm
    Power selection 3 3 W - 3333 ohm
    Power selection 4 1.5 W - 6667 ohm
    Standard compliance
    IP protection grade IP 44
    Safety agency CE compliant
    Physical specifications
    Cabinet/Case Material Plastic
    Hardware Plastic Material
    Grille Aluminium
    Color White - RAL 9003, Black - RAL 9005
    Size / Weight
    Depth 73 mm / 2.87 inches
    Recessed Depth 66 mm / 2.6 inches
    Diameter 204 mm / 8.03 inches
    Cut out diameter 182 mm / 7.17 inches
    Weight 0.78 kg / 1.72 lbs
    Shipping information
    Package Height 240 mm / 9.45 inches
    Package Width 240 mm / 9.45 inches
    Package Depth 110 mm / 4.33 inches
    Package Weight 1.56 kg / 3.44 lbs
