Description

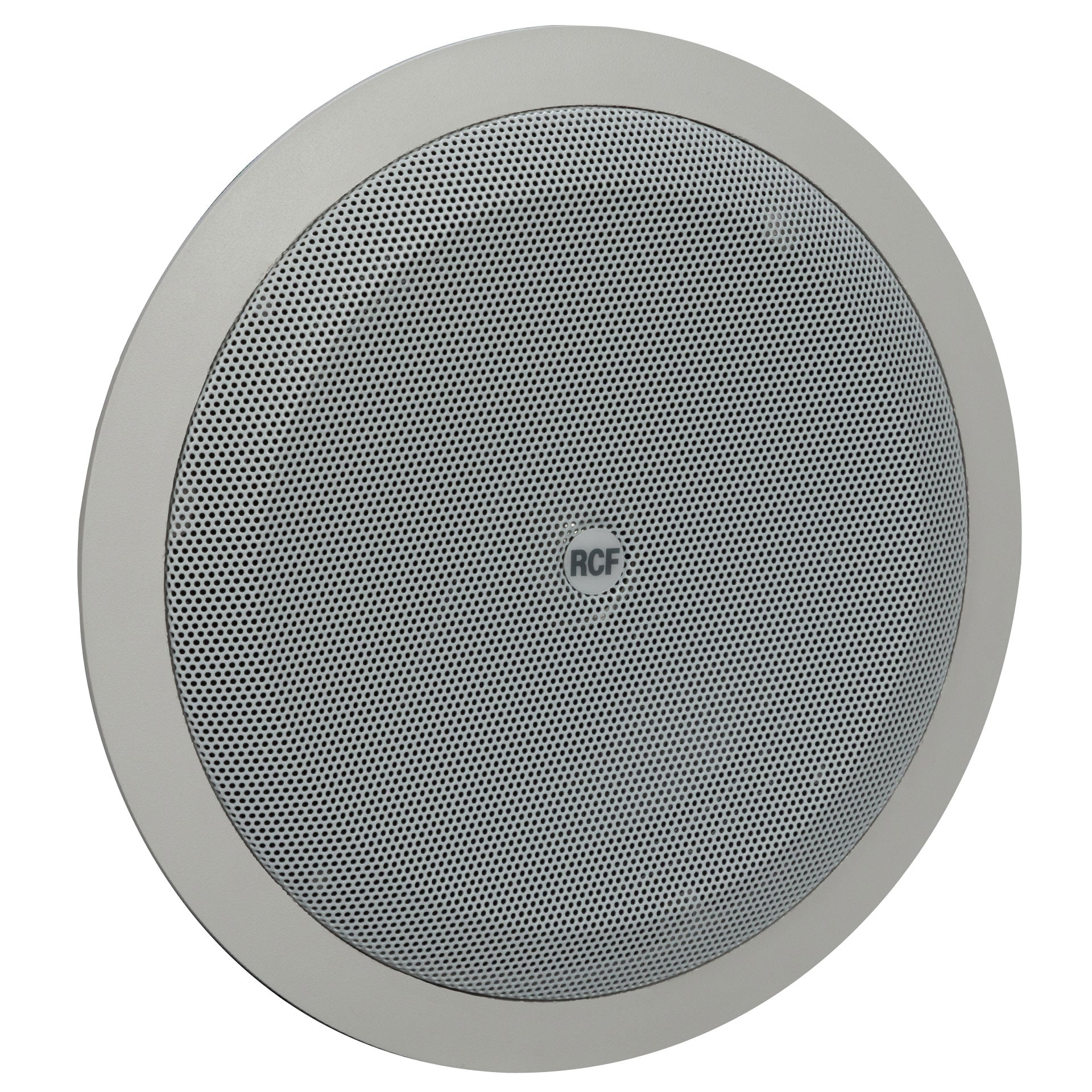

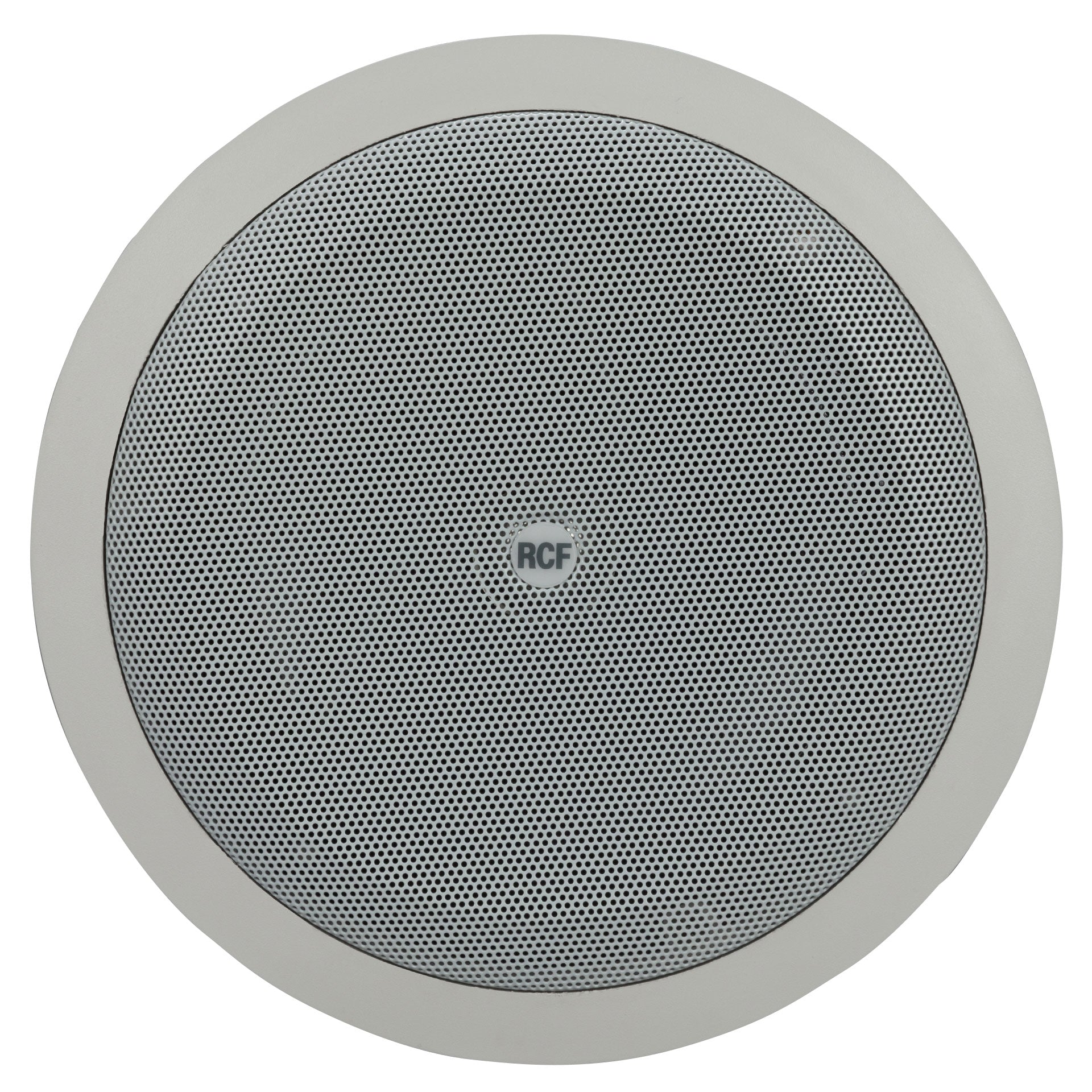

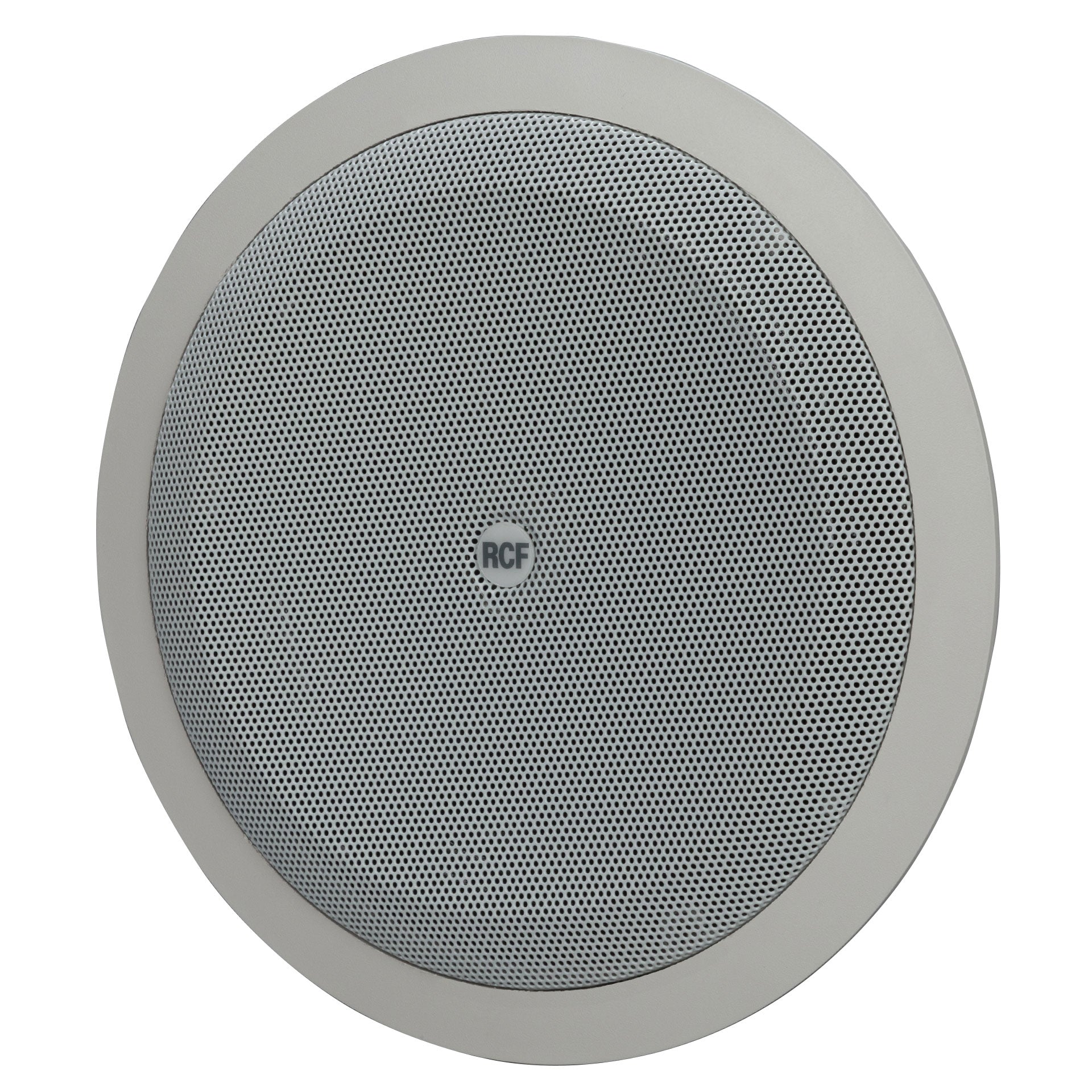

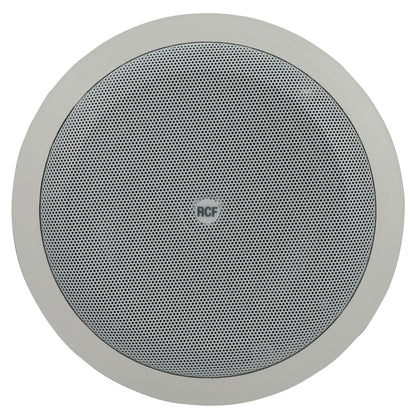

6" Coax Flush Mnt. Ceil. Speaker With Line Transf., 12W, IP 44 (White)

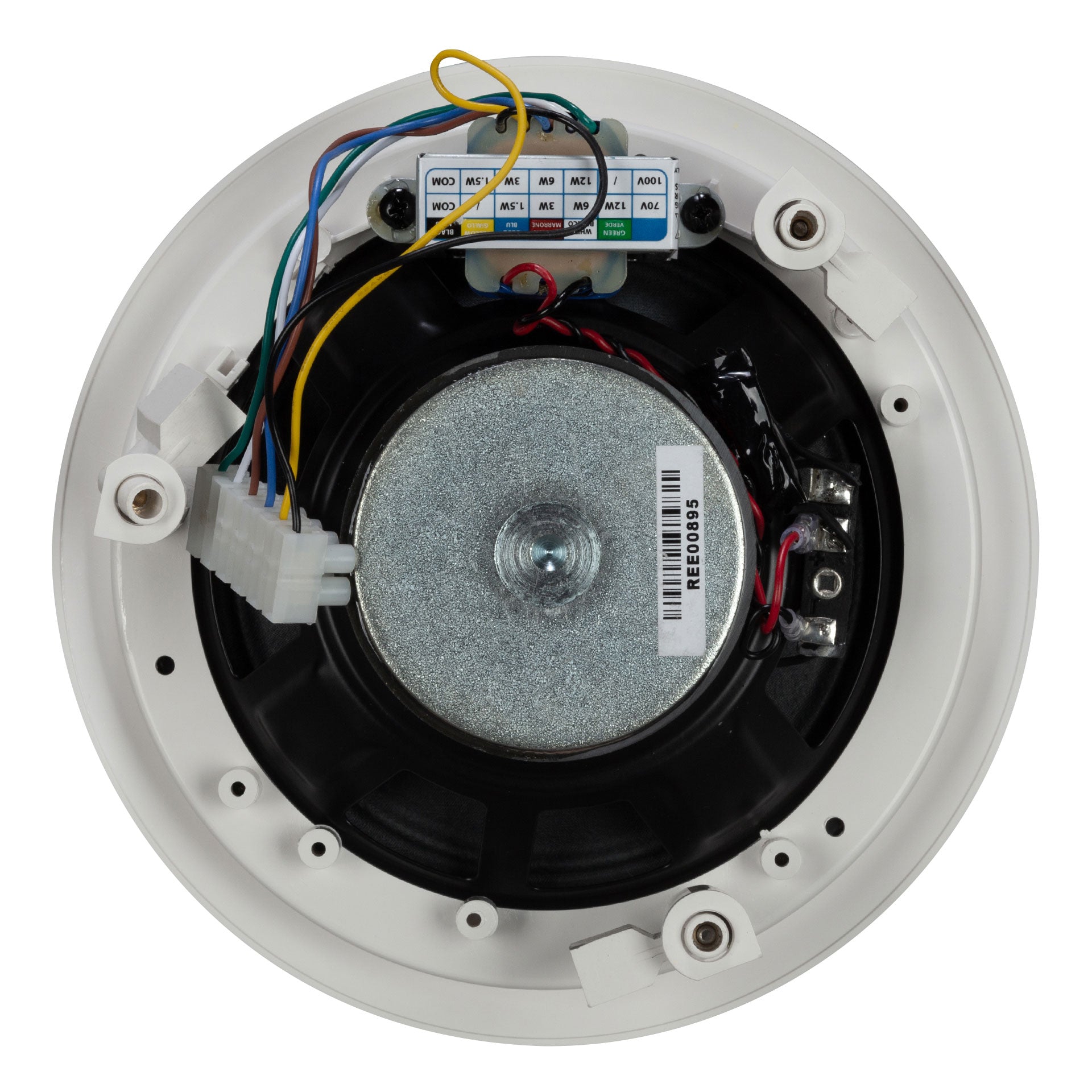

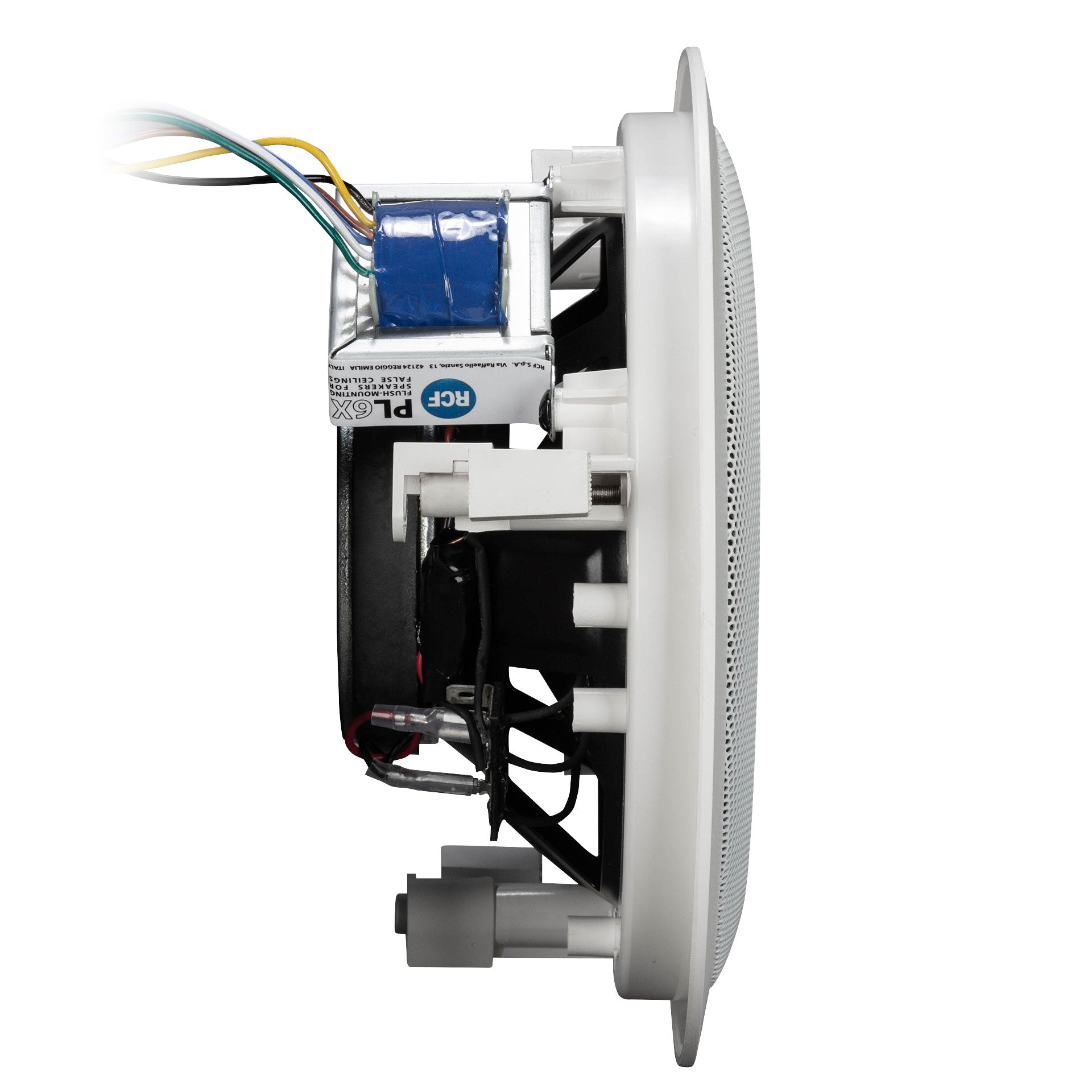

PL 6X is a ceiling speakers featuring elegant and innovative design that can be flushmounted in false ceilings or panels. Incorporating a 6” coaxial woofer with a 1” tweeter placed on a bridge support. PL 6X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.
FEATURES
- 6" woofer with 1" dome tweeter
- Power selectable (70 V / 100 V): 12 W – 6 W – 3 W – 1.5 W
- 92 dB sensitivity
- Colour white RAL 9003 and black RAL 9005
- Plastic frame UL 94 V0, aluminium grille
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response (-10dB): 70 Hz - 20000 Hz
-
Max SPL @ 1m: 106 dB
-
Coverage angle: 100°
-
System Sensitivity: 92 dB
POWER SECTION
-
Amplification: Full Range
-
Power Handling: 12 W RMS
-
Peak Power Handling: 48 W PEAK
-
Recommended Amplifiers: DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162
TRANSDUCERS
-
Dome Tweeter: 1.0''
-
Woofer: 6.0''
INPUT/OUTPUT SECTION
-
Input connectors: Screw Terminals
-
Output connectors: Screw Terminals
-

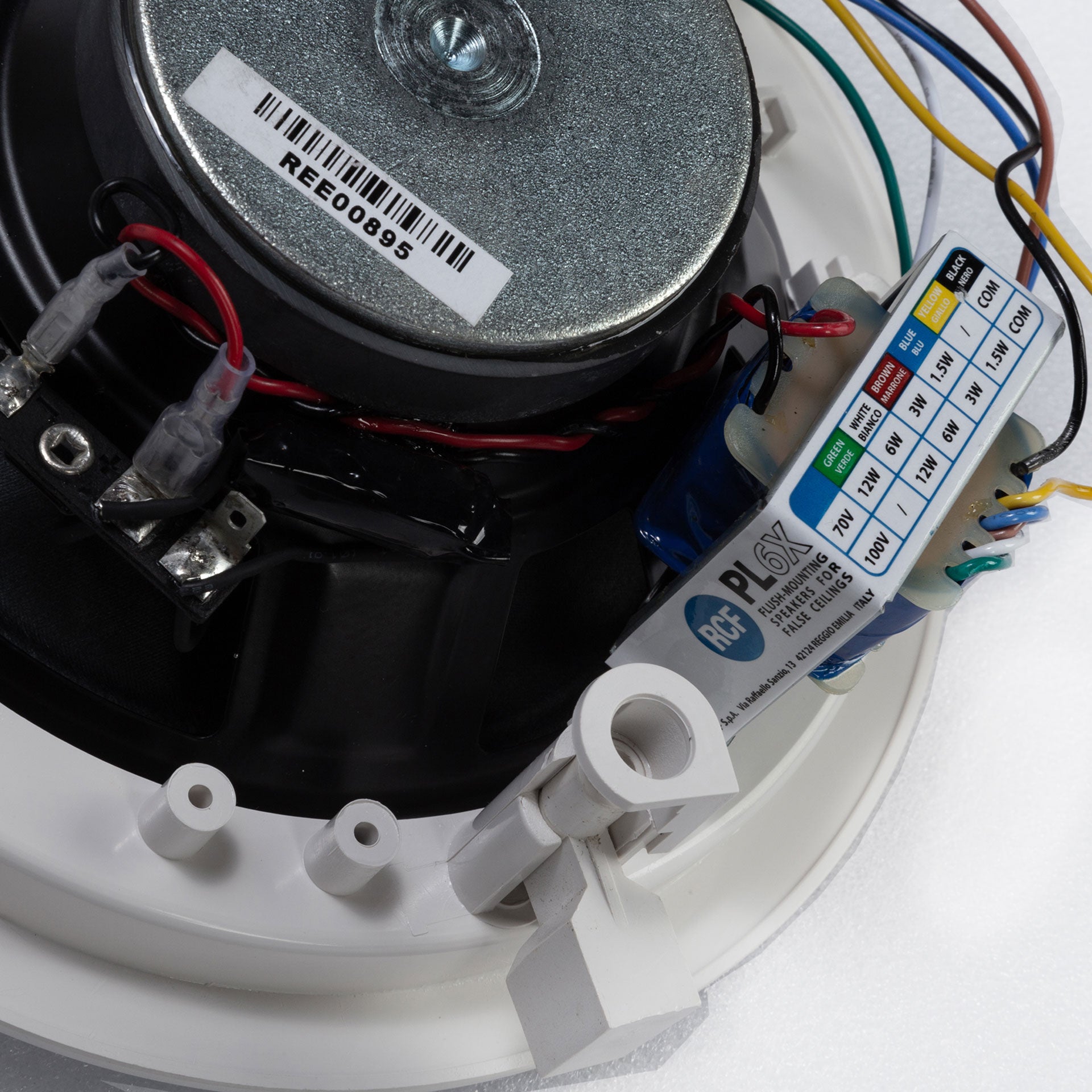

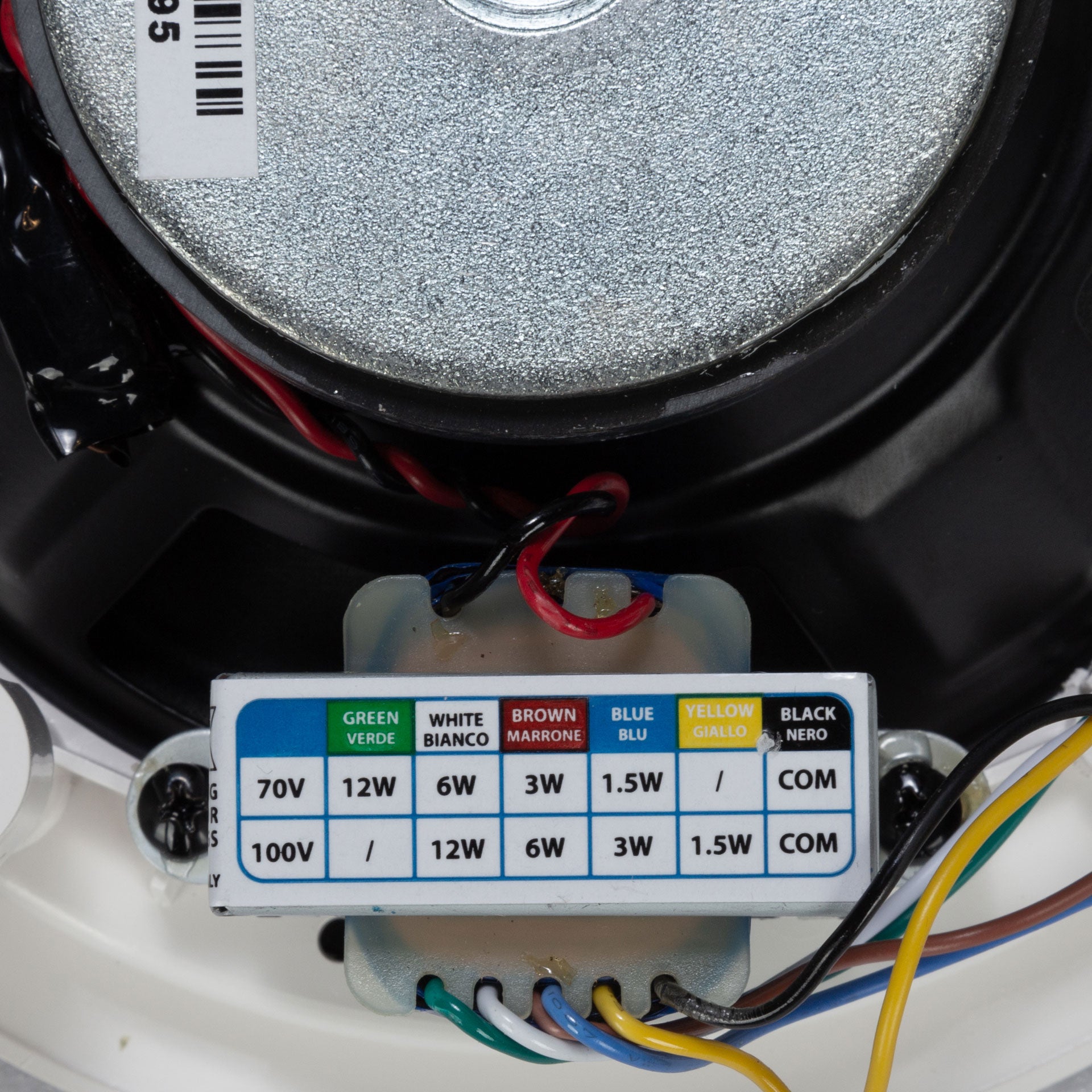

Constant Voltage Transformer: 70/100 V
-
Power selection 1: 12 W - 833 ohm
-
Power selection 2: 6 W - 1667 ohm
-
Power selection 3: 3 W - 3333 ohm
-
Power selection 4: 1.5 W - 6667 ohm
STANDARD COMPLIANCE
-
IP protection grade: IP 44
-
Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Plastic
-
Hardware: Plastic Material
-
Grille: Aluminium
-
Color: White - RAL 9003, Black - RAL 9005
SIZE / WEIGHT
-
Depth: 73 mm / 2.87 inches
-
Recessed Depth: 66 mm / 2.6 inches
-
Diameter: 204 mm / 8.03 inches
-
Cut out diameter: 182 mm / 7.17 inches
-
Weight: 0.78 kg / 1.72 lbs
SHIPPING INFORMATION
-
Package Height: 240 mm / 9.45 inches
-
Package Width: 240 mm / 9.45 inches
-
Package Depth: 110 mm / 4.33 inches
-
Package Weight: 1.56 kg / 3.44 lbs
