RCF PL 40 31/2" Flush Mnt. Ceil. Speaker With Line Transf., 8W, IP 44

RCF PL 40 31/2" Flush Mnt. Ceil. Speaker With Line Transf., 8W, IP 44

Write a review

SKU: PL 40

$99.00
$99.00
Sale Sold out
Shipping calculated at checkout.

Available options

View full details

Description

31/2" Flush Mnt. Ceil. Speaker With Line Transf., 8W, IP 44

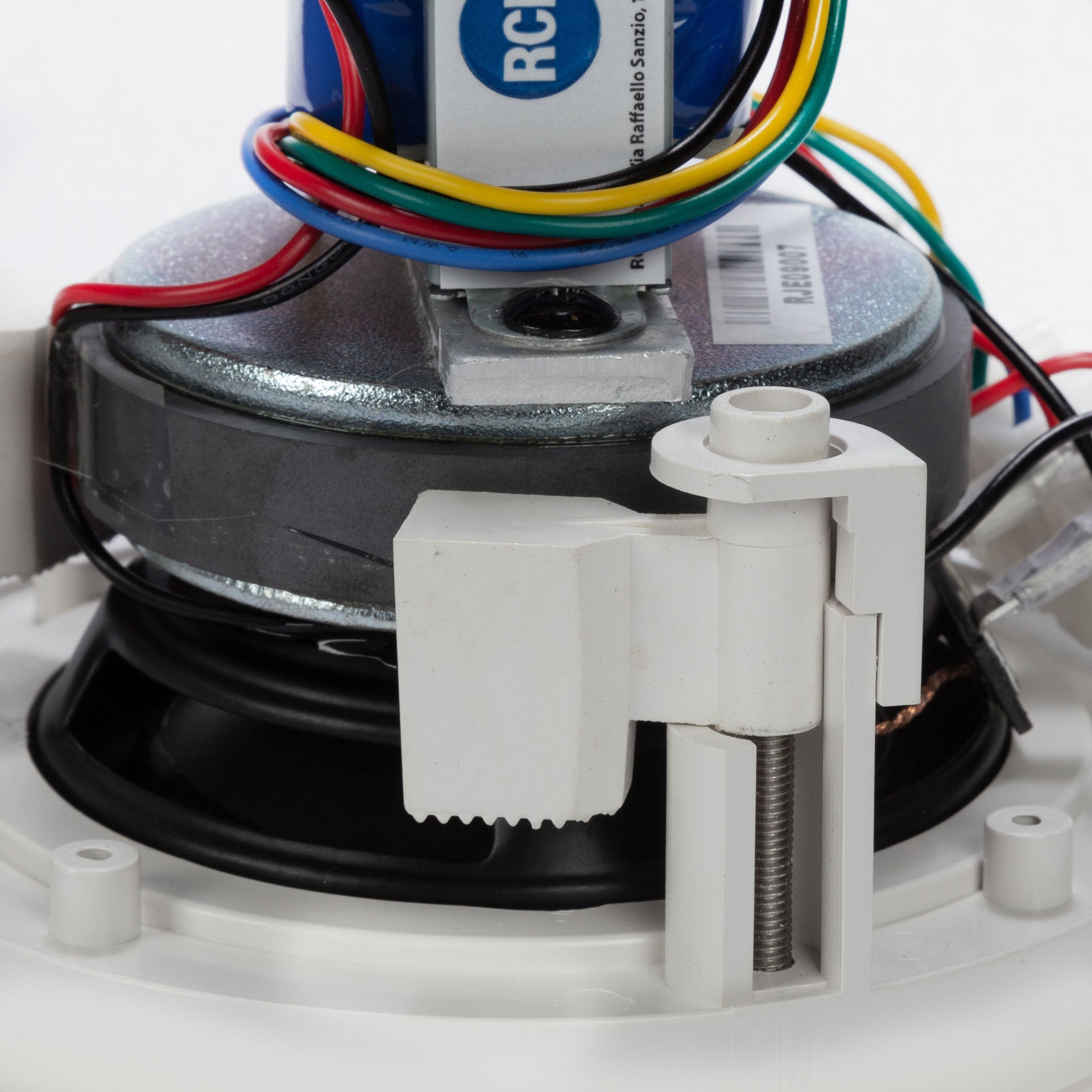

PL 40 is a ceiling speakers featuring elegant and innovative design that can be flushmounted in false ceilings or panels. Incorporating a 3.5” fullrange transducer, PL 40 is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.

FEATURES

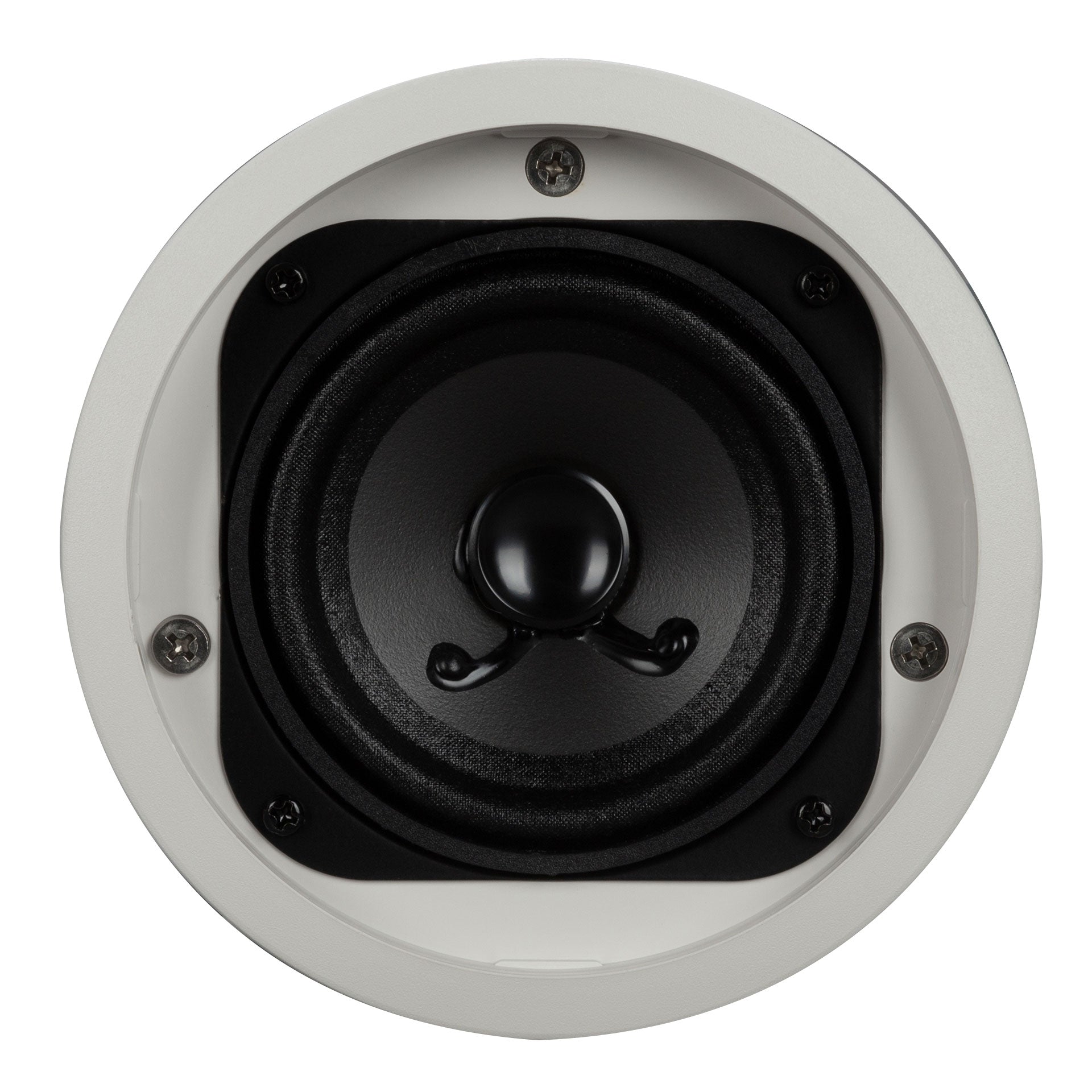

  • 3.5" fullrange transducer
  • Power selectable (100 V): 8 W – 6 W – 4 W – 2 W
  • 88 dB sensitivity
  • Colour white RAL 9003
  • Plastic frame UL 94 V0, aluminium grille

Specifications

ACOUSTICAL SPECIFICATIONS

  • Frequency Response (-10dB): 90 Hz - 20000 Hz
  • Max SPL @ 1m: 100 dB
  • Coverage angle: 120°
  • System Sensitivity: 88 dB

POWER SECTION

  • Amplification: Full Range
  • Power Handling: 8 W RMS
  • Peak Power Handling: 32 W PEAK
  • Recommended Amplifiers: DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162

TRANSDUCERS

  • Fullrange: 1 x 3.5''

INPUT/OUTPUT SECTION

  • Input connectors: Screw Terminals
  • Output connectors: Screw Terminals
  • Constant Voltage Transformer: 100 V

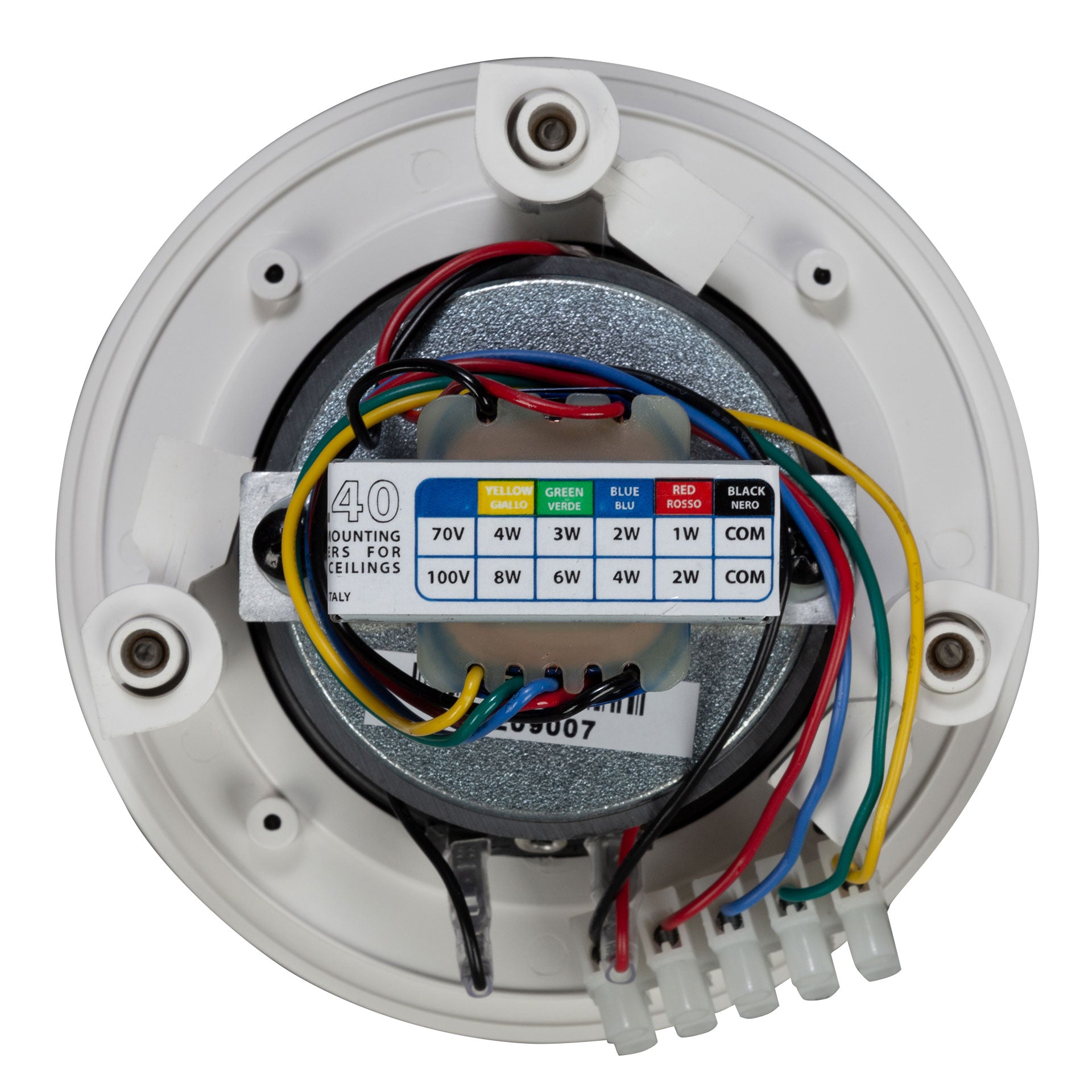

  • Power selection 1: 8 W - 1250 ohm
  • Power selection 2: 6 W - 1667 ohm
  • Power selection 3: 4 W - 2500 ohm
  • Power selection 4: 2 W - 5000 ohm

STANDARD COMPLIANCE

  • IP protection grade: IP 44
  • Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

  • Cabinet/Case Material: Plastic
  • Hardware: Plastic Material
  • Grille: Aluminium
  • Color: White - RAL 9003

SIZE / WEIGHT

  • Depth: 110 mm / 4.33 inches
  • Recessed Depth: 103 mm / 4.06 inches
  • Diameter: 130 mm / 5.12 inches
  • Cut out diameter: 122 mm / 4.8 inches
  • Weight: 0.38 kg / 0.84 lbs

SHIPPING INFORMATION

  • Package Height: 120 mm / 4.72 inches
  • Package Width: 175 mm / 6.89 inches
  • Package Depth: 175 mm / 6.89 inches
  • Package Weight: 1.2 kg / 2.65 lbs
