Description

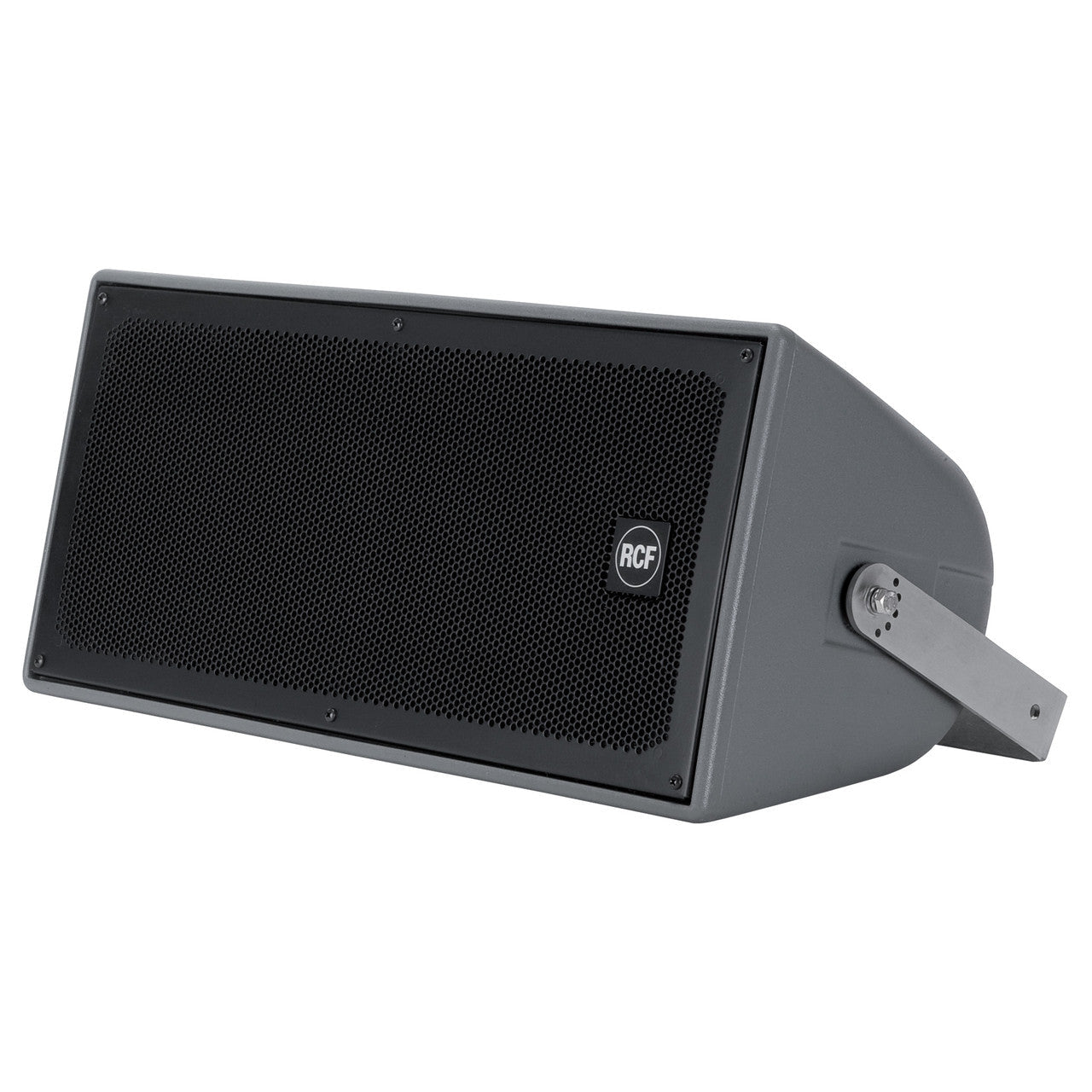

RCF P5228 Passive 2000W Dual 8" 2-Way Weatherproof Speaker (IP55)

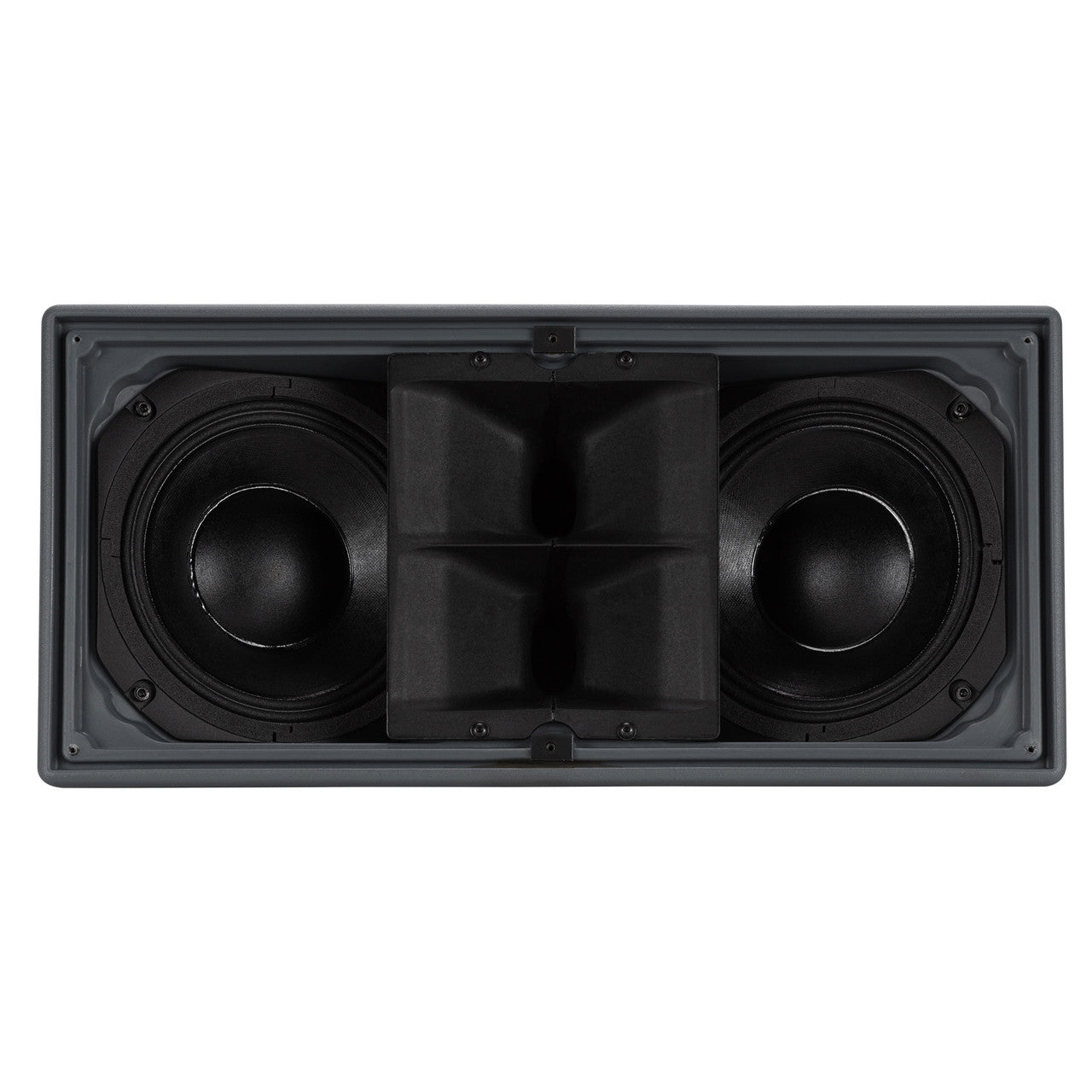

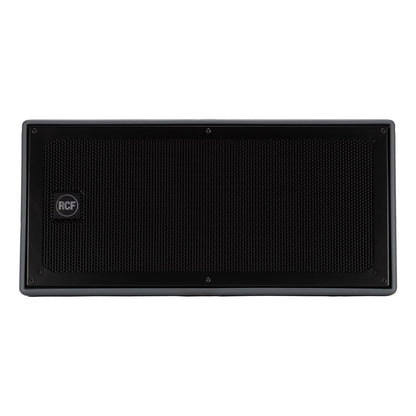

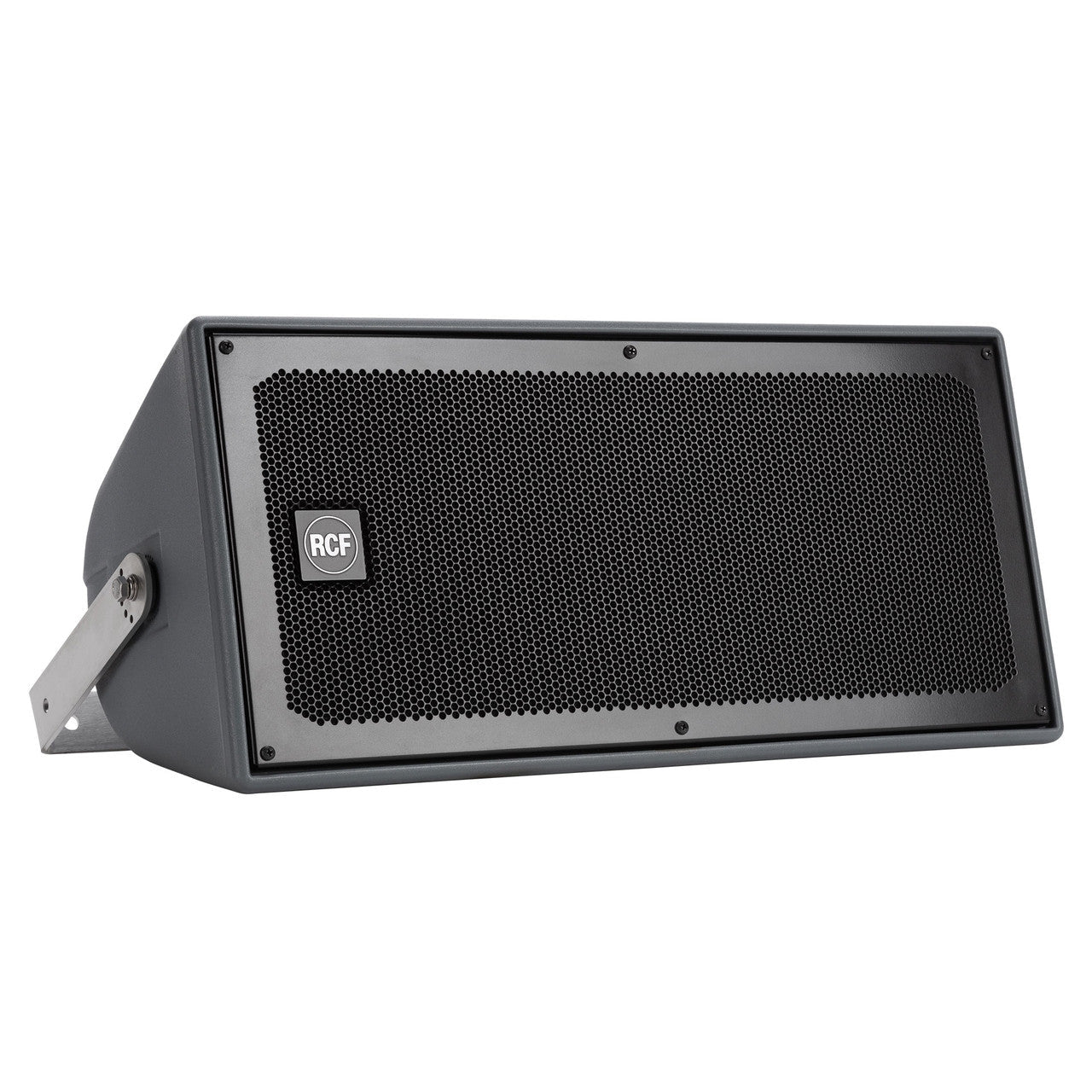

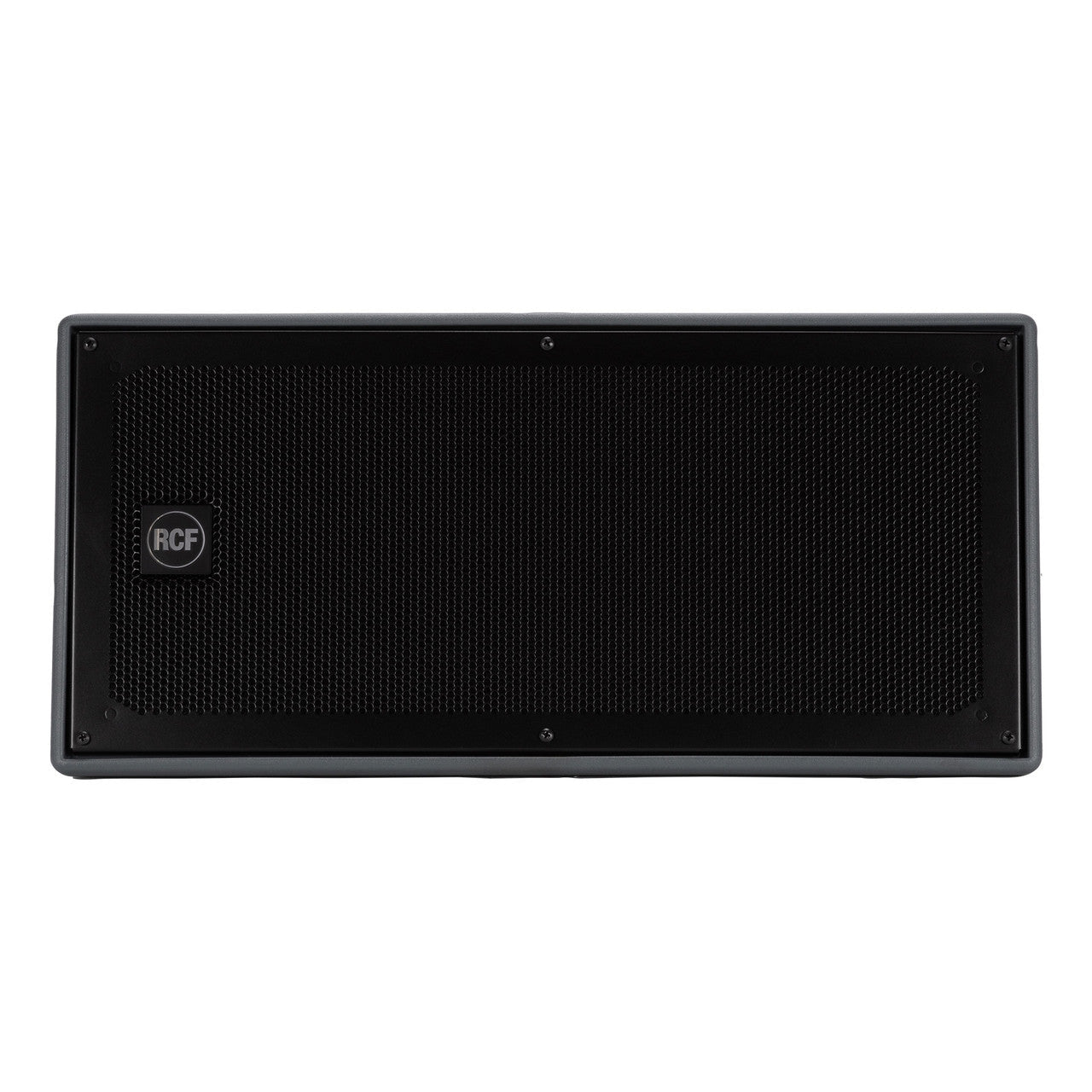

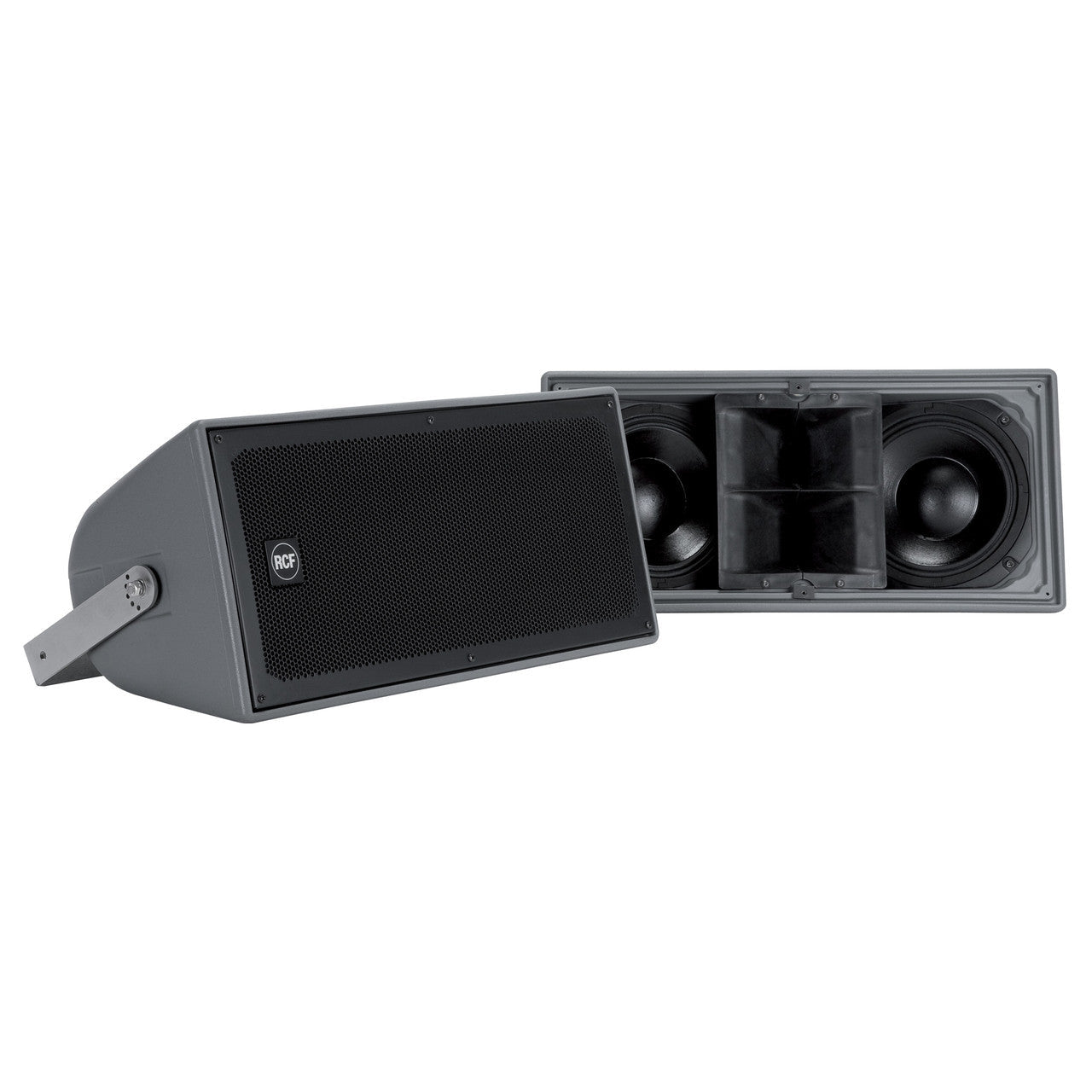

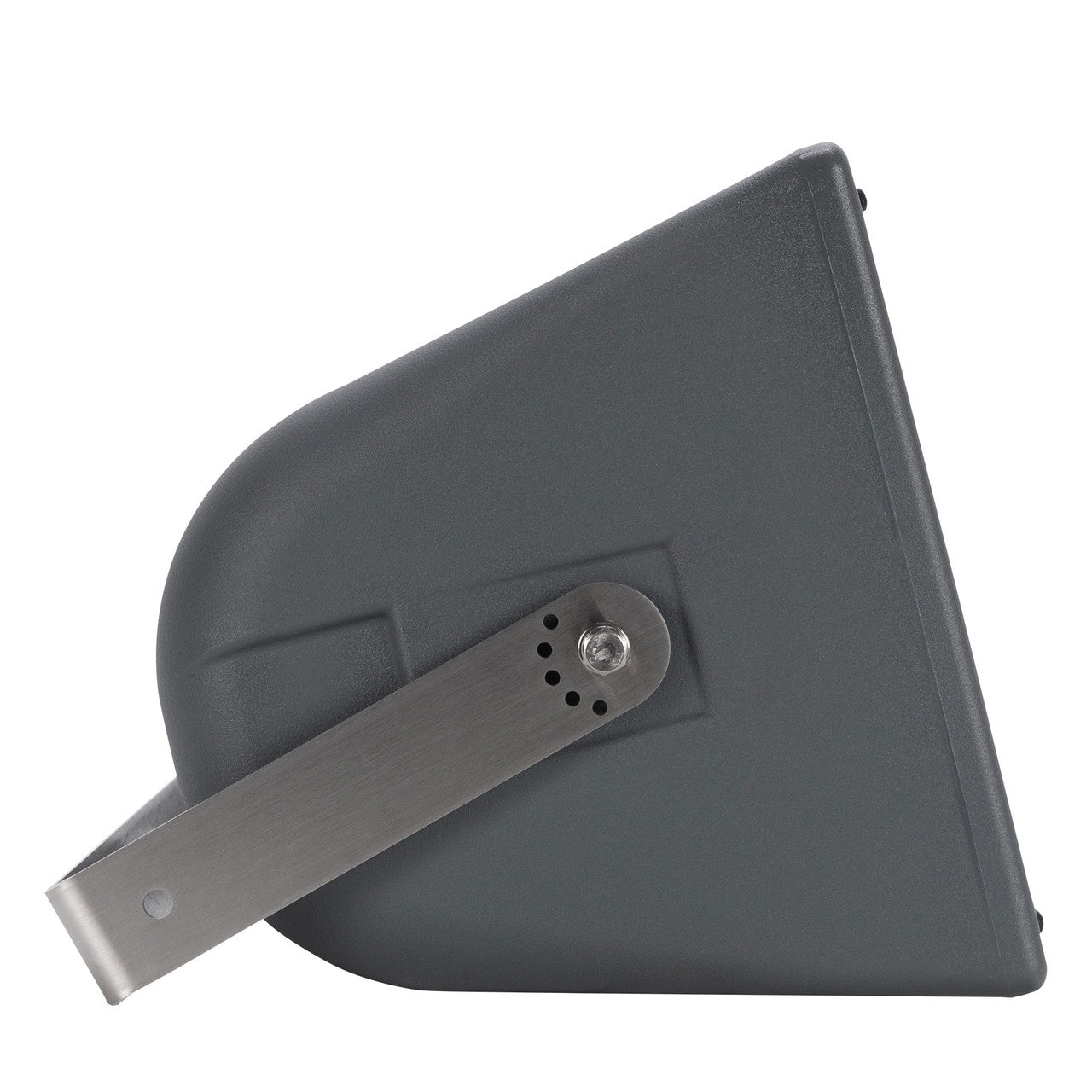

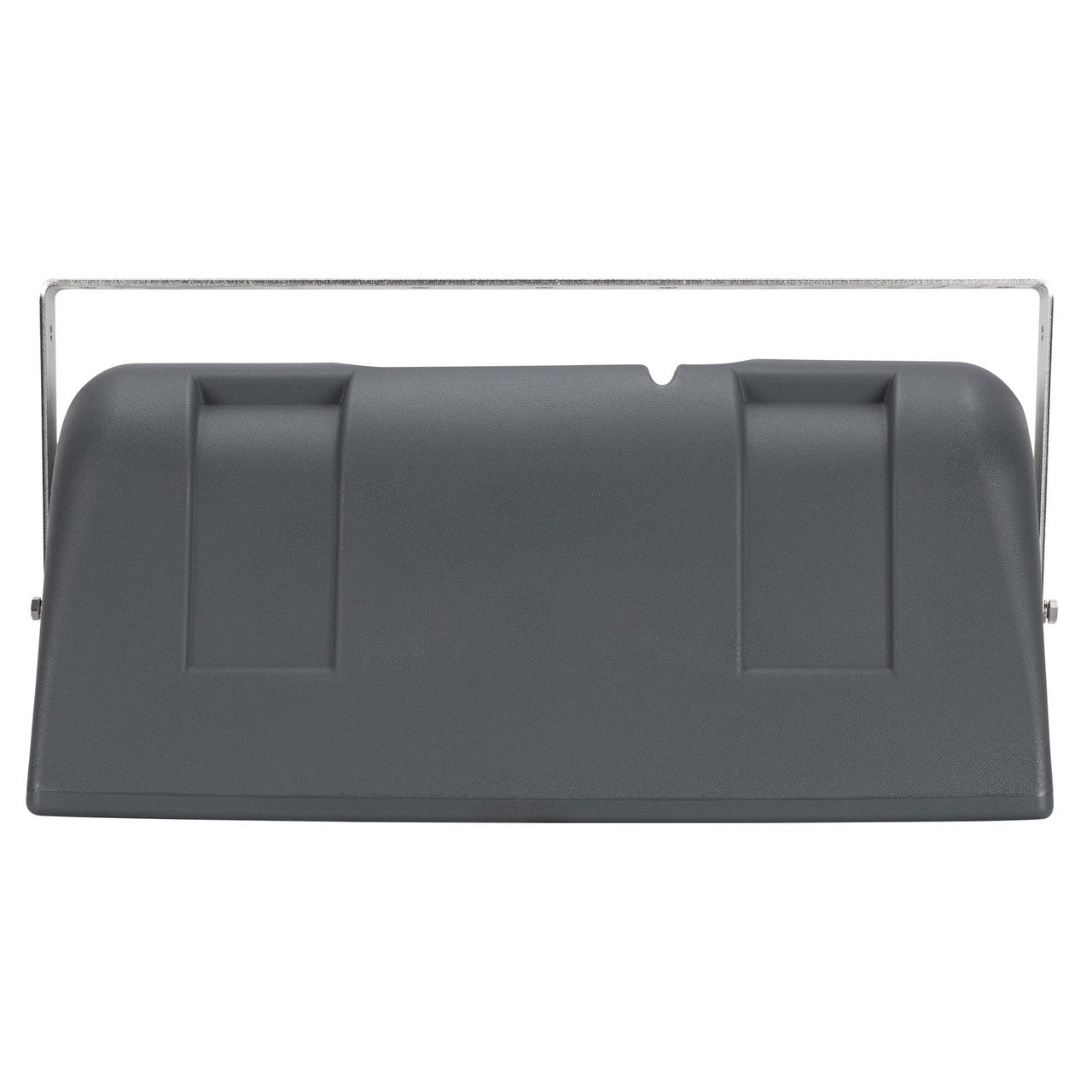

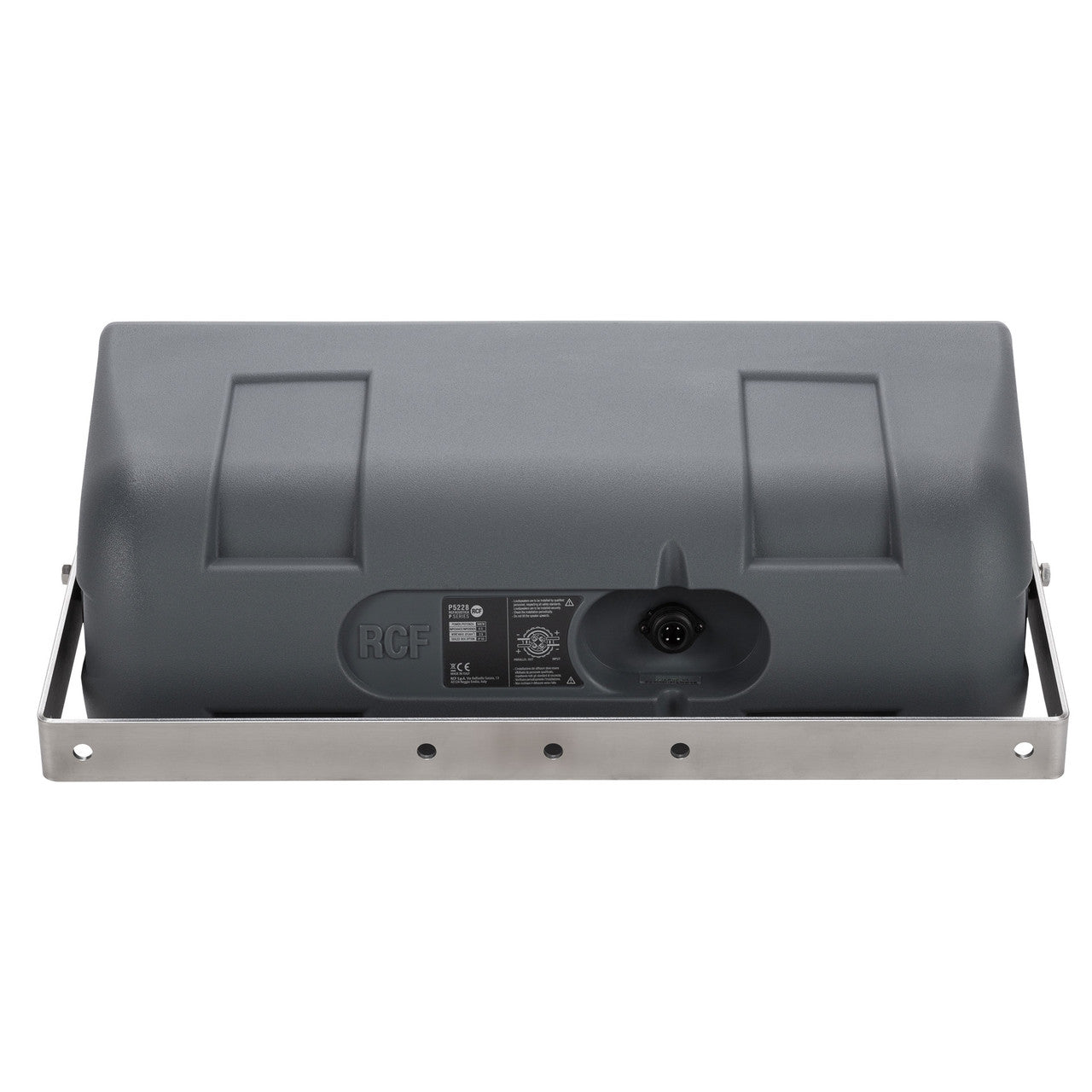

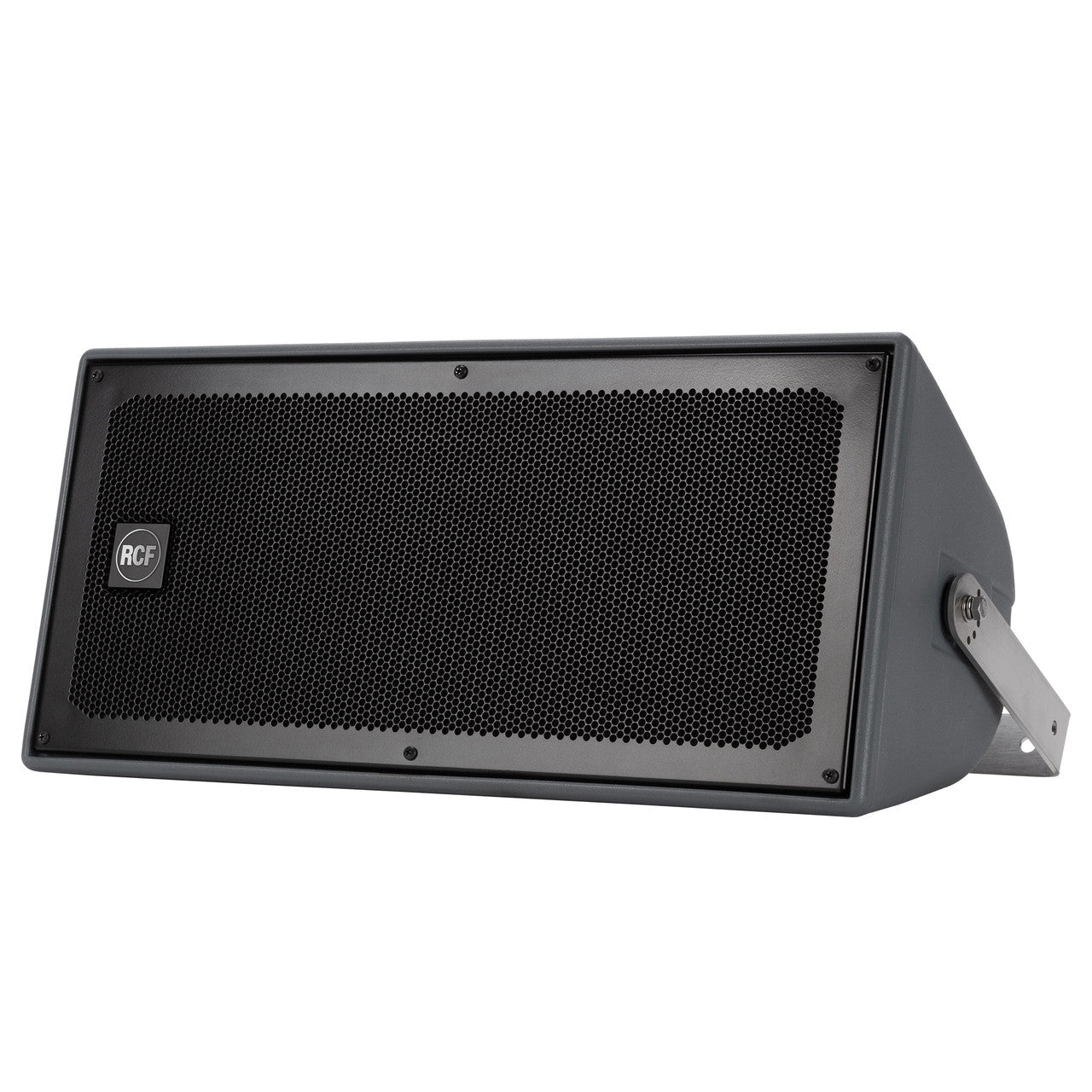

The P 5228-L is a weatherproof full range, two-way speaker, suitable for a variety of professional applications. The speaker can be installed individually or coupled in array configurations. The high-frequency section includes two constant directivity CMD horns, each loaded with a 1" RCF Precision neodymium compression driver with a 1.75" diaphragm assembly for smooth, highly controlled 20° vertical coverage. The low-frequency section combines two 8" woofers with a 2.5" voice coil. The symmetrical arrangement of the transducers delivers a controlled horizontal dispersion with consistent directivity. Internal circuitry provides LICC crossover and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP 55 standard requirements, equipped with M8 brass inserts (4x) and a corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The front aluminum grille is powder coated with water-repellent backing material and has a rotatable logo plate.
Features
- 500 W RMS power handling
- 131 dB max SPL
- 80 Hz ÷ 20000 Hz frequency range
- 2 x 8" neodymium woofer, 2.5" v.c.
- 2 x 1.75" v.c. neodymium compression driver
- 90° x 20° constant directivity
- Weatherproof IP55 cabinet with UV protection
- Aluminum grille
- AISI 316L stainless steel bracket
- Amphenol IP67 4 pole input connector
Specifications
Acoustical specifications
- Frequency Response (-10dB) : 80 Hz ÷ 20000 Hz
- Max SPL @ 1m : 131 dB
- Horizontal coverage angle : 90°
- Vertical coverage angle : 20°
- Directivity index Q : 11
- System Sensitivity : 98 dB
Power section
- Amplification : Full Range
- Nominal Impedance : 8 ohm
- Power Handling : 500 W
- Peak Power Handling : 2000 W PEAK
- Protections : Dynamic active mosfet
- Crossover Frequencies : 1300 Hz
Transducers
- Compression Driver : 2 x 1.0'' neo, 1.75'' v.c
- Woofer : 2 x 8'' neo, 2.5'' v.c
Input/Output section
- Input connectors : Amphenol eco/mat IP 67
Standard compliance
- IP protection grade : IP 55
- Safety agency : CE compliant
Physical specifications
- Cabinet/Case Material : PE Low Density
- Hardware : 4 x M8 inserts
- Grille : Aluminum with waterproof clothing
- Color : Grey
Size / Weight
- Height : 268 mm / 10.55 inches
- Width : 566 mm / 22.28 inches
- Depth : 250 mm / 9.84 inches
- Weight : 14 kg / 30.86 lbs
Shipping information
- Package Height : 604 mm / 23.78 inches
- Package Width : 289 mm / 11.38 inches
- Package Depth : 289 mm / 11.38 inches
- Package Weight : 17 kg / 37.48 lbs
