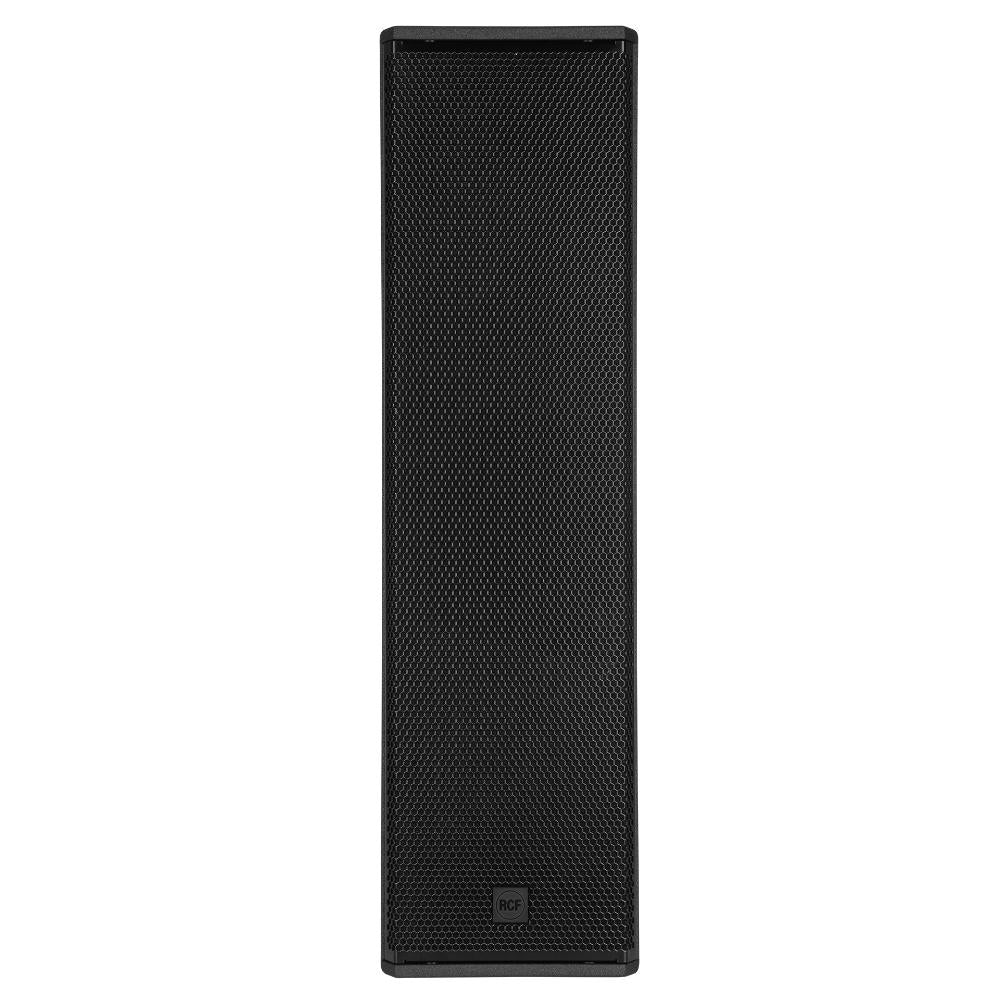

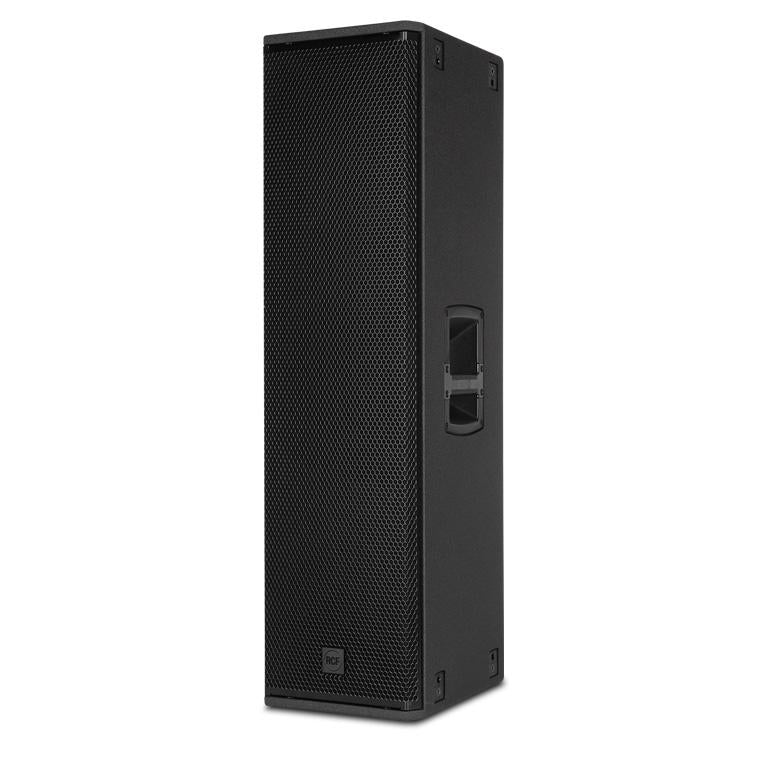

RCF NXW44-A Active 2100W Triple 10" 2-Way Column Speaker (100° X 50° Coverage)
RCF NXW44-A Active 2100W Triple 10" 2-Way Column Speaker (100° X 50° Coverage)
SKU: NXW44-A
Available options
Description
Active 2100W Triple 10" 2-Way Column Speaker (100° X 50° Coverage)
NXW 44-A is a column speaker masterfully engineered from the ground up to deliver stellar audio performance for bands, DJs, nightclubs, and rental companies. The best-in-class combination of premium RCF transducers and a 2,100W two-channel amplifier produces coherent 100° x 50° coverage for the listening area up to 135 dB SPL. The two-way design features three 10” neodymium woofers and a CMD horn-loaded 3” compression driver. The Constant Matching Design horn delivers accurate sound to the coverage area without tilting the cabinet. The speaker delivers an extended frequency range down to 45 Hz and can be used as a stand-alone speaker, flown or pole-mounted. Pairing the speaker with a subwoofer delivers full-range power for medium-sized concerts and high-powered DJ systems. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, the NXW 44-A speaker is tuned for absolute sound clarity and deep, powerful bass response. The rugged, tour-ready, high-quality baltic birch plywood enclosure is easy to carry and installed securely using dedicated rigging points.
Features
Specifications
| Acoustical specifications | |
|---|---|
| Frequency Response | 45 Hz - 20000 Hz |
| Max SPL @ 1m | 135 dB |
| Horizontal coverage angle | 100° |
| Vertical coverage angle | 50° |
| Transducers | |
| Compression Driver | 1 x 1.4'' neo, 3.0'' v.c |
| Woofer | 3 x 10'' neo, 2.5'' v.c |
| Input/Output section | |
| Input signal | bal/unbal |
| Input connectors | Combo XLR/Jack |
| Output connectors | XLR |
| Input sensitivity | -2 dBu/+4 dBu |
| Processor section | |
| Crossover Frequencies | 800 |
| Protections | Thermal, Excurs., RMS |
| Limiter | Soft Limiter |
| Controls | Linear/Boost/High-Pass presets, Volume |
| Power section | |
| Total Power | 2100 W Peak |
| High frequencies | 700 W Peak |
| Low frequencies | 1400 W Peak |
| Cooling | Convection |
| Connections | Powercon TRUE1 TOP IN/OUT |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Baltic birch plywood |
| Hardware | 8 x M8, 8 x quick lock |

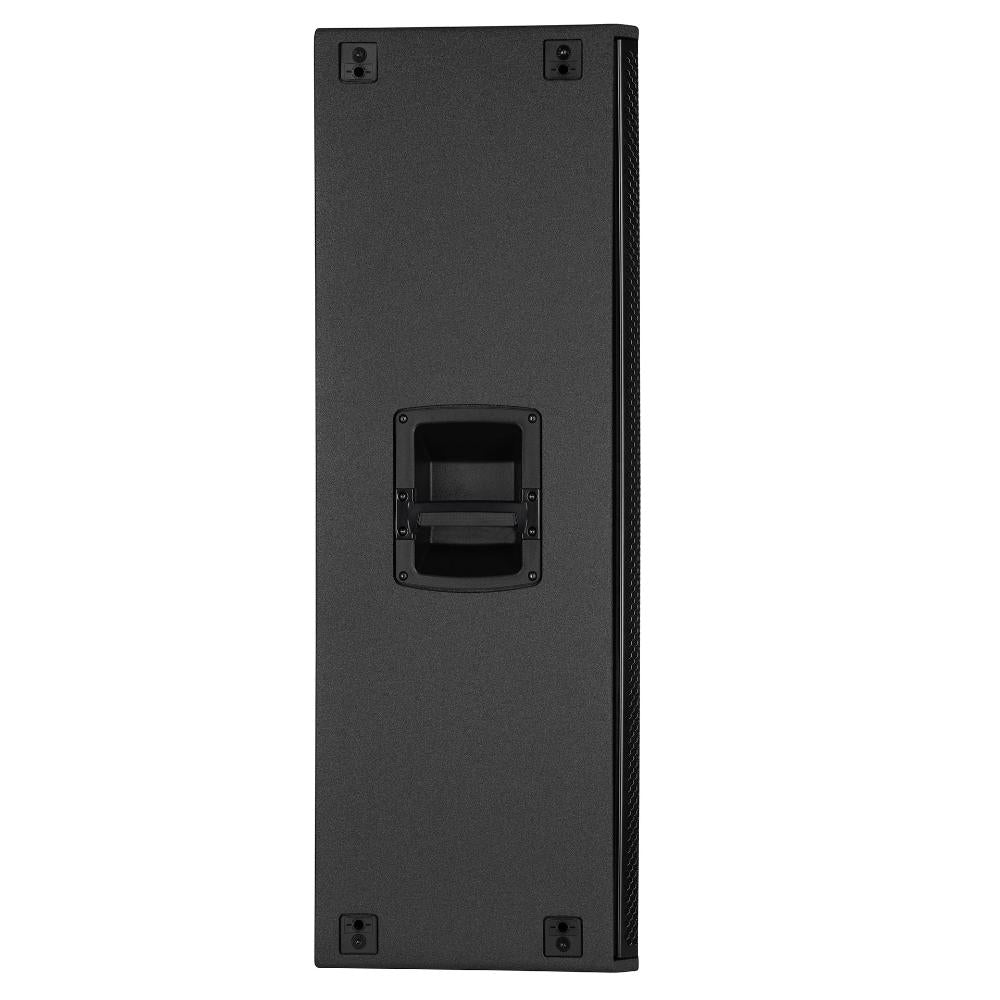

| Handles | 2 side |

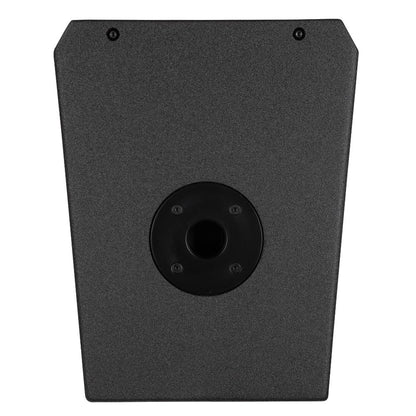

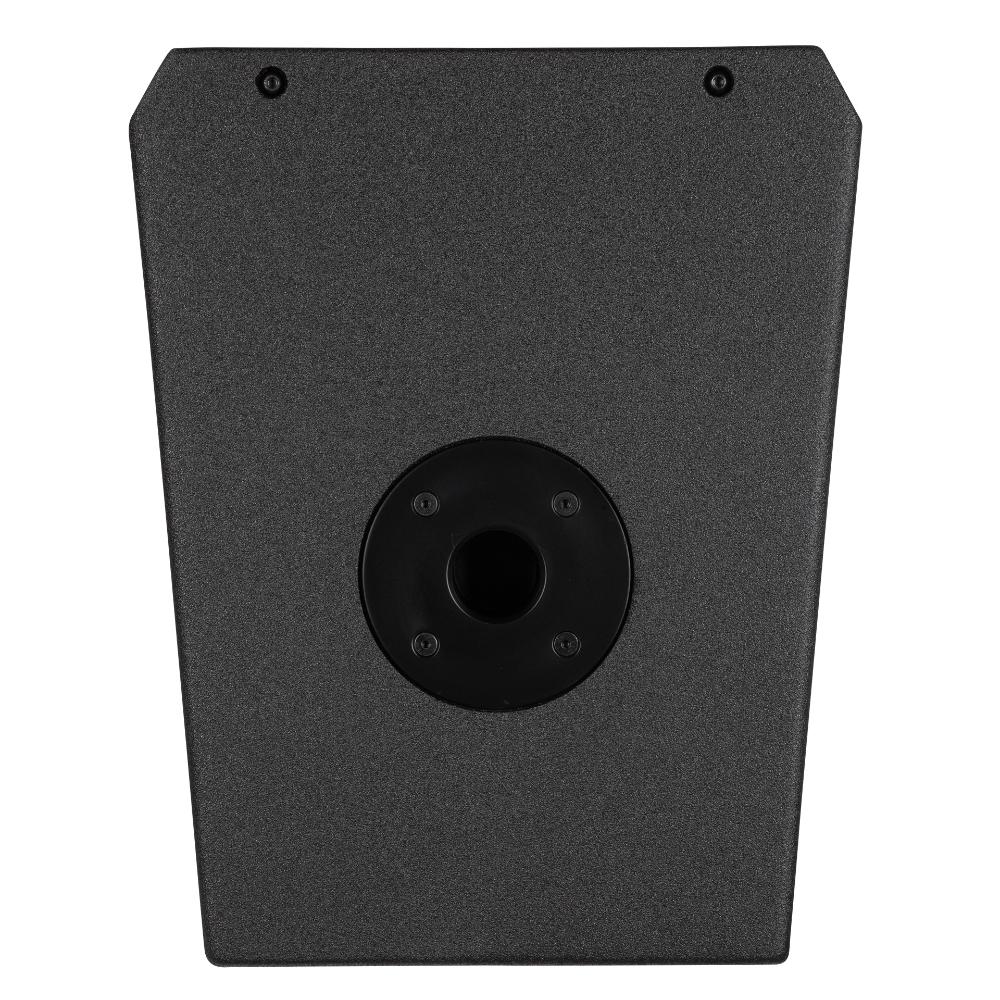

| Pole mount/Cap | 35 mm insert |
| Grille | Steel |
| Color | Black |
| Size / Weight | |
| Height | 1080 mm / 42.52 inches |
| Width | 297.5 mm / 11.71 inches |
| Depth | 373 mm / 14.69 inches |
| Weight | 31.55 kg / 69.56 lbs |
| Shipping information | |
| Package Height | 400 mm / 15.75 inches |
| Package Width | 1115 mm / 43.9 inches |
| Package Depth | 327 mm / 12.87 inches |
| Package Weight | 33.65 kg / 74.19 lbs |
