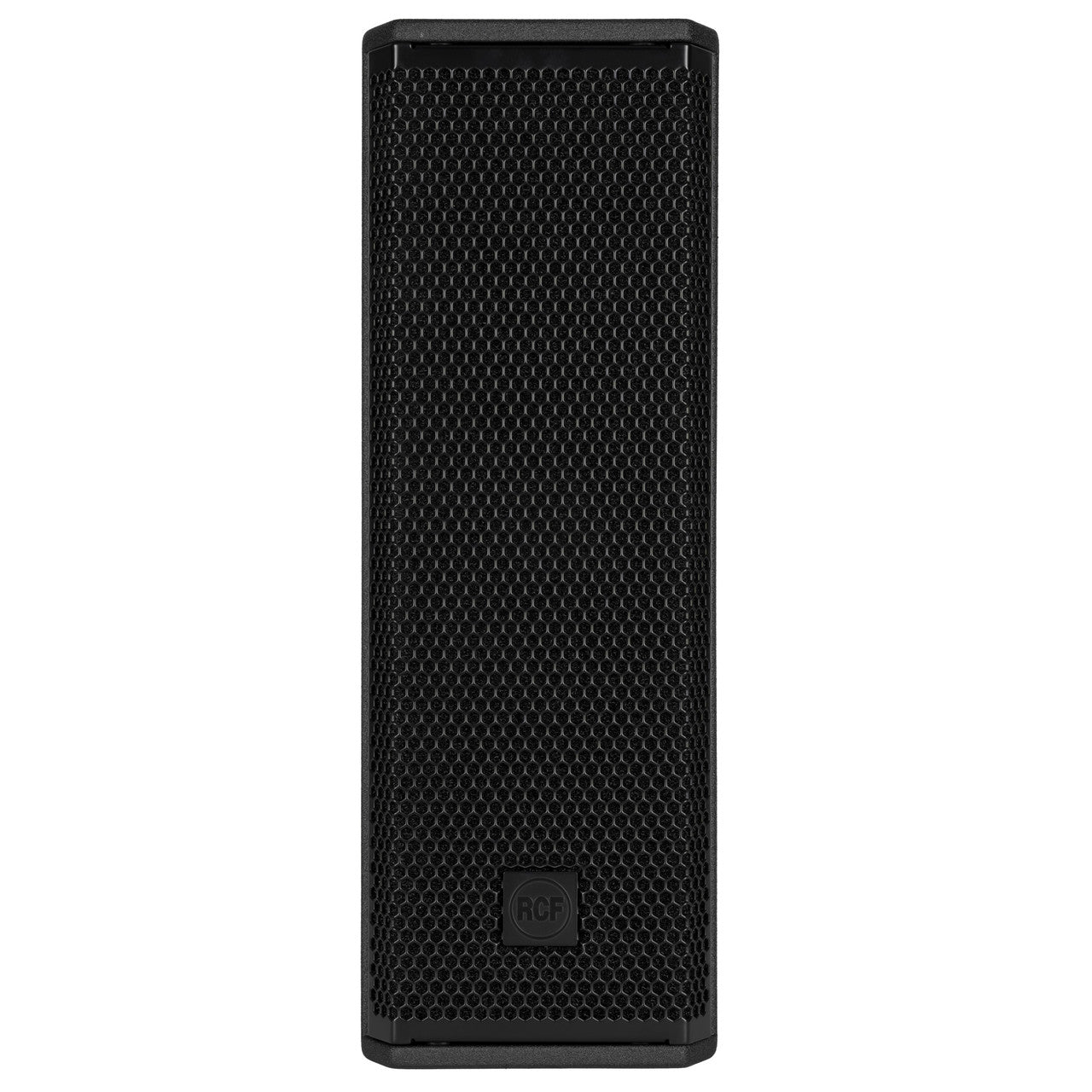

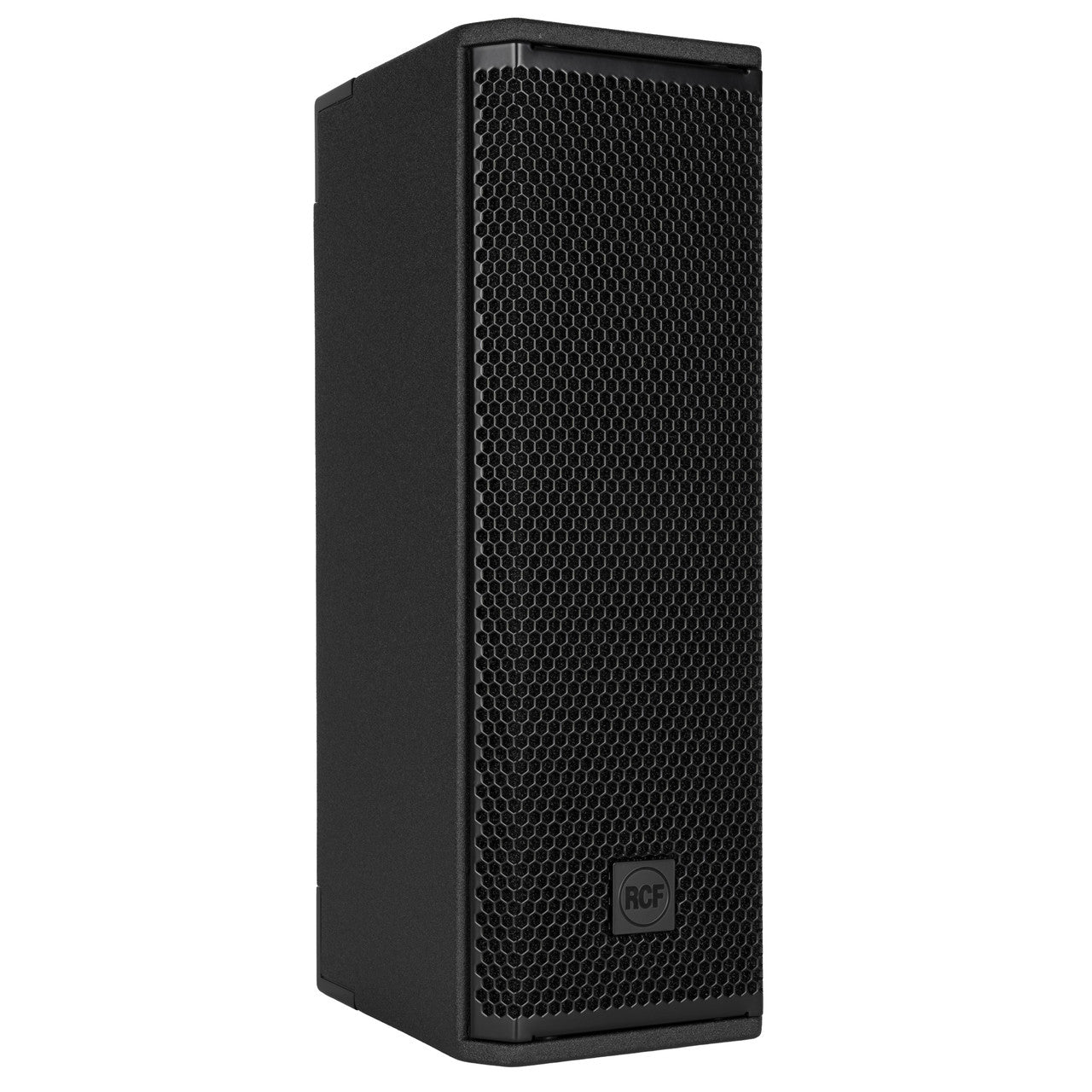

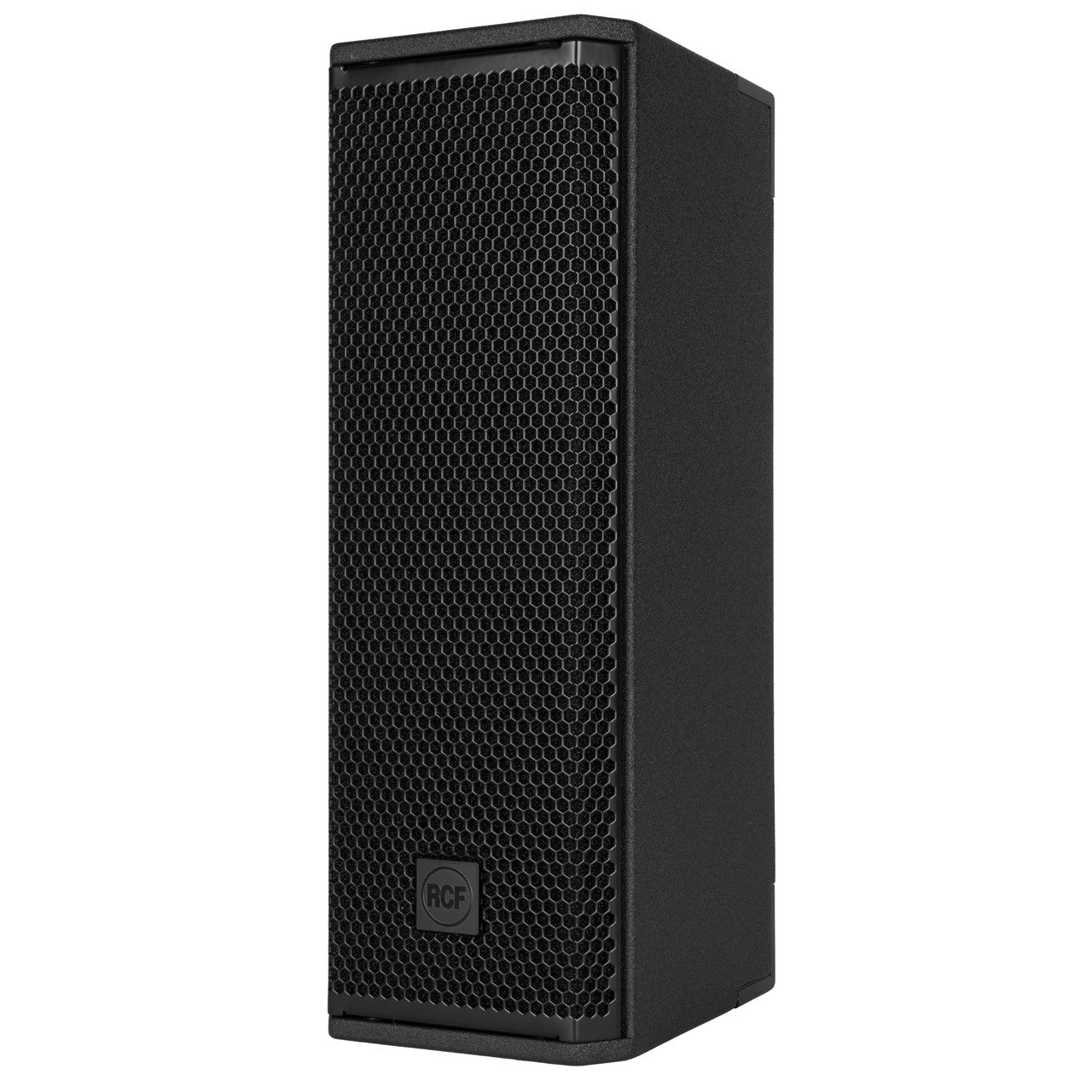

RCF NXL14-A Active 2100W Dual 6" 2-Way Column Speaker

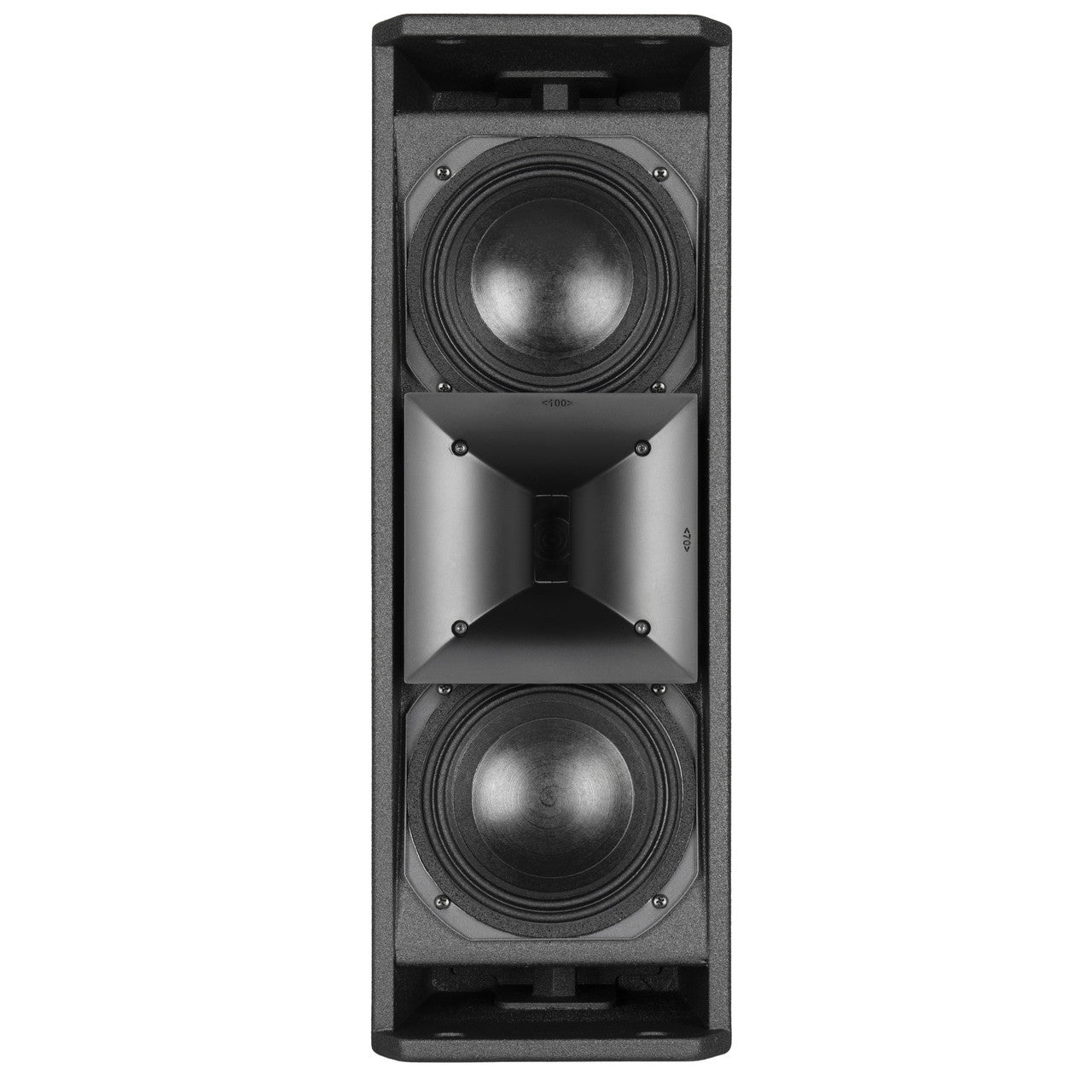

NXL 14-A is the most compact active speaker in the professional NXL series. It features two 6” woofers in a symmetrical configuration and the new 1.75” Precision Transducers PKX driver loaded on a rotatable TRW waveguide, all powered by a 2,100W two-channel amplifier. Available in black or white finish, the NXL 14-A is designed to deliver definition, power, and portability in any live application. Perfect for vocal reproduction, ideal in compact live systems paired with SUB Series subwoofers, in immersive setups, or as a fill speaker.
Features
- 128 dB max SPL
- 2100W Class-D Bi-Amplification
- 70-20000 Hz linear frequency range
- 1.75" PKX / Neodymium Compression Driver
- 2 x 6" High Power Neodymium Woofers
- Rotatable 100° x 70° TRW Waveguide
- FiRPHASE and Bass Motion Control
Specifications
Acoustical specifications
- Frequency Response : 70 Hz ÷ 20000 Hz
- Max SPL @ 1m : 128 dB
- Horizontal coverage angle : 100°
- Vertical coverage angle : 70°
Transducers
- Compression Driver : 1 x 1.0'' neo, 1.75'' v.c
- Woofer : 2 x 6.0'' neo, 2.0'' v.c

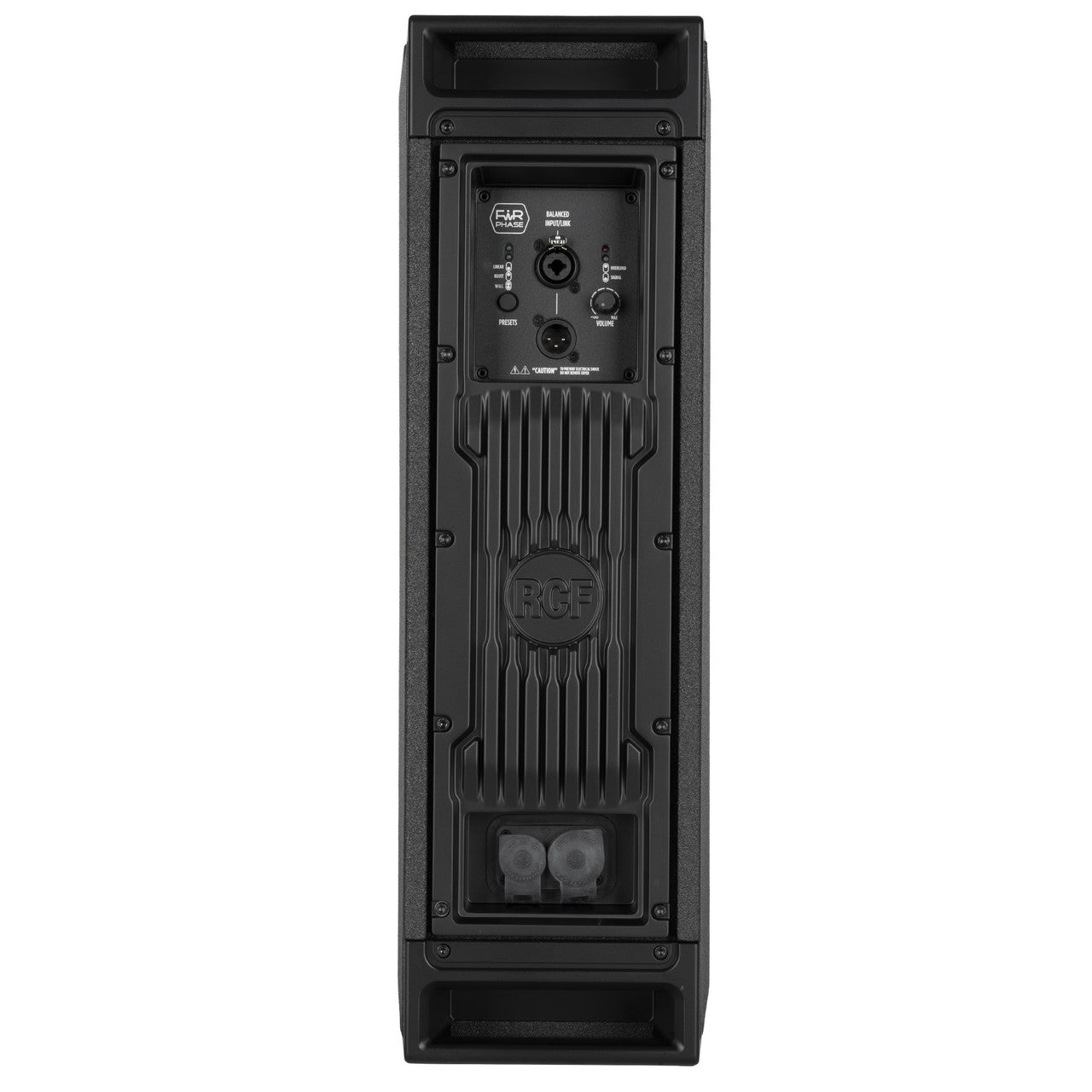

Input/Output section
- Input signal : bal/unbal
- Input connectors : Combo XLR/Jack
- Output connectors : XLR
- Input sensitivity : -2 dBu/+4 dBu
Processor section
- Crossover Frequencies : 1200
- Protections : Excurs.
- Limiter : Fast Limiter
- Controls : Linear/Boost/Stage Presets, Volume.
Power section
- Total Power : 2100 W Peak
- High frequencies : 700 W Peak
- Low frequencies : 1400 W Peak
- Cooling : Convection
- Connections : Powercon TRUE1 TOP IN/OUT
Standard compliance
- Safety agency : CE compliant
Physical specifications
- Cabinet/Case Material : Plywood
- Hardware : 2X M10 TOP AND BOTTOM, 2X PIN D.10
- Handles : 2 TOP AND BOTTOM
- Pole mount/Cap : Quick-fit socket
- Grille : Steel
- Color : Black - RAL 9005, White - RAL 9003
Size / Weight
- Height : 567 mm / 22.32 inches
- Width : 197 mm / 7.76 inches
- Depth : 270 mm / 10.63 inches
- Weight : 12.8 kg / 28.22 lbs
Shipping information
- Package Height : 600 mm / 23.62 inches
- Package Width : 232 mm / 9.13 inches
- Package Depth : 302 mm / 11.89 inches
- Package Weight : 14.6 kg / 32.19 lbs
