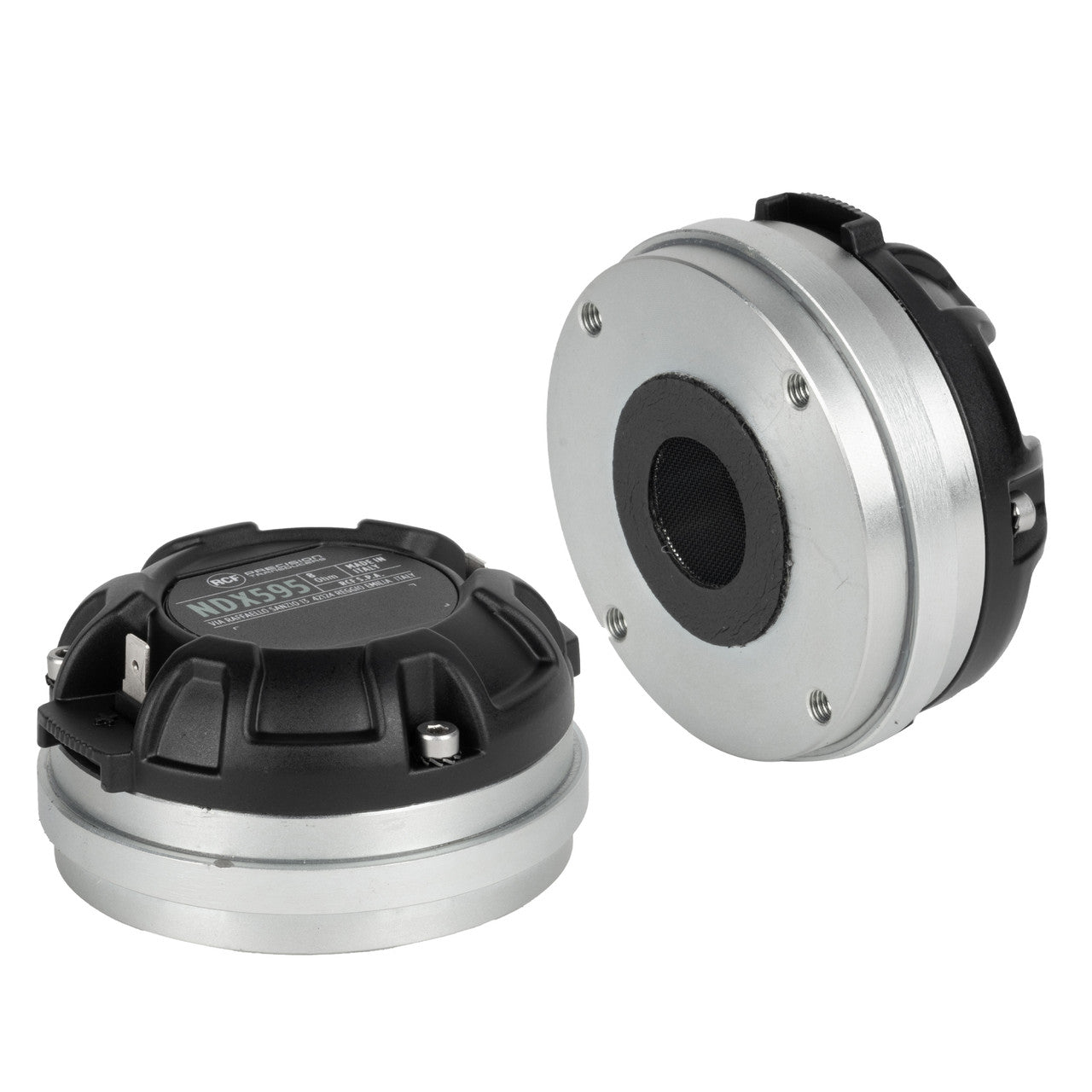

RCF NDX595 Exit: 1" 70W rms, 140W program. 110dB, 1.2-20KHz -PKX Polymer

RCF NDX595 Exit: 1" 70W rms, 140W program. 110dB, 1.2-20KHz -PKX Polymer

The 1.75" PKX dome NDX595 is a compression driver for professional applications where high-quality sound and long-term reliability are required. The ultra-compact size and the low recommended crossover point at 1000 Hz make it ideal for small two-way cabinet designs and three-way loudspeaker systems. PKX (modified polyether ether ketone) is a rigid yet lightweight material, optimized with reinforcing ribs, offering remarkable precision and reliability compared with other polymeric materials. The voice coil utilizes ultralight edge wound aluminum wire, class-leading neodymium magnets, a 3-slot phase plug, and a copper ring design to deliver exceptional power handling, sensitivity, and low distortion across its operating bandwidth. The driver specifies 140 Watts of continuous power handling at 8 ohms, with a sensitivity of 110 dB.

Features

• 1.75-inch PKX dome, polyimide surround
• Kapton former, edge wound aluminum voice coil
• 140W continuous program power handling @ 8O
• Frequency range: 500Hz - 20kHz
• 4-slot optimized geometry phase plug
• Copper inductance ring for extended response
• High-flux density neodymium magnet
• Recommended for 3-way speaker design

Specifications

General specifications

• Exit Throat Diameter : 1.0 inch / 25 mm
• Related Impedance : 8 ohm
• Program Power (watt) : 140 W
• Power handling capacity : 70 W
• Sensitivity : 110 dB
• Frequency range : 1200 - 20000 Hz
• Diaphragm Material : PKX Polymer
• Suspension Material : PKX Polymer
• Suspension Design : Flat
• Minimum Impedance (ohm) : 6.50 ohm
• Voice Coil Diameter : 1.75 inch / 44 mm
• Voice Coil Winding Material : Edgewound Aluminum
• Voice Coil Former Design : Straight - Kapton
• Number of layers : 1
• Kind of layers : outside
• Flux Density : 2.1 T
• Phase Plug Design : 3 slot
• Phase Plug Material : PP Composite
• Magnetics : Neodymium

Thiele - small parameters

• Bl factor (Bl) (T x m) : 8.00 T x m

Mounting information

• Overall diameter : 90 mm / 3.54 inches
• Overall height : 47 mm / 1.85 inches
• Mounting : 4 x 6 mm threaded holes at 90°

Standard compliance

• Safety agency : CE compliant

Shipping information

• Package Height : 65 mm / 2.56 inches
• Package Width : 111 mm / 4.37 inches
• Package Depth : 113 mm / 4.45 inches
• Package Weight : 1.13 kg / 2.49 lbs
