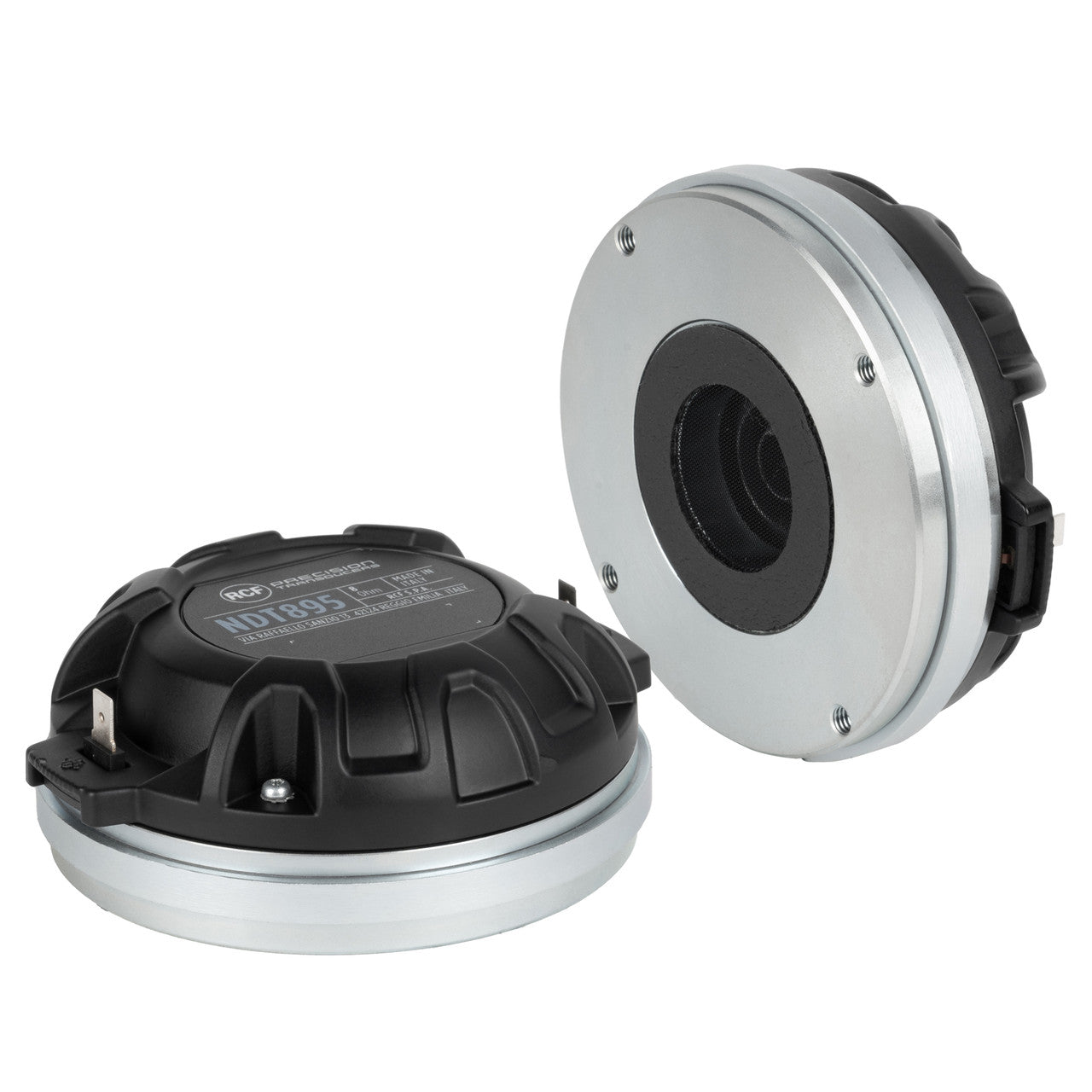

RCF NDT895 Exit: 1.4" 120W rms, 240W program. 109dB, 0.5-20KHz -Titanium
RCF NDT895 Exit: 1.4" 120W rms, 240W program. 109dB, 0.5-20KHz -Titanium
SKU: NDT895
Available options
Description
RCF NDT895 Exit: 1.4" 120W rms, 240W program. 109dB, 0.5-20KHz -Titanium
The 3-inch pure titanium dome NDT895 compression driver focuses on maximizing linearity, precision and long-term reliability. It is mainly suitable for professional line arrays and point source applications. Its motor structure features a high-flux density neodymium magnet assembly and reinforcing ribs on the dome for enhanced breakup behavior. The 3" class-leading motor design utilizes a Kapton former, ultralight edge wound aluminum wire, a 3-slot phase plug, and a copper ring design to deliver exceptional power handling, sensitivity, and low distortion across its operating bandwidth. The high sensitivity at 109 dB, 240 Watts continuous power handling at 8 ohms, and very low recommended crossover point from 700 Hz make it ideal for integration with waveguides in two-way high-powered systems.
Features
- 3.0-inch, Titanium dome, polyimide surround
- 240W continuous program power handling @ 8O
- Frequency range: 500Hz - 20kHz
- Kapton former, edge wound aluminum voice coil
- 3-slot optimized geometry phase plug
- Copper inductance ring for extended response
- Low recommended crossover point
- High-flux density neodymium magnet
Specifications
General Specifications
- Exit Throat Diameter: 1.4 inch / 36 mm
- Rated Impedance: 8 ohm
- Program Power (watt): 240 W
- Power Handling Capacity: 120 W
- Sensitivity: 109 dB
- Frequency Range: 500 - 20000 Hz
- Diaphragm Material: Pure Titanium
- Suspension Material: Pure Titanium
- Suspension Design: Double Roll
- Minimum Impedance: 7.00 ohm
- Voice Coil Diameter: 3.0 inch / 76 mm
- Voice Coil Winding Material: Edgewound Aluminum
- Voice Coil Former Design: Direct Drive Kapton
- Number of Layers: 1
- Kind of Layers: Outside
- Flux Density: 2.0 T
- Phase Plug Design: 3 slot
- Phase Plug Material: Aluminum
- Magnetics: Neodymium
- Voice Coil Demodulation Ring: Copper
Thiele - Small Parameters
- Bl Factor (Bl): 13.00 T × m
Mounting Information
- Overall Diameter: 115 mm / 4.53 inches
- Overall Height: 49 mm / 1.93 inches
- Mounting: 4 × 6 mm threaded holes at 90°
Standard Compliance
- Safety Agency: CE compliant
Shipping Information
- Package Height: 63 mm / 2.48 inches
- Package Width: 142 mm / 5.59 inches
- Package Depth: 144 mm / 5.67 inches
- Package Weight: 1.6 kg / 3.53 lbs
